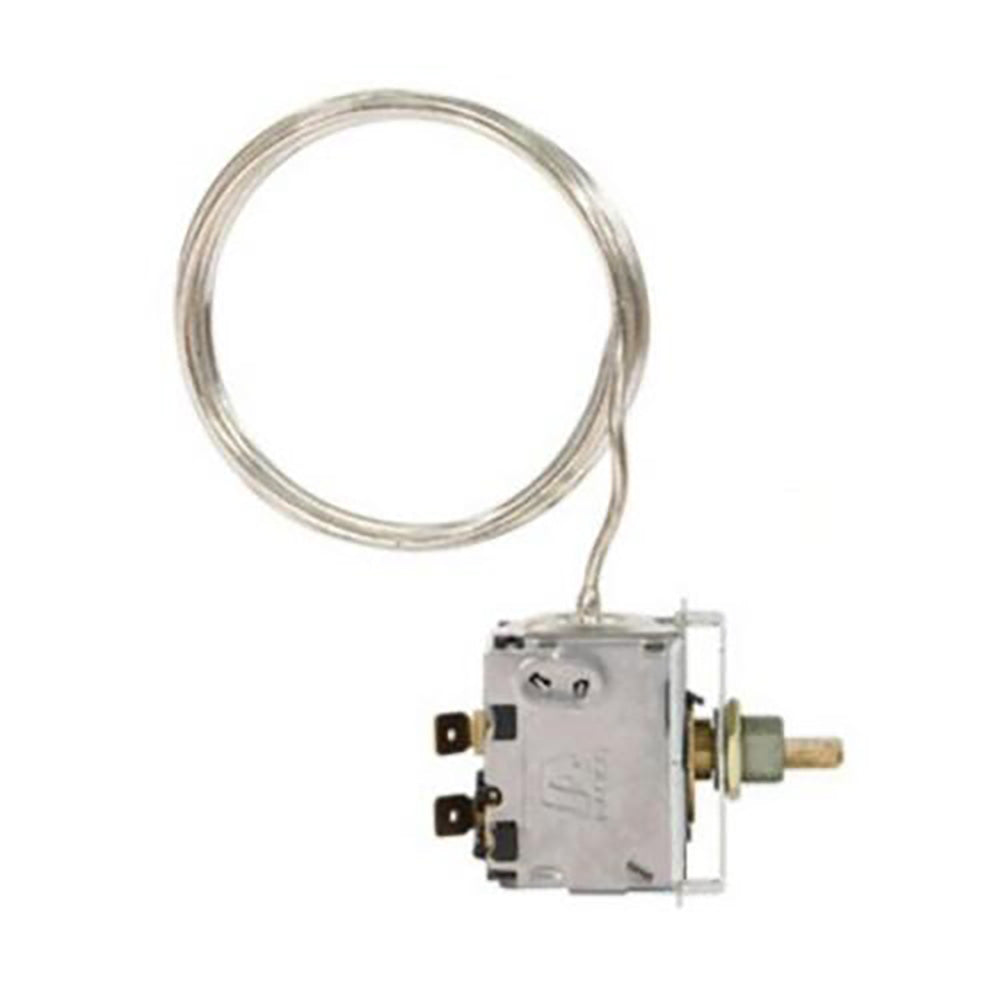

A-AH80197-AI Thermostatic Switch

A-AH80197-AI Thermostatic Switch

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Thermostatic Switch Fits John Deere, Fits Case IH, Fits Massey Ferguson, Fits Allis Chalmers, Fits Ford/New Holland, Deutz, and More

This aftermarket replacement A/C thermostatic switch (rotary type) controls the air conditioning compressor clutch cycle in cab-equipped tractors, combines, and industrial equipment. Mounted at the evaporator, the 48-inch capillary tube senses evaporator temperature and cycles the compressor to prevent freeze-up and maintain cabin comfort. Rated for medium and heavy duty applications at 12 volts. Temperature range is approximately 26-52 degrees F (adjustable). Compatible with R12 and R134a refrigerant systems.

Specifications

  • Voltage: 12V
  • Switch Type: Rotary (knob-operated)
  • Capillary Tube Length: 48 inches
  • Temperature Range: 26-52 degrees F (adjustable)
  • Vented
  • Rated: Medium and Heavy Duty
  • Refrigerant Compatibility: R12/R134a

Compatible Models

Fits John Deere Combines: 3300, 4400, 4420, 6600, 6602, 6620, 6622, 7700, 7720, 7722, 8820, 9900, 9910, 9920, 9930, 9935, 9940, 9950, 9960, 9965, 9970, 9976

Fits John Deere Tractors: 5200, 5400, 5440, 5460, 5720, 5730, 5820, 5830

Fits John Deere Construction/Industrial: 3040, 3140, 310C, 315C, 410B, 510C

Fits Case/International Harvester Tractors: 656, 706, 756, 786, 806, 856, 886, 986, 1086, 1486, 1586, 2094, 2096, 2290, 3088, 3288, 3388, 3488, 3588, 3688, 3788, 4386, 4786, 5088, 5288, 5488, 6388, 6588, 6788, 7288, 7488, Hydro 186

Fits Case/International Harvester Construction: 3220, 3230, 585, 595, 685, 695, 885, 895

Fits Case IH Tractors: 1896, CX50, CX60, CX70, CX75, CX80, CX85, CX90, CX95, CX100, CX1045, MX80C, MX90C, MX100, MX100C, MX110, MX120, MX135, MX150, MX170

Fits Massey Ferguson Combines: 410, 510, 540, 750, 760

Fits Massey Ferguson Tractors: 120, 140, 150, 160, 285, 383, 390, 390T, 393, 396, 398, 399, 698, 699, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500, 1505, 1640, 1660, 1670, 1680, 1688, 1690, 1800, 1805, 2640, 2675, 2705, 2745, 2775, 2805, 3505, 3525, 3545, 4840, 5300, 5310, 5400, 5410, 5500, 5510, 6144, 6145, 6175, 6195, 6215, 8200, 8240, 8340, 8400, 8430, 8440, 8450, 8550, 8600, 8630, 8640, 8650, 8700, 8820, MTX110, MTX120, MTX125, MTX135, MTX140, MTX150, MTX155, MTX165, MTX175, MTX185, MTX200, XTX185, XTX200, XTX215

Fits Allis Chalmers Tractors: 4W-220, 4W-305, 6060, 6070, 6080, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580, 8010, 8030, 8050, 8070, 8550

Fits Ford/New Holland Tractors and Combines: 7700, 7840, 8000, 8200, 8240, 8340, 8400, 8600, 8700, 9000, 9200, 9600, 9700, TR86

Deutz Tractors: D6200, D6600, D7007C, D7500, D8006, D8500, D10006, D13006

McCormick Tractors: CU-Industrial Series, CA-Industrial Series, MC80, MC90, MC95, MC100, MC105, MC115, MC120, MC135

Hesston: 1420, 1440, 1460, 1480, 1490, 1620, 1640, 1644, 1660, 1666, 1680, 1688, 1690

Steiger Tractors: Bearcat/Cougar 1000 Power, Cougar 1000 Series, Lion, Lion 1000 Powershift, Panther, Panther 1000, Panther 1000 Powershift, Field Fits Boss 185, 125 Workhorse, 145 Workhorse, 170 Workhorse, 195 Workhorse

White Tractors: 2-85, 2-88, 2-105, 2-110, 2-135, 2-150, 2-155, 2-180, 4-175, 4-180, 4-210

Gleaner Combines: E, E3, F, F2, F3, G, K, K2, L, L2, L3, M, M2, M3, N5, N6, N7, R5, R6, R7, R40, R42, R50, R52, R60, R62, R70, R72

Additional Series: SM Series IV, CM Series IV, KM Series IV, CS Series, 60 American, 80 American

Replaces Part Number(s):

AH80197, AR49960, AR59779, AL59879, 8022337, 841445, 7022163, 303133680, 30-3133680, 1034565M91, 250698M1, 3320059M2, L73646, A73646, L73617, 109268C2, 92101C1, D3NN19618A, V31505, V53620, 9672323, 70268476, 71162474, 220-256, 220256, 0034221, 220-214, 270-35, 270-44, 70272229, 72162641, 925602, 925620

Aftermarket Interchange Numbers

ACT20-0001, 2601394, 1406-0977, 3902701M91, AW23874, AR53324, UJD99060, 301395-C91, 301305-C91, D3NN-19618A, BD1035, RD4125-48, MVA1-4185, 404082, 404089, 404133, L108189, 86505792, 650649, 651140, 18342

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

MTX175, 8050, Hydro 186, 4250, 5020, 8440, 160, 2094, Panther 1000, MC105, Bearcat/Cougar 1000 Power, 140, CX70, 5300, 2-155, MTX110, 6215, 2096, Panther 1000 Powershift, 5200, MC95, D13006, 4850, 1490, 1800, 2-150, D8006, MX80C, MTX120, 285, 100-90DT, MC100, MTX135, 4650, 8550, 2-105, 1805, 120, 2-88, 390, 115-90DT, 4520, 510, 3545, 2940, 4055, MTX155, CM Series IV, 5500, 1586, 1420, 398, 160-90, 1620, D7007C, 698, 5210, 55-90DT, 2705, 4230, 1660, 2-85, MC120, 2090, 9200, MTX125, 393, KM Series IV, 195 Workhorse, 6620, MX150, 1640, 4840, 4450, 180-90DT, 396, 170 Workhorse, 2640, 3505, 4630, 4760, D10006, CX60, CX75, 760, 1086, XTX215, 2290, 4960, 8650, 540, 4040, CX95, XTX200, 4640, D6600, 90-90, 4-180, XTX185, 2675, 4-210, 4255, 1085, 4440, 715, 1100, 125 Workhorse, 1688, MC135, CS Series, 8430, 60 American, 4455, CX100, MC115, MTX140, 399, 8010, 7580, 2-135, 8640, 1486, 145 Workhorse, 4420, 4030, MTX150, 1680, 1505, Lion 1000 Powershift, 1080, 750, 180-90, MX100C, 7840, CX80, 1440, 2805, MC90, 375, 2-110, 4555, 1690, Lion, D7500, 8700, 2-180, 6145, 8240, 9600, MTX200, 5410, 115-90, 140-90, 8200, Cougar 1000 Series, CU-Industrial Series, 8630, MX170, 9700, 3525, CX50, 4050, 4755, 8450, 9000, 55-90, 80-90, CX85, 8600, MX90C, 1670, Field Boss 185, MX120, 1135, 1105, 4955, 8000, D8500, 8070, 7720, 390T, 140-90DT, 410, 70-90, CX1045, 4-175, 100-90, MTX165, 80 American, 6195, 7700, 1500, 8340, MX100, 1130, 5310, 5400, 8820, 2745, 4430, MX135, 2294, 4240, D6200, CX90, MTX185, 1666, 5510, 1644, 1150, 2775, 90-90DT, 1460, 4560, 1480, 6124, CA-Industrial Series, 4620, MC80, Panther, MX110, 1896, 6144, 6600, 383, 6175, 1155, 8400, 699, SM Series IV, 100

Additional Information:

Volt: 12 Capillary Length: 48" Switch Type: Rotary Vented Rated Medium & Heavy Duty Thermostatic Switch

Reference Numbers:

303133680, 30-3133680, D3NN19618A, V31505, V53620, 9672323, 8022337, 841445, 7022163, 1034565M91, 250698M1, 3320059M2, L73646, A73646, L73617, 109268C2, 92101C1, 70268476, 71162474, AH80197, AR49960, AR59779, AL59879, 220-256, 220256, 0034221, 220-214, 270-35, 270-44, 70272229, 72162641, 925602, 925620

Makes This Part Fits:

Product Category:

Product Group:

Product Sub Group:
