One New Aftermarket Replacement 11" Single Clutch Pressure Plate Fits John Deere Tractors and Swathers

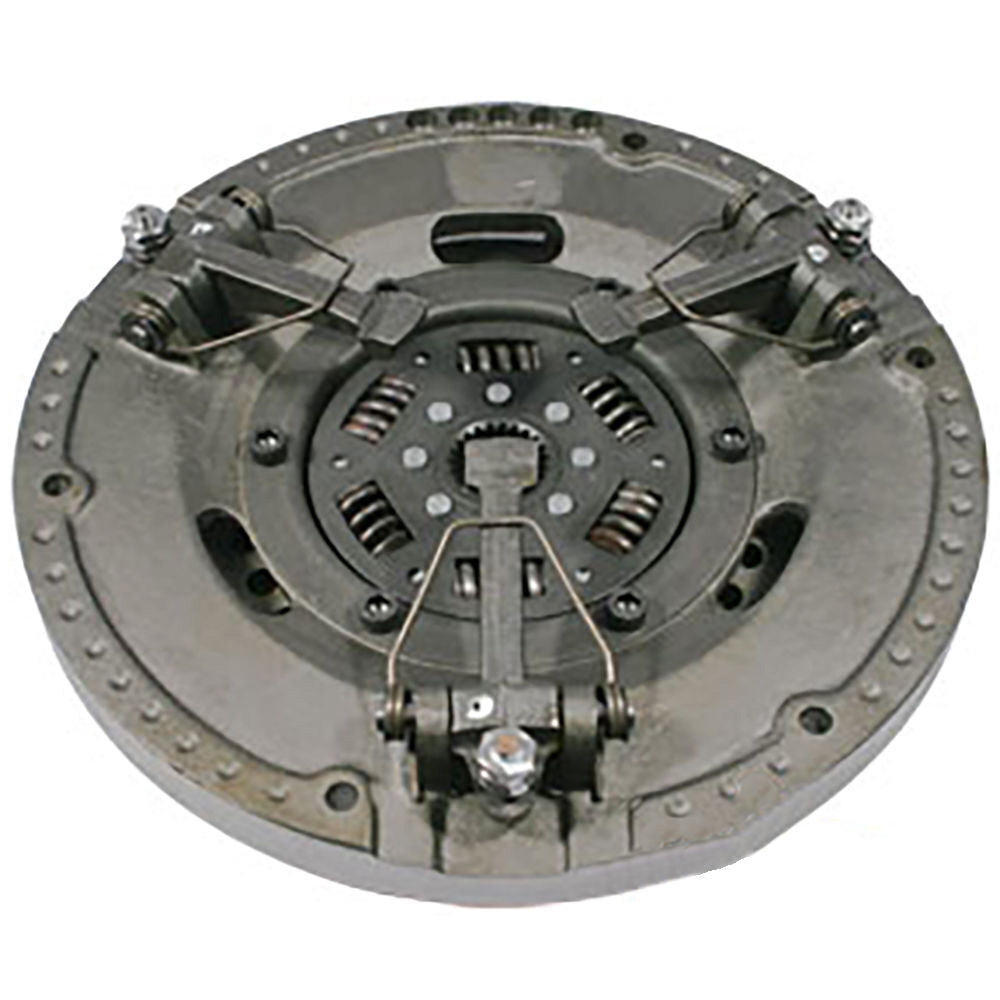

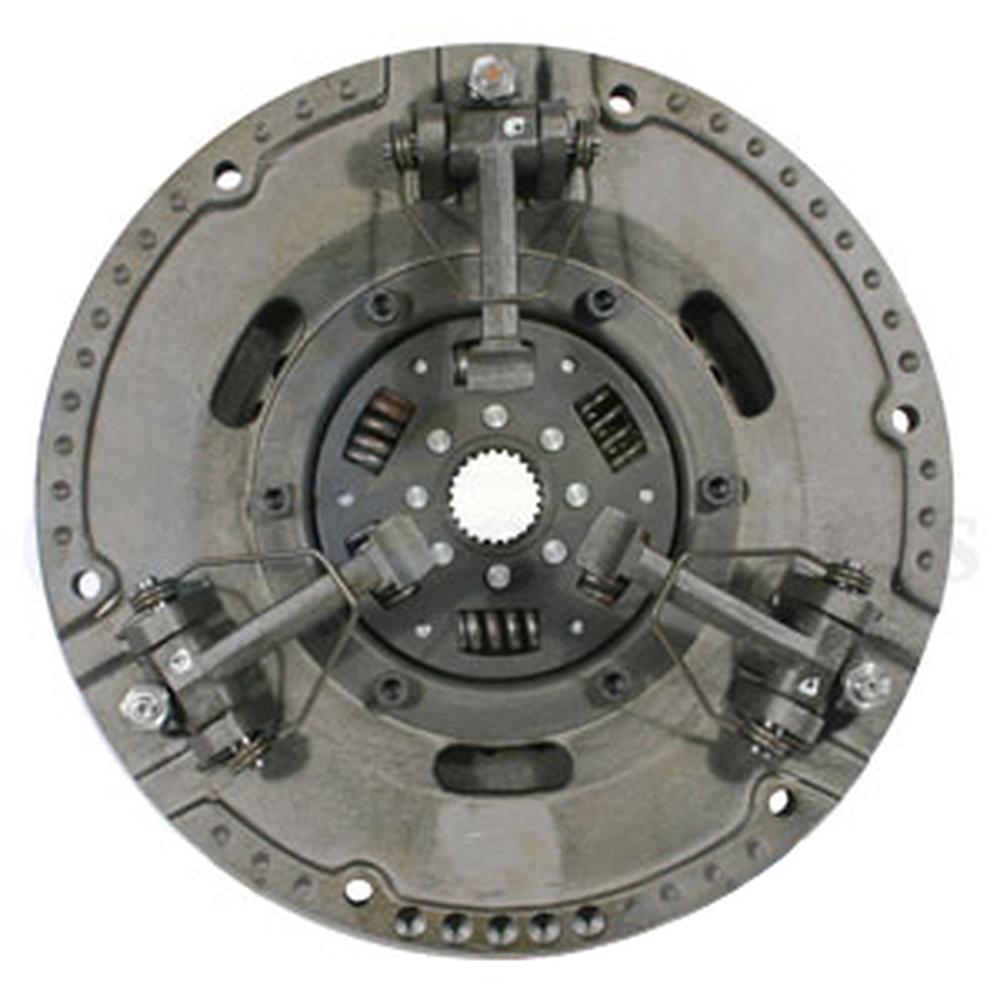

This cast iron, single-stage IPTO clutch pressure plate replaces OEM part AL39618 and its successors in the Fits John Deere clutch system. It mounts to the flywheel and applies clamping force to the clutch disc, transferring engine power to the drivetrain. Sold without a release plate. Note: release levers may need adjustment to 1.780" after installation to the flywheel.

Specifications

• Outside Diameter: 11"
• Type: Single stage, cast iron, IPTO
• Number of Fingers: 16
• Spline Diameter: 1.500" (1-1/2")
• Spline Count: 23
• Flywheel Step: 2.200" - 2.210"
• Release Plate: Not included

Compatible Models

Fits John Deere Tractors: 830, 840, 930, 930VU, 940, 940V, 1020, 1030, 1030OU, 1030VU, 1035, 1035EF, 1035EV, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1530, 1630, 1630OU, 1630VU, 1635, 1635EF, 1635EV, 1640, 1640F, 1750V, 1830, 1840, 1840F, 1850, 1850F, 1850V, 1950, 1950F, 2020, 2030, 2030OU, 2035, 2035EF, 2040, 2040F, 2120, 2150, 2240, 2255, 2350

Fits John Deere Compact Tractors / Specialty: 840 Scraper

Fits John Deere Swather/Windrower: Machine type confirmed via CSV; verify specific swather model compatibility before ordering.

Replaces Part Number(s):

AL120023, AL19084, AL32965, AL36374, AL37192, AL37707, AL39452, AL39618, AL39935, AL5616, AL56167

New aftermarket replacement part - not remanufactured, not used.
