One New Aftermarket Replacement Clutch Pressure Plate Fits John Deere Tractors

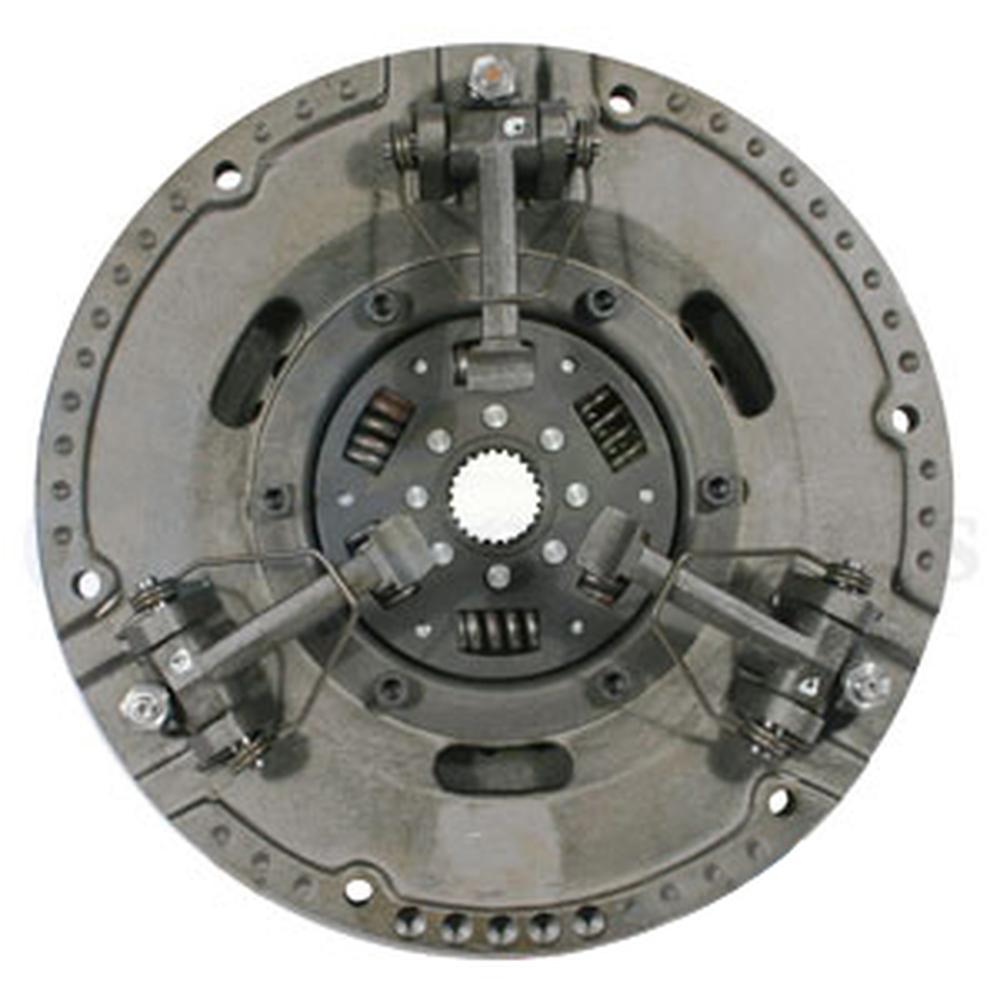

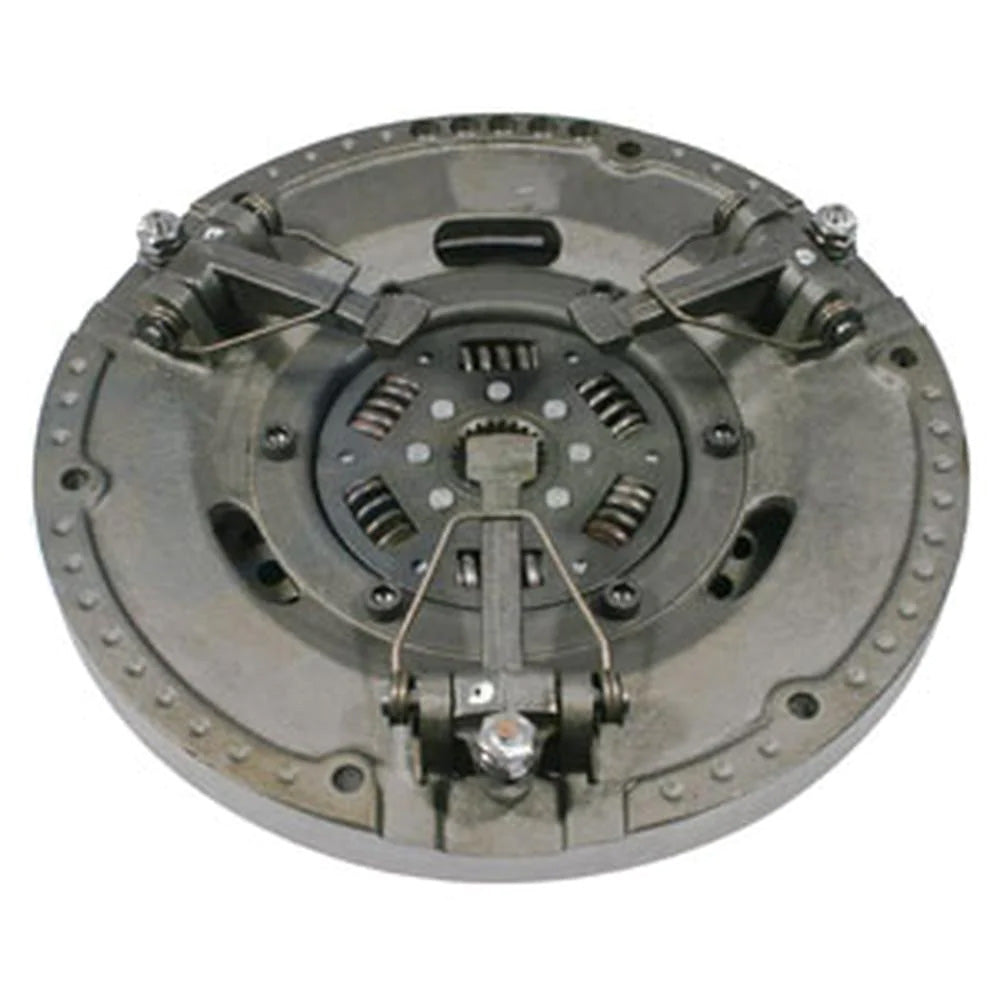

This 11-inch single-stage cast iron IPTO clutch pressure plate replaces OEM part AL56167 (superseded by AL120023) and fits a wide range of Fits John Deere utility and row-crop tractors. Designed without a release plate, it is a direct replacement for the independent PTO (IPTO) clutch system, featuring a 3-lever design and 23-spline hub for positive engagement.

Specifications

• Pressure Plate Diameter: 11"
• Type: Single Stage, Cast Iron
• Number of Fingers/Levers: 16
• Spline Count: 23
• Spline Diameter: 1.500"
• Flywheel Step: 2.200" - 2.210"
• Without Release Plate

Compatible Models

Fits John Deere Tractors: 830, 840, 930, 940, 940V, 1020, 1030, 1030OU, 1030VU, 1035, 1035EF, 1035EV, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1530, 1630, 1630OU, 1630VU, 1635EF, 1635EV, 1640, 1640F, 1750V, 1830, 1840, 1840F, 1850, 1850F, 1850V, 1950, 1950F, 2020, 2030, 2030OU, 2035, 2035EF, 2040, 2040F, 2120, 2150, 2240, 2255, 2350

Fits John Deere Compact Tractors: 930VU

Fits John Deere Swather/Windrower: Verify compatibility using OEM part numbers listed below.

Replaces Part Number(s):

AL120023, AL19084, AL32965, AL36374, AL37192, AL37707, AL39452, AL39618, AL39935, AL5616, AL56167

New aftermarket replacement part - not remanufactured, not used.
