A-AR59779-AI Switch AC/HT Temp

A-AR59779-AI Switch AC/HT Temp

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement AC/Heater Thermostatic Switch for John Deere, Massey Ferguson, Case/IH, Ford/New Holland, Allis Chalmers and More

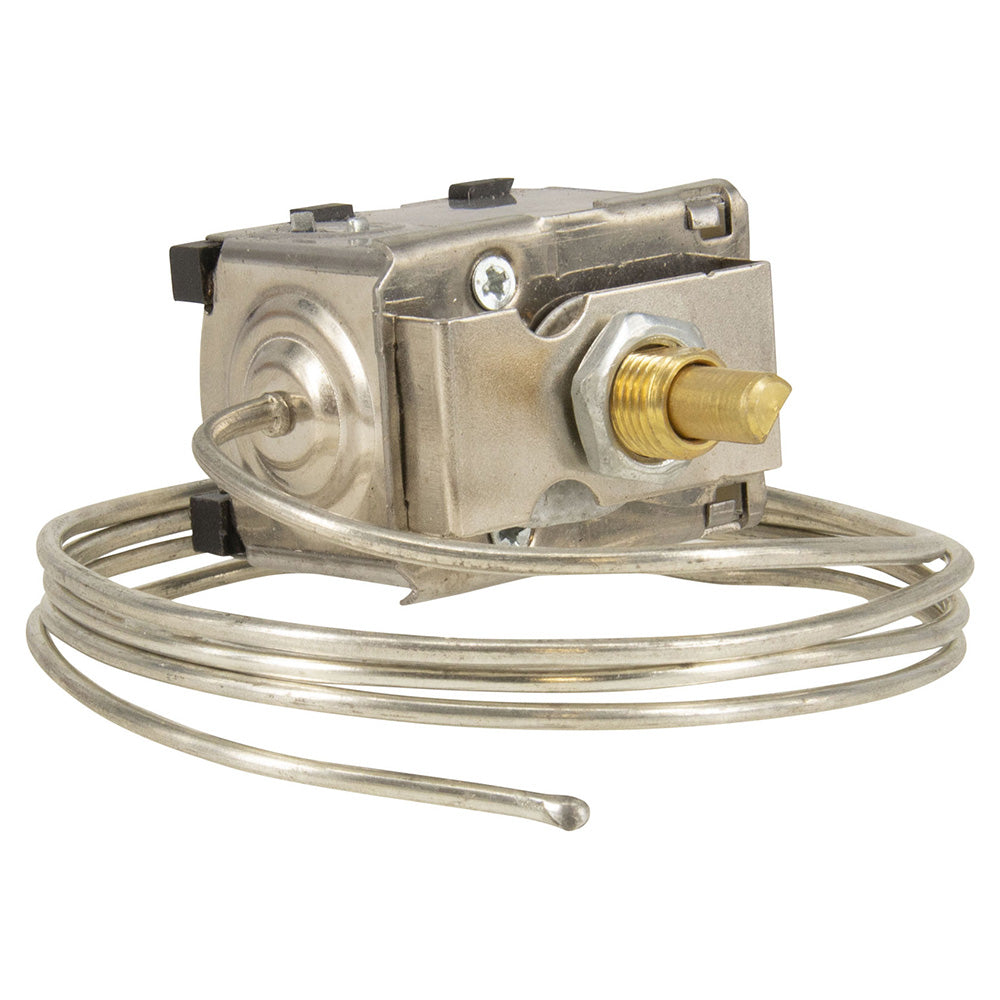

This aftermarket replacement thermostatic (temperature) switch controls the air conditioning and heater system in the cab of agricultural tractors, combines, sprayers, and construction equipment. The rotary-adjustable switch uses a 48-inch capillary tube to sense evaporator temperature and cycle the A/C compressor on and off, preventing freeze-up and maintaining cab comfort. Replaces OEM part number AR59779 and a wide range of cross-reference numbers covering many brands. Note: Also order R44165 lock nut when installing this switch.

Specifications

  • Voltage: 12V
  • Switch Type: Rotary (knob-operated)
  • Capillary Tube Length: 48 inches
  • Vented design
  • Rated Medium and Heavy Duty

Compatible Models

John Deere Tractors: 2940, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4520, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 4840, 4850, 4955, 4960, 5020, 5200, 5210, 5300, 5310, 5400, 5410, 5500, 5510, 8430, 8440, 8450, 8640, 8650, 8850

John Deere Combines: 6600, 6620, 7700, 7720, 8820

John Deere Sprayers: 6600

John Deere Motor Graders: 670A, 670B, 672A, 672B, 770A, 770B, 772A, 772B

Massey Ferguson Tractors: 285, 383, 390, 393, 396, 398, 399, 698, 699, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500, 1505, 1800, 1805

Massey Ferguson Combines: 410, 510, 540, 750, 760

Case/International Harvester: 1086, 1486, 1586, 1640, 1644, 1660, 1666, 1670, 1680, 1688, 1690, 2090, 2094, 2096, 2290, 2294, 2390, 2470, 2590, 2594, 2670, 2870, 3294, 3394, 3594, 4490, 4494, 4690, 4694, 4890, 4894, 4994, 1420, 1440, 1460, 1480, 1486, 1490, 1505

Ford/New Holland Tractors: 7840, 8000, 8200, 8240, 8340, 8400, 8600, 8700, 9000, 9200, 9600, 9700

Allis Chalmers: 8010, 8050, 8070, 7580

White: 2-85, 2-88, 2-105, 2-110, 2-135, 2-150, 2-155, 2-180, 4-175, 4-180, 4-210, Field Boss 185

Deutz: 6124, 6144, 6145, 6175, 6195, 6215

McCormick: MC80, MC90, MC95, MC100, MC105, MC115, MC120, MC135, MTX110, MTX120, MTX125, MTX135, MTX140, MTX150, MTX155, MTX165, MTX175, MTX185, MTX200, XTX185, XTX200, XTX215

Case IH (CX/MX Series): CX50, CX60, CX70, CX75, CX80, CX85, CX90, CX95, CX100, CX1045, MX80C, MX90C, MX100, MX100C, MX110, MX120, MX135, MX150, MX170

Hesston: 100, 120, 125 Workhorse, 140, 145 Workhorse, 160, 170 Workhorse, 195 Workhorse, 375, 383, 390, 393, 396, 510

Steiger: Cougar 1000 Series, Panther 1000, Panther 1000 Powershift, Lion, Lion 1000 Powershift, Bearcat/Cougar 1000 Power

AGCO/White: SM Series IV, CM Series IV, KM Series IV

Replaces Part Number(s):

AR59779, AL59879, AR49960, AH80197, D3NN19618A, 1034565M91, 250698M1, 3320059M2, L73646, A73646, L73617, 109268C2, 92101C1, 8022337, 841445, 7022163, 303133680, 30-3133680, V31505, V53620, 9672323, 70268476, 70272229, 71162474, 72162641, 925602, 925620, 220-256, 220256, 220-214, 270-35, 270-44, 0034221

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

MTX175, 8050, Hydro 186, 4250, 5020, 8440, 160, 2094, Panther 1000, MC105, Bearcat/Cougar 1000 Power, 140, CX70, 5300, 2-155, MTX110, 6215, 2096, Panther 1000 Powershift, 5200, MC95, D13006, 4850, 1490, 1800, 2-150, D8006, MX80C, MTX120, 285, 100-90DT, MC100, MTX135, 4650, 8550, 2-105, 1805, 120, 2-88, 390, 115-90DT, 4520, 510, 3545, 2940, 4055, MTX155, CM Series IV, 5500, 1586, 1420, 398, 160-90, 1620, D7007C, 698, 5210, 55-90DT, 2705, 4230, 1660, 2-85, MC120, 2090, 9200, MTX125, 393, KM Series IV, 195 Workhorse, 6620, MX150, 1640, 4840, 4450, 180-90DT, 396, 170 Workhorse, 2640, 3505, 4630, 4760, D10006, CX60, CX75, 760, 1086, XTX215, 2290, 4960, 8650, 540, 4040, CX95, XTX200, 4640, D6600, 90-90, 4-180, XTX185, 2675, 4-210, 4255, 1085, 4440, 715, 1100, 125 Workhorse, 1688, MC135, CS Series, 8430, 60 American, 4455, CX100, MC115, MTX140, 399, 8010, 7580, 2-135, 8640, 1486, 145 Workhorse, 4420, 4030, MTX150, 1680, 1505, Lion 1000 Powershift, 1080, 750, 180-90, MX100C, 7840, CX80, 1440, 2805, MC90, 375, 2-110, 4555, 1690, Lion, D7500, 8700, 2-180, 6145, 8240, 9600, MTX200, 5410, 115-90, 140-90, 8200, Cougar 1000 Series, CU-Industrial Series, 8630, MX170, 9700, 3525, CX50, 4050, 4755, 8450, 9000, 55-90, 80-90, CX85, 8600, MX90C, 1670, Field Boss 185, MX120, 1135, 1105, 4955, 8000, D8500, 8070, 7720, 390T, 140-90DT, 410, 70-90, CX1045, 4-175, 100-90, MTX165, 80 American, 6195, 7700, 1500, 8340, MX100, 1130, 5310, 5400, 8820, 2745, 4430, MX135, 2294, 4240, D6200, CX90, MTX185, 1666, 5510, 1644, 1150, 2775, 90-90DT, 1460, 4560, 1480, 6124, CA-Industrial Series, 4620, MC80, Panther, MX110, 1896, 6144, 6600, 383, 6175, 1155, 8400, 699, SM Series IV, 100

Additional Information:

Volt: 12 Capillary Length: 48" Switch Type: Rotary Vented Rated Medium & Heavy Duty Thermostatic Switch

Reference Numbers:

303133680, 30-3133680, D3NN19618A, V31505, V53620, 9672323, 8022337, 841445, 7022163, 1034565M91, 250698M1, 3320059M2, L73646, A73646, L73617, 109268C2, 92101C1, 70268476, 71162474, AH80197, AR49960, AR59779, AL59879, 220-256, 220256, 0034221, 220-214, 270-35, 270-44, 70272229, 72162641, 925602, 925620
