One New Aftermarket Replacement Hydraulic Pump Drive Shaft Fits Ford (Fits Ford/New Holland) Tractors and Industrial Equipment

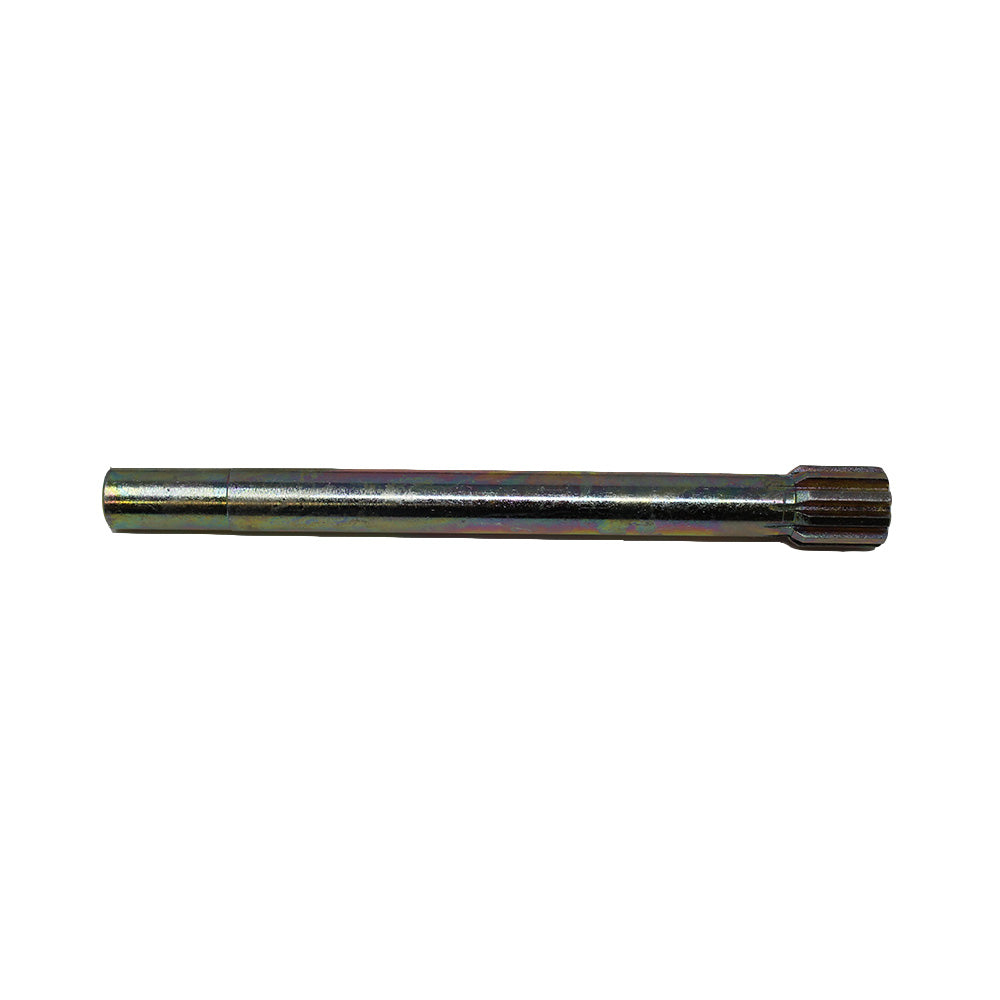

This hydraulic pump drive shaft connects the tractor's power source to the hydraulic pump, delivering the rotational force needed to operate the hydraulic system. It fits a wide range of Fits Ford and Fits Ford/New Holland tractors and industrial utility models produced from the 1940s through the mid-1960s. One end features a 3/4" keyed shaft and the other end is a 10-spline, 1" diameter connection that mates directly to the hydraulic pump.

Specifications

• Overall Length: 9-3/8"
• Shaft Outside Diameter (keyed end): 3/4" with 3/16" x 3/4" keyway
• Spline End: 1" outside diameter, 10 splines
• Weight: approx. 1.30 lbs

Compatible Models

Fits Ford / Fits Ford/New Holland Tractors: NAA, NAB, Jubilee, 600, 600 Series, 601, 611, 620, 621, 630, 631, 640, 641, 651, 661, 671, 681, 700, 701, 702, 703, 713, 723, 800, 800 Series, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 2000 (4-cylinder), 2030, 2031, 2110TR, 2120, 2121, 2130, 2131, 4000 (4-cylinder), 4030, 4030 (4-cylinder), 4031, 4040, 4110TR, 4120, 4121, 4130, 4130 (4-cylinder), 4131, 4140

Fits Ford / Fits Ford/New Holland Industrial: 701, 702, 703, 713, 723

Fits Massey Ferguson / Fits Ferguson: TO20, TO30, TE20

Replaces Part Number(s):

195454

Aftermarket Interchange Numbers

A-195454, A-B1195454GS, B1195454GS

New aftermarket replacement part - not remanufactured, not used.
