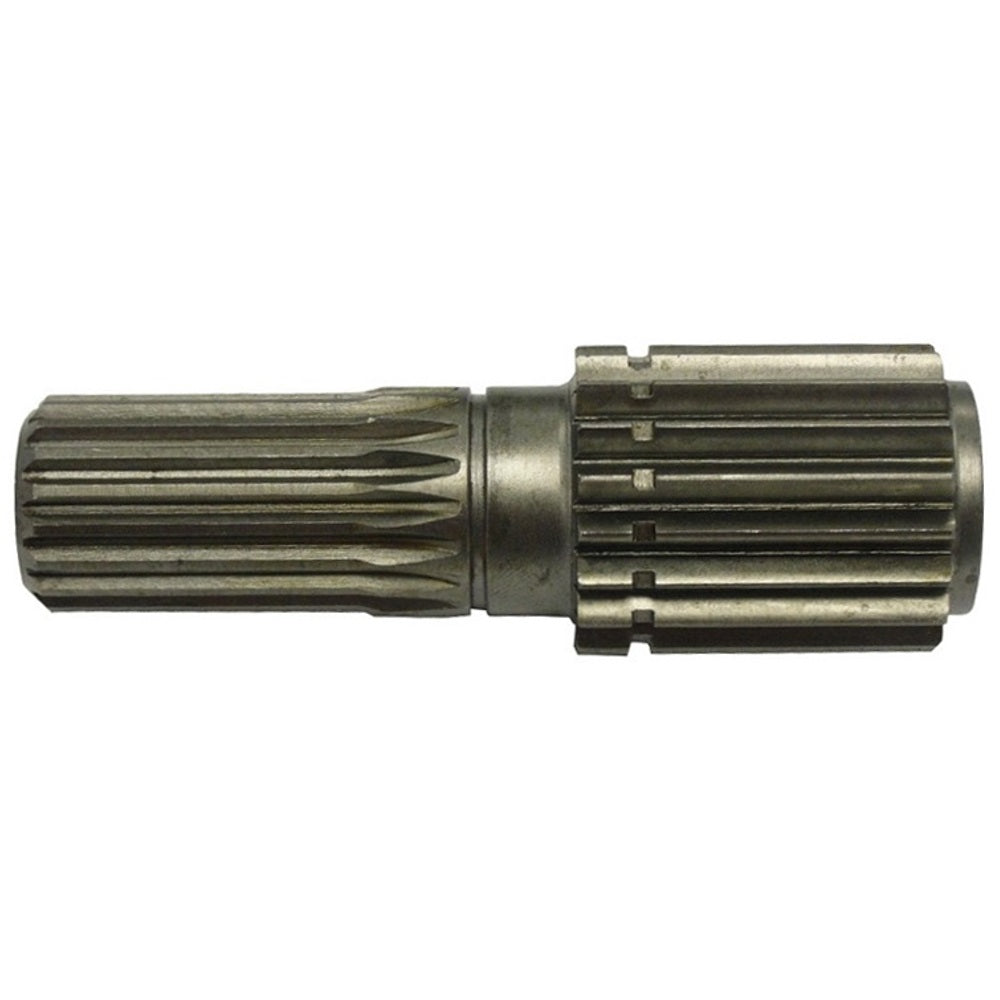

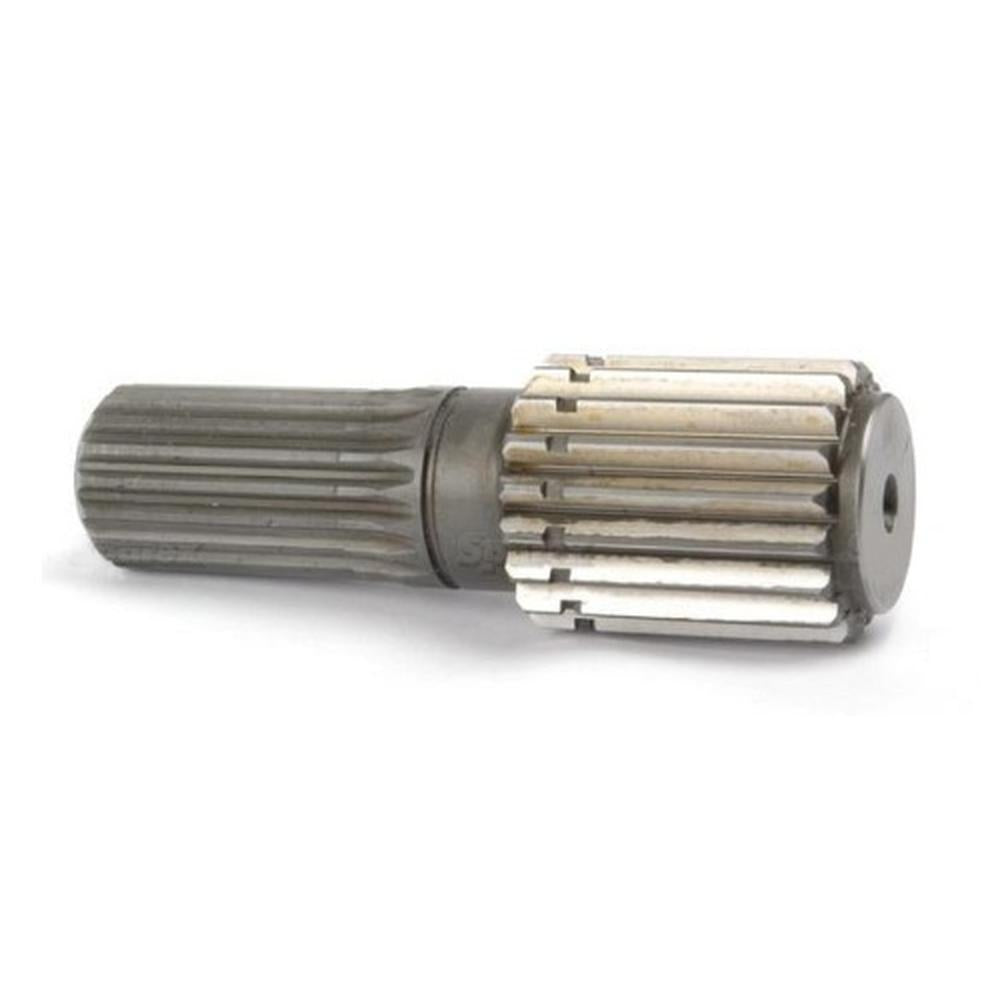

One New Aftermarket Replacement Differential Hub Shaft for Ford/New Holland, Case/International Harvester, and John Deere Tractors

This aftermarket replacement differential hub shaft (also referred to as a final drive shaft or planetary pinion shaft) is a precision-fit component for the ZF APL325 MFWD front axle assembly. It transfers torque within the planetary final drive at each front wheel hub, and is a common wear item on tractors equipped with the ZF APL325 four-wheel-drive front axle. Compatible across Ford/New Holland (FNH), Case/International Harvester (Case IH), and John Deere platforms that share this axle design.

Specifications

• Axle: ZF APL325 (MFWD front axle)
• Teeth (End 1): 18
• Splines (End 2): 18
• Overall Length: 4.21 in. (107 mm)
• Center Shaft Diameter: 1.02 in. (26 mm)
• End 1 Outer Diameter: 1.34 in. (34 mm) x 18 Teeth
• End 2 Outer Diameter: 0.94 in. (24 mm) x 18 Spline

Compatible Models

Note: Fits tractors equipped with the ZF APL325 MFWD front axle only.

Ford/New Holland 10 Series: 5110, 5610, 5900, 6410, 6610, 6610O, 6710, 6810, 7410, 7610, 7610O, 7710, 7910, 8210

Case/International Harvester 85/95 Series and Utility Series: 385, 395, 485, 485XL, 495, 495XL, 585, 585XL, 595, 595XL

Case/International Harvester BD/Industrial Series: 238, 248, 258

John Deere 40 Series: 1640, 2040, 2040S

John Deere 50 Series: 1550, 1750, 1850, 1850N, 1950, 1950N, 2250, 2350, 2450, 2550, 2650, 2650N

John Deere 55 Series: 2155, 2355, 2355N, 2555, 2755, 2855N

Replaces Part Number(s):

E1NN3A328AB, 83927740, 83934903, 81453C1, L40029

Aftermarket Interchange Numbers

VPJ7736, 4472351188, 26/6406-1, A-L40029, S.7701

New aftermarket replacement part - not remanufactured, not used.
