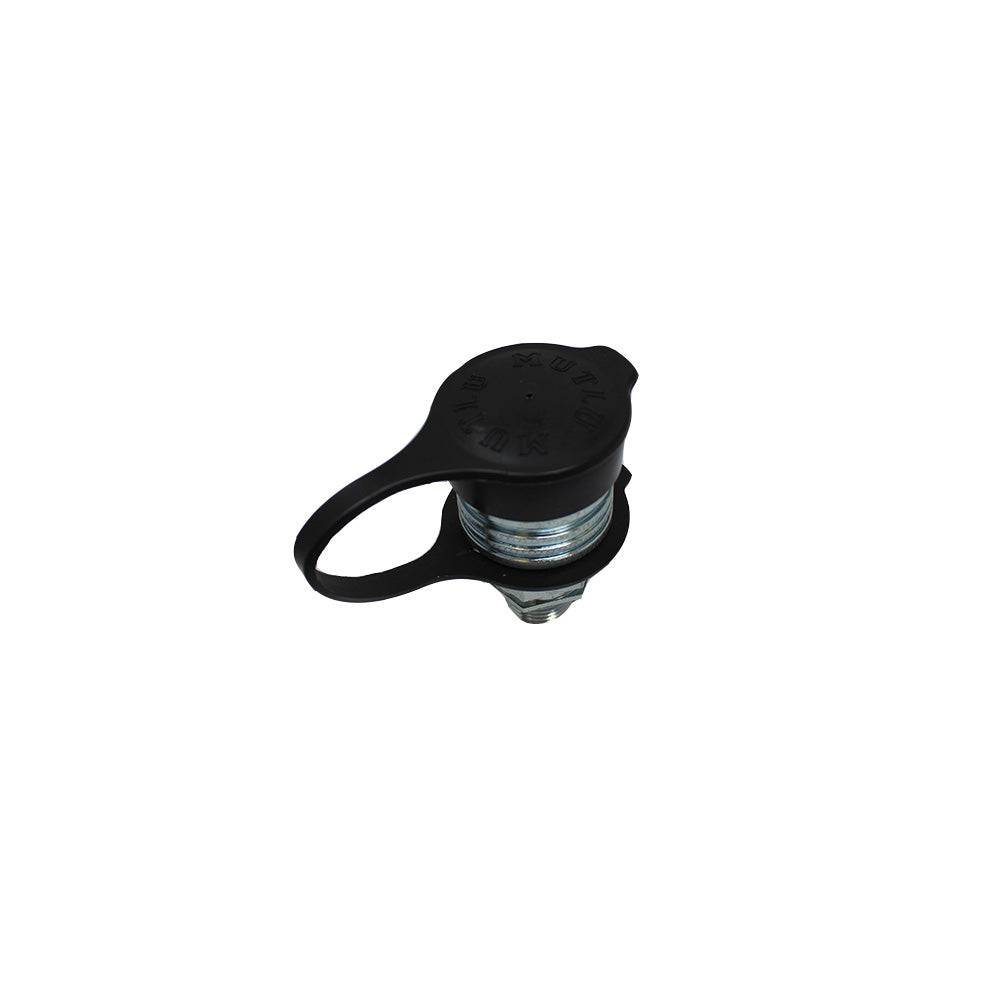

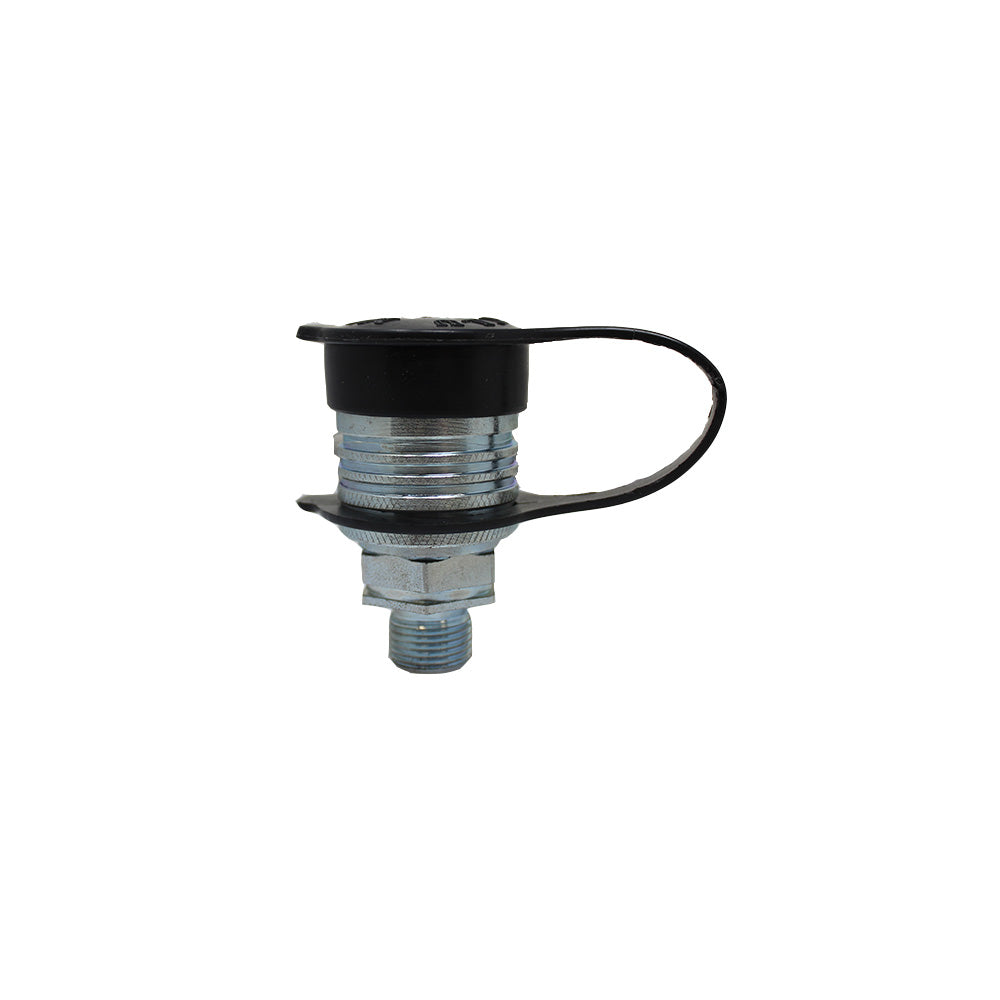

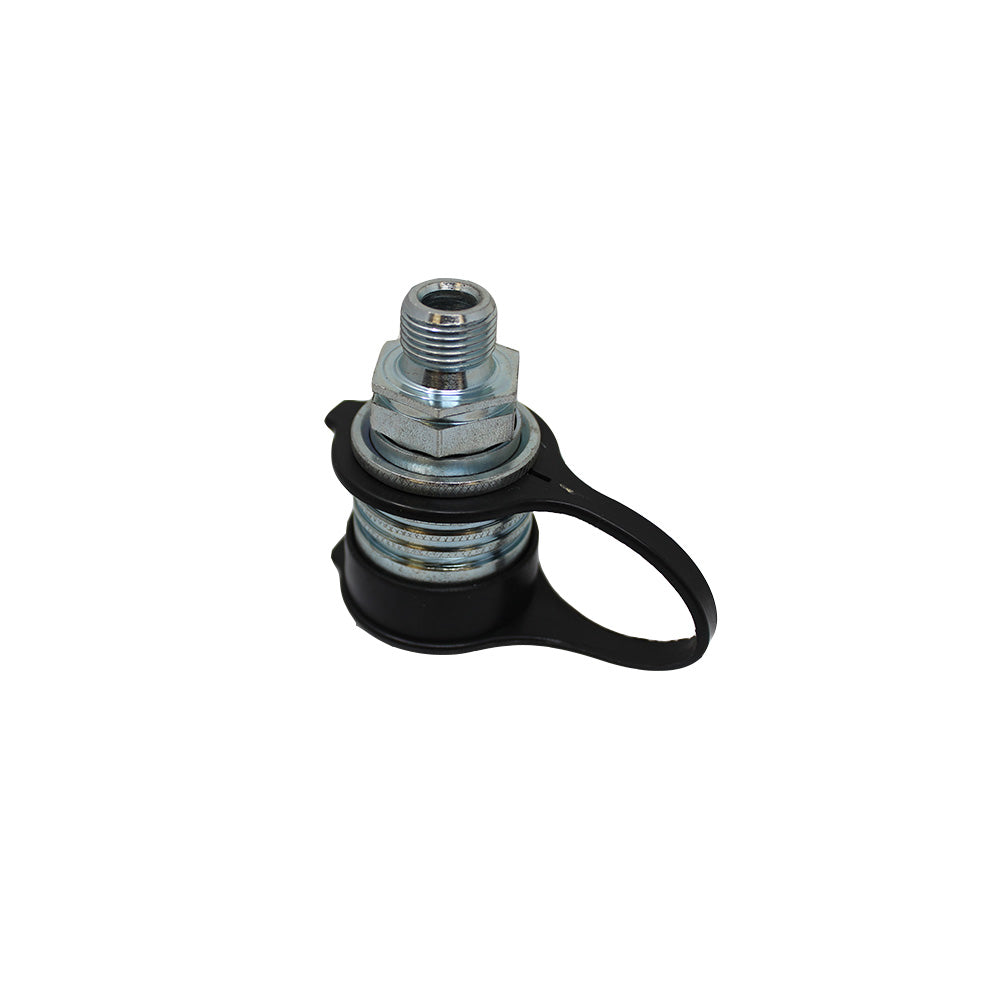

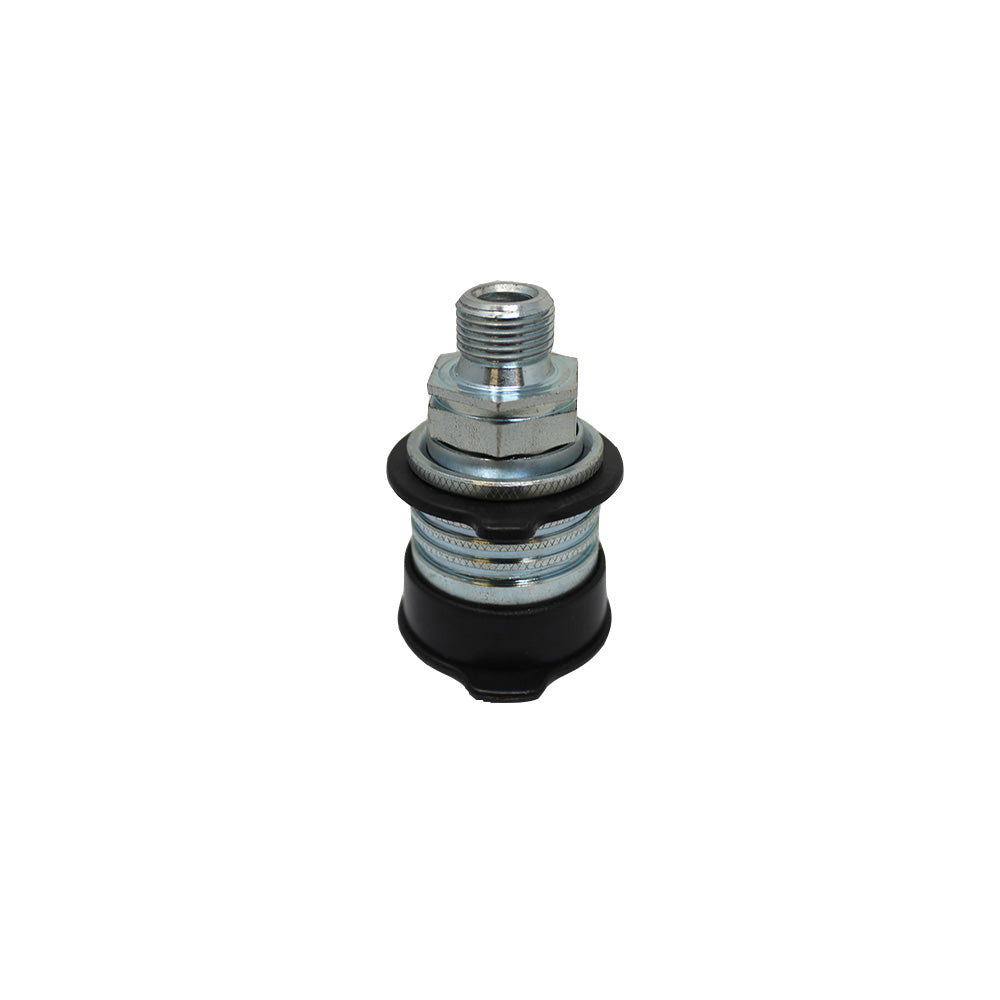

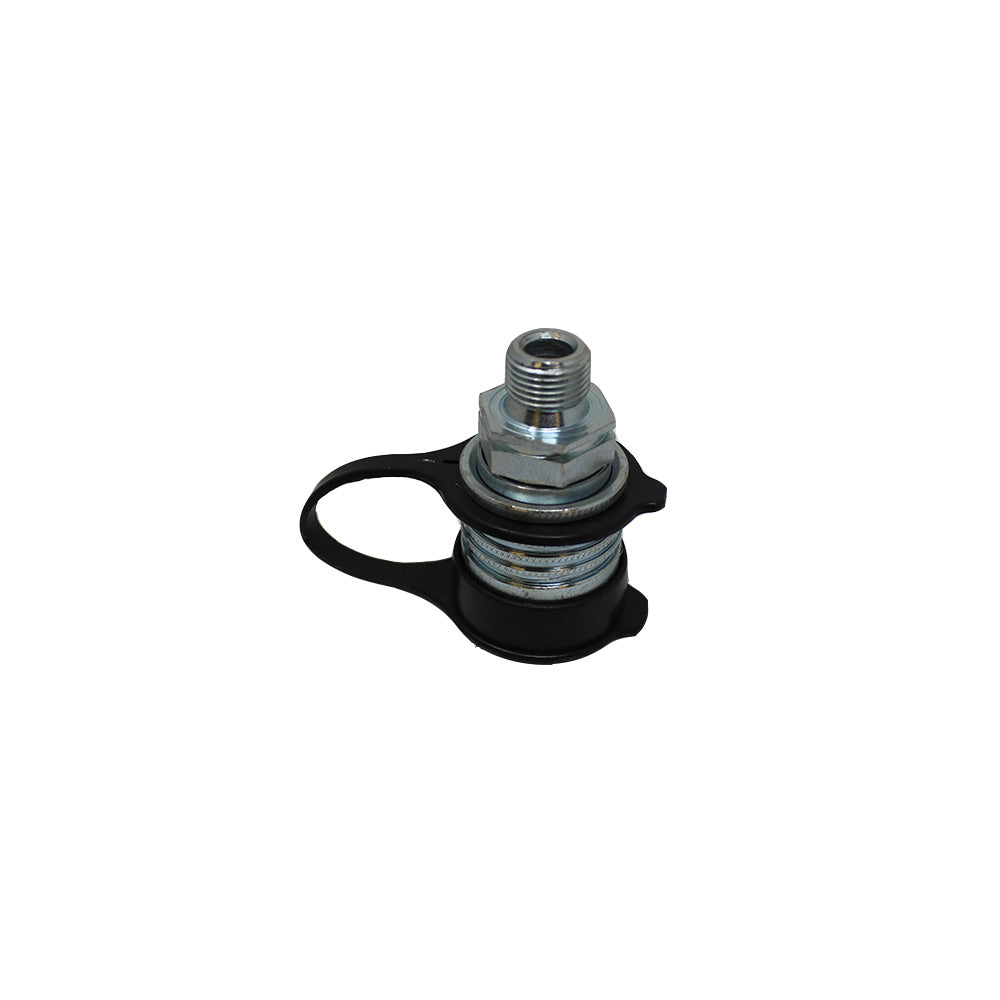

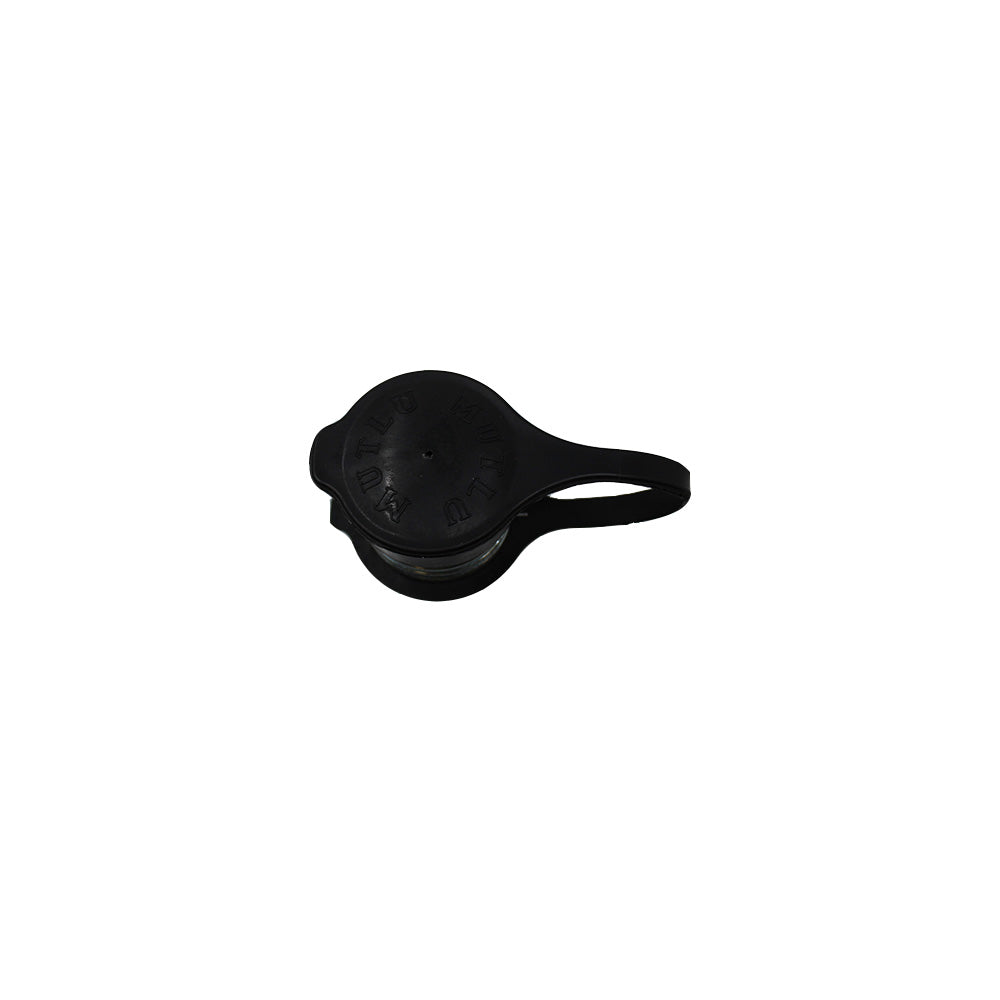

One New Aftermarket Replacement Hydraulic Quick Coupler Socket (Spool Type) Fits John Deere Tractors

This hydraulic quick coupler socket (spool type) is used on the remote hydraulic system of Fits John Deere 40 Series and 50 Series tractors. It provides a leak-free, push-pull connection point for hydraulic implement lines and is an ISO-standard female coupling with metric thread.

Specifications

• Type: Spool Type Socket (Female)
• Overall Length: 2.453"
• Thread: Metric (M18 x 1.50)
• Thread Size: .709" (18mm)
• Body Size: 1/2"
• ISO Standard: ISO 8434-1

Compatible Models

Fits John Deere Tractors: 1350, 1550, 1640, 1750, 1850, 1950, 1950N, 2040, 2040S, 2140, 2150, 2155, 2250, 2350, 2355, 2355N, 2450, 2550, 2555, 2650, 2650N, 2750, 2755, 2850, 2855N, 2950, 2955, 3040, 3050, 3055, 3140, 3155, 3255, 3350, 3640, 3640S, 3650

Replaces Part Number(s):

AL172304, AL41599, A-AL172304, A-AL172304-AI

Aftermarket Interchange Numbers

Fits Vapormatic VFL1412; Fits Allis Chalmers / Deutz 4327905, 04327905

New aftermarket replacement part - not remanufactured, not used.
