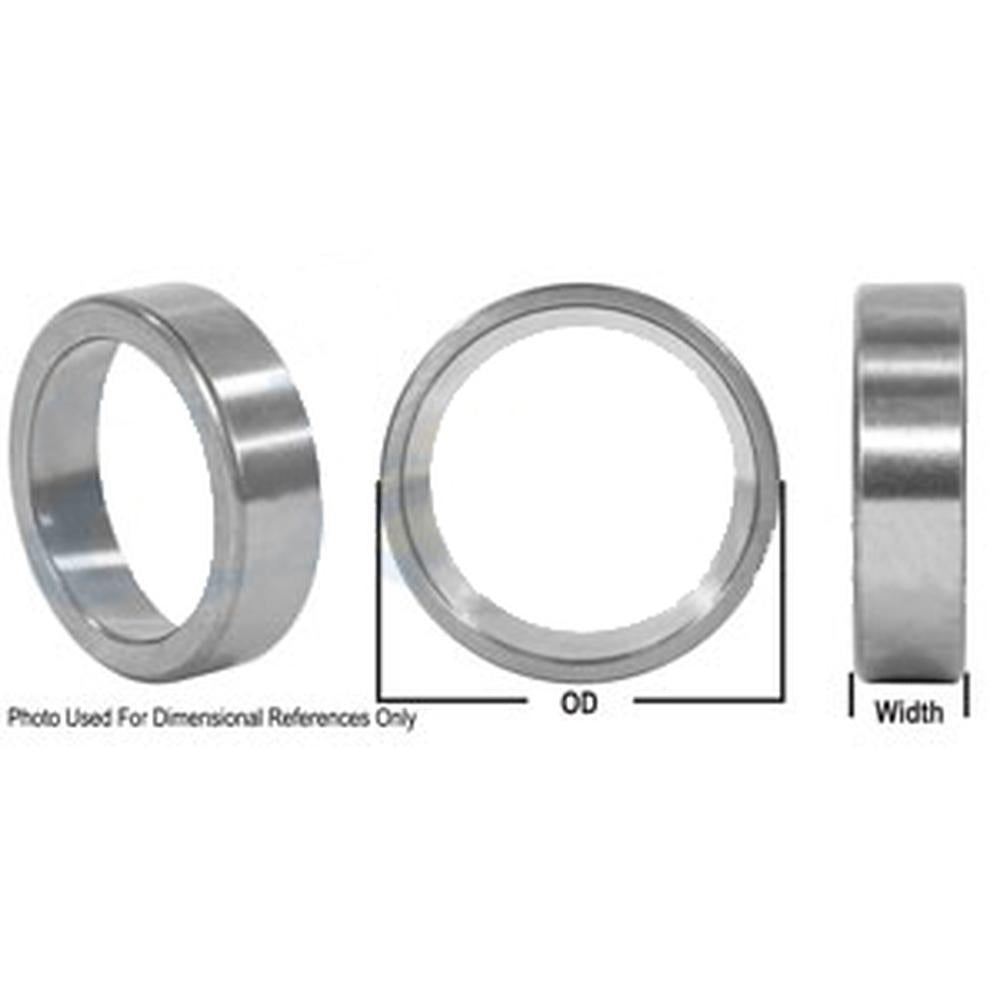

A-JD7409-AI CUP

A-JD7409-AI CUP



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Tapered Roller Bearing Cup Fits John Deere (Fits JD) and Multi-Brand Agricultural Equipment

This tapered roller bearing cup (outer ring) is a direct replacement Fits John Deere part number JD7409, also sold as Timken 14276. It serves as the outer race in a tapered roller bearing assembly used in drive units, wheel hubs, axles, and driveline applications across a wide range of Fits John Deere (Fits JD) tractors, balers, combines, forage harvesters, rotary cutters, and equipment from numerous other manufacturers. Pairs with compatible bearing cones including 14116, 14117A, 14118, 14118AS, 14124, 14125A, 14130, 14131, 14137A, 14138A, and 14139.

Specifications

  • Type: Single Tapered Roller Bearing Cup (Outer Ring)
  • Outside Diameter: 2.717 in
  • Width: 0.625 in
  • Fillet Radius: 0.050 in
  • Material: Chrome Steel
  • Lubrication Hole: None
  • Finish: Uncoated

Compatible Models

Fits John Deere (Fits JD) Balers: 224T, 224WS, 328, 330, 332, 332T, 335, 336T, 336WS, 338, 339, 342T, 346T, 348, 349, 359, 375, 385, 410, 435, 456, 456T, 456W, 459, 466, 468, 510, 535, 545, 550, 570, 503, 503I

Fits John Deere (Fits JD) Combines: 1640, 1644, 1660, 1666, 1668, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588

Fits John Deere (Fits JD) Tractors: 700, 705, 840, 940, 1040, 1140, 1320, 1326, 1327, 1350, 1550, 1750, 1840, 1850, 1950, 1950N, 2040, 2040S, 2140, 2150, 2155, 2250, 2255, 2350, 2355, 2355N, 2450, 2550, 2555, 2650, 2750, 95

Fits John Deere (Fits JD) Headers/Cutting: 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615

Fits Case / Fits Case IH: 303, 335, 403, 403F, 403G, 445, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 554XL, 555XL, 715, 815, 1400, 82, 84

Fits Massey Ferguson: M5

Minneapolis-Moline: G1000, JET STAR 3, JET STAR 4, 5 STAR

GEHL: 670

Hesston: 5400 REBEL, 5500 REBEL

Additional brands: Vermeer, Fits Woods, Amco, Fits Ford/New Holland, Krause, Fits Allis Chalmers, BUSH HOG, Rhino, Fits Caterpillar, Kewanee, Taylorway, Riverside Tractor -- verify specific model fitment using cross-reference numbers below.

Replaces Part Number(s):

JD7409, 14276, 14276TIM, 54628A, 520031, 113BH, A29977, 016234X1, 10261, 9N744, 116210, 8J0422, X5623, 526WD, 7069WD, 80105, 70025, W33, 1715019, 70209890, 74253284, 710350, 203021, W10A7575

Aftermarket Interchange Numbers

Timken: 14276 | National: 14276 | IH/Fits Case: 565213R91 | Fits Massey Ferguson: 831337M1

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1644, 1680, 605J, 2588, JET STAR 3, 1688, 504H, 2366, 504I, 504L, 4901-4938, 604J, 335, 2577, 504C, 82, Outer Ring Of A Tapered Roller Bearing, 503I, 602, 504F, G1000, 554XL, 2377, 5500 REBEL, 555XL, 604L, 403G, R-23, 505I, M5, 715, 670, 504I SILAGE, 605K, 504G, 95, R-21, 1400, 503, 505L, 2166, JET STAR 4, 445, 605L, 303, 1666, 815, 403, 604XL, 605F, 605H, 1640, 2344, 604K, 5400 REBEL, 403F, 1660, 605XL, 2188, 2388, 5 STAR, 605G, 615, 84

Additional Information:

Outside Diameter 2.717" Radius .05" Width .625" Cup Bearing

Reference Numbers:

14276, 113BH, 710350, 80105, 14276TIM, X5623, W10A7575, 9N744, 116210, JD7409, 520031, 1715019, 54628A, 016234X1, 10261, 526WD, 7069WD, A29977, 70209890, 74253284, 8J0422, 70025, W33, 203021
