One New Aftermarket Replacement Clutch Pilot Ball Bearing Fits Allis Chalmers Tractors

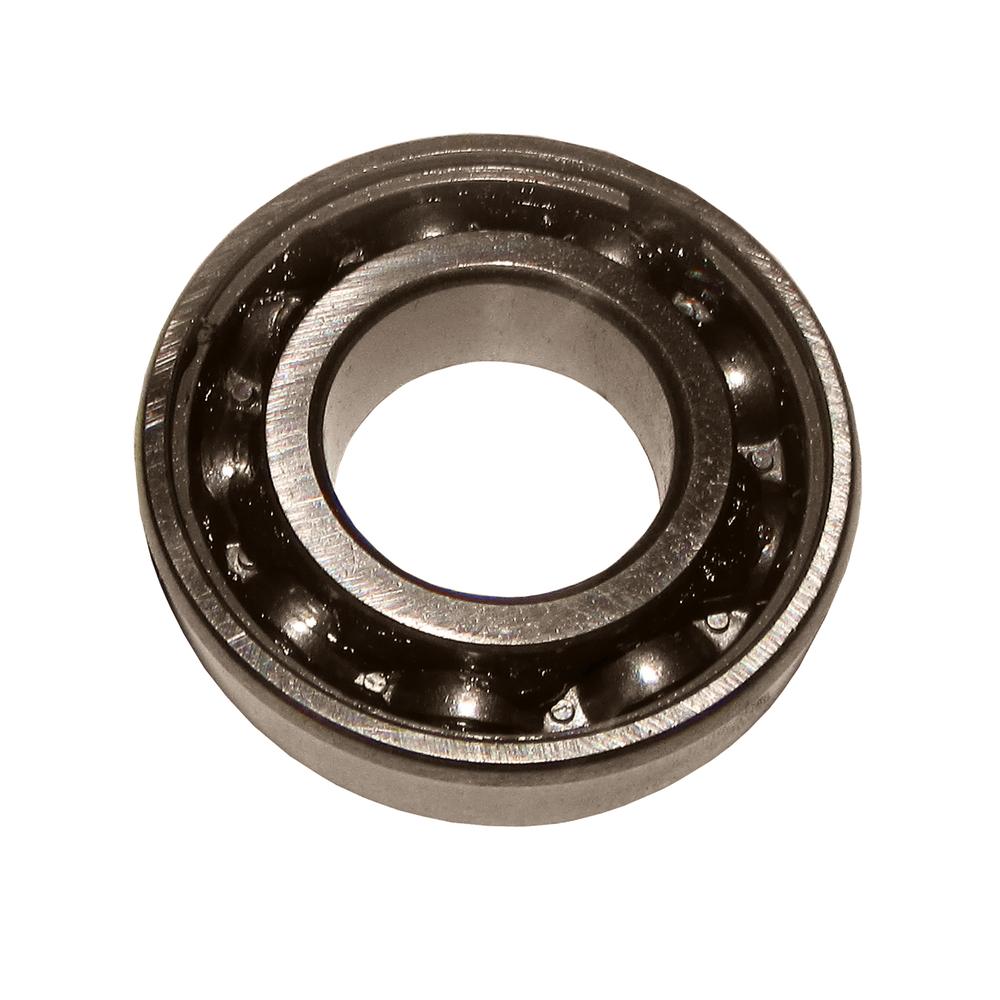

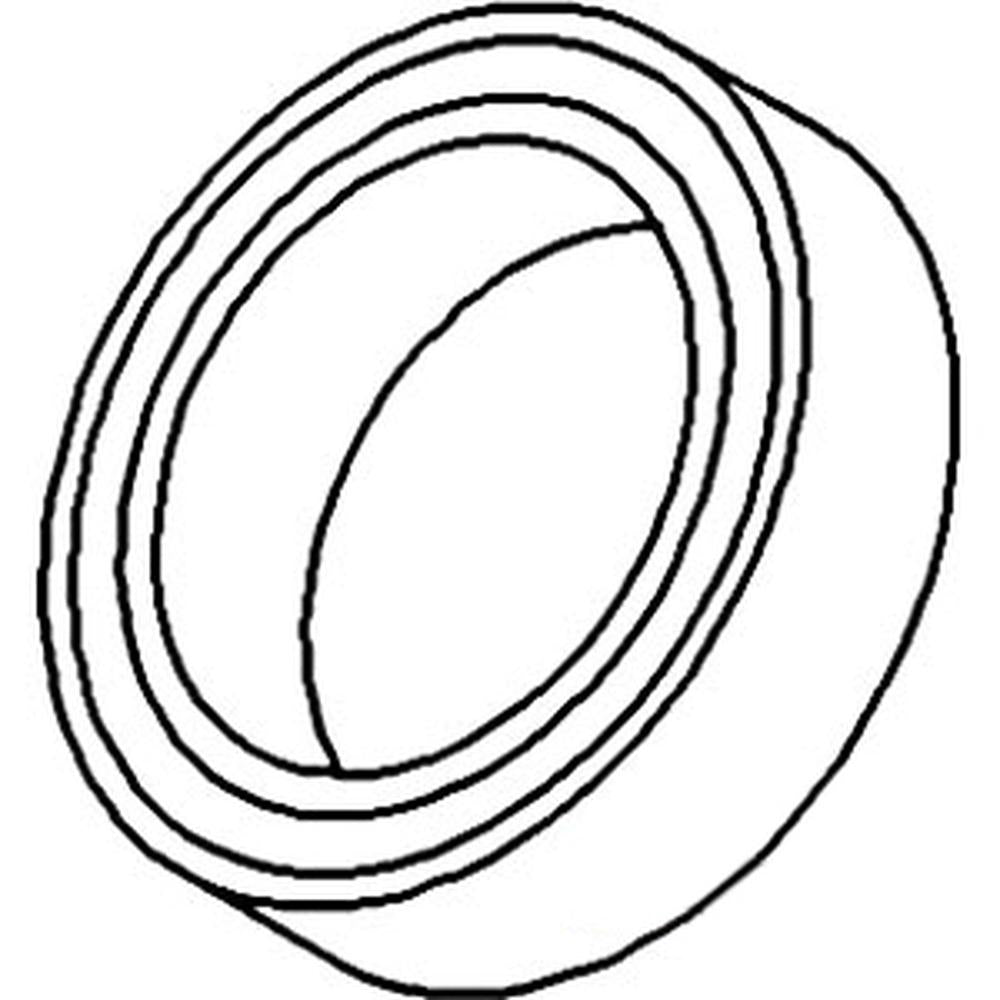

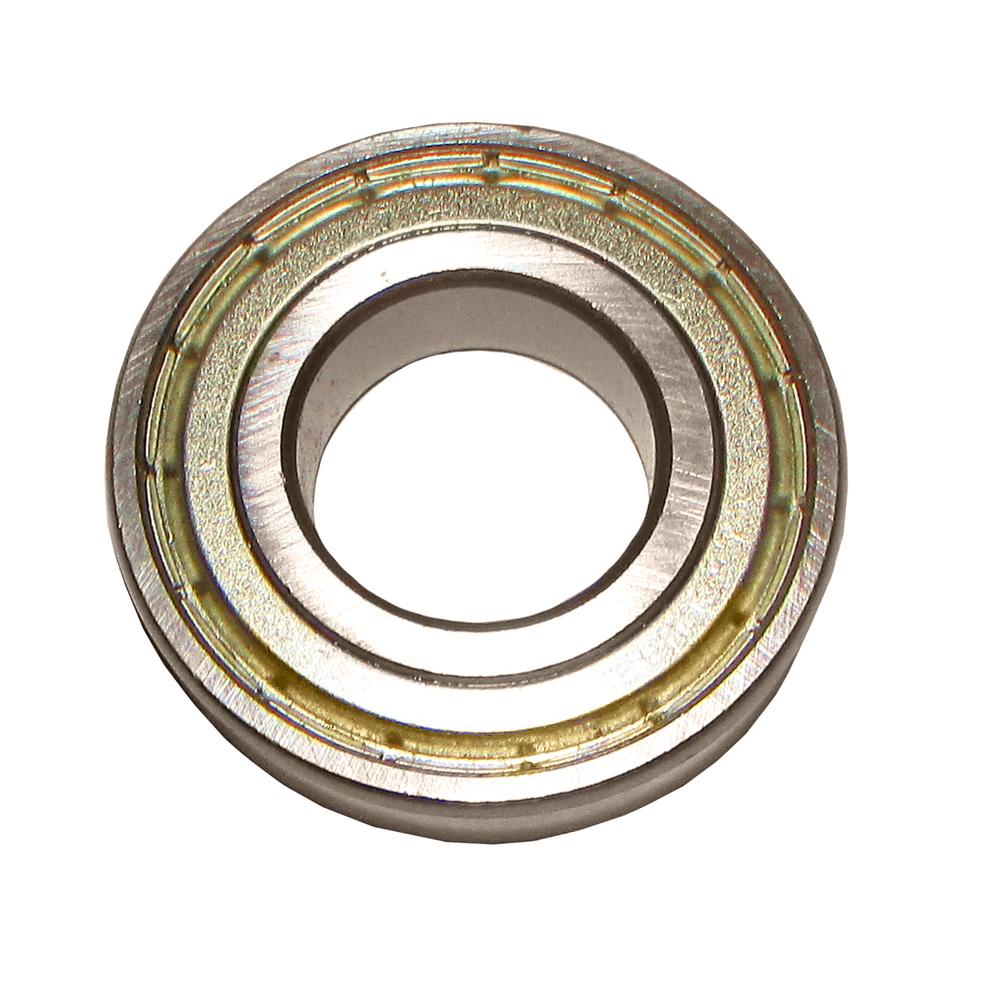

This 6205-Z single-shielded deep groove ball bearing serves as the clutch pilot bearing on a wide range of Fits Allis Chalmers (AC) tractors. Seated in the crankshaft pilot bore, it supports and centers the transmission input shaft during clutch engagement and disengagement. The 6205-Z designation indicates a single metal shield on one side; this bearing is also commonly cross-referenced as a sealed (2RS) variant depending on application.

Specifications

• Bearing Type: Deep groove radial ball bearing
• Shield Type: Single metal shield (Z)
• Inner Diameter (ID): 25 mm (0.984 in)
• Outer Diameter (OD): 52 mm (2.047 in)
• Width: 15 mm (0.591 in)
• Material: Chrome steel

Compatible Models

Fits Allis Chalmers (AC) Tractors: 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 600, 615, 7000, D10, D12, D14, D15, D17, D19, D21, WC, WD, WD45, WF

Fits Allis Chalmers Industrial/Construction: G138, G160, G226, III

Note: Verify clutch pilot bearing vs. bushing application for your specific serial number before ordering. Some D10 and D12 tractors used a pilot bushing rather than a pilot bearing depending on serial number break.

Replaces Part Number(s):

70205756, 70205756-A, 6205-Z-I, 6205-Z-I-A, 226859, 6205, 6205-2RS

Aftermarket Interchange Numbers

JD7149, JD9321, N4651, 205FF, 205SS, 29758X, 01109048

New aftermarket replacement part - not remanufactured, not used.
