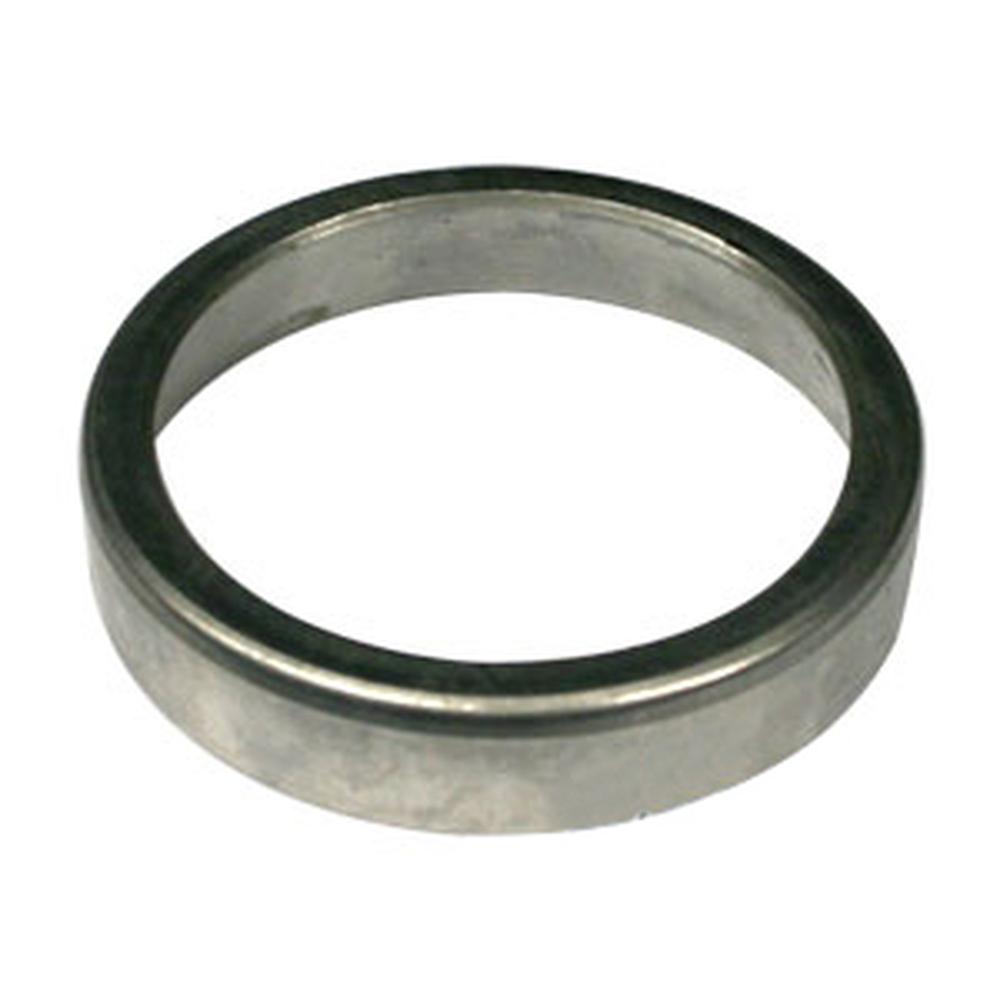

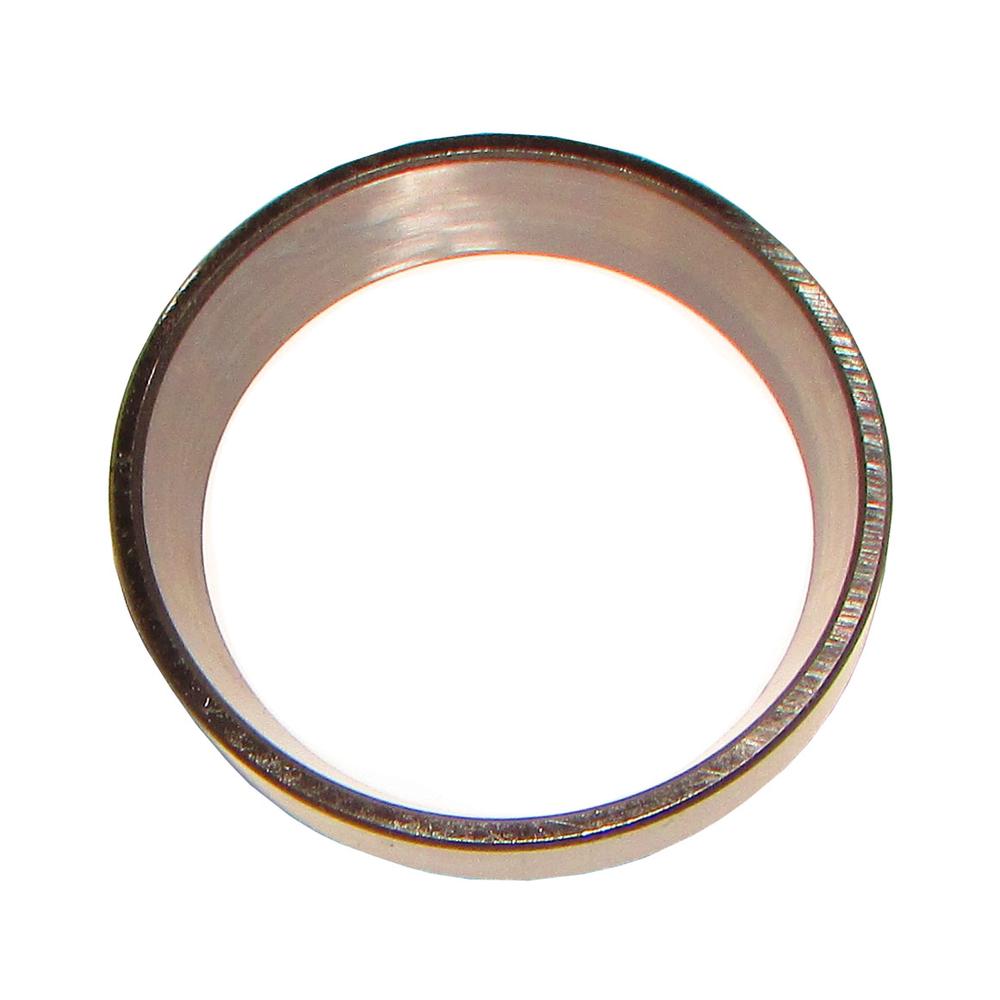

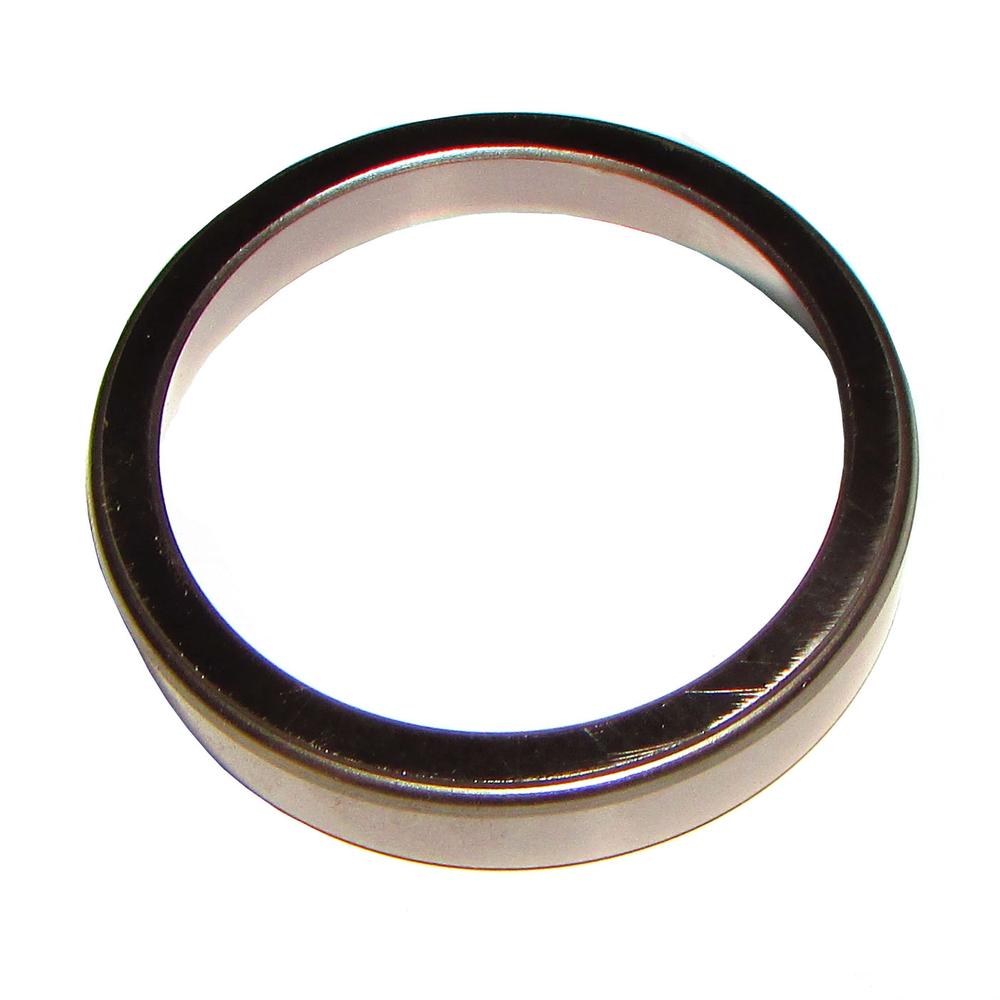

A-JD8225-AI Outer Cup

A-JD8225-AI Outer Cup

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Tapered Roller Bearing Cup Fits John Deere Equipment

This aftermarket replacement tapered roller bearing outer cup (race) fits a wide range of Fits John Deere agricultural and lawn and garden equipment. Identified by OEM part number JD8225, this bearing cup also interchanges with the industry-standard LM67010 designation and is used in wheel hubs, transmission shafts, and hydraulic piston pump shaft applications across many Fits John Deere models. Also cross-references to Fits Case/International Harvester, Fits Massey Ferguson, Fits Ford/New Holland, and AGCO equipment.

Specifications

  • Type: Tapered Roller Bearing Cup (Outer Race)
  • Outside Diameter: 2.328 in.
  • Width: 0.465 in.
  • Outer Corner Radius: 0.050 in.
  • Pairs with cone: LM67048 or LM67000LA

Compatible Models

Fits John Deere: 20, 27, 31A, 31B, 31C, 72, 112, 115, 118, 120, 160, 200, 220, 224T, 224WS, 225, 328, 330, 332, 332T, 335, 336T, 336WS, 338, 339, 342T, 346T, 348, 349, 350, 359, 365, 370, 375, 385, 410, 420 (Upper Transmission shaft bearing cup), 425, 430 (Upper Transmission shaft bearing cup), 435, 440E, 446, 447, 448, 449, 450, 450E, 450M, 456, 456T, 456W, 457, 458, 459, 459E, 460M, 466, 467, 468, 469, 509, 510, 512, 520, 525, 530, 535, 545, 546, 547, 550, 550M, 556, 557, 558, 559, 560M, 566, 567, 568, 569, 570, 572, 580, 582, 590, 592, 609, 610, 620, 625, 627, 630, 630D, 635, 635D, 637, 640D, 647, 648R, 650, 652R, 655, 660, 661R, 665, 670, 673, 680, 681, 700, 705, 1010, 2440 (Outer wheel bearing cup up to SN: 331510), 2640 (Outer wheel bearing cup up to SN: 331510), 8RX 310, 8RX 340, 8RX 370, 8RX 410, and many others

Note: On Fits John Deere 2440 and 2640, this is the outer wheel bearing cup for units up to Serial Number 331510 only. Verify application before ordering.

Fits Case/International Harvester: 651817R1 application equipment

Fits Massey Ferguson, Fits Ford/New Holland, AGCO, Kinze: See cross-reference numbers below for applicable models.

Replaces Part Number(s):

JD8225, A-JD8225, A-JD8225-AI, TP-JD8225, LM67010, A-LM67010, A-LM67010-I, LM67010TIM, A-LM67010TIM, 651817R1, 651817R91, 354369X1, 36723NH, D5NN1202A, 913-LM67010, 102843A, 327997, 70327997, B12408, G57444

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

651, 2500, 2111, 2120, 7815, 2-4414, 1650, 770, 375, 580, Super 44, 6060, 840, 2030, 700, 424, 340, 202, 2130, Dexta, 880, 1955, 231, 2150, 4031, 1871, 5, 2-446, 3150, 660, 501, 871, 3910, 4130 3 Cylinder, 1841, 884, 504, 65, 480, 741, 1855, 2440, 3190, 88, 78, 684, 584, 580 Loader, 275, 77, 203, 541, 200B, 4121, 3900, 2300, 755, 2-70, Hydro 186, 615, 621, 398, 1600, 4030, 2-4413L, 1950, 185, 2-4413, 2610, 140, 204, 601, 681, 941, 740, 701, Jubilee, 1550, 861, 3600, 2110, 435, 205, 311, 430, 640, 2640, 4100, 165, 285, 531, 800, 420, 411B, 820, 383, 850, 1950T, 3300, 3120, 641, 393, 255, 1655, 404, 630, 2100, 961, 550, 1800, 265, 135, 900, 1821, 200, 399, 2-4412, 4110, 631, 85, 650, 3150 (UK), 310, 2310, NAA, 2031, 574, 1881, 300B, 390, 4600, 6215, 1010, 860, 2000, 3330, 1555, 671, 3000, 821, 611, Super 55, 4120, 981, 330, 90, 2-105, 3610, 5190, 454, 2600, 62, 661, 440, 901, 950, 4140, 335, 230, 480 Loader, 580B, 881, 2-62, 620, 240, 960, 4030 3 Cylinder, 1811, 971, 4200, Hydro 84, 1750, 4131, 851, 40, 175, 2-44, 4040, 444, 2000 4 cylinder, 600, 530, 6070, 951, 1850, 2-85, 180, 3100, 480B, 4130, Super 90, 811, 303, 4000 4 cylinder, 2000 3 cylinder, 3310, 4000, 771, 841, 310 Crawler, 2131, 66, 315, 674, 3110, 1801, 2135

Additional Information:

Outside Diameter 2.328" Radius .05" Width .465" Bearing Cup

Reference Numbers:

327997, 70327997, 651817R1, 8A1202B, D5NN1202A, 36723, 36723, D5NN1202A, 8A-1202B, 86980337, 102843A, B12408, 15A10703, 354369X1, B12408, G57444, 651817R1, LM67010, LM67010TIM, 70327997, W102843A, JD8225
