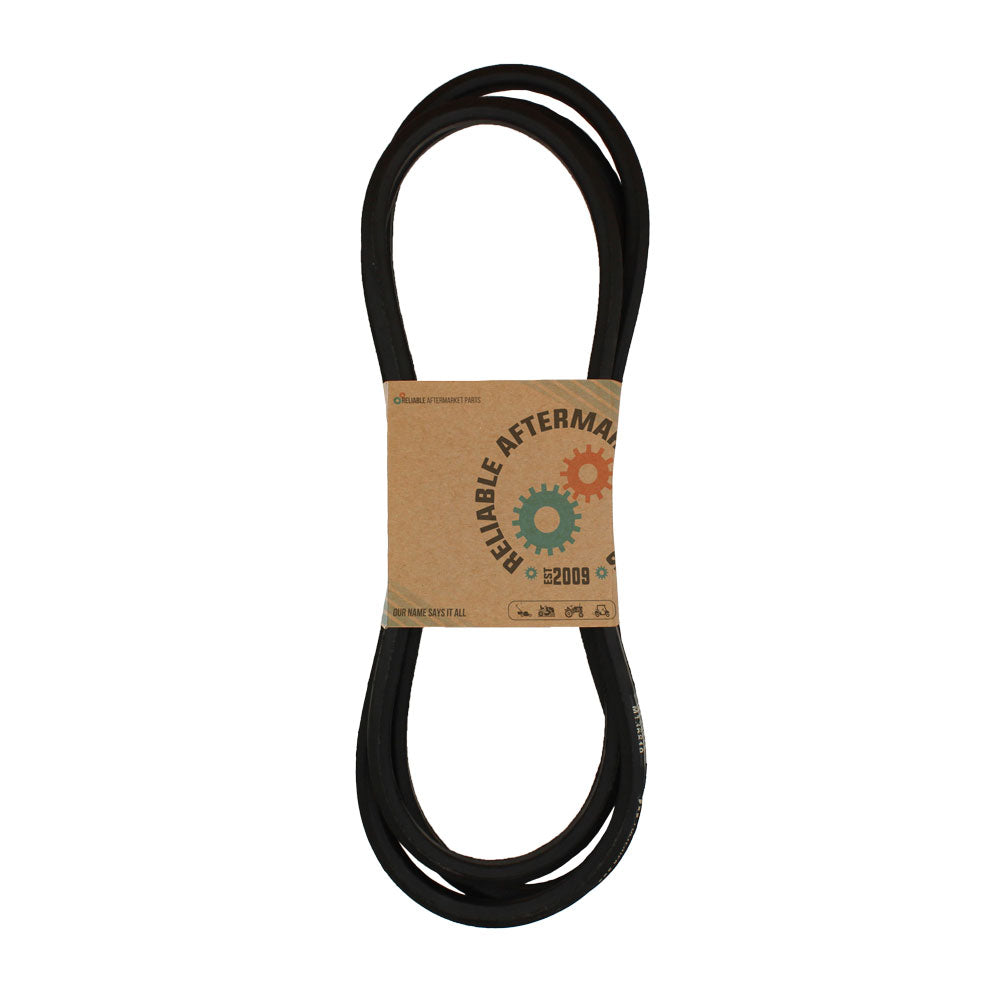

One New Aftermarket Replacement Double Angle Blade Drive Belt Fits John Deere and Fits Woods Front-Mount Mowers

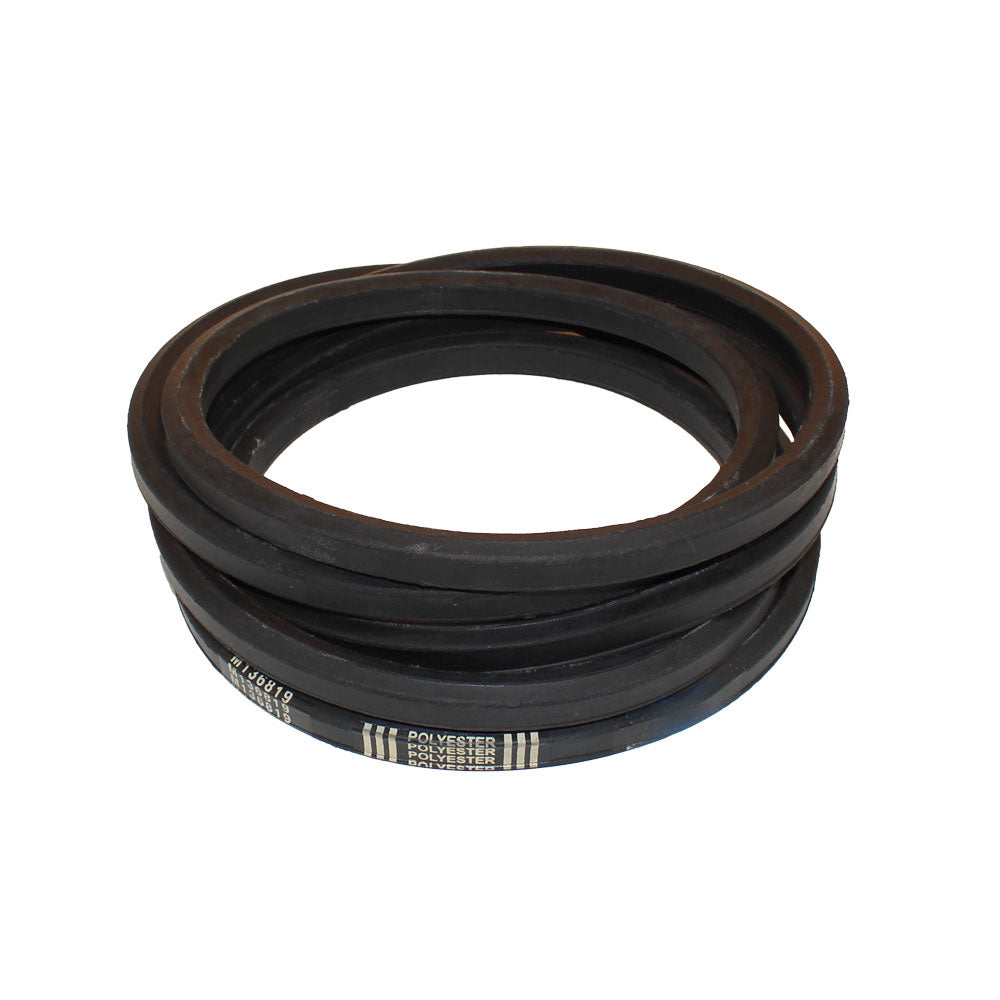

This BB-section double angle (hex) V-belt drives the blade spindles on the 54-inch mower deck of Fits John Deere F-series front-mount Z-Trak mowers and the 61-inch deck of Fits Woods CM-series commercial walk-behind mowers. The double-angle profile allows power to be transmitted from both sides of the belt, making it well-suited for multi-pulley blade drive systems. Constructed with a wrapped polyester cord for superior length stability and resistance to heat and oil.

Specifications

• Belt Type: Double Angle BB-Section (Hex Belt)
• Top Width: 5/8" (21/32")
• Outside Length: 132"
• Thickness: 0.512"
• Construction: Wrapped Polyester Cord

Compatible Models

Fits John Deere (Fits JD) Front-Mount Mowers: F620 (54" Deck), F680 (54" Deck), F687 (54" Deck)

Fits Woods Commercial Walk-Behind Mowers: CM61, CM61-2, CM61E

Replaces Part Number(s):

M136819, BB129, 35252

New aftermarket replacement part - not remanufactured, not used.
