A-P1430-AI Outer Cone

A-P1430-AI Outer Cone

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

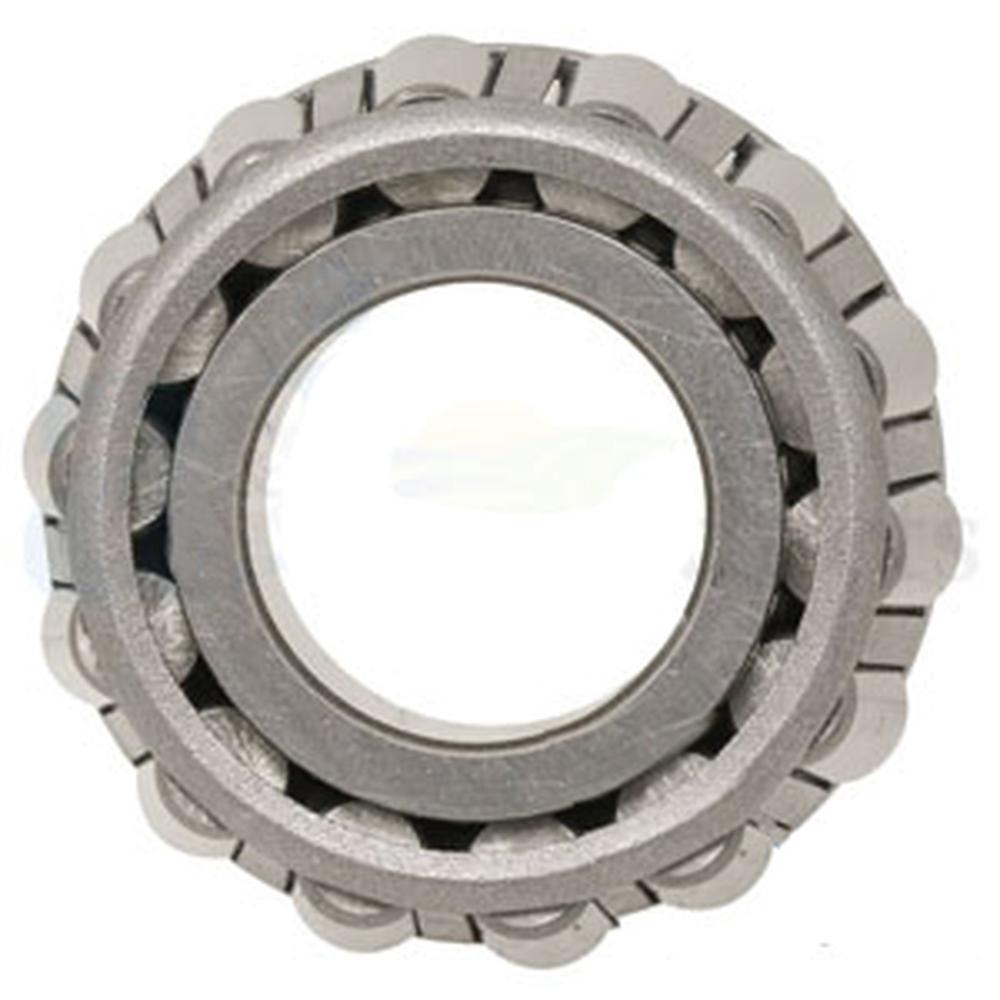

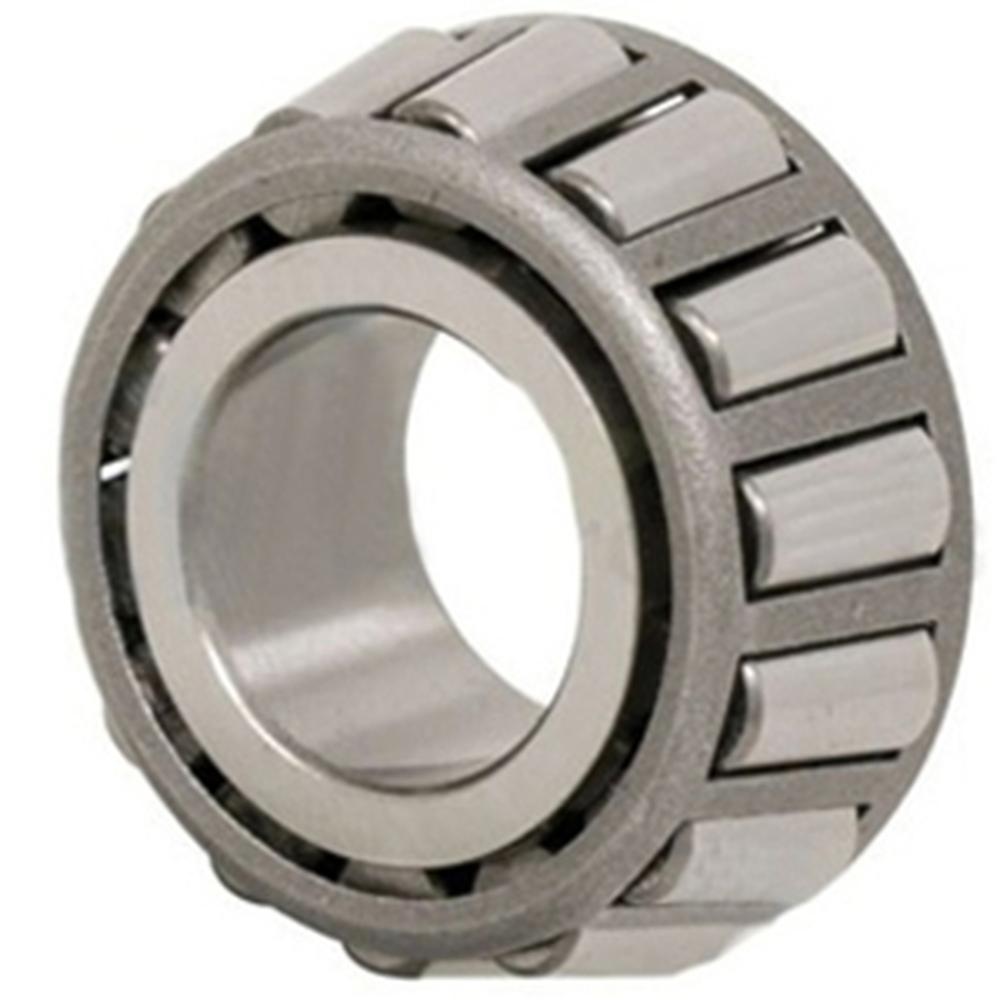

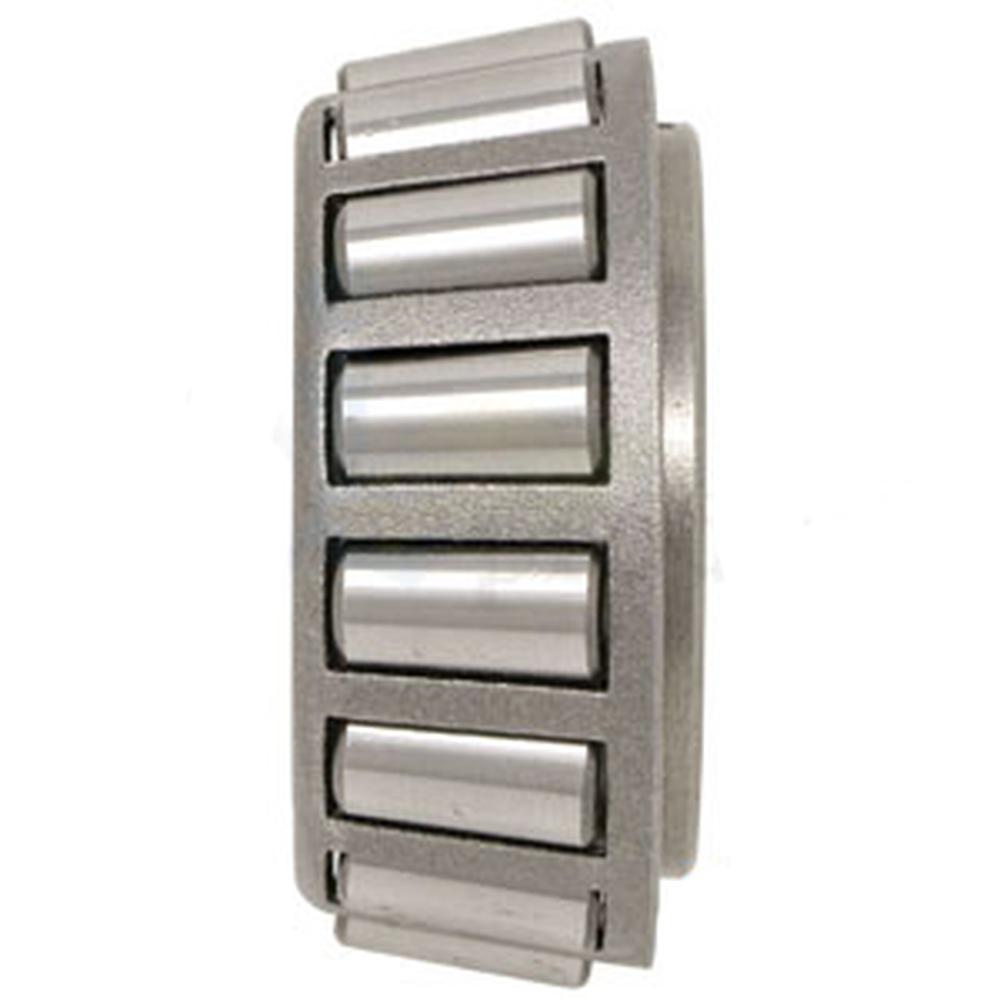

One New Aftermarket Replacement Tapered Roller Bearing Cone LM11949 Fits Massey Ferguson, Fits John Deere, Fits Ford, Fits Case/International Harvester and More

This tapered roller bearing cone (LM11949) is a precision-ground single cone designed to support both radial and axial loads in wheel hubs, transmission cases, and drive assemblies on tractors, combines, balers, rotary cutters, and other agricultural and industrial equipment. Pair with the matching LM11910 cup (sold separately) to complete the bearing assembly. Bore diameter is 3/4" (0.750"), making this a widely used industry-standard size across many equipment brands and model lines.

Specifications

  • Type: Tapered Roller Bearing Cone (Single Cone / Inner Ring)
  • Bore (Inner Diameter): 0.750"
  • Cone Width: 0.655"
  • Corner Radius: 0.05"
  • Matching Cup: LM11910

Compatible Models

Fits Massey Ferguson: 135, 150, 165, 175, 180, 185, 200, 202, 203, 204, 205, 230, 231, 233, 234, 235, 240, 245, 255, 265, 275, 285, 303, 333, 334, 335, 340, 403, 431, 451, 461, 503, 504, 541, 543, 550, 570, 584, 611, 615, 621, 631, 640, 641, 650, 651, 660, 674, 915, 1080, 1085

Fits John Deere: 66, 84, 140, 200, 230, 300, 330, 430, 530, 630, 900 Series, 2100, 2150, 2243, 2300, 2310, 2400A, 2404, 2424, 2444, 2500, 2504, 2600, 2610, 2653, 2810, 2910, 3000, 3055, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3550, 3600, 3610, 3900, 3910, 3930, 4000, 4031, 4100, 4110, 4120, 4130, 4131, 4190, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 5110, 6000, 6610, 6710, 6810, 7410, 7610, 7700, 7710

Fits Ford/New Holland: 233, 234, 335, 404, 424, 444, 454, 470, 501, 503I, 503, 504I, 504I Silage, 531, 541, 600 Series, 700 Series, 800 Series, Dexta, Super Dexta, 2000, 2031, 2100, 2110, 2111, 2120, 2131, 2300, 2310, 2500, 2600, 2610, 2653, 3000, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3600, 3610, 3900, 3910, 3930, 4000, 4100, 4110, 4120, 4130, 4190, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 5110, 6000, 6610, 6710, 6810, 7410, 7610, 7700, 7710, 20C, PH13, PH15

Fits Case/International Harvester: 140, 230A, 303, 333, 334, 403, 403F, 403G, 404, 424, 431, 444, 451, 454, 461, 470, 500B, 503, 504, 531, 541, 543, 570, 584, 600B, 620, 915, 2031, 2100, 2110, 2131, 2300, 2400A, 2404, 2424, 2500, 2504, 2600, 2653, 3055, 3100, 3300

White, Vermeer, Fits Woods, New Idea: Refer to compatible cross-reference numbers below for applicable models.

Replaces Part Number(s):

831055M1, 1851799M91, JD8188, 2304WD, 1650003, 1650005, 102840A, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 651815R1, 651815R91, G10815

Aftermarket Interchange Numbers

LM11949, 4T-LM11949, 05404500, 05404400, 67334. Pairs with cup LM11910 to form complete bearing set LM11949/LM11910.

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

651, 2500, 2111, 2444, 2120, 4830, 504I, 300, 424, 340, 202, 231, 235, Dexta, 2150, 4031, 3150, 660, 501, 3550, 3910, 4410, 504, 4340, 4630, 7700, 3190, 815, 403, 584, 2653, 275, 431, 230A, 203, 541, 3900, 2300, 333, 5110, 615, 570, 621, 2424, 185, 2610, 140, 204, 601, 4330, 2504, 6610, PH15, 3600, 2110, 205, 504I SILAGE, 640, 430, 285, 4100, 165, 531, 451, 503, 5030, 3120, 3300, 641, 255, 1830, 404, 630, 2100, 1080, 550, 7710, 20C, 265, 135, 4610, 600 Series, 1085, 200, PH13, 631, 4110, 2404, 650, 2310, 2031, 461, 700 Series, 4600, 2810, 915, 234, 2000, 2243, 3330, 800 Series, 3000, 611, 4120, 403F, 3055, 330, 3610, 454, 2600, 6710, 84, 2400A, 334, 335, 230, 620, 240, 4500, 4200, 150, 3930, 233, Super Dexta, 4131, 4190, 175, 403G, 505I, 6000, 444, 7410, 900 Series, 530, 180, 3100, 4130, 303, 600B, 6810, 3310, 3230, 4000, 7610, 500B, 315, 470, 2131, 66, 674, 3110, 245, 543, 503I, 2910

Additional Information:

Bore: .750" Radius: .05" Width: .655" Bearing

Reference Numbers:

2304WD, 831055M1, 1851799M91, 102840A, 651815R1, 651815R91, G10815, 1650003, 1650005, JD8188, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 831055M1
