One New Aftermarket Replacement 1/2" Hydraulic Hose Assembly for Agricultural and Industrial Equipment

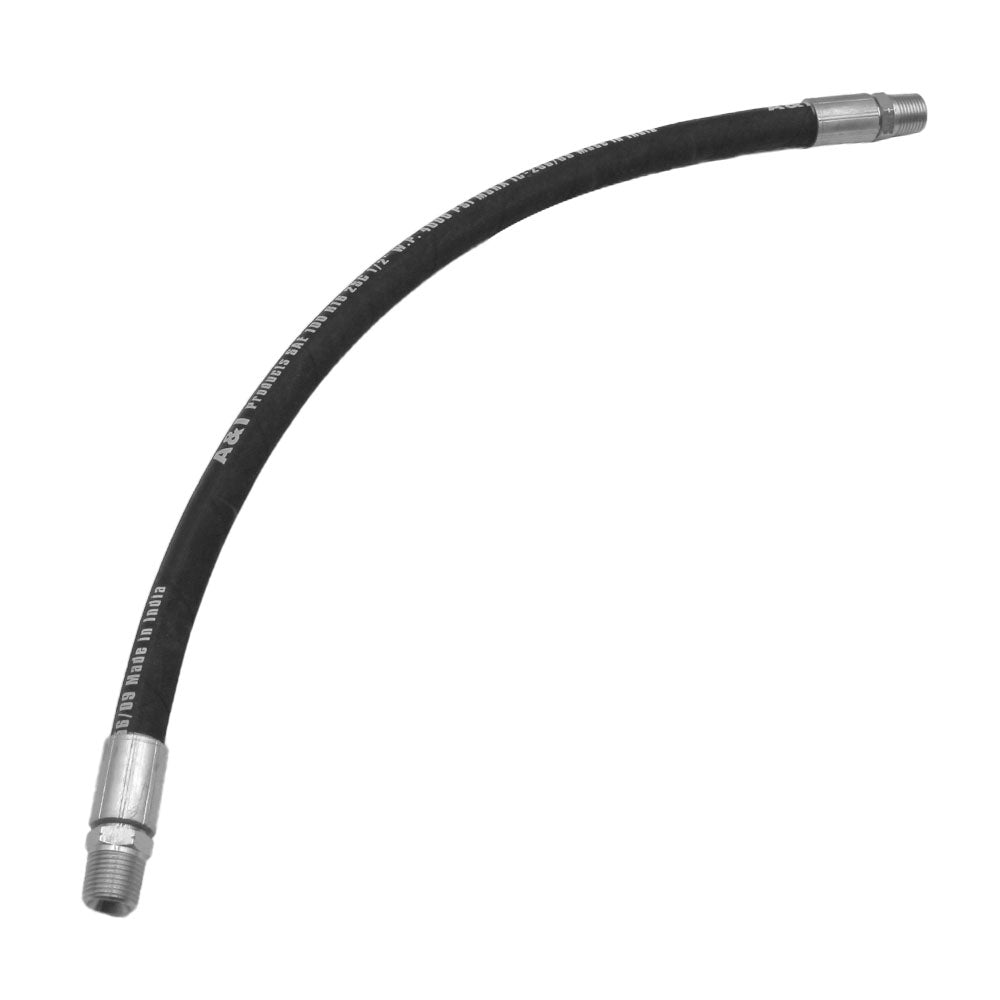

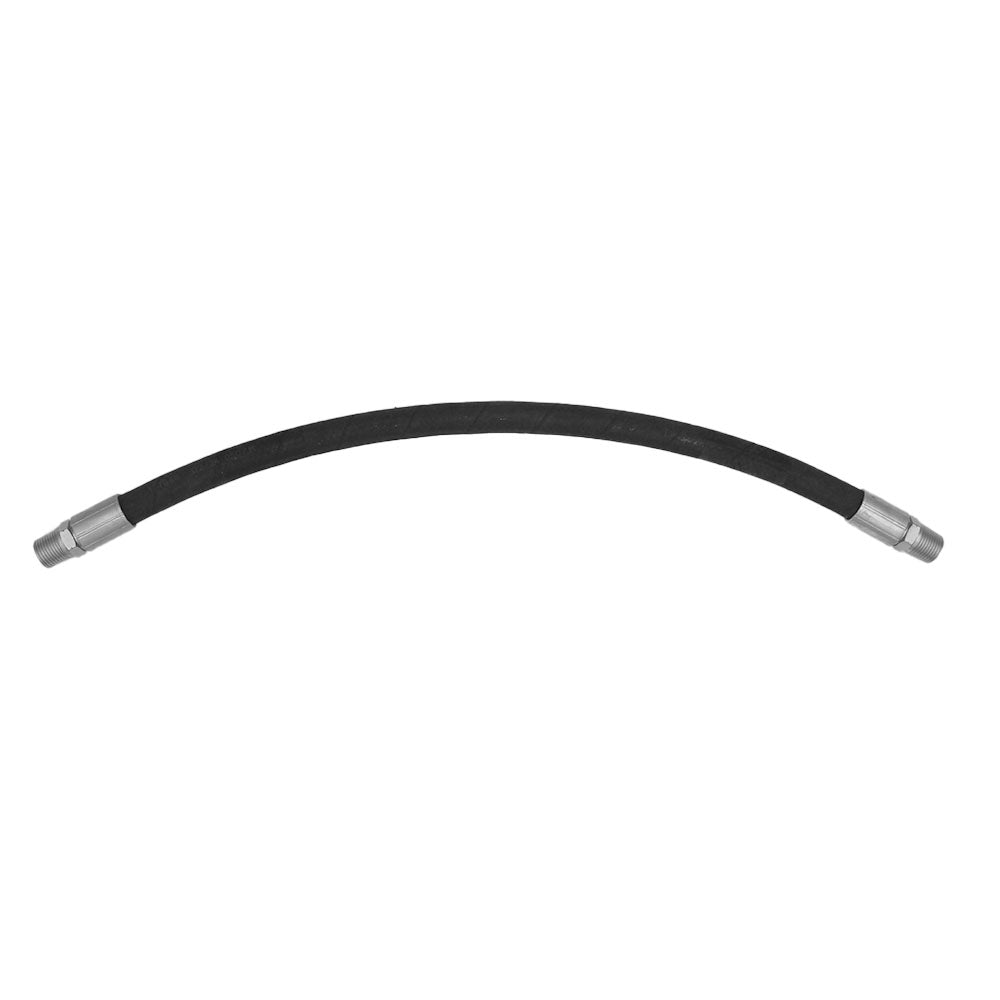

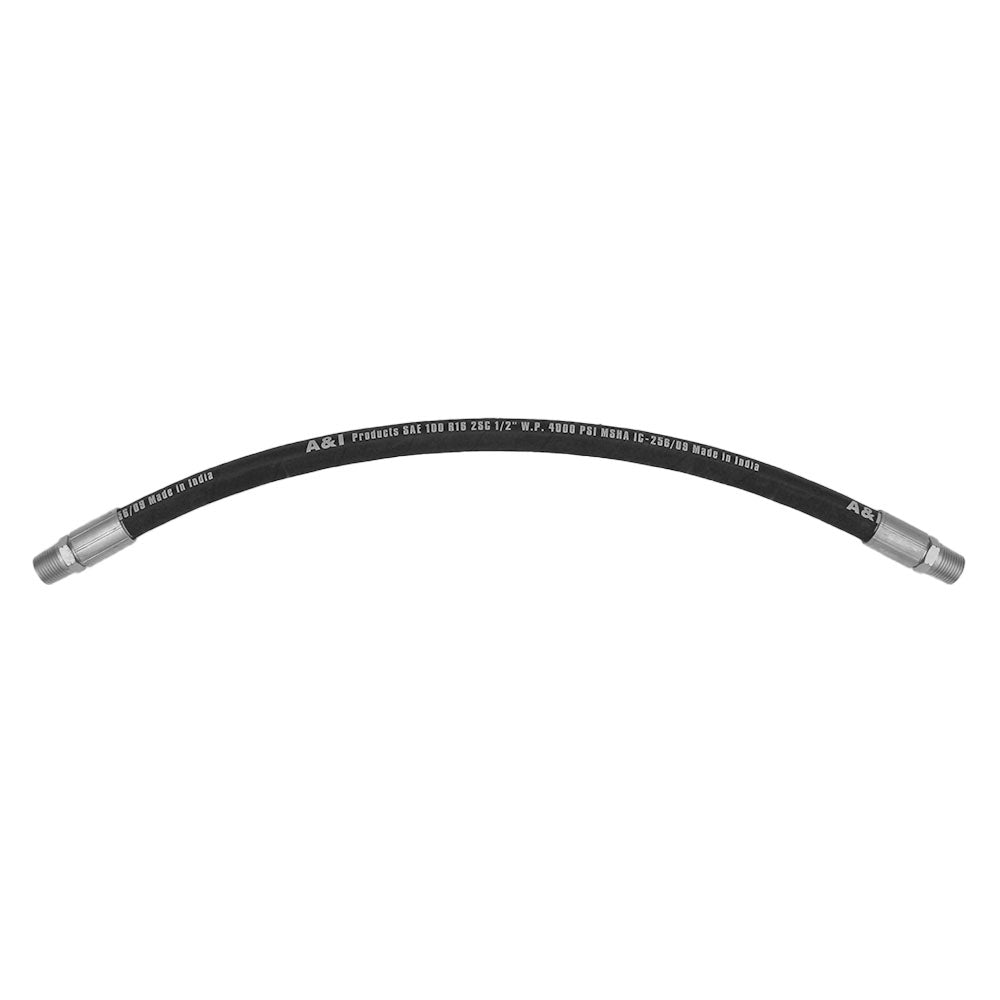

This 1/2" SAE 100R16 hydraulic hose assembly features rigid male NPT fittings on both ends and measures 24" in overall length. Built with a two-wire steel braid reinforcement and an oil- and weather-resistant synthetic rubber cover, it delivers reliable high-pressure hydraulic fluid transmission in tractors, loaders, cylinders, pumps, and a wide range of agricultural and construction machinery. The rigid (non-swivel) NPT fittings on both ends thread directly into standard 1/2" NPT ports with no adapters required.

Specifications

• Hose Standard: SAE 100R16
• Hose Size (ID): 1/2"
• Overall Length: 24"
• Maximum Outside Diameter: 0.81"
• Minimum Bend Radius: 3.40"
• Wire Reinforcement: 2-Wire Steel Braid
• Thread: 1/2" NPT Male, Rigid (both ends)
• Working Pressure: 4,000 PSI
• Minimum Burst Pressure: 16,000 PSI

Compatible Applications

Universal Fit: Suitable for any agricultural, construction, lawn and garden, or industrial hydraulic system using standard 1/2" NPT porting. Common applications include hydraulic cylinders, gear pumps, power packs, front-end loaders, tractors, and skid steers.

Replaces Part Number(s):

A-PHA2W1224-AI, PHA2W1224

New aftermarket replacement part - not remanufactured, not used.
