A-PT206-AI Bearing (25520)

A-PT206-AI Bearing (25520)

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

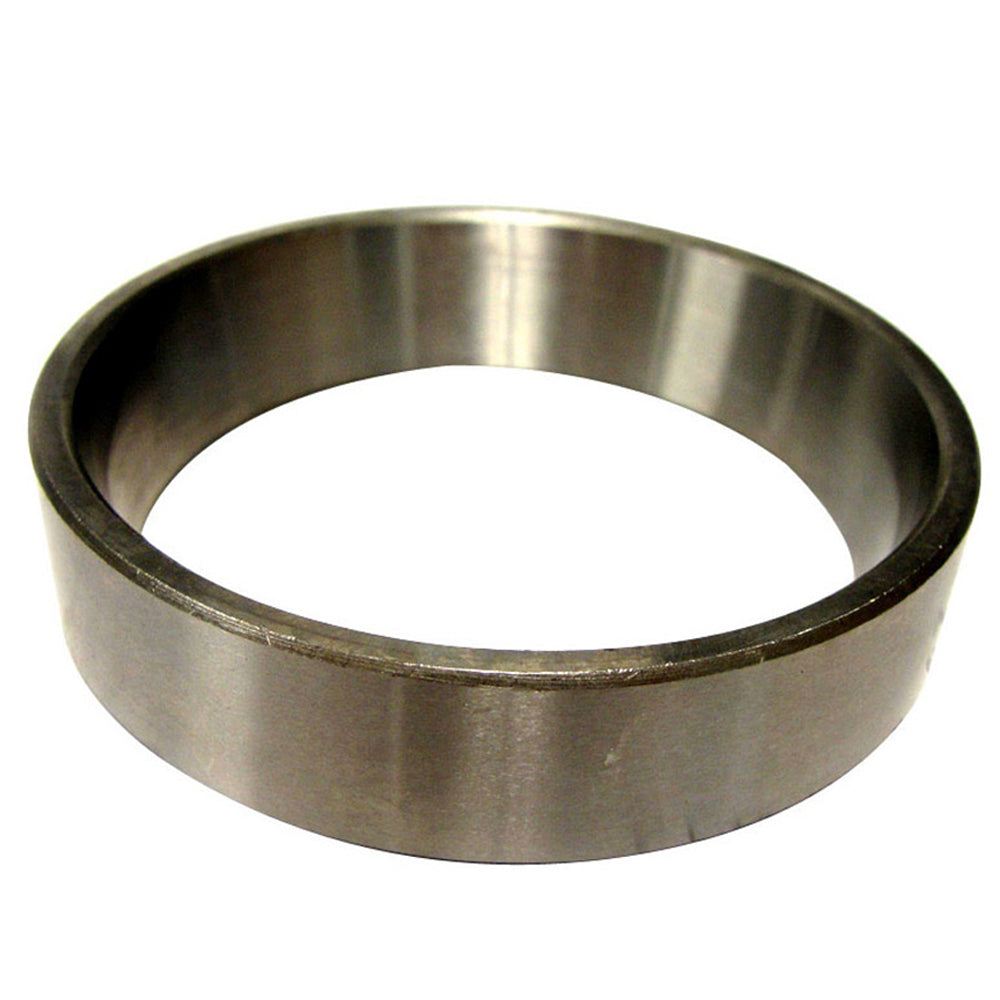

One New Aftermarket Replacement Tapered Roller Bearing Cup (25520) - Agricultural and Industrial Applications

This tapered roller bearing cup (race), part number 25520, is the outer ring component of a tapered roller bearing assembly. The cup pairs with the 25580 or 25590 tapered roller bearing cone to form a complete inch-series bearing set widely used in agricultural equipment axle, wheel hub, and driveline applications.

Specifications

  • Type: Tapered Roller Bearing Cup (Outer Race)
  • Outer Diameter: 3.265 in
  • Width: 0.75 in
  • Mates With: 25580 cone (1.75 in bore) or 25590 cone (1.796 in bore)

Compatible Applications

This bearing cup is a standard industry interchange used across a broad range of agricultural equipment, trailers, and industrial machinery including axle, wheel hub, gearbox, and hoisting applications. Verified agricultural OEM replacements include AGCO and Fits John Deere equipment.

Replaces Part Number(s):

25520, A-PT206-AI

Aftermarket Interchange Numbers

AGCO: 17201X, 70210009, W983148; Fits John Deere: JD7418; Koyo: HI-CAP25520

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1800, Steering Knuckles, 1480, 1644, 1680, 2588, 8120, 1688, 1482, 2366, 6088, 2555, 900 SERIES, 600 SERIES, 1440, 2577, CPX420, 1460, 2155, 620, 1620, 960, 1682, 7120, 2377, Axle Assemblies, 2022, 7010, 2144, 1470, MODULE EXPRESS 625, 2044, 2055, CPX620, 1844, 8010, Front Wheel Hubs, 95, 1400, 503, 2166, 9120, 915, 700 SERIES, 420, Final Drives, 1666, 303, 815, 403, 5088, 1822, 782, 1640, 2344, 1660, 1420, 315, 2188, 2388, CPX610, 800 SERIES, 7088, AFX8010, 615

Additional Information:

Outside Diameter: 3.265" Radius: .03" Width: .750" Tapered Cup

Reference Numbers:

055276, A29062, VT2100, 130503H, ST987, 432BH, 10468, 25520, NCB44136A, 13958, 42109, 70210009, 711200, 712182, WBB5018B, JD7418, PT206, 70030, 25520TIM, 6S2825, 822013C, 990085, 017201X

Makes This Part Fits:

Product Category:

Product Group:

Product Sub Group:

View full details
