A-RE28790-AI Seal, Hydraulic Pump

A-RE28790-AI Seal, Hydraulic Pump

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

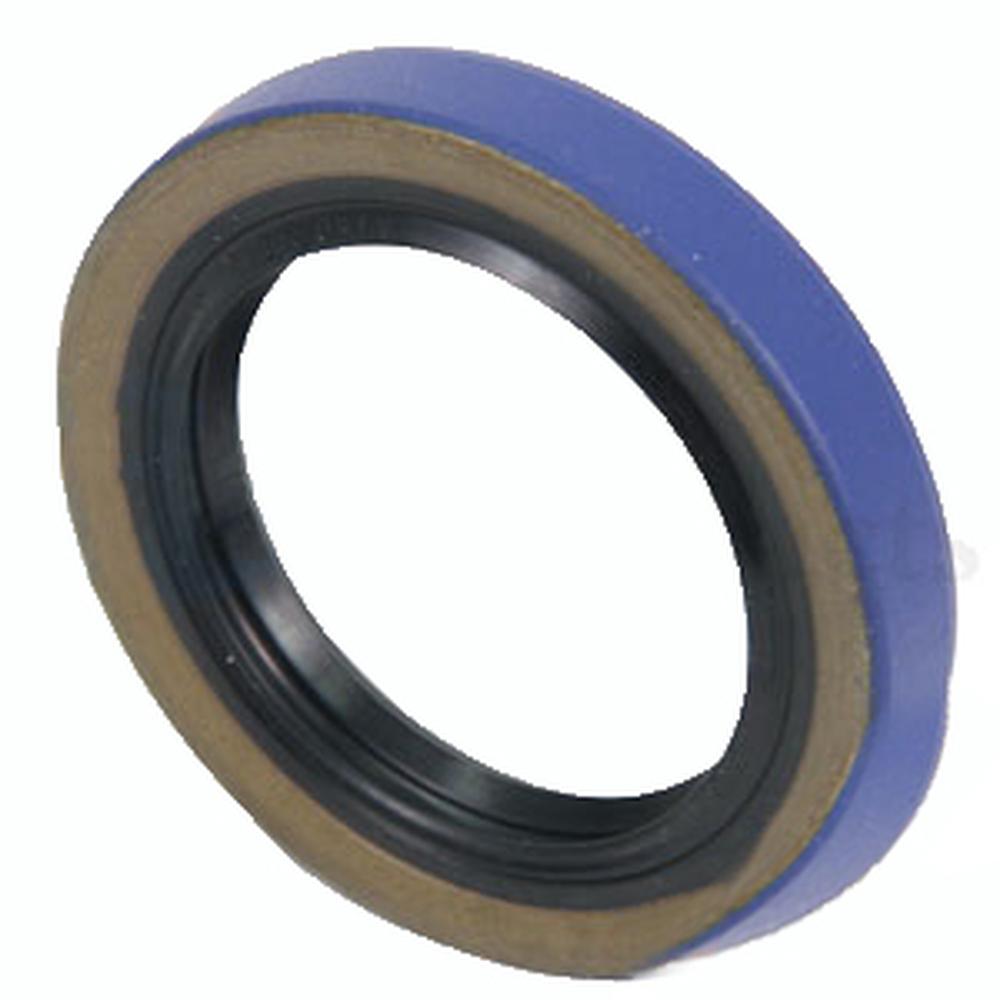

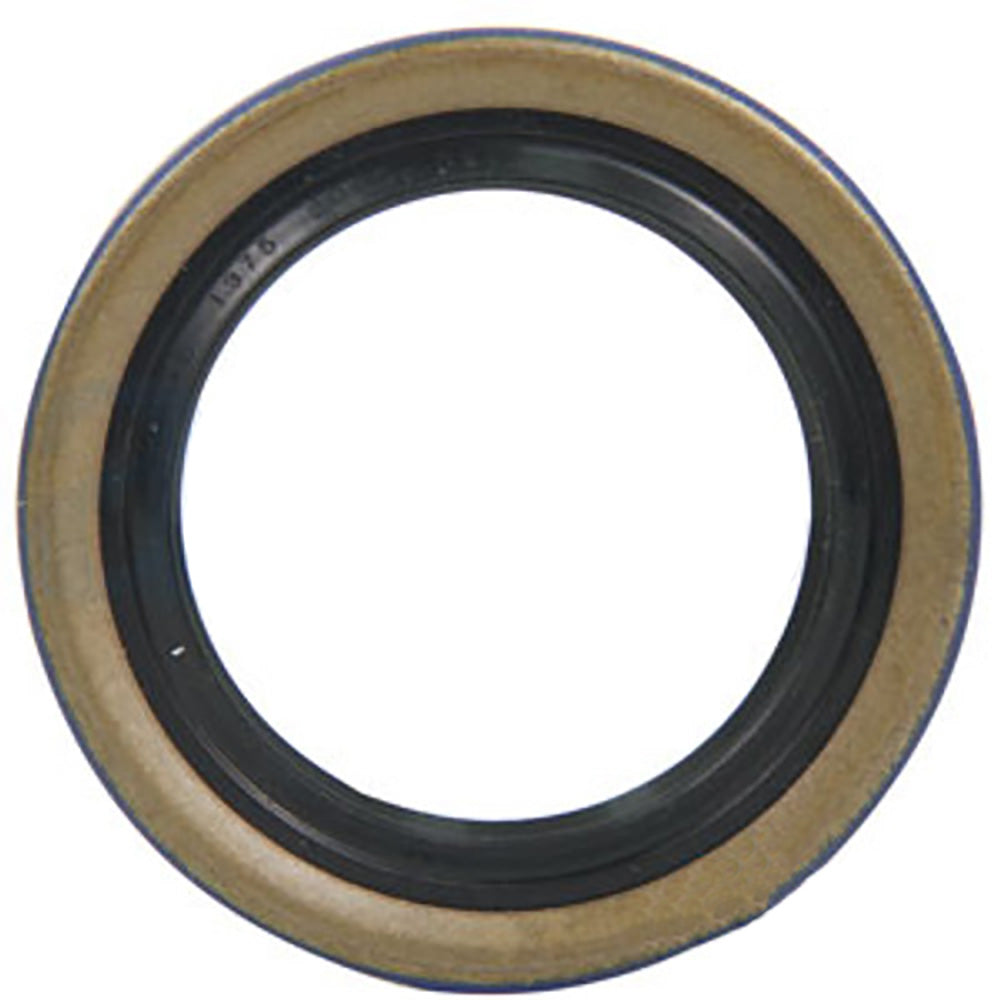

One New Aftermarket Replacement Hydraulic Pump Shaft Seal Fits John Deere (Fits JD) Tractors

This aftermarket replacement hydraulic pump shaft seal (lip seal) fits the gear-driven hydraulic pump shaft on a wide range of Fits John Deere (Fits JD) row-crop and utility tractors. It seals the pump input shaft to prevent hydraulic fluid loss and maintain system pressure. Replaces OEM part numbers AR52224 and RE28790.

Specifications

  • Outer Diameter: 2.000"
  • Inner Diameter: 1.337"
  • Width: 0.484"
  • Type: Lip Seal (shaft seal)

Compatible Models

Fits John Deere Tractors: 2030, 2130, 2440, 2510, 2520, 2630, 2640, 2750, 2840, 2940, 2950, 2955, 3010, 3020, 3030, 3130, 3150, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4560, 4620, 4630, 4640, 4650, 4750, 4755, 4760, 4840, 4850, 4855, 4950, 4955, 4960, 5010, 5020, 6030, 7020, 7520

Fits John Deere Combines: 8430, 8440, 8450, 8560, 8570, 8630, 8640, 8650, 8760, 8770, 8850, 8870, 8960, 8970

Gear-Driven Hydraulic Pumps: AR56161 (49 cm3), AR99839 (66 cm3)

Replaces Part Number(s):

AR52224, RE28790, F39Z3254A, X213712A, 10A139, 213712, 634036, 787052A, AH21815, AR20077, AR20077R, C16326, GP100207, NJ100000, XSU3914, 1053519M1, 831959M1, A54040, T25029, XA94437, 111512K11, 1957347C1, 23033, 381480R91, 393554R91, 534917R91, 472258, 472258-P, PM11039230, 101691A, 15A14589, 35A10019, 35P2744, 9210010, 744268, 800201, 0246926, 0272256, 0272256-9, 0275802, 0430307, 0430307-9, 211334, 217103, 246926, 246926-0, 252849, 272256, 275802, 4252849, 4254936-0, 430307, 430309-9, 70275802, 40131A, 21592, CR13569

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

540A, 8760, 8770, 2030, 4250, 5020, 8440, 1682, 2130, 644B, 320630, 3150, 400, 4850, 310, 302A, 4650, 7020, 4520, 510, 2940, 2440, 4055, 300B, Hydraulic Pumps, 1482, 4230, 4320, 3130, 2750, 4840, 4450, 240822, 2640, 4020, 4630, 760, 4760, 2510, 500B, 1830, 4960, 8650, 540, 4040, 4640, 2840, 300, 6030, 4255, 4440, 500, 544B, 8430, 4455, 500C, 644, Gear‑driven Hydraulic Pumps, 4010, 8640, 8960, 4030, 700, 3030, 7520, 2955, 8870, 4555, 600, 240838, 8630, 2950, 760A, 2630, 4050, 3010, 4755, 8450, 2520, 8570, 4955, 3020, 8970, 410, 8850, 401C, 4000, 8560, 4430, 4240, 5010, 4560, 4620, Hydraulic Drive Components, 644A

Additional Information:

Outer Diameter: 2" Inner Diameter: 1.337" Width: 0.484" Hydraulic Pump Shaft Seal

Reference Numbers:

472258, 472258-P, F39Z3254A, X213712A, 10A139, 213712, 634036, 787052A, 0246926, 0272256, 0272256-9, 0275802, 0430307, 0430307-9, 211334, 217103, 246926, 246926-0, 252849, 272256, 275802, 4252849, 4254936-0, 430307, 430309-9, 70275802, PM11039230, 101691A, 15A14589, 35A10019, 35P2744, 9210010, AR52224, RE28790, AH21815, AR20077, AR20077R, C16326, GP100207, NJ100000, XSU3914, CR13569, 744268, 800201, 40131A, 21592, A54040, T25029, XA94437, 111512K11, 1957347C1, 23033, 381480R91, 393554R91, 534917R91, 1053519M1, 831959M1
