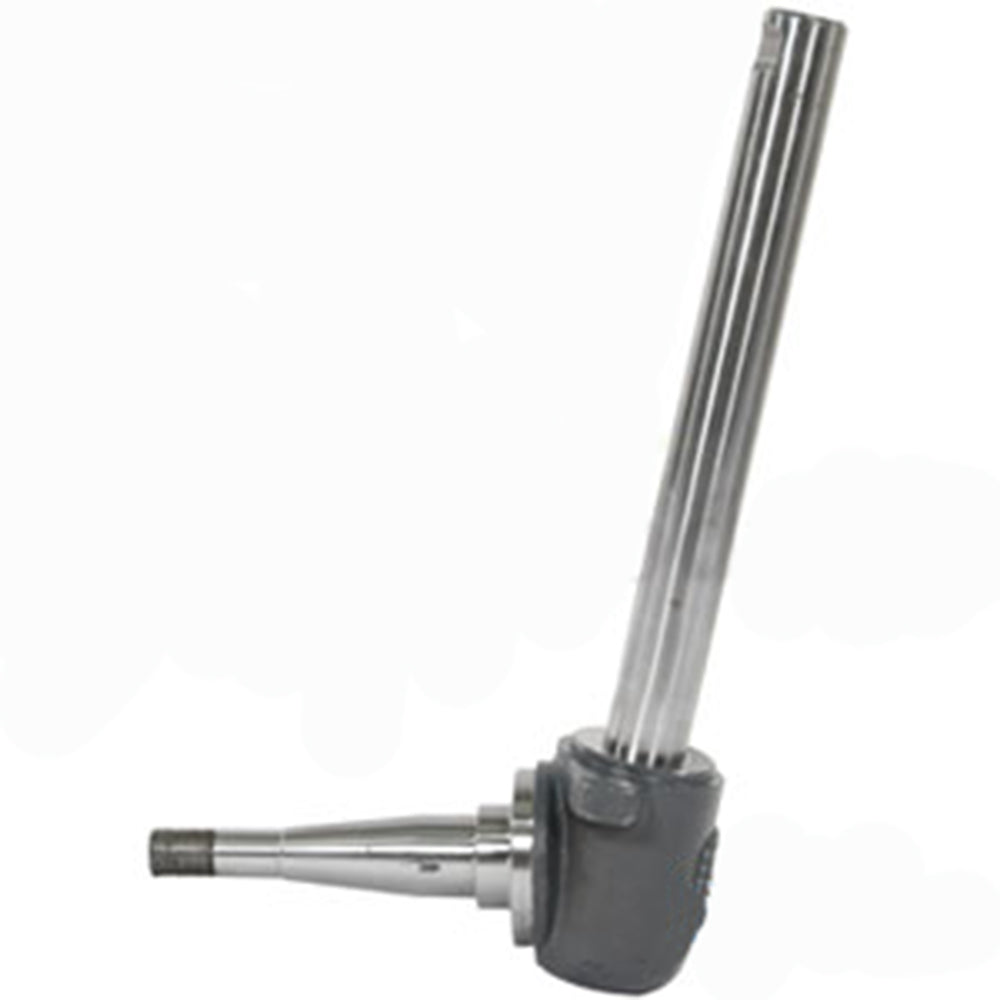

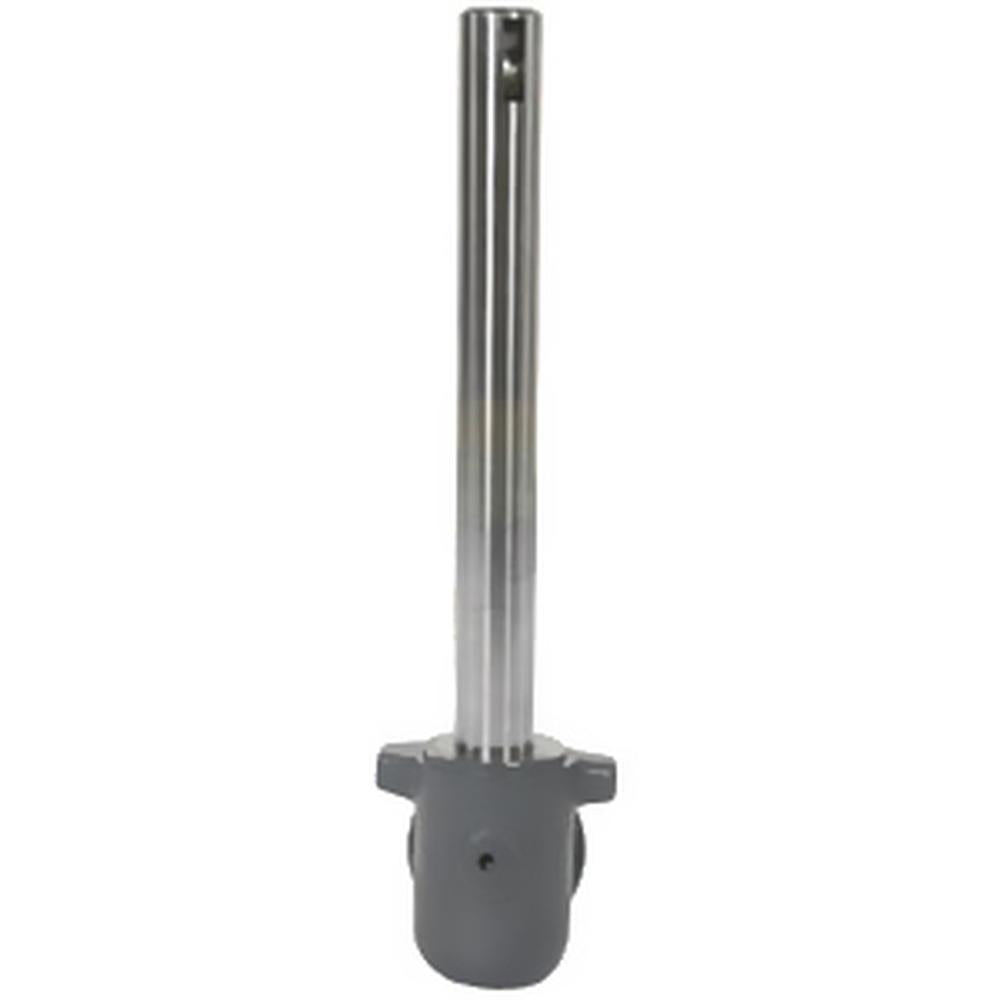

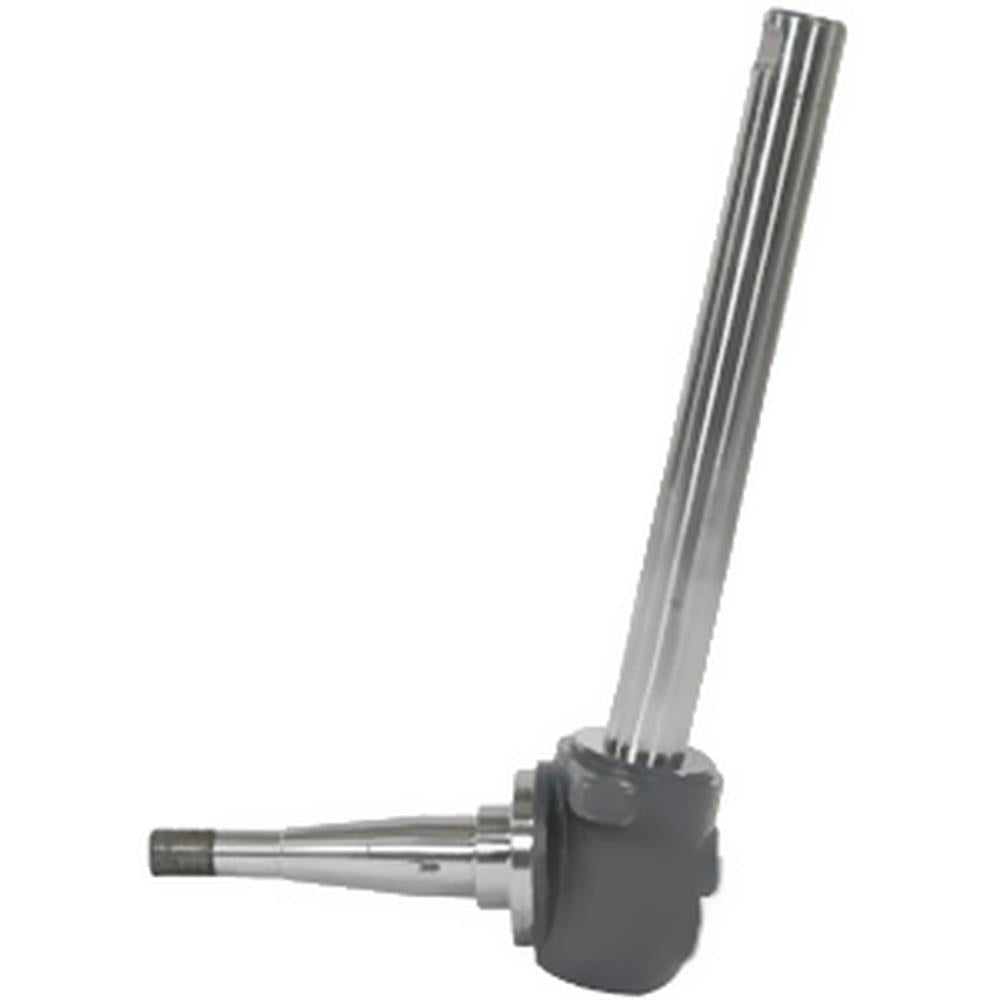

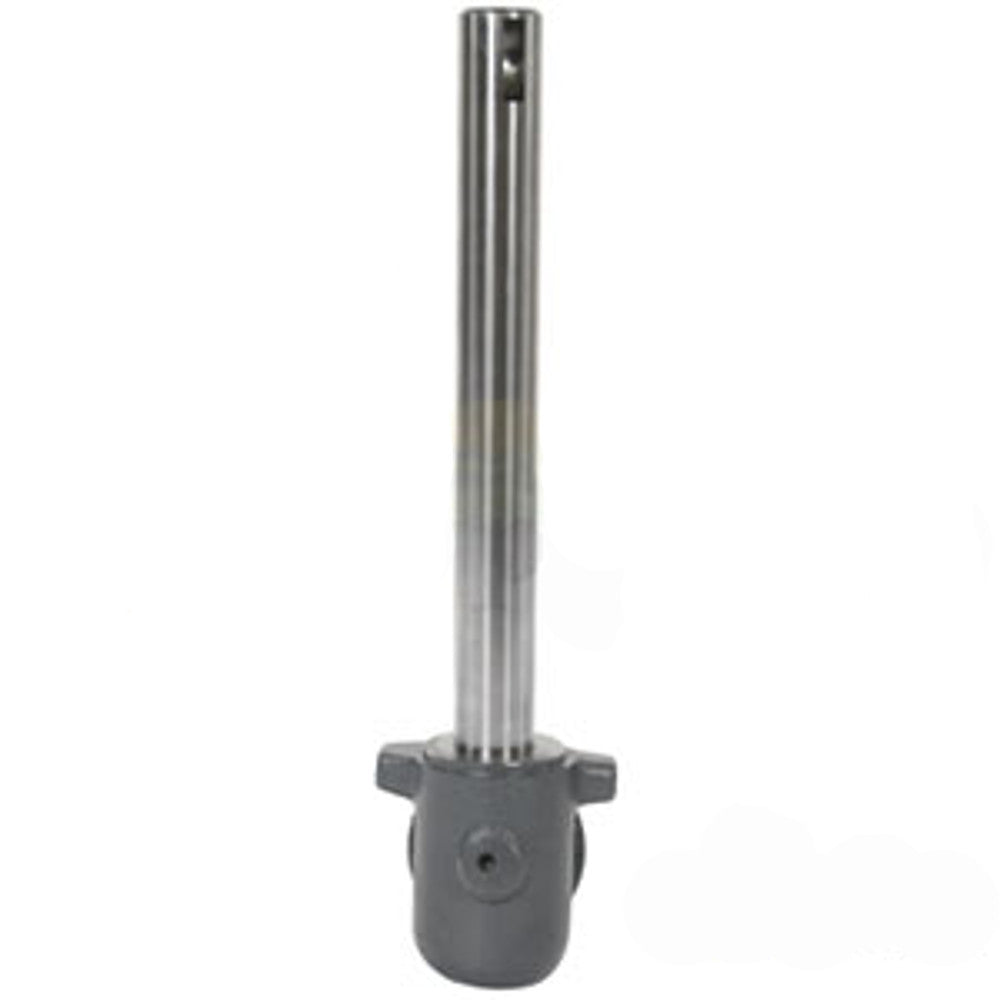

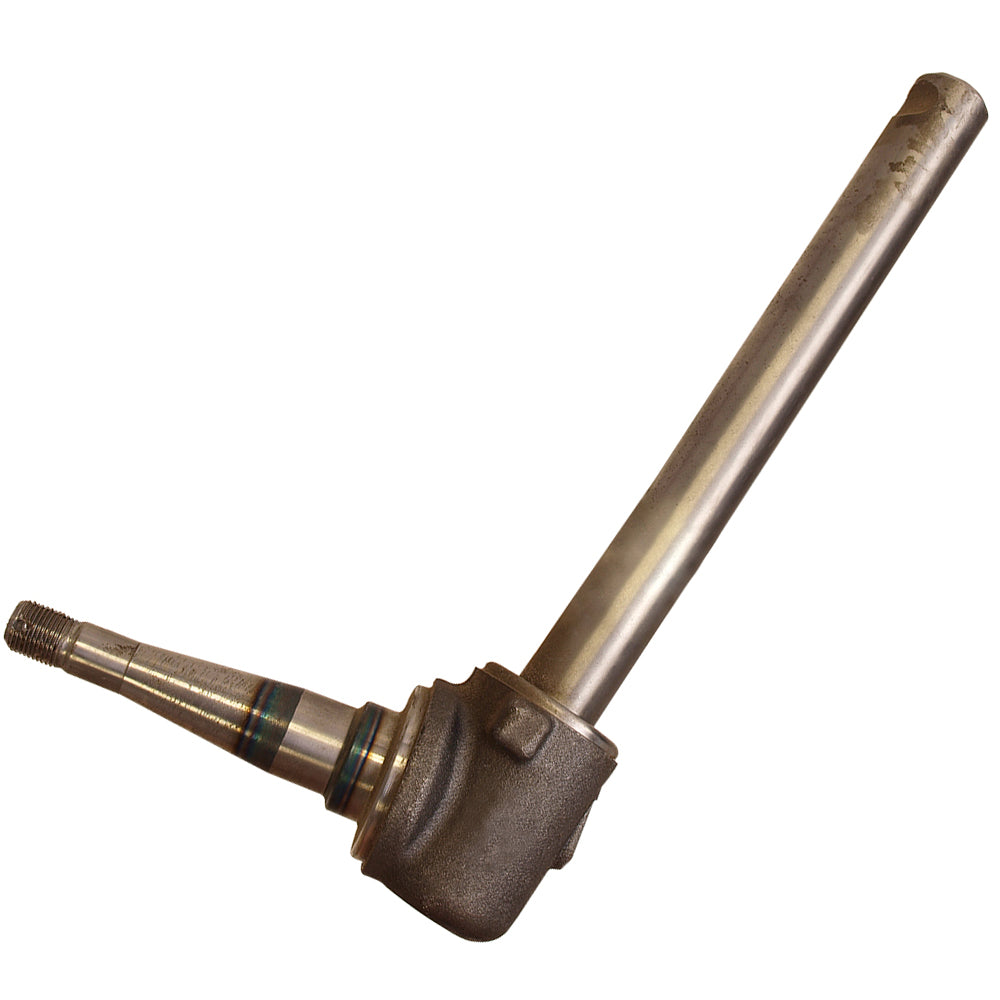

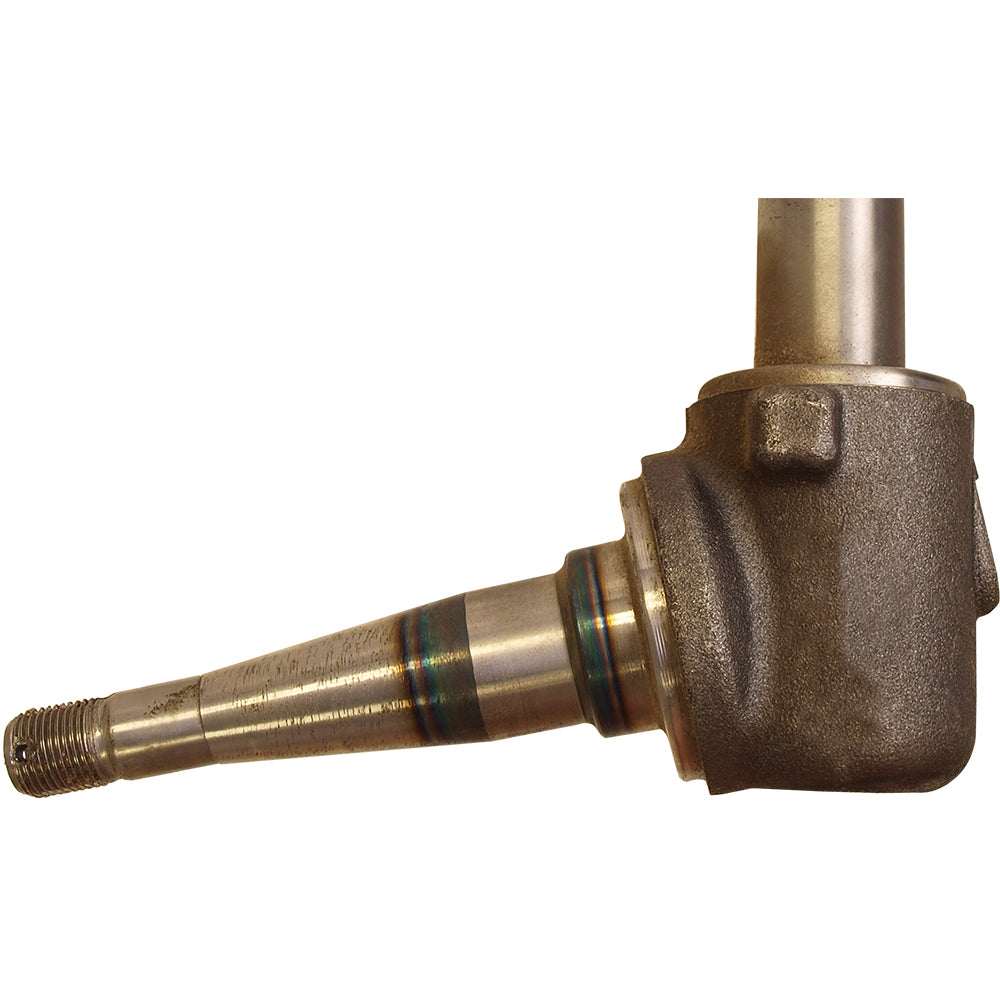

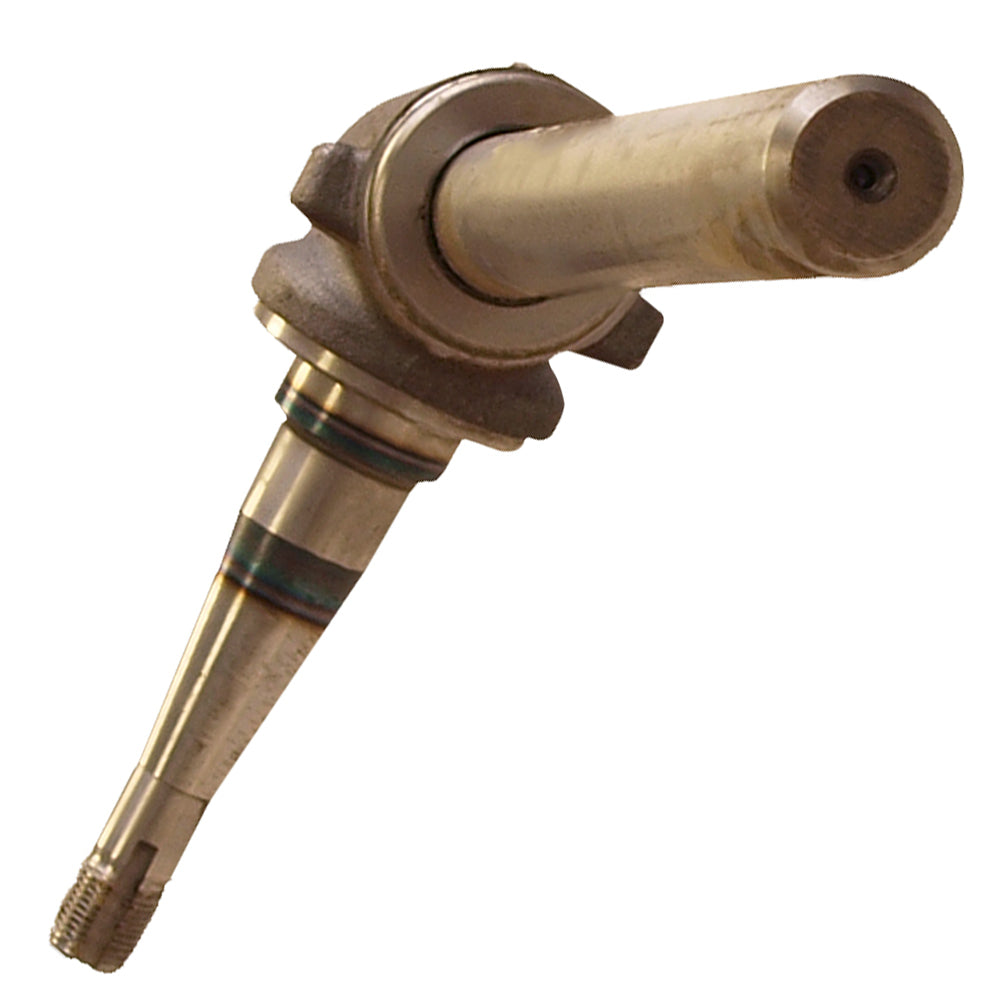

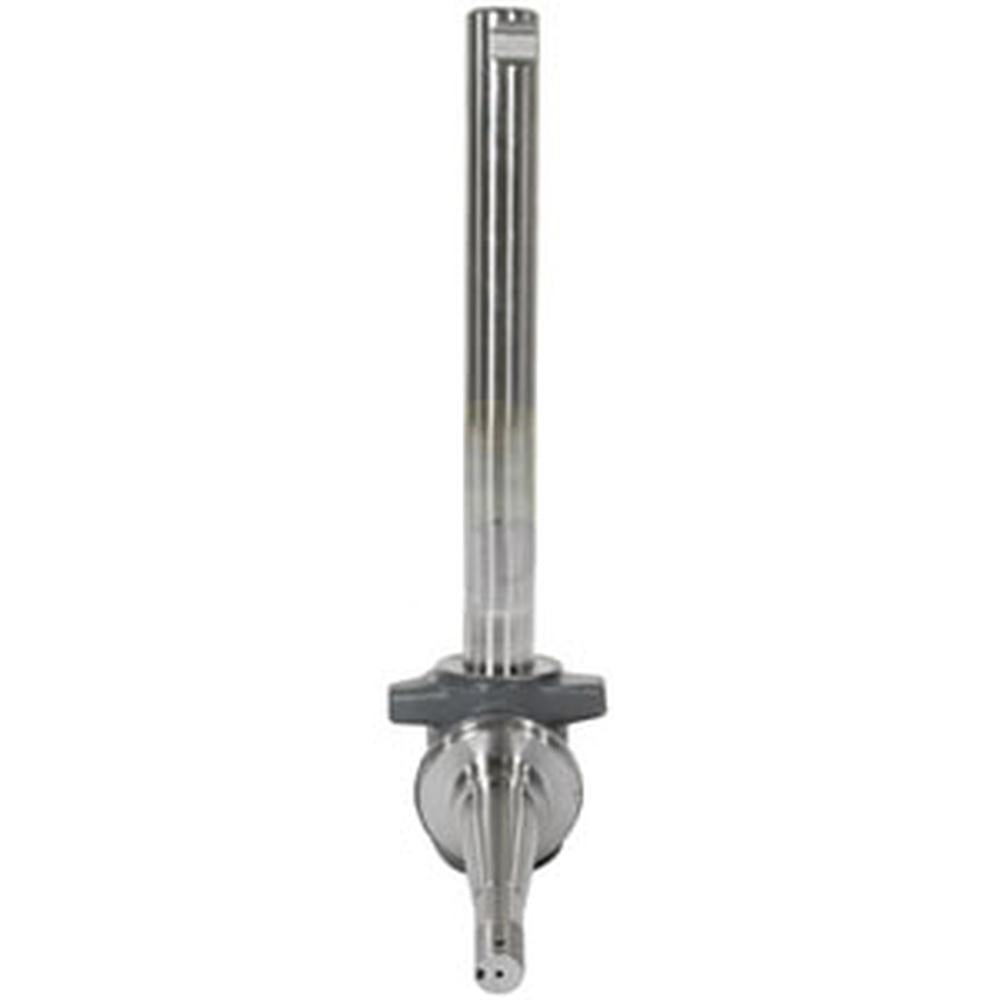

One New Aftermarket Replacement Left Hand (LH) Spindle Fits Massey Ferguson Tractors

This left hand front axle spindle is a direct replacement for the original Fits Massey Ferguson unit on the TE20, TO20, TO30, TO35, and 35 series tractors. The spindle mounts on the left side of the front axle and is a precision-fit steering and axle component. Keyway is positioned at 11:30 and the clamp notch is positioned at 5:30.

Specifications

• Side: Left Hand (LH)

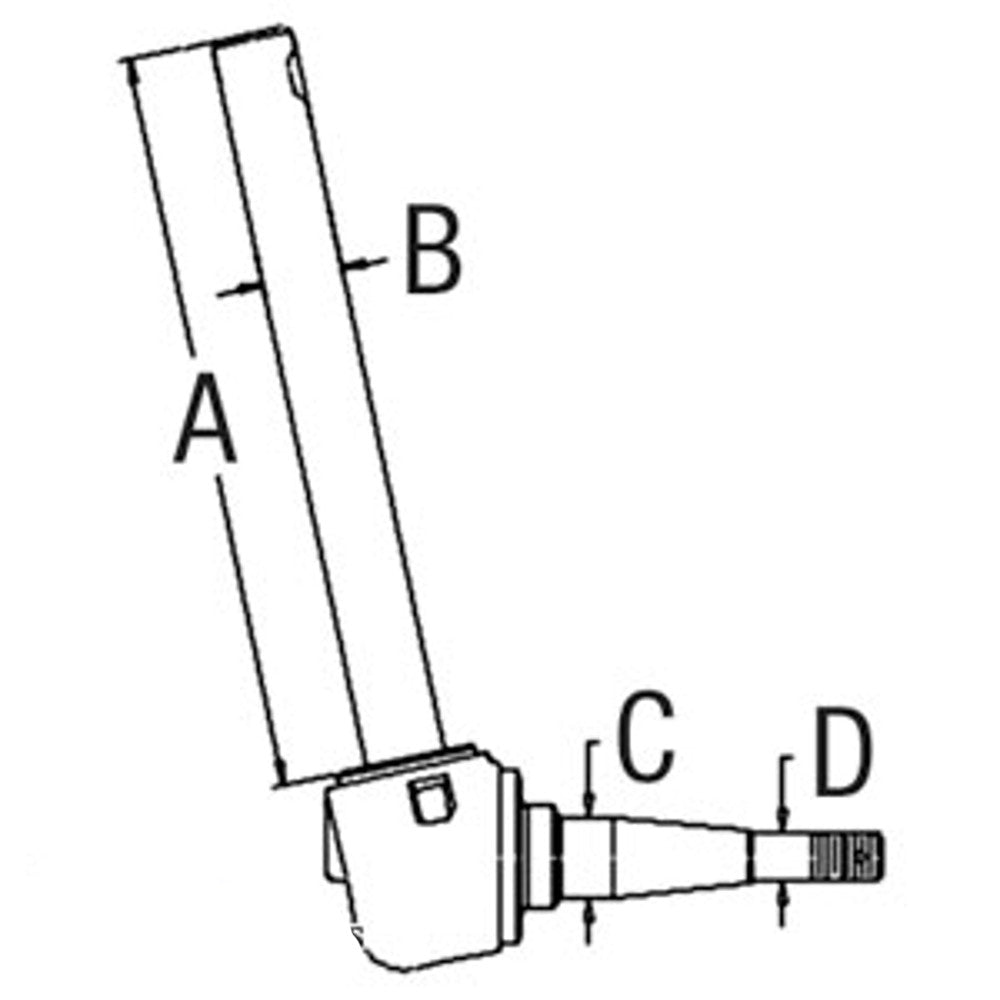

• Shaft Length (Dim A): 11.00"
• Shaft Diameter (Dim B): 1.250"
• Large Race Diameter (Dim C): 1.250"
• Small Race Diameter (Dim D): 0.750"
• Thread: 3/4 UNF
• Keyway Position: 11:30
• Clamp Notch Position: 5:30

Compatible Models

Fits Massey Ferguson / Fits Ferguson Tractors: 35, 35X, FE35, TE20, TEA20, TED20, TEF20, TO20, TO30, TO35

Replaces Part Number(s):

180349M92, 180349M1, 180349V92, 897415M91, 897411M91

Aftermarket Interchange Numbers

VPJ1004, S.15984, A-180349M92

New aftermarket replacement part - not remanufactured, not used.
