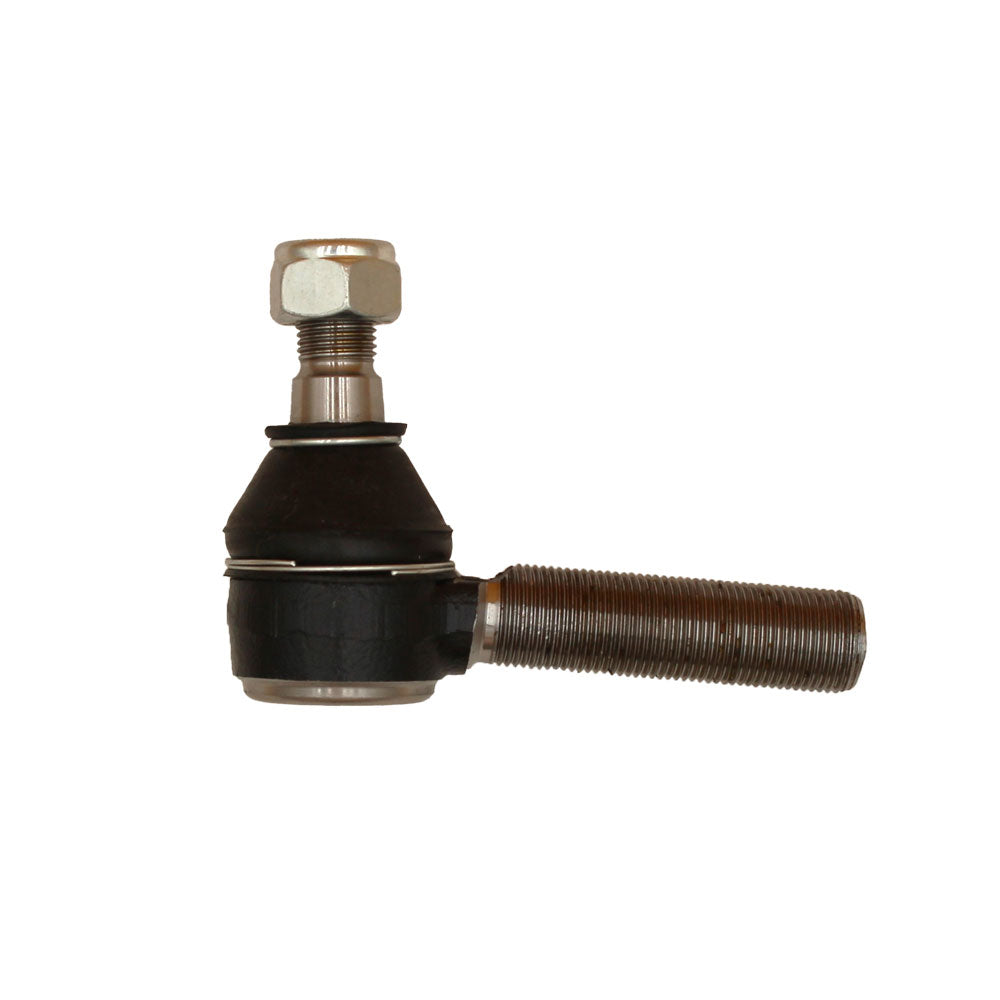

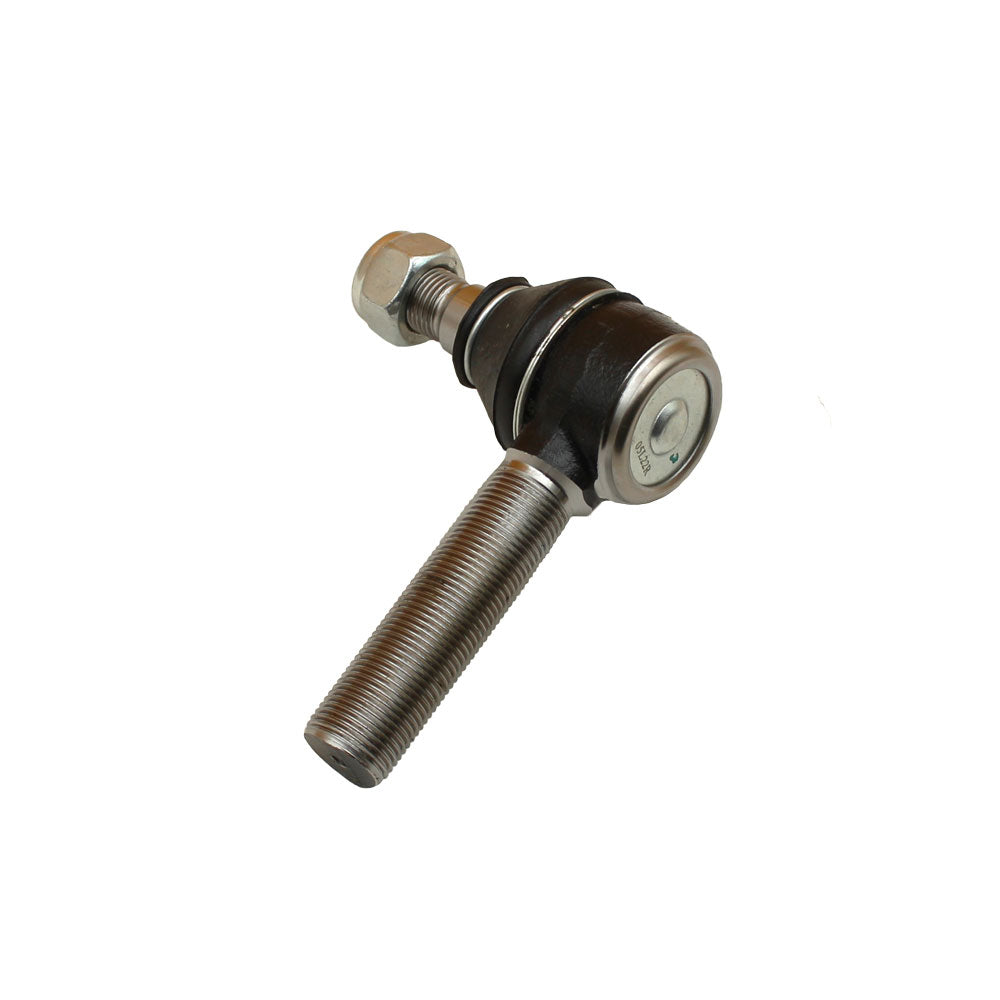

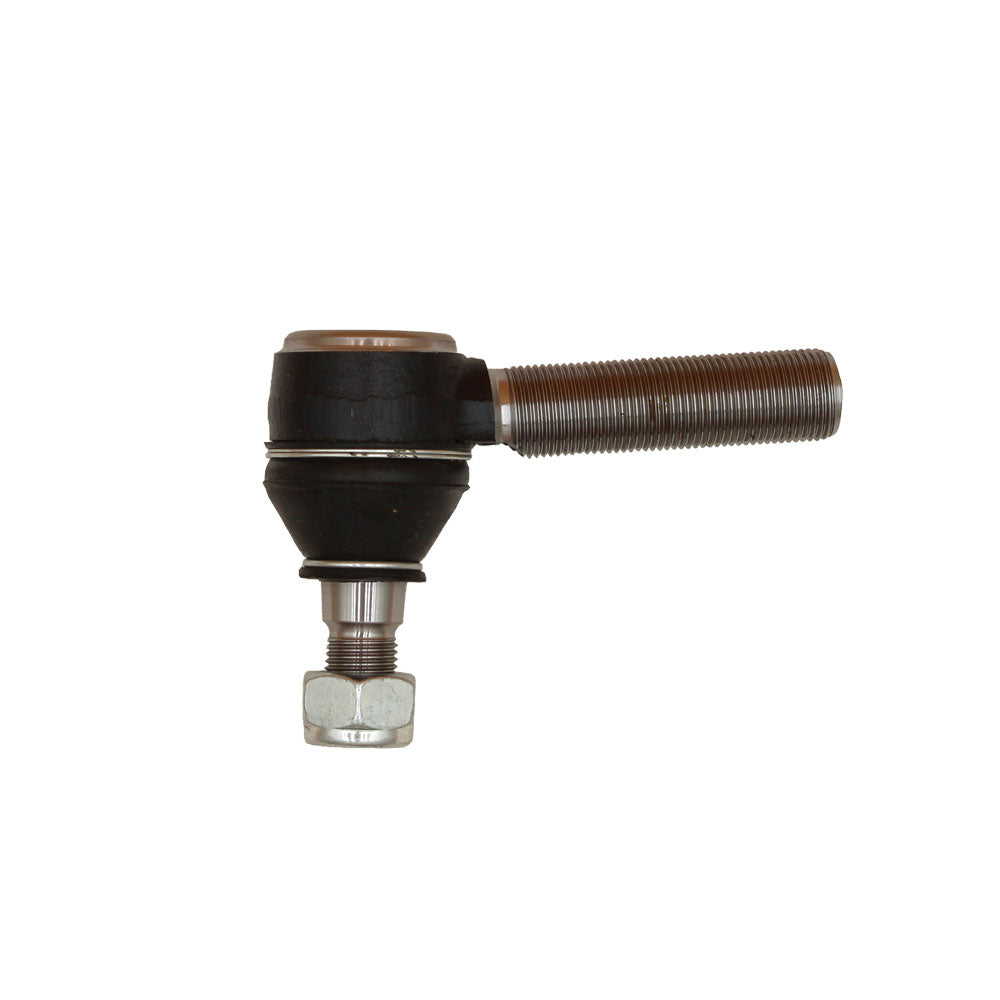

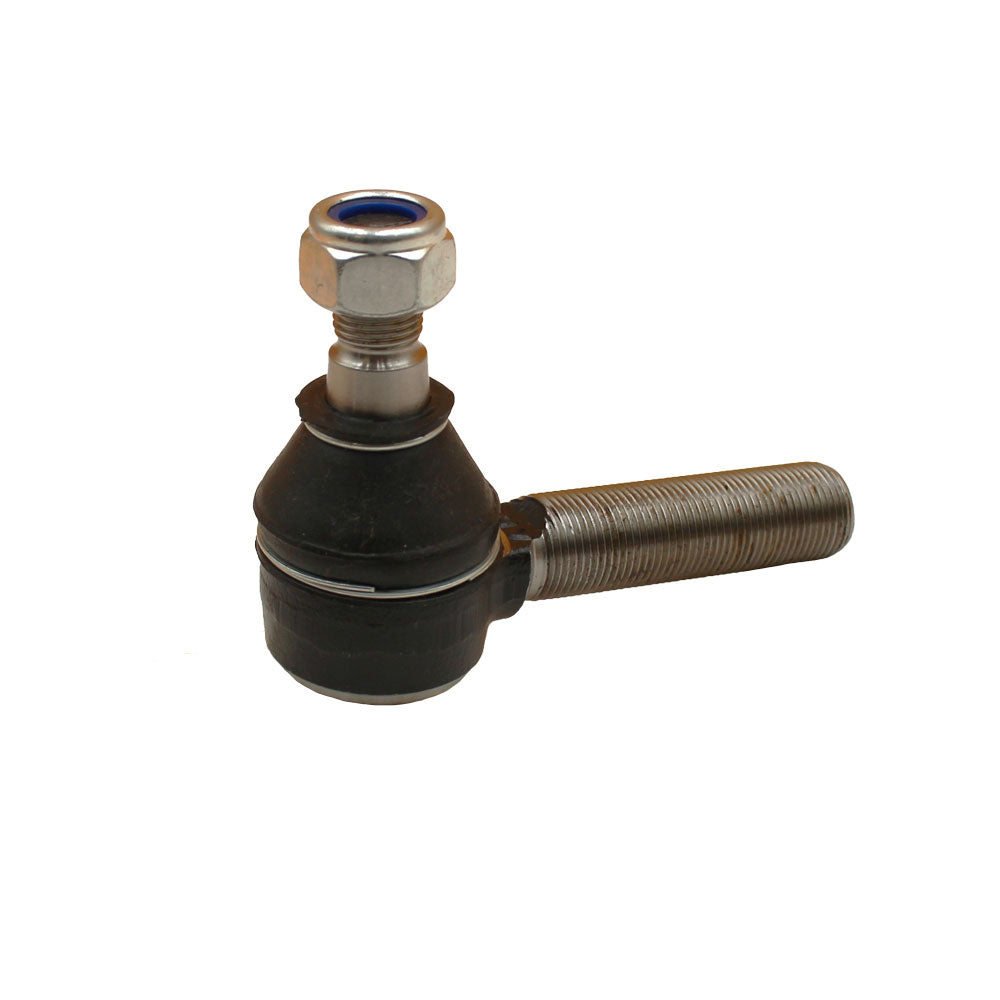

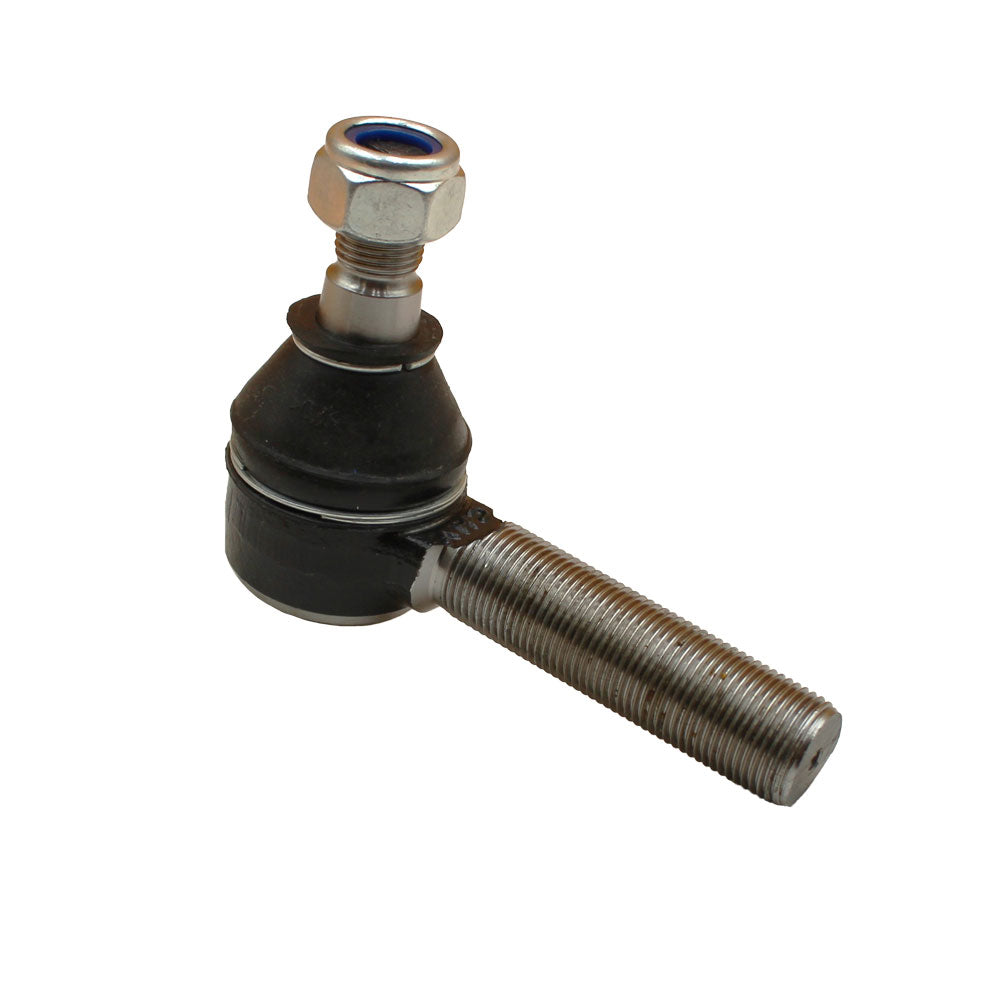

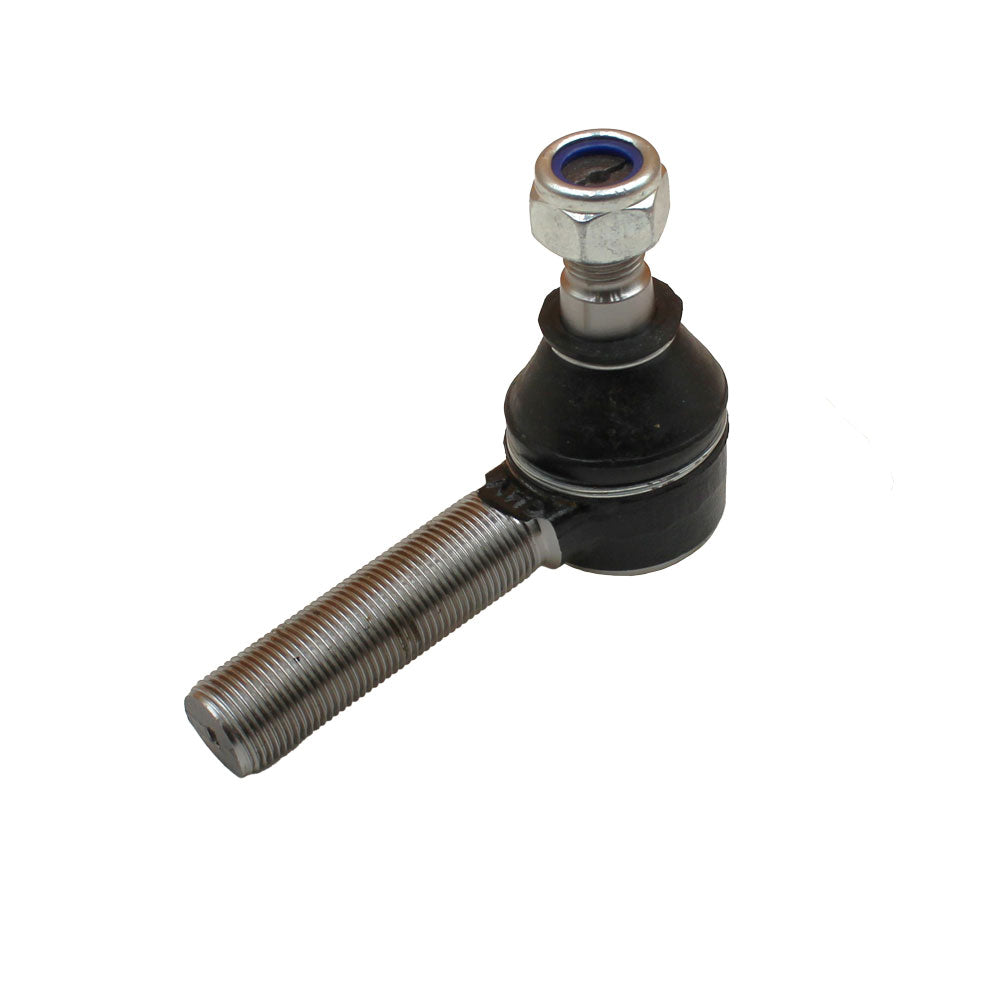

One New Aftermarket Replacement Drag Link End Fits Massey Ferguson and Fits Massey Harris Tractors

This right-hand thread drag link end is a front axle steering component used on a wide range of Fits Massey Ferguson (MF) and Fits Massey Harris (MH) tractors, combines, and industrial/construction machines. It connects to the drag link assembly and is designed for adjustable-end drag links on 2WD front axles.

Specifications

• Thread: 7/8 in. x 16 Right Hand (RH)
• Pin Diameter: 5/8 in.
• Length: 3.75 in. (to center of post)
• Body Diameter: 20.60 mm
• Thread Pitch Diameter: 9.52 mm
• For use with adjustable-end drag links

Serial Number Restrictions

Important: Fits Massey Ferguson 65 - fits To Serial No. 703123 only. Fits Massey Ferguson 165 - fits To Serial No. 9A59816 only. Verify serial number before ordering for these models.

Compatible Models

Fits Massey Ferguson Tractors: 35, 35 Turf, 35 Utility, 35 GOVT., 50, 65 (To S/N 703123), 82, 85, 88, 92, 92 Super, 135, 135 Orchard, 150, 165 (To S/N 9A59816), 175, 175 U.K., 178, 178 U.K., 203, 204, 205, 2135, 3165, Super 90, F40, 20, 20D

Fits Massey Ferguson Industrial/Construction: 20, 30E, 202, 203, 204, 205, 356, 2135, 3165

Fits Massey Ferguson Combines: 410, 510, 540, 550, 750, 760

Fits Massey Harris Tractors: 50

Replaces Part Number(s):

182534M91, 182534M1, 182534V91, 847451M91, 884701M92

New aftermarket replacement part - not remanufactured, not used.
