A-W33-AI Bearing (14276)

A-W33-AI Bearing (14276)



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

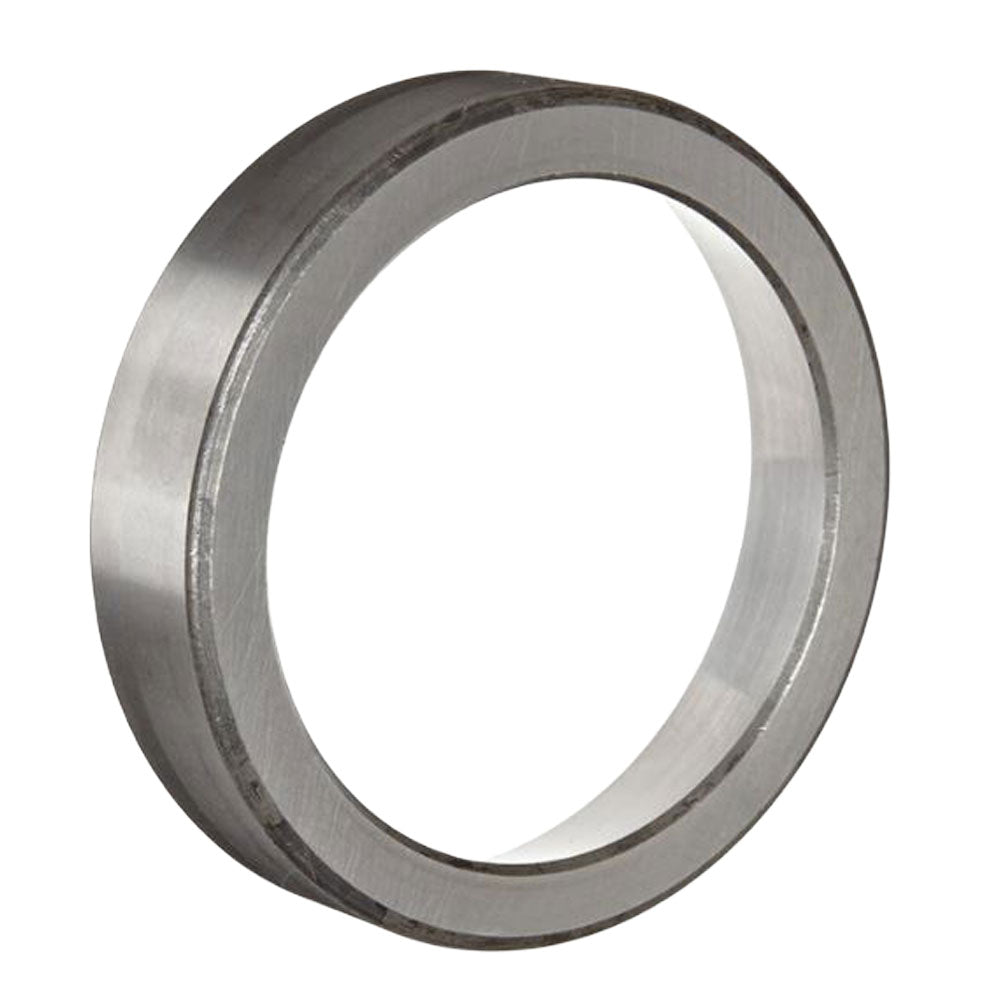

One New Aftermarket Replacement Tapered Roller Bearing Cup (14276) for Agriculture and Construction Equipment

This aftermarket replacement bearing cup (outer race) is a tapered roller bearing cup in the Timken 14000 series, designed to serve as the outer ring in a single-row tapered roller bearing assembly. It pairs with a matching cone (inner ring assembly) and handles both radial and axial loads in wheel, axle, and shaft applications across a wide range of agricultural equipment, construction equipment, and other machinery. When replacing, both the cup and cone should be replaced together for maximum reliability and service life.

Specifications

  • Type: Single Tapered Roller Bearing Cup (Outer Race)
  • Series: Timken 14000
  • Outside Diameter: 2.717 in.
  • Cup Width: 0.625 in.
  • Bearing Width: 0.7813 in.
  • Fillet Radius: 0.05 in.
  • Material: Chrome Steel / Fits Case Carburized Steel
  • Lubrication Hole: None
  • Finish: Uncoated
  • Compatible Cones: 14116, 14117A, 14118, 14118AS, 14124, 14125A, 14130, 14131, 14137A, 14138A, 14139

Compatible Models

Fits Case/International Harvester Combines: 1400, 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588

Fits Case/International Harvester Cotton Pickers: 82, 84, 95

Fits Case/International Harvester Other: 303, 335, 403, 403F, 403G, 445, 503, 503I, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 555XL, 554XL, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615, 670, 715, 815

Minneapolis-Moline: 5 STAR, G1000, JET STAR 3, JET STAR 4, M5, R-21, R-23

Fits John Deere: 5400 REBEL, 5500 REBEL

GEHL: 4901-4938

Additional Compatible Brands: Fits Allis Chalmers, Vermeer, Amco, Fits Massey Ferguson, Riverside Tractor, Kewanee, Taylorway, Hesston, Rhino, Fits Ford/New Holland, Krause, Fits Woods, Bush Hog, Fits Caterpillar -- see ref_numbers for applicable cross-references.

Replaces Part Number(s):

14276, 14276TIM, W33, 710350, 70209890, 74253284, 80105, 9N744, 116210, W10A7575, 526WD, 7069WD, 520031, 1715019, 203021, 8J0422, X5623, 54628A, 016234X1, 113BH, JD7409, 70025, A29977, 10261

Aftermarket Interchange Numbers

BR14276, TIM14276, TRB14276, BT14276, TWD14276, 14276TI, 760-14276TIM, E-TM14276, SBN 14276TRB, 144083C1, 184077C1, 204749C1, 565212R1, 659839R1, 706821R1, 54628H, JD34962, A26996, D21444, D31970

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1644, 1680, 605J, 2588, JET STAR 3, 1688, 504H, 2366, 504I, 504L, 4901-4938, 604J, 335, 2577, 504C, 82, Outer Ring Of A Tapered Roller Bearing, 503I, 602, 504F, G1000, 554XL, 2377, 5500 REBEL, 555XL, 604L, 403G, R-23, 505I, M5, 715, 670, 504I SILAGE, 605K, 504G, 95, R-21, 1400, 503, 505L, 2166, JET STAR 4, 445, 605L, 303, 1666, 815, 403, 604XL, 605F, 605H, 1640, 2344, 604K, 5400 REBEL, 403F, 1660, 605XL, 2188, 2388, 5 STAR, 605G, 615, 84

Additional Information:

Outside Diameter 2.717" Radius .05" Width .625" Cup Bearing

Reference Numbers:

14276, 113BH, 710350, 80105, 14276TIM, X5623, W10A7575, 9N744, 116210, JD7409, 520031, 1715019, 54628A, 016234X1, 10261, 526WD, 7069WD, A29977, 70209890, 74253284, 8J0422, 70025, W33, 203021
