A-X5623-AI Bearing Cup (14276)

A-X5623-AI Bearing Cup (14276)



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

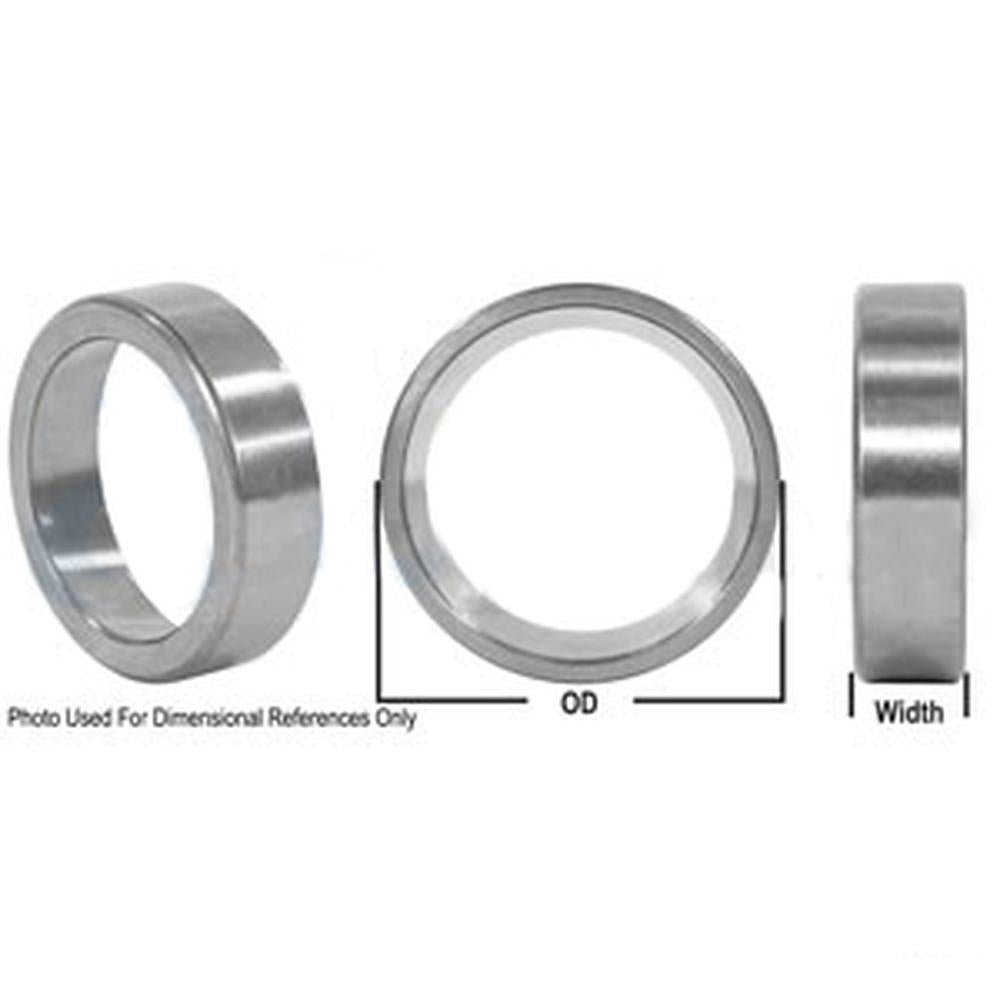

One New Aftermarket Replacement Tapered Roller Bearing Cup (14276) for Agricultural, Construction, and Industrial Equipment

This tapered roller bearing cup (outer race) is a direct replacement for OEM part number 14276. The cup seats in the housing or casing and provides the precision raceway surface on which the tapered rollers ride, working together with a matching cone assembly to support both radial and axial loads across a wide range of agricultural and industrial machinery. Compatible cone numbers include 14116, 14117A, 14118, 14124, 14125A, 14130, 14131, 14137A, 14138A, and 14139.

Specifications

  • Type: Single Tapered Roller Bearing Cup (Outer Race)
  • Outside Diameter: 2.717 in.
  • Cup Width: 0.625 in.
  • Fillet Radius: 0.050 in.
  • Material: Chrome/Fits Case Carburized Steel
  • Lubrication Hole: None
  • Finish: Uncoated

Compatible Equipment

Fits Case IH Combines: 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588

Fits John Deere: 335, 445, 503, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 554XL, 555XL, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615, 670, 715, 815

Minneapolis-Moline: 5 STAR, JET STAR 3, JET STAR 4, G1000, M5

Fits Allis Chalmers: 82, 84, 95, 303, 403, 403F, 403G, 615

Fits Massey Ferguson: 1400

Multi-Brand / Universal Fit: Also fits select models from Vermeer, Fits Woods, Amco, Fits Ford/New Holland, Krause, Fits Case/International Harvester, Taylorway, Bush Hog, GEHL, Rhino, Fits Caterpillar (Fits CAT), Riverside Tractor, Hesston, Kewanee (see models: R-21, R-23, 4901-4938, 5400 REBEL, 5500 REBEL)

Replaces Part Number(s):

14276, 14276TIM, X5623, A29977, 54628A, 9N744, 10261, 80105, 70025, 116210, 113BH, 520031, 526WD, 7069WD, 016234X1, JD7409, W33, W10A7575, 8J0422, 1715019, 70209890, 74253284, 710350, 203021

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1644, 1680, 605J, 2588, JET STAR 3, 1688, 504H, 2366, 504I, 504L, 4901-4938, 604J, 335, 2577, 504C, 82, Outer Ring Of A Tapered Roller Bearing, 503I, 602, 504F, G1000, 554XL, 2377, 5500 REBEL, 555XL, 604L, 403G, R-23, 505I, M5, 715, 670, 504I SILAGE, 605K, 504G, 95, R-21, 1400, 503, 505L, 2166, JET STAR 4, 445, 605L, 303, 1666, 815, 403, 604XL, 605F, 605H, 1640, 2344, 604K, 5400 REBEL, 403F, 1660, 605XL, 2188, 2388, 5 STAR, 605G, 615, 84

Additional Information:

Outside Diameter 2.717" Radius .05" Width .625" Cup Bearing

Reference Numbers:

14276, 113BH, 710350, 80105, 14276TIM, X5623, W10A7575, 9N744, 116210, JD7409, 520031, 1715019, 54628A, 016234X1, 10261, 526WD, 7069WD, A29977, 70209890, 74253284, 8J0422, 70025, W33, 203021
