One New Aftermarket Replacement Right Hand Steering Arm Fits Case and Fits Case IH Tractors

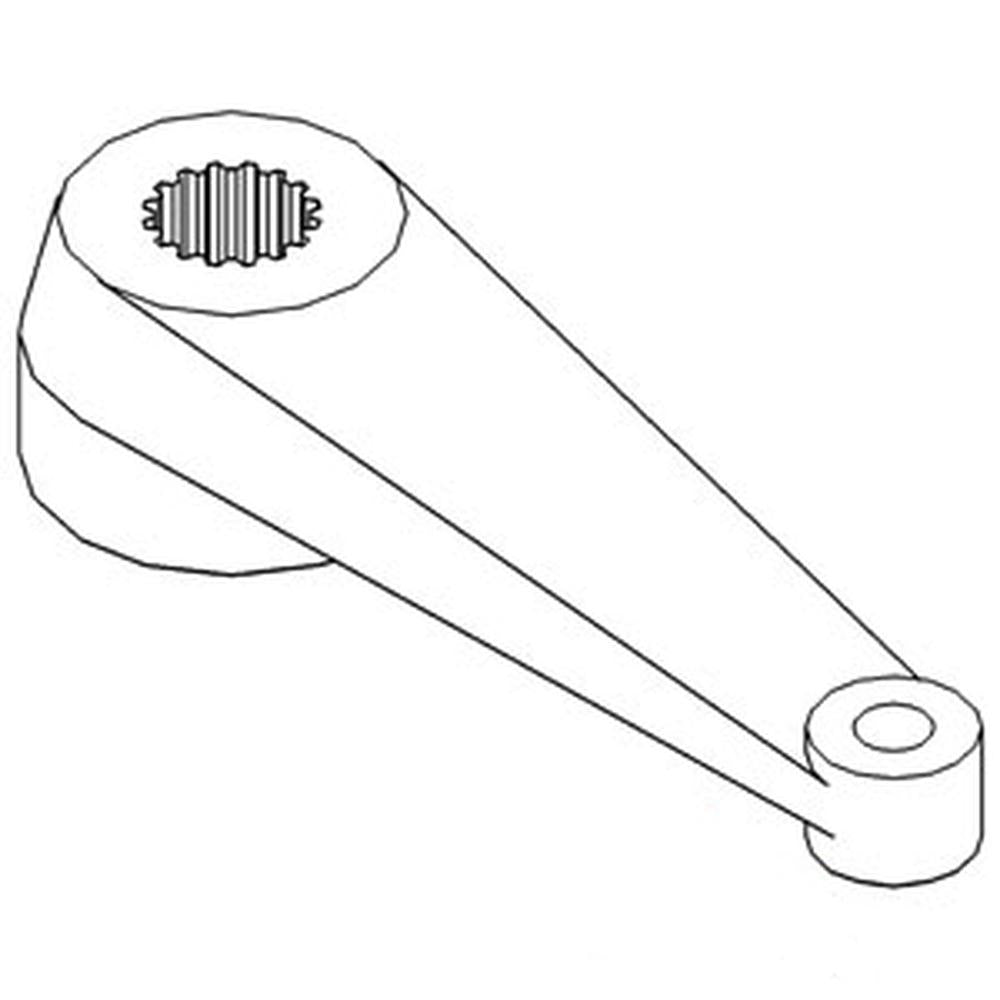

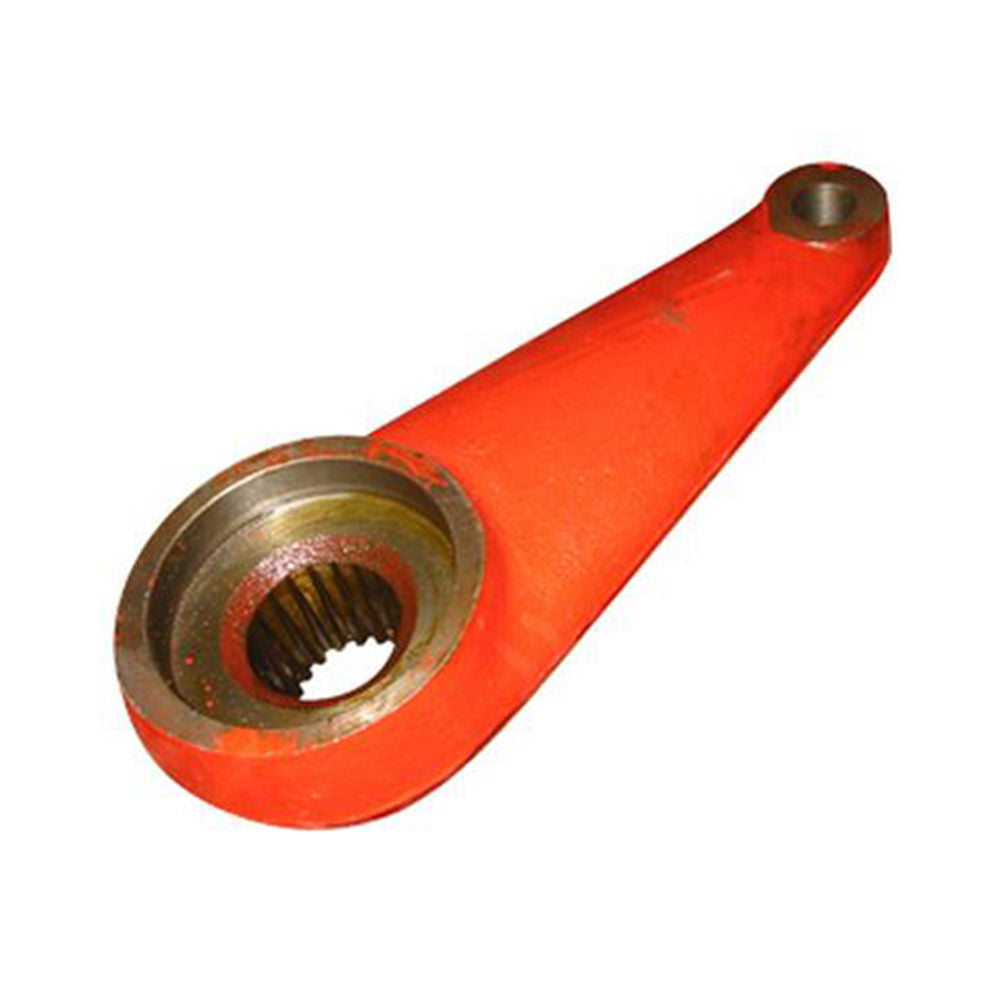

This right hand (RH) steering arm is a direct aftermarket replacement for the front axle steering assembly on Fits Case and Fits Case IH two-wheel drive (2WD) tractors. The arm features a 20-tooth tapered spline hole and measures 11.5 inches in length. Note: On 2090, 2290, and 2294 models, this arm fits tractors equipped with the 110-inch (heavy duty) wheel base front axle. The 2390, 2394, 2590, and 2594 used only the heavy duty axle. Verify your front axle type before ordering.

Specifications

• Side: Right Hand (RH)
• Spline Count: 20 Teeth, Tapered
• Length: 11.5 inches
• Weight: 11 lbs
• Drive Type: 2WD front axle

Compatible Models

Fits Case / Fits Case IH Tractors: 2090 (110-inch wheel base), 2290 Late (110-inch wheel base), 2294, 2390, 2394, 2590, 2594

Replaces Part Number(s):

A147121

Aftermarket Interchange Numbers

AMA147121 (Abilene Machine), A-A147121 (A&I Products), 100339

New aftermarket replacement part - not remanufactured, not used.
