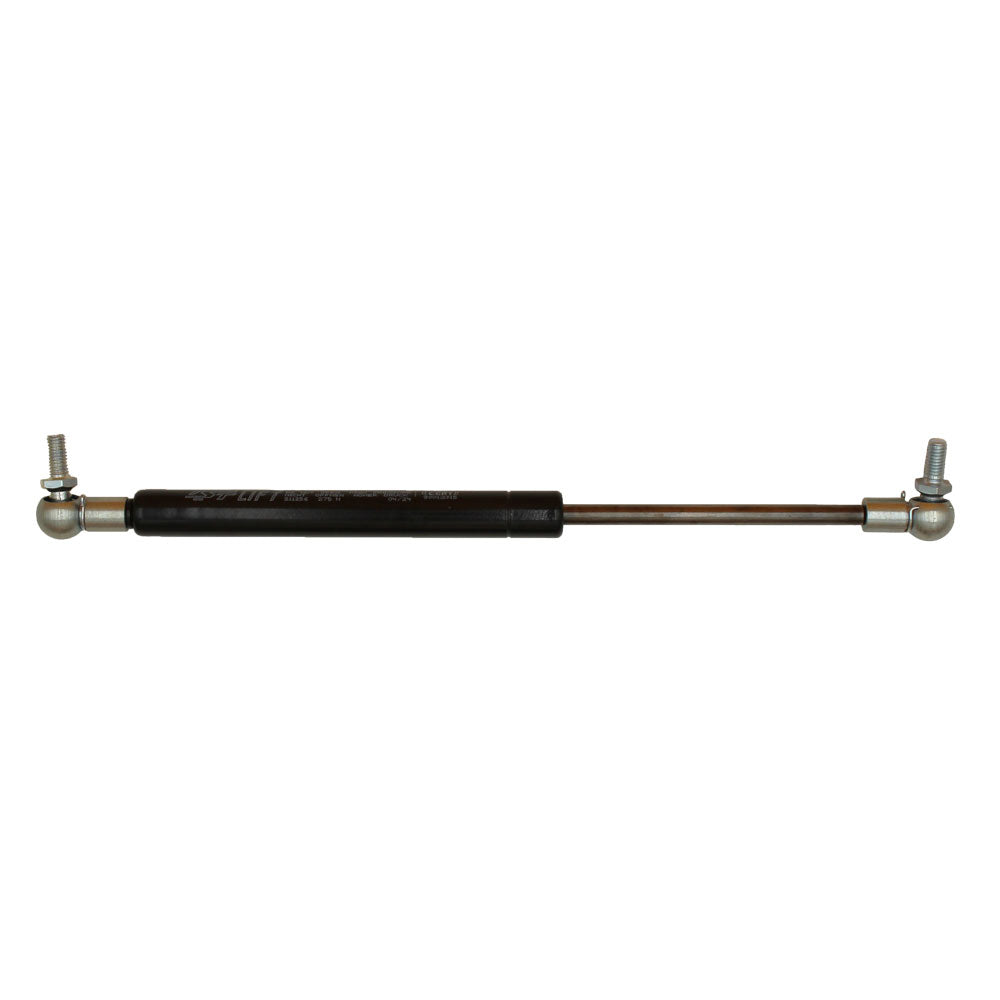

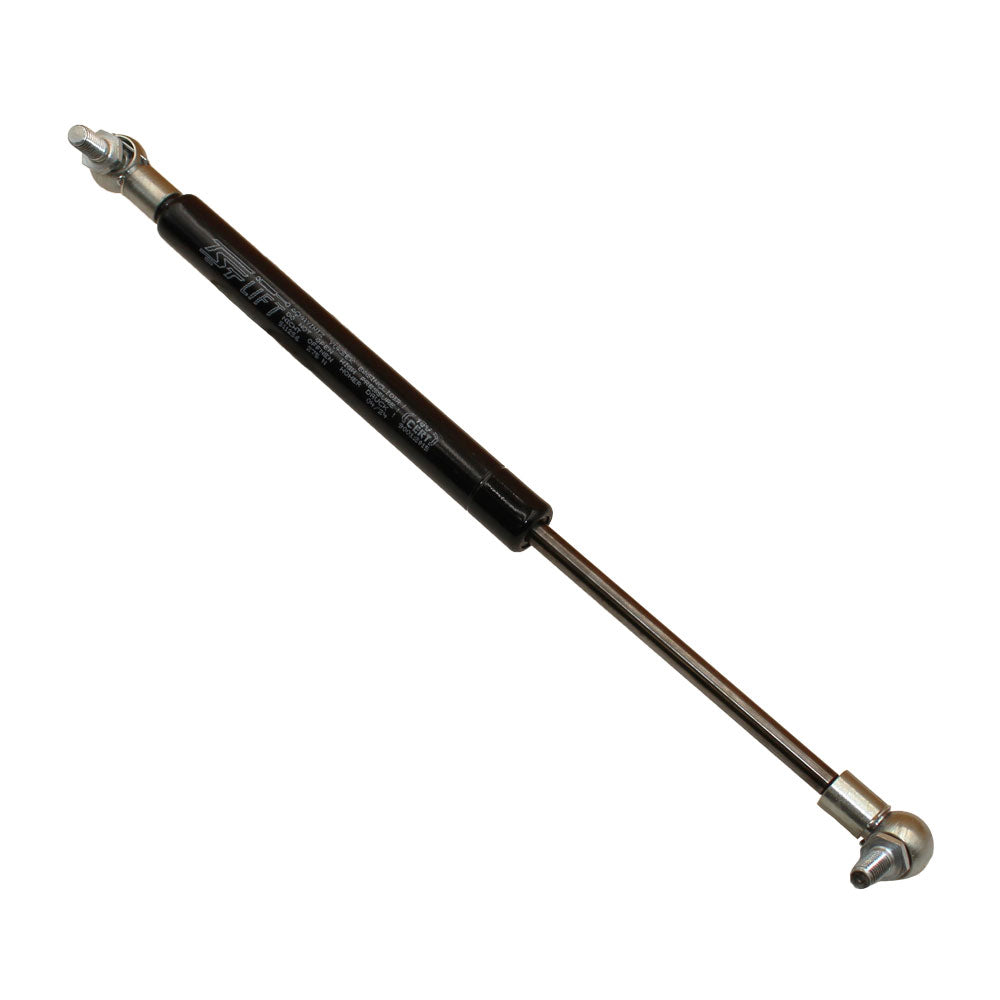

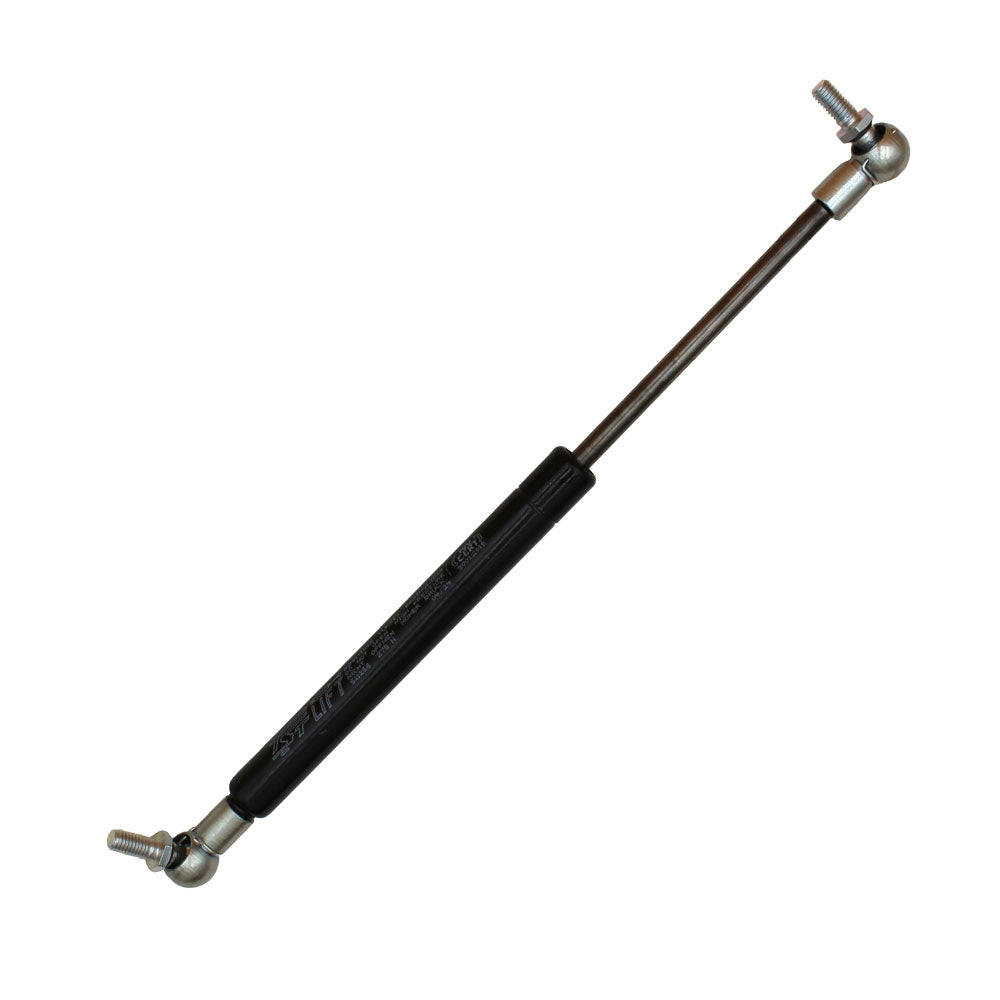

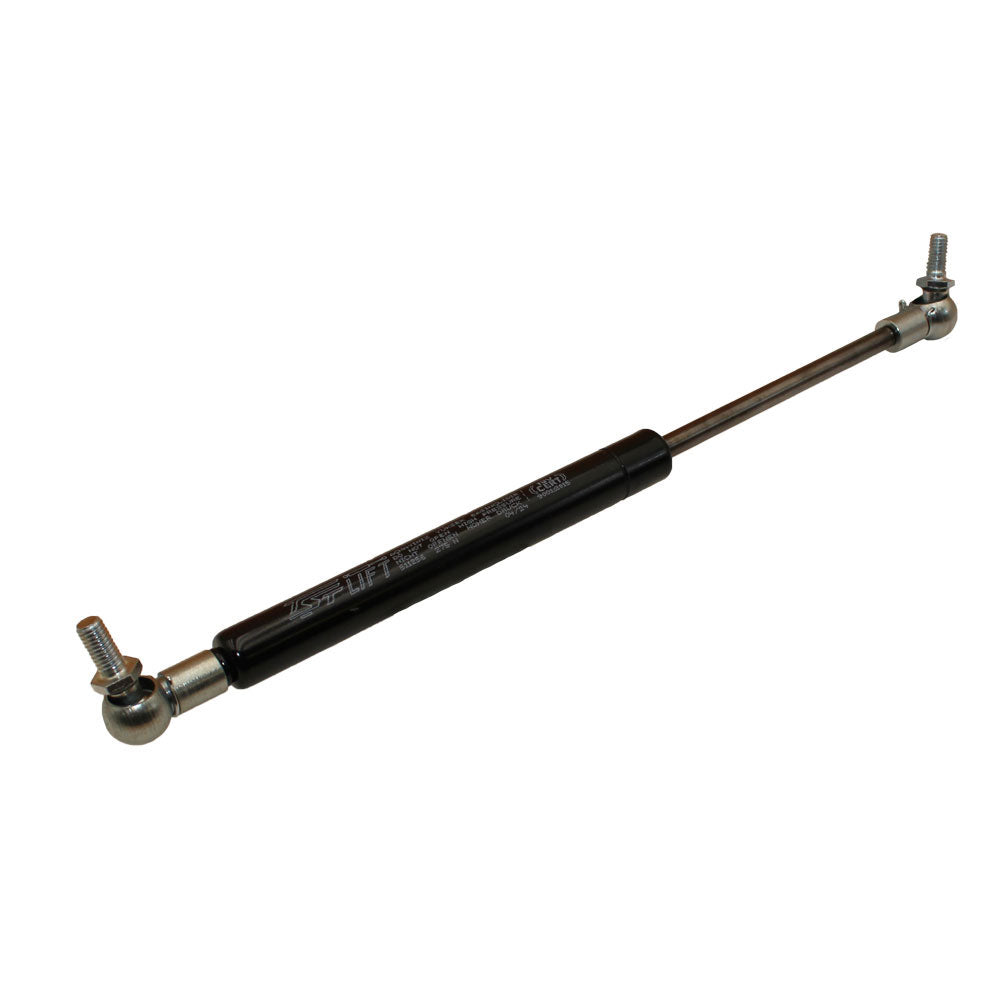

A185714 Cabin Door Gas Strut Fits Case 1896 2394 3594

A185714 Cabin Door Gas Strut Fits Case 1896 2394 3594



AIC Replacement Parts - FEDEX2DAY


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Cabin Door Gas Strut Fits Case / Fits Case IH and Fits New Holland Tractors, Sprayers, and Floaters

This cab door gas strut (also called a door gas spring or door lift support) holds the cab door open on a wide range of Fits Case, Fits Case IH (Fits International Harvester), and Fits New Holland agricultural machines. The strut mounts with steel ball socket ends and provides the spring force needed to keep the cab door in the open position.

Specifications

  • Overall Length: 12.97"
  • Piston Stroke: 6.29"
  • Force: 250N
  • End Type: Steel ball sockets with studs, both ends
  • Quantity: 1 strut

Compatible Models

Fits Case Tractors: 1896 (ASN 17895000), 2096 (SN 17897500-17897505 and ASN 17897510), 2290, 2390, 2394, 3294, 3394, 3594

Fits Case IH Tractors - 71 / 72 Series: 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250

Fits Case IH Tractors - 89 Series: 8910, 8920, 8930, 8940, 8950

Fits Case IH Tractors - 9100 Series (ASN JCB0003600): 9110, 9130, 9150, 9170, 9180

Fits Case IH Tractors - 9200 / 9300 Series: 9210, 9230, 9240 (BSN JEE0033501 with Return Spring or Stop Bolt Latch LEV; ASN JEE0033501 with Angle Latch Actuating), 9250 (BSN JEE0033501 with Return Spring or Stop Bolt Latch LEV; ASN JEE0033501 with Angle Latch Actuating), 9260 (BSN JEE0033501 with Return Spring or Stop Bolt Latch LEV; ASN JEE0033501 with Angle Latch Actuating), 9270 (ASN JCB0027096 with Powershift or Synchroshift), 9280 (ASN JCB0027096 with Powershift or Synchroshift), 9310, 9330, 9350, 9370, 9380, 9390 (QUADTRAC)

Fits Case IH Magnum Tractors: Magnum 180, Magnum 190, Magnum 200, Magnum 210, Magnum 215, Magnum 220, Magnum 225, Magnum 235, Magnum 240, Magnum 245, Magnum 250, Magnum 255, Magnum 260, Magnum 275, Magnum 280, Magnum 290, Magnum 305, Magnum 310, Magnum 315, Magnum 335, Magnum 340, Magnum 370, Magnum 380, MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX275, MX285, MX305

Fits Case IH Patriot Sprayers: 3230 Patriot, 3240 Patriot, 3330 Patriot, 3340 Patriot, 4420 Patriot, 4430 Patriot, 4440 Patriot, SPX3320, SPX4260, SPX4410

Fits Case IH Titan Floaters: 3020 Titan, 3030 Titan, 3040 Titan, 3520 Titan, 3530 Titan, 3540 Titan, 4020 Titan, 4030 Titan, 4040 Titan, 4520 Titan, 4530 Titan, 4540 Titan

Fits Case IH FLX Floaters: FLX3010, FLX3510, FLX4010, FLX4510

Fits New Holland Tractors - 8000 / 9000 Series: 8670, 8670A, 8770, 8770A, 8870, 8870A, 8970, 8970A, 9184, 9280, 9282, 9384, 9480, 9482, 9484, 9682, 9684, 9880, 9882, 9884

Fits New Holland T8 Series: T8010, T8020, T8030, T8040, T8050, T8.275, T8.300, T8.320, T8.330, T8.350, T8.360, T8.380, T8.390, T8.410, T8.420, T8.435

Fits New Holland TG Series: TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305

Replaces Part Number(s):

A185714, 1280263C1, 1280263, 89706806, 87773229, 9706806

Aftermarket Interchange Numbers

PM3207, 868612, 9849994

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

MX245, 3030 Titan, 8970, 9384, 4540 Titan, T8030, MX230, 8870, 3520 Titan, MAGNUM 245, 9150, 9282, 3230 Patriot, T8040, 220 Magnum, 9110, 7110, T8020, T8050, 9210, TG275, 3240 Patriot, T8.390, 9482, 8910, 190 Magnum, T8.410, 9684, 4430 Patriot, TG305, 5550 Trident, 200 Magnum, 7140, 9390, MAGNUM 255, 4440 Patriot, 260 Magnum, 3040 Titan, MX270, 4530 Titan, MX255, 8920, 9310, T8.380, MX305, 3020 Titan, 3330 Patriot, SPX3320 Patriot, 315 Magnum, 9350, 9682, 9230, 235 Magnum, T8.275, FLX4010, MX200, MX215, T8.300, T8.330, FLX3010, TG230, 9480, 3530 Titan, MX240, 9260, T8.435, MAGNUM 215, 9380, 3294, TG255, 9884, 210 Magnum, 9270, 290 Magnum, 255 Magnum, 7130, TG215, 7150, SPX4260 Patriot, 7120, TG210, 9880, T8.320, 7240, FLX3510, T8.420, 8930, 2096, 8670, 8950, 180 Magnum, 7230, 9184, 4520 Titan, 3394, 7250, 9250, 215 Magnum, 9330, 3594, 335 Magnum, 280 Magnum, 9280, 3154 Magnum, QUADTRAC, 9180, 240 Magnum, 8970A, 310 Magnum, 9882, MX220, 9370, 4020 Titan, 275 Magnum, 8870A, MX285, T8010, 8940, SPX4410, 370 Magnum, T8.350, TG285, 2290, 9130, MAGNUM 275, 3340 Patriot, 9170, 4030 Titan, 8670A, 3540 Titan, FLX4510, 9484, 4420 Patriot, 305 Magnum, 7210, 1896, 380 Magnum, T8.360, 8770, 2654 Magnum, MX180, MX275, 250 Magnum, 4040 Titan, TG245, 9240, 340 Magnum, MX210, 9680, 2390, 225 Magnum, 245 Magnum, 7220, 8770A

Additional Information:

Overall Length: 13" Stroke Length: 6.30" Cylinder Diameter: .715" Shaft Diameter: .315" Socket End Type: Ball Socket Newton Force: 278 Cab Door Gas Strut 13"

Reference Numbers:

1280263C1, 87773229, 89706806, 9706806, A185714, 1280263, 89706806, 87773229, 9706806, A185714
