One New Aftermarket Replacement Fuel Tank Grommet / Bushing Fits Bobcat, Scag, Fits Exmark, Fits Toro, MTD, Fits Cub Cadet, Troy-Bilt, Simplicity, Snapper and More

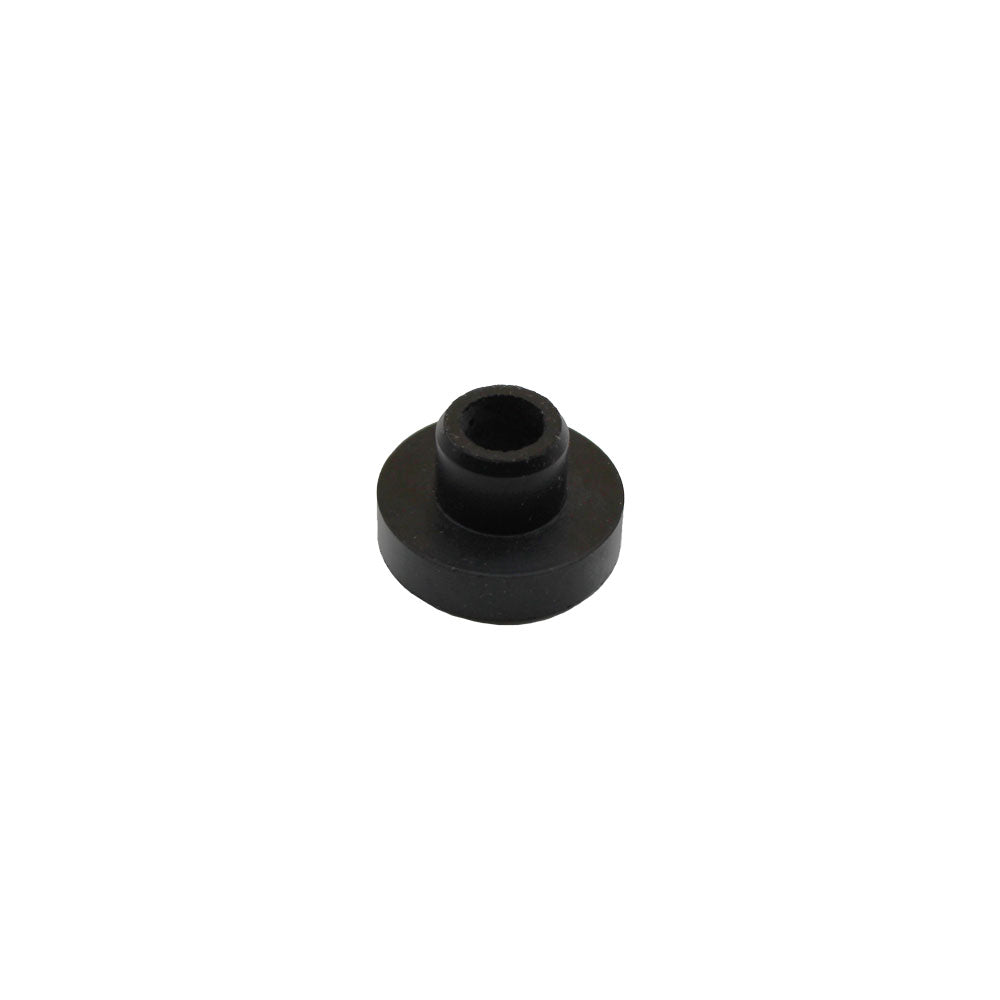

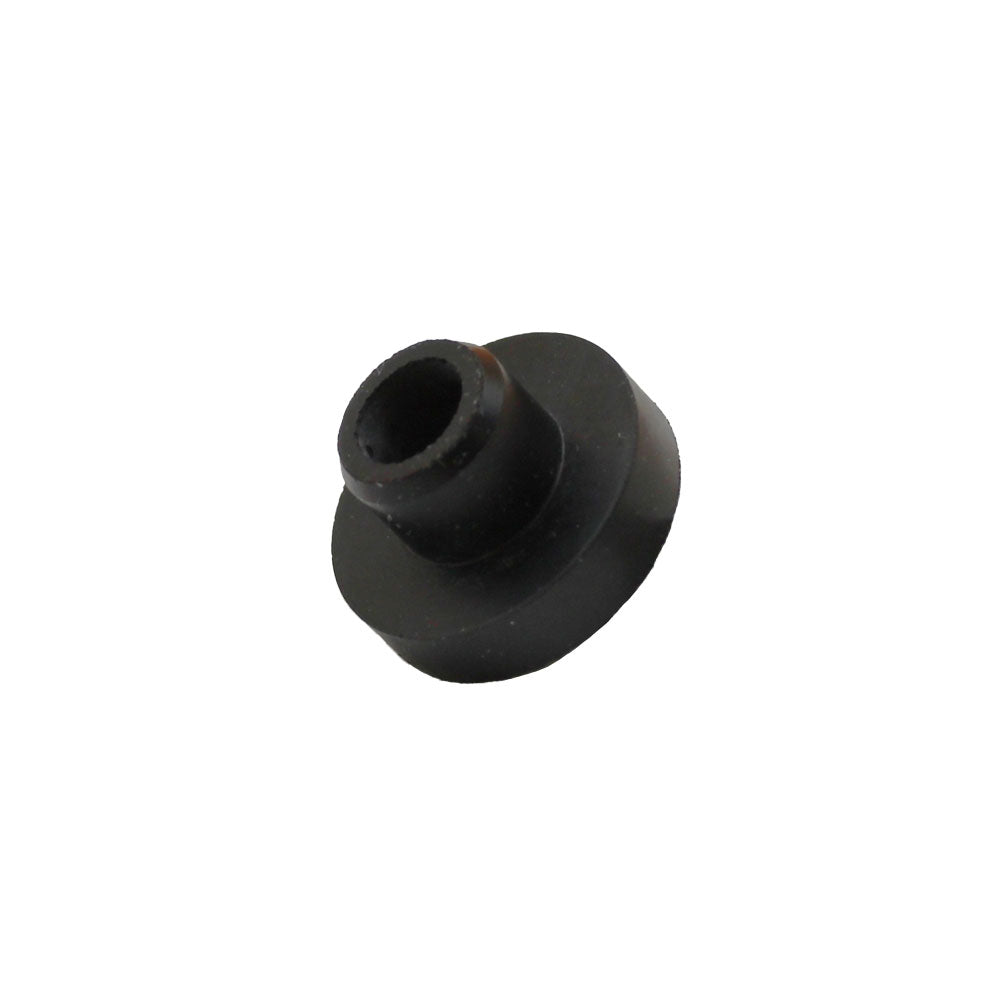

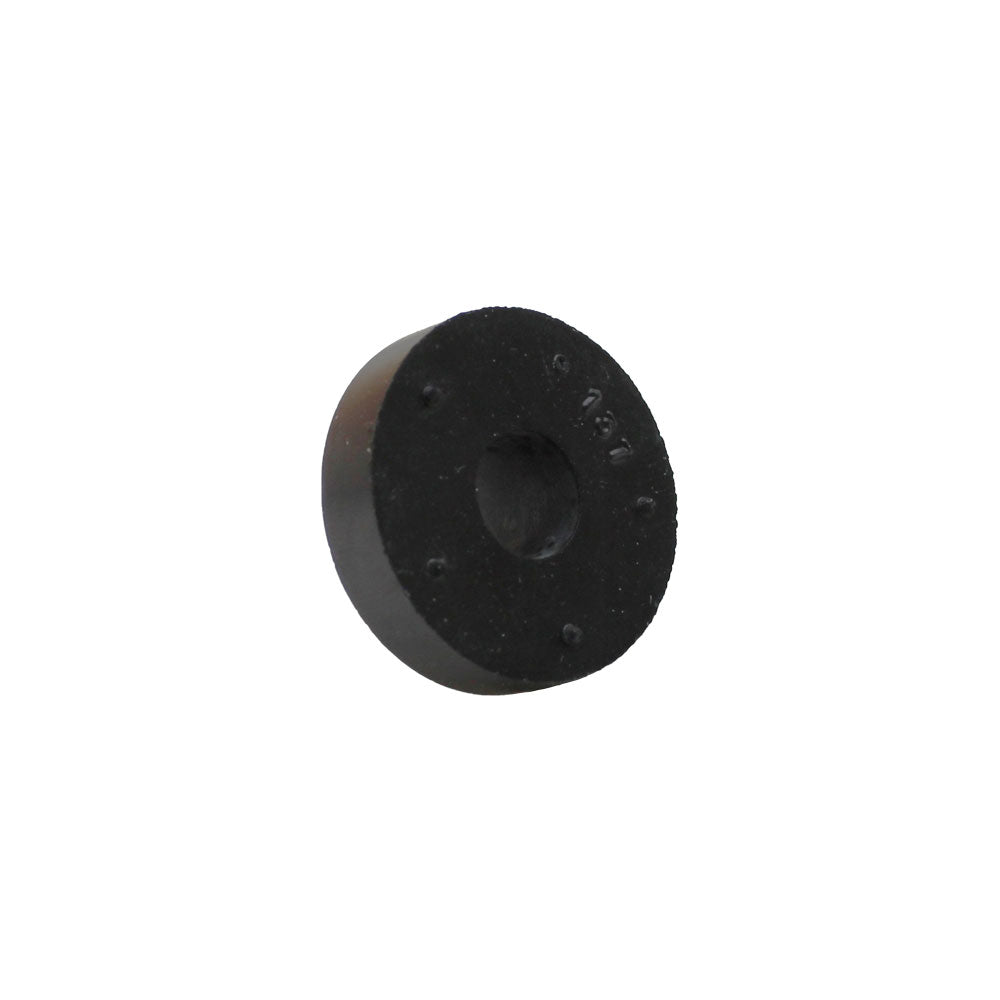

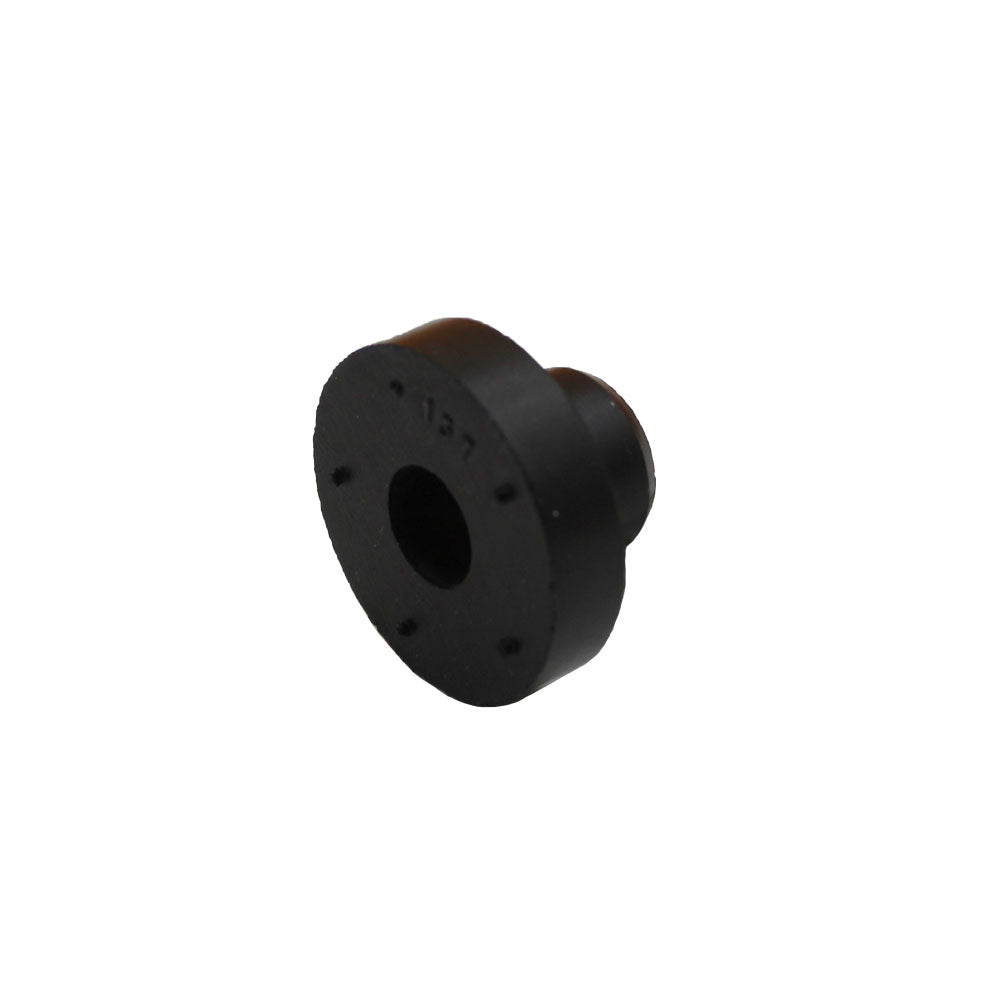

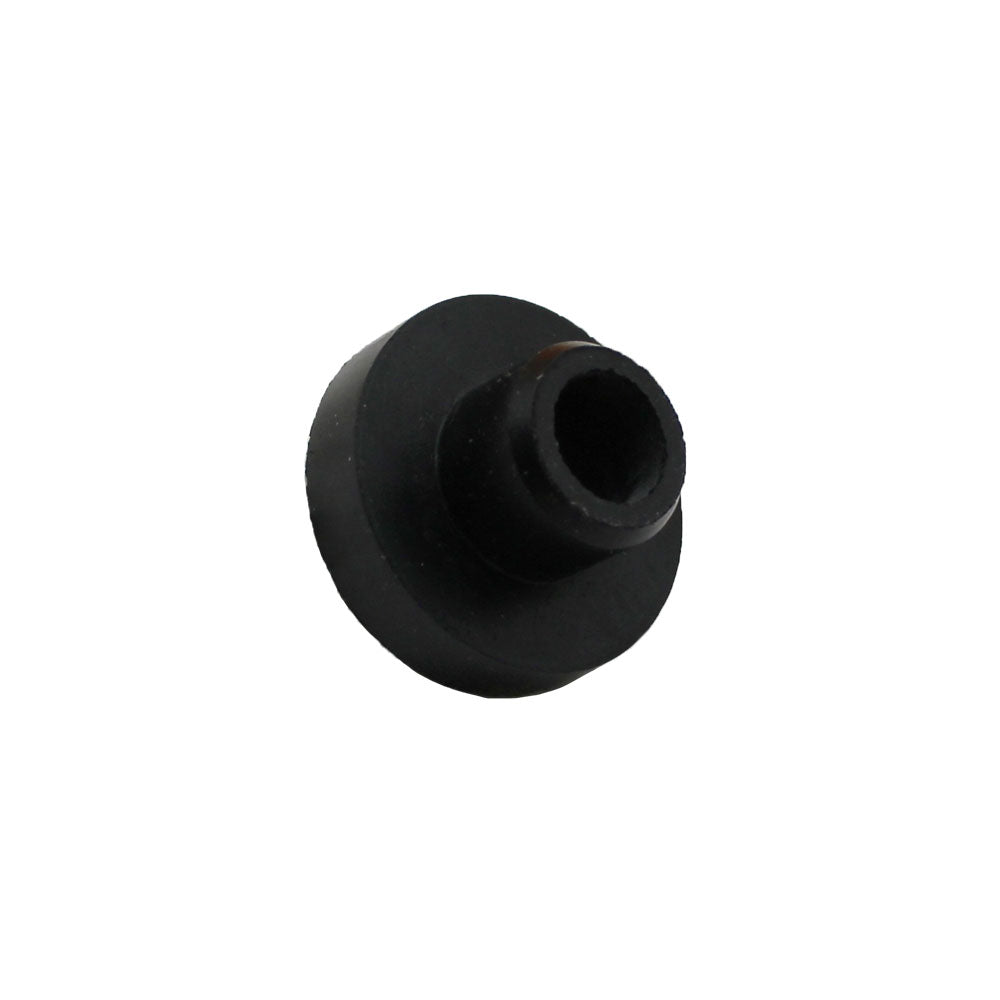

This rubber fuel tank grommet / bushing seals the fuel line passage through the fuel tank wall on a wide range of commercial and residential walk-behind mowers and lawn tractors. It is also used on chain covers and coolant tanks on applicable equipment. The grommet press-fits into a 1/2" diameter tank hole and provides a fuel-tight seal for the fuel supply line. Note: Not compatible with fuel blends containing more than 10% ethanol (E10 max).

Specifications

• Material: Rubber
• Tank Hole Diameter (fits): 1/2"
• Inner Diameter (I.D.): 3/8"
• Outer Diameter (O.D.): 1-1/16"
• Height: 5/8"

Compatible Models

Fits Bobcat (Bob-Fits CAT) Walk-Behind Mowers: 36", 48" and 61" XM Series Walk-Behinds, 930000-936406A Power Units and Hydro Drives

Scag Walk-Behind Mowers: 36", 48" and 52" Hydraulic Walk-Behinds; 32"-72" Belt Drive Walk-Behinds

Fits Exmark Walk-Behind Mowers: 36", 48" and 52" Metro (Serial 90,000 - 190,000)

Fits Toro / MTD / Fits Cub Cadet / Troy-Bilt / Simplicity / Snapper: Various walk-behind mower and lawn tractor models - see Replaces Part Numbers below to match your brand

Replaces Part Number(s):

Fits Bobcat: 6553411, 6553411-AM
Scag: 482571, 48309
Fits Exmark: 1-513645, E513645, 46-6560
MTD / Fits Cub Cadet / White: 1738433, 735-014, 735-0149, 935-0149
Troy-Bilt: 1738433, 581615, 935-0149, GW-1738433
Simplicity: 1654930, 1654930SM
Snapper: 1-2337, 1654930, 1654930SM, 7012337
Fits Toro: 10-4047, 46-6560, E513645, 1-513645
738433, 48309

Aftermarket Interchange Numbers

FSG80-0105; also cross-references: 482571, 48309, 1738433, 735-0149, 935-0149, 1654930, 1654930SM, GW-1738433, 581615

New aftermarket replacement part - not remanufactured, not used.
