AL2116 Complete Clutch Kit Fits John Deere
AL2116 Complete Clutch Kit Fits John Deere
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

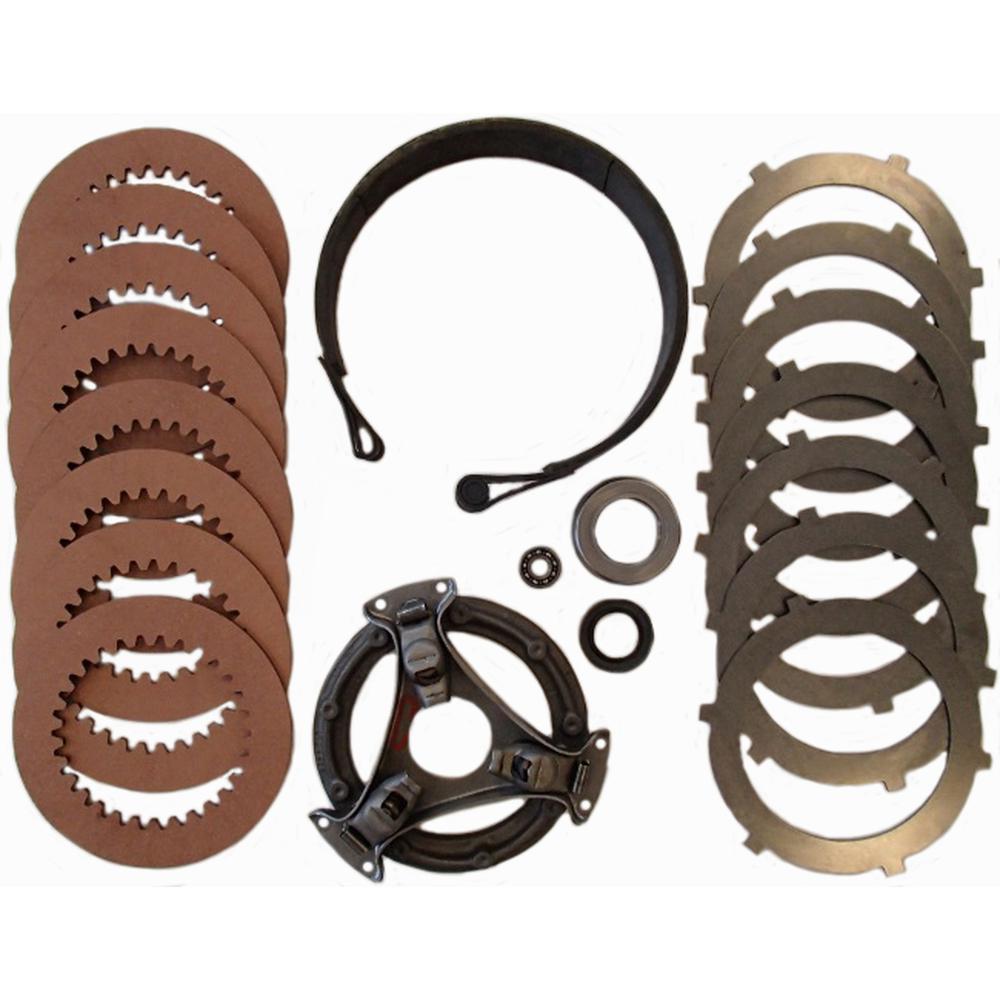

Aftermarket Complete John Deere Clutch KitTech Info:

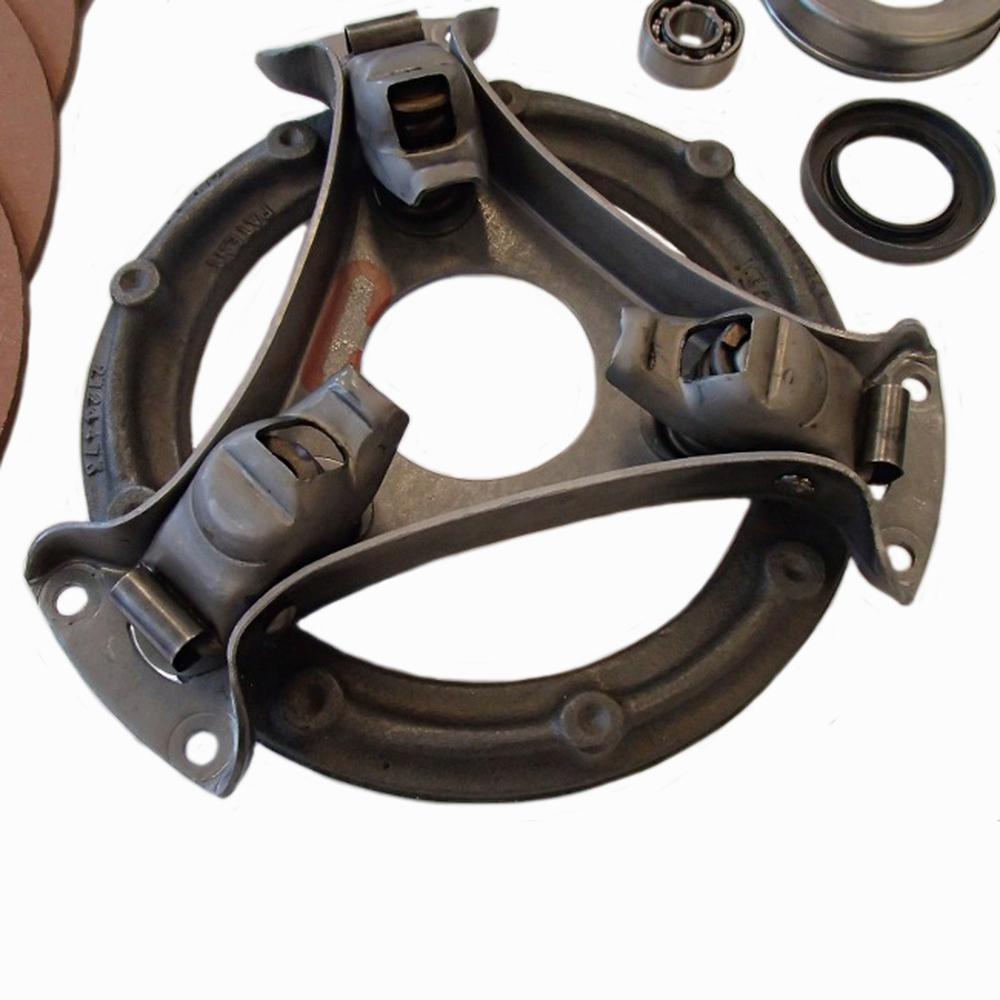

-(1) 9" Pressure Plate
-3 Lever
-Replaces: AT18886
-

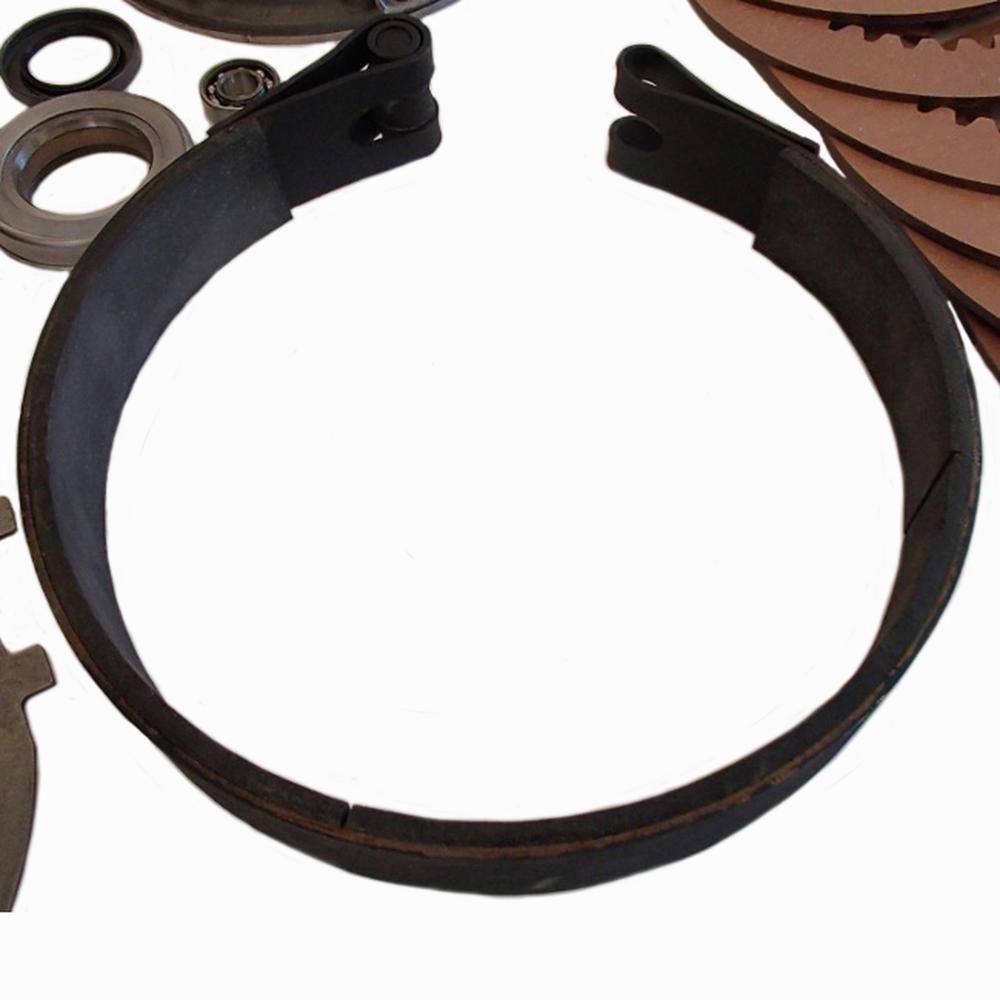

-(1) Brake Band
-Width: 2"
-Replaces: AT129805
-

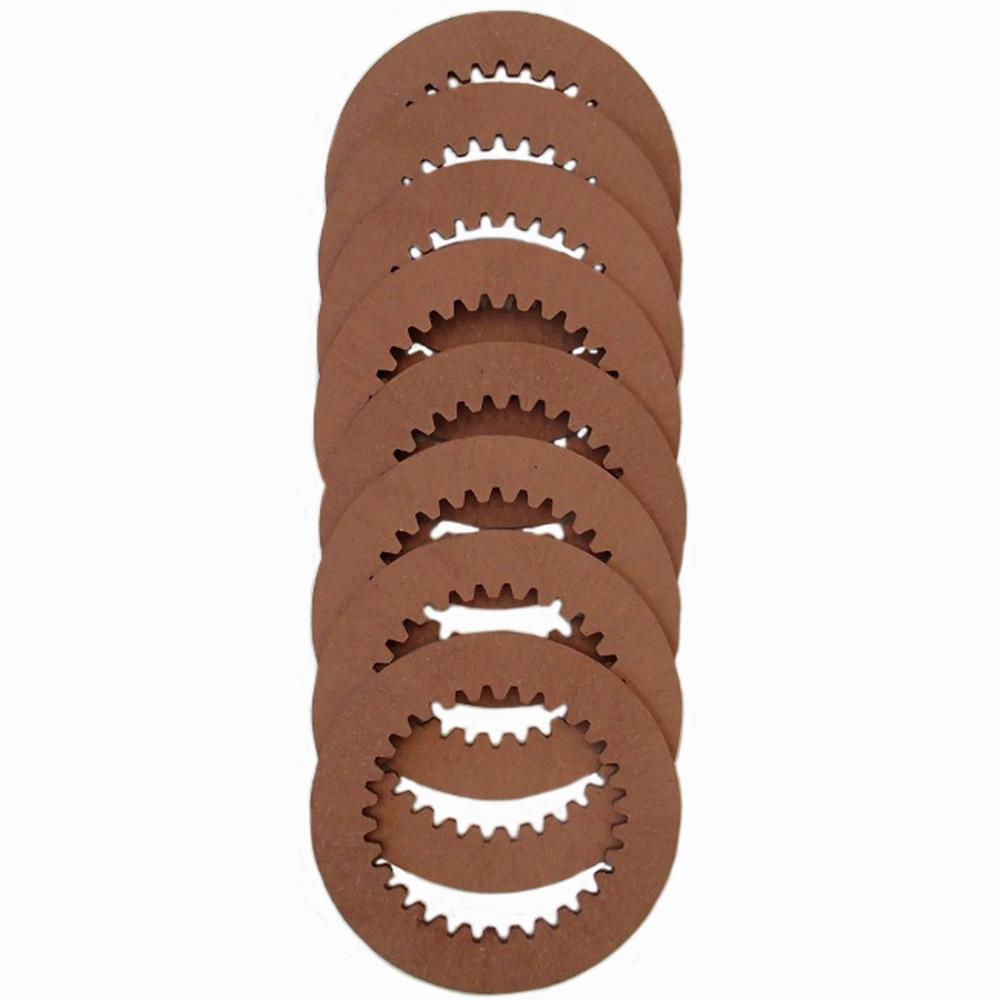

-(8) Fiber Steering Discs
-Outer Diameter: 8.958"
-Inner Diameter: 5.826"
-Thickness: .175"
-30 internal teeth
-Replaces: T20790
-

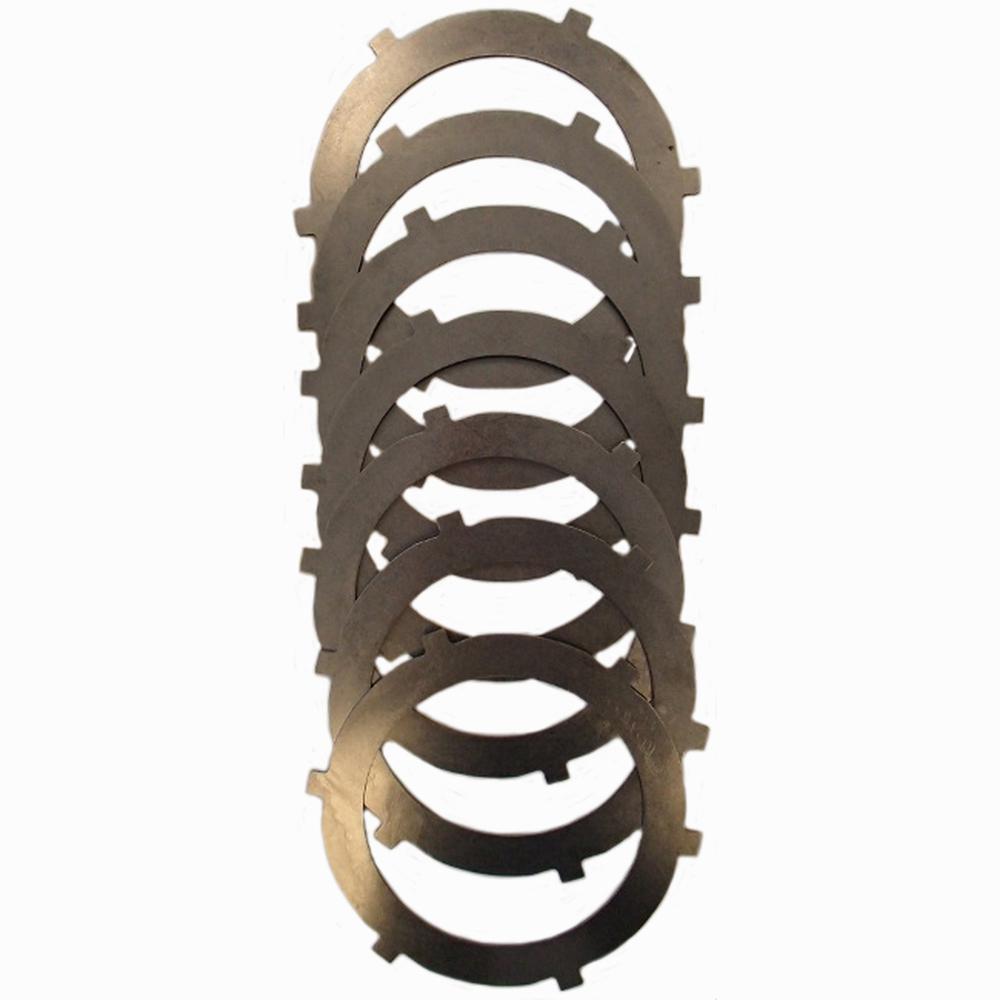

-(7) Steel Steering Disc
-Outer Diameter: 9.682"
-Inner Diameter: 6.882"
-6 external ears
-Replaces: T21315
-

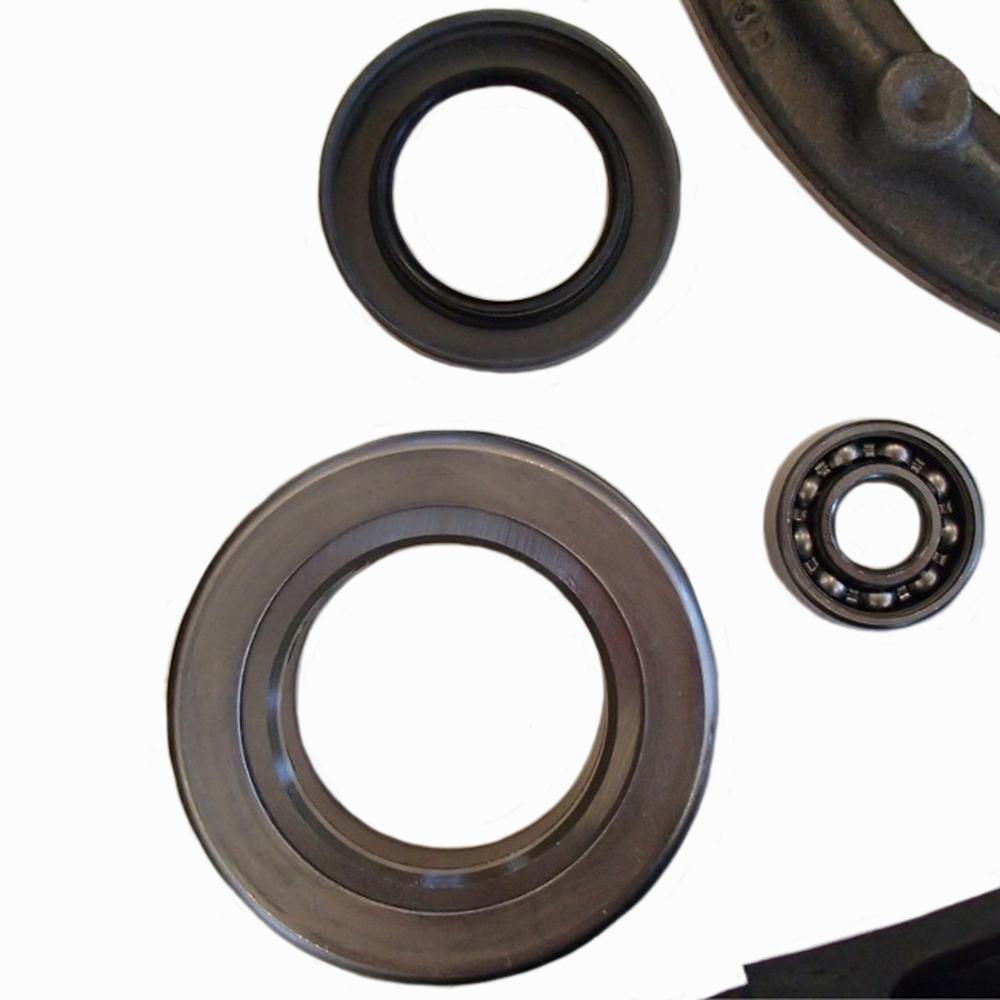

-(1) Release Bearing
-Bearing Type Sealed Roller
-Grease Non-greaseable
-Inner Diameter: 2.060"
-Inner Diameter: Type Round
-Outer Diameter: 3.560"
-Width Overall: 0.795"
-Replaces: AM3983T
-
-(1) Rear Axle Inner Seal
-Inner Diameter: 2.000”
-Outer Diameter: 2.876”
-Width: .468”
-Replaces: AM1717T
-
-(1) Pilot Bearing
-Inner Diameter: 15mm
-Outer Diameter: 35mm
-Width: 0.5”
-Replaces: 87502Fits John Deere:
Tractor Models: L, A, M, MC, MT, 320, 330, 40, 420, 430, 435, 500, 1010, 2510, 2520, 3020, 4000, 4010, 4020, 4040, 4230, 4240, 4320, 4430
Replaces Part Number(s): AL2116, AL2116T, AM3983T, AR41942
-(1) 9" Pressure Plate
-3 Lever
-Replaces: AT18886
-
-(1) Brake Band
-Width: 2"
-Replaces: AT129805
-
-(8) Fiber Steering Discs
-Outer Diameter: 8.958"
-Inner Diameter: 5.826"
-Thickness: .175"
-30 internal teeth
-Replaces: T20790
-
-(7) Steel Steering Disc
-Outer Diameter: 9.682"
-Inner Diameter: 6.882"
-6 external ears
-Replaces: T21315
-
-(1) Release Bearing
-Bearing Type Sealed Roller
-Grease Non-greaseable
-Inner Diameter: 2.060"
-Inner Diameter: Type Round
-Outer Diameter: 3.560"
-Width Overall: 0.795"
-Replaces: AM3983T
-
-(1) Rear Axle Inner Seal
-Inner Diameter: 2.000”
-Outer Diameter: 2.876”
-Width: .468”
-Replaces: AM1717T
-
-(1) Pilot Bearing
-Inner Diameter: 15mm
-Outer Diameter: 35mm
-Width: 0.5”
-Replaces: 87502Fits John Deere:
Tractor Models: L, A, M, MC, MT, 320, 330, 40, 420, 430, 435, 500, 1010, 2510, 2520, 3020, 4000, 4010, 4020, 4040, 4230, 4240, 4320, 4430
Replaces Part Number(s): AL2116, AL2116T, AM3983T, AR41942
Models This Part Fits:
330, 4020, 420, 4230, 435, A, 1010, MT, M, 2520, L, 430, 4320, 4430, 2510, 500, 4000, 320, 3020, 4010, 4040, 4240, MC, 40Additional Information:
(1) 9" Pressure Plate 3 Lever Replaces: AT18886 (1) Brake Band Width: 2" Replaces: AT129805 (8) Fiber Steering Discs Outer Diameter: 8.958" Inner Diameter: 5.826" Thickness: .175" 30 internal teeth Replaces: T20790 (7) Steel Steering Disc Outer Diameter: 9.682" Inner Diameter: 6.882" 6 external ears Replaces: T21315 (1) Release Bearing Bearing Type Sealed Roller Grease Non-greaseable Inner Diameter: 2.060" Inner Diameter: Type Round Outer Diameter: 3.560" Width Overall: 0.795" Replaces: AM3983T (1) Rear Axle Inner Seal Inner Diameter: 2.000” Outer Diameter: 2.876” Width: .468” Replaces: AM1717T (1) Pilot Bearing Inner Diameter: 15mm Outer Diameter: 35mm Width: 0.5” Replaces: 87502 Complete John Deere Clutch KitReference Numbers:
AL2116, AL2116T, AM3983T, AR41942Makes This Part Fits:
