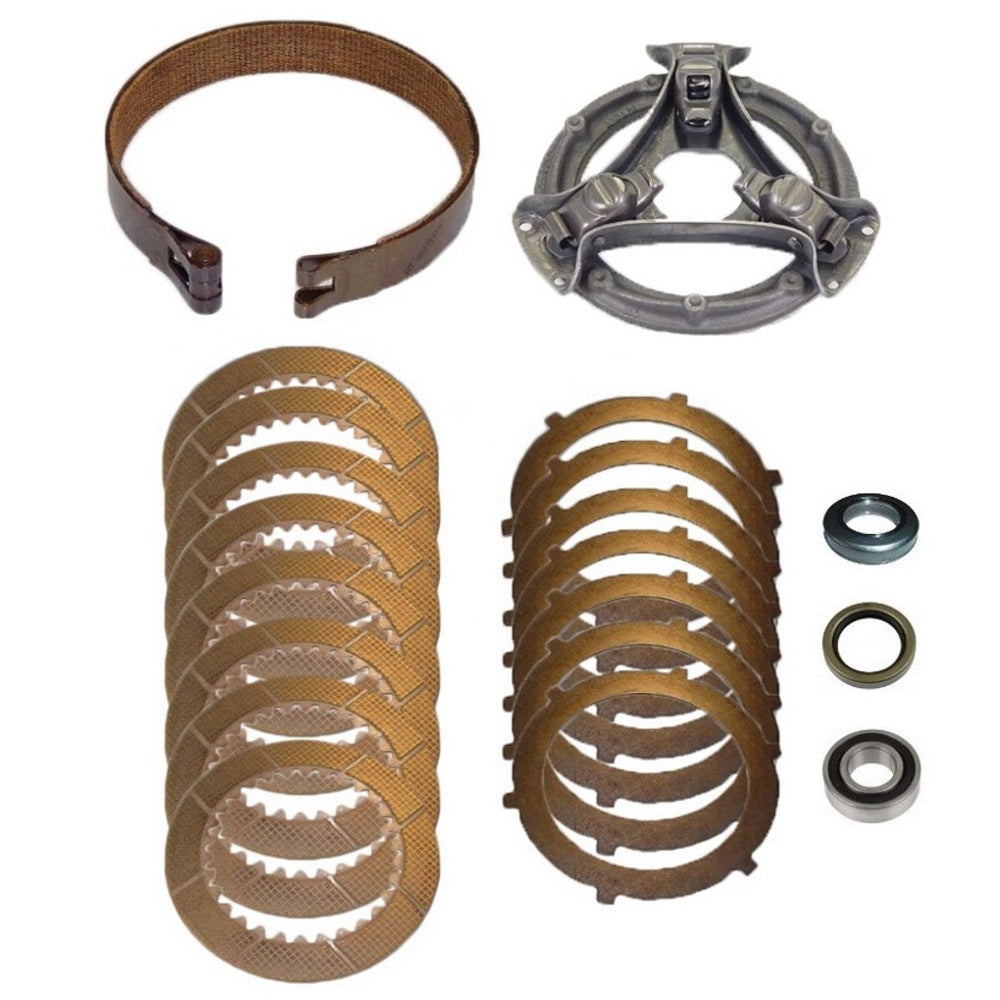

AL2116 Metallic Clutch Kit w/ Seal Fits John Deere 1010 2510 2520 3020 320 330
AL2116 Metallic Clutch Kit w/ Seal Fits John Deere 1010 2510 2520 3020 320 330
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Aftermarket Metallic Clutch Kit w/ SealTech Info:
-(8) Metallic Clutch Discs
-O.D.: 8.936"
-I.D.: 5.831"
-Thickness: .178"
-Number of teeth: 30
-Replaces Part Number: AT117553
-
-(1) Release Bearing
-Bearing Type Sealed Roller
-Grease Non-greaseable
-I.D.: 2.060"
-I.D.: Type Round
-O.D.: 3.560"
-Width Overall: 0.795"
-Replaces Part Number: AM3983T
-
-(1) Brake Band
-Width: 2"
-Replaces Part Number: AT129805
-
-(1) 9" Pressure Plate
-3 Lever
-Replaces Part Number: AT18886
-
-(7) Steel Steering Discs
-O.D: 9.682"
-I.D.: 6.882"
-6 external ears
-Replaces part Number: T21315
-
-(1) Pilot Bearing
-I.D.: 15mm
-O.D.: 35mm
-Width: 0.5”
-Replaces part Number: 87502
-
-(1) Rear Axle Inner Seal
-I.D.: 2.000”
-O.D.: 2.876”
-Width: .468”
-Replaces Part Number: AM1717TFits John Deere:
Crawler Models: 350, 350B
Replaces Part Number(s): Rear Axle Inner SealAL2124T, AM268T, AM2773T, AM776T, AT48334 Pilot Bearing 87502Steel Clutch Disc T213159" Pressure Plate AT18886Brake BandAT129805Metallic Clutch Disc AT117553, T44128, T211852Release Bearing AM3983T
Tractor Models: L, A, M, MC, MT, 320, 330, 40, 420, 430, 435, 500, 1010, 2510, 2520, 3020, 4000, 4010, 4020, 4040, 4230, 4240, 4320, 4430
Replaces Part Number(s): AL2116, AL2116T, AM3983T, AR41942
-(8) Metallic Clutch Discs
-O.D.: 8.936"
-I.D.: 5.831"
-Thickness: .178"
-Number of teeth: 30
-Replaces Part Number: AT117553
-
-(1) Release Bearing
-Bearing Type Sealed Roller
-Grease Non-greaseable
-I.D.: 2.060"
-I.D.: Type Round
-O.D.: 3.560"
-Width Overall: 0.795"
-Replaces Part Number: AM3983T
-
-(1) Brake Band
-Width: 2"
-Replaces Part Number: AT129805
-
-(1) 9" Pressure Plate
-3 Lever
-Replaces Part Number: AT18886
-
-(7) Steel Steering Discs
-O.D: 9.682"
-I.D.: 6.882"
-6 external ears
-Replaces part Number: T21315
-
-(1) Pilot Bearing
-I.D.: 15mm
-O.D.: 35mm
-Width: 0.5”
-Replaces part Number: 87502
-
-(1) Rear Axle Inner Seal
-I.D.: 2.000”
-O.D.: 2.876”
-Width: .468”
-Replaces Part Number: AM1717TFits John Deere:
Crawler Models: 350, 350B
Replaces Part Number(s): Rear Axle Inner SealAL2124T, AM268T, AM2773T, AM776T, AT48334 Pilot Bearing 87502Steel Clutch Disc T213159" Pressure Plate AT18886Brake BandAT129805Metallic Clutch Disc AT117553, T44128, T211852Release Bearing AM3983T
Tractor Models: L, A, M, MC, MT, 320, 330, 40, 420, 430, 435, 500, 1010, 2510, 2520, 3020, 4000, 4010, 4020, 4040, 4230, 4240, 4320, 4430
Replaces Part Number(s): AL2116, AL2116T, AM3983T, AR41942
Models This Part Fits:
320, 4320, A, 2520, 4230, 4010, 435, 2510, 3020, L, 1010, MT, 430, MC, 420, 4000, 350B, 330, 40, 4430, 350, M, 4240, 4040, 4020, 500Additional Information:
(8) Metallic Clutch Discs Outer Diameter: 8.936" Inner Diameter: 5.831" Thickness: .178" Number of teeth: 30 Replaces Part Number: AT117553 (1) Release Bearing Bearing Type Sealed Roller Grease Non-greaseable Inner Diameter: 2.060" Type: Round Outer Diameter: 3.560" Width Overall: 0.795" Replaces Part Number: AM3983T (1) Brake Band Width: 2" Replaces Part Number: AT129805 (1) 9" Pressure Plate 3 Lever Replaces Part Number: AT18886 (7) Steel Steering Discs Outer Diameter: 9.682" Inner Diameter: 6.882" 6 external ears Replaces part Number: T21315 (1) Pilot Bearing Inner Diameter: 15mm Outer Diameter: 35mm Width: 0.5” Replaces part Number: 87502 (1) Rear Axle Inner Seal Inner Diameter: 2.000” Outer Diameter: 2.876” Width: .468” Replaces Part Number: AM1717TReference Numbers:
AL2116, AL2116T, AM3983T, AR41942, Rear Axle Inner SealAL2124T, AM268T, AM2773T, AM776T, AT48334 Pilot Bearing 87502Steel Clutch Disc T213159" Pressure Plate AT18886Brake BandAT129805Metallic Clutch Disc AT117553, T44128, T211852Release Bearing AM3983TMakes This Part Fits:
