One New Aftermarket Replacement Brake Disc Fits John Deere Tractors

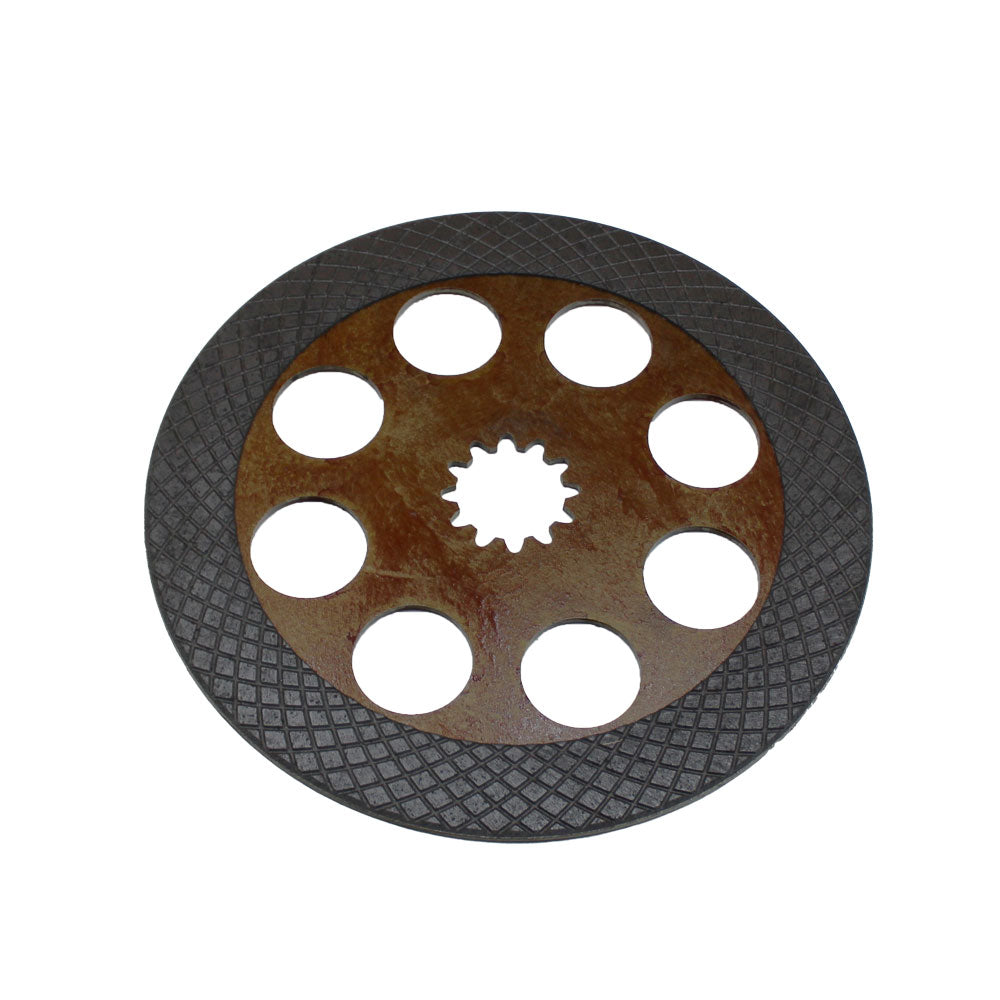

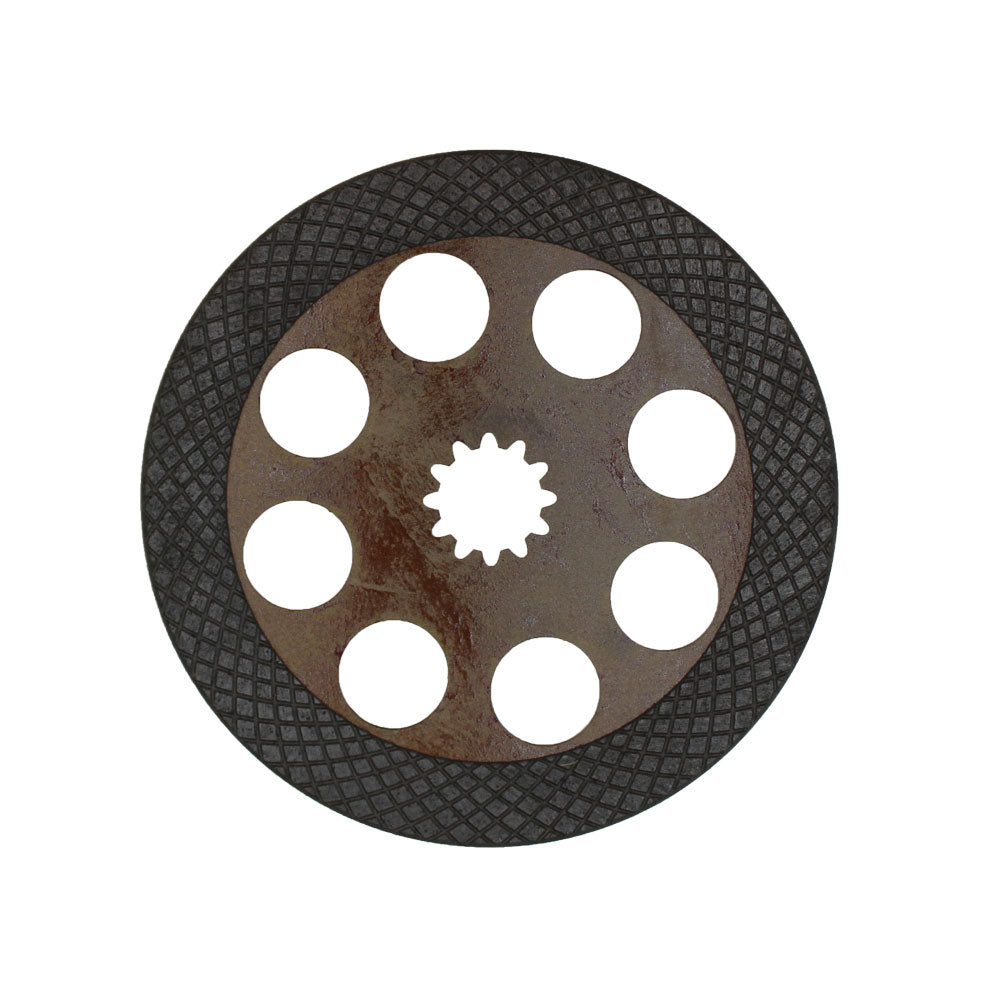

This brake disc with internal splines is a direct replacement for the wet disc brake system used across a wide range of Fits John Deere (Fits JD) 30, 40, 50, 55, and 150/250/350/550 Series tractors. The disc engages the brake housing to provide stopping power and is subject to wear over time, making periodic replacement essential for safe operation.

Specifications

• Outside Diameter: 12 in.
• Splines: 12 Internal

Serial Number Restrictions

• 1030, 1130, 1630: S/N 300750 and above
• 1830: S/N 301446 and above
• 2030: S/N 301746 and above
• 2040: S/N 305840 and above
• 2240: S/N 305314 and above
• 2155, 2355, 2555: S/N 672619 and below
• 830, 840, 930, 940, 1040, 1140, 1350, 1550, 1640, 1750, 1840, 1850, 1950, 1950N, 2150, 2250, 2255, 2350, 2450, 2550: No serial number restriction identified

Compatible Models

Fits John Deere 30 Series: 830, 930, 1030, 1130, 1630, 1830, 2030, 2130

Fits John Deere 40 Series: 840, 940, 1040, 1140, 1640, 1840, 2040, 2240

Fits John Deere 50 Series: 1350, 1550, 1750, 1850, 1950, 1950N, 2250, 2350, 2450, 2550

Fits John Deere 55 Series: 2155, 2255, 2355, 2555

Fits John Deere 150/250 Series: 2150

Replaces Part Number(s):

AL38234, AL29645

New aftermarket replacement part - not remanufactured, not used.
