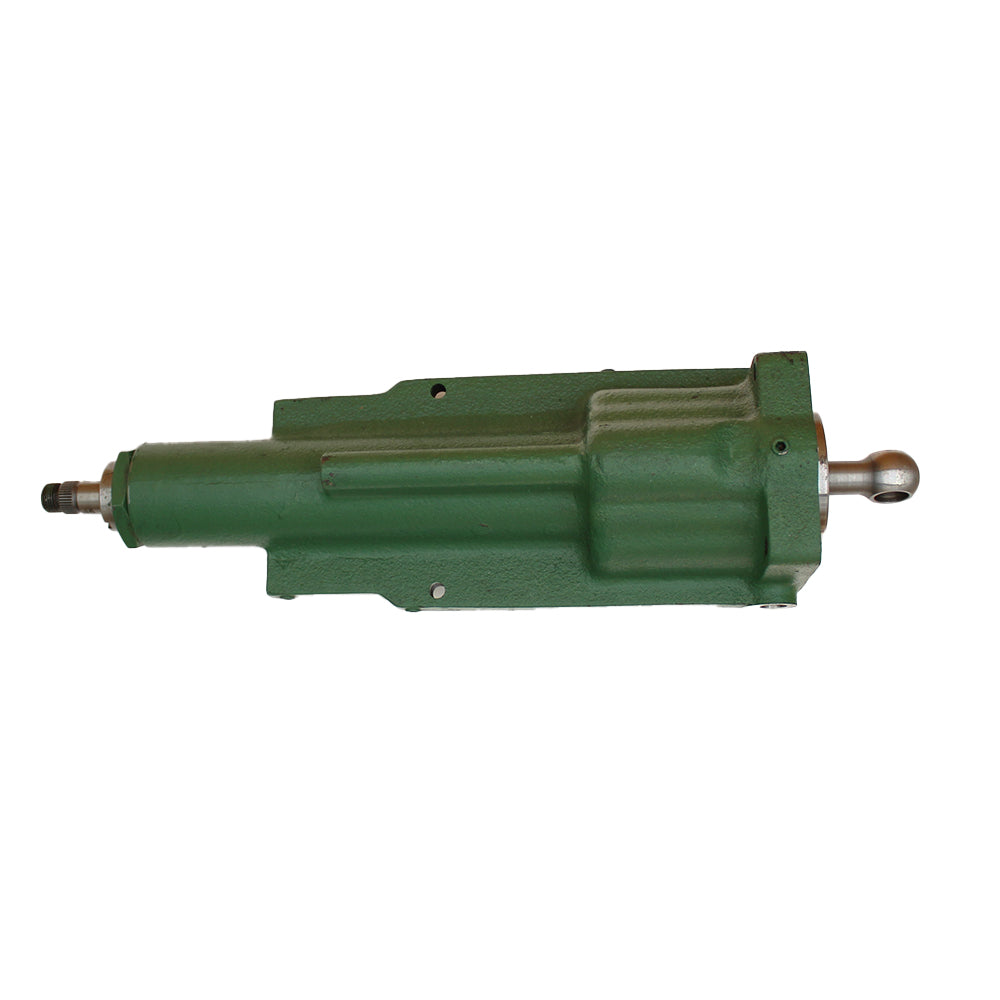

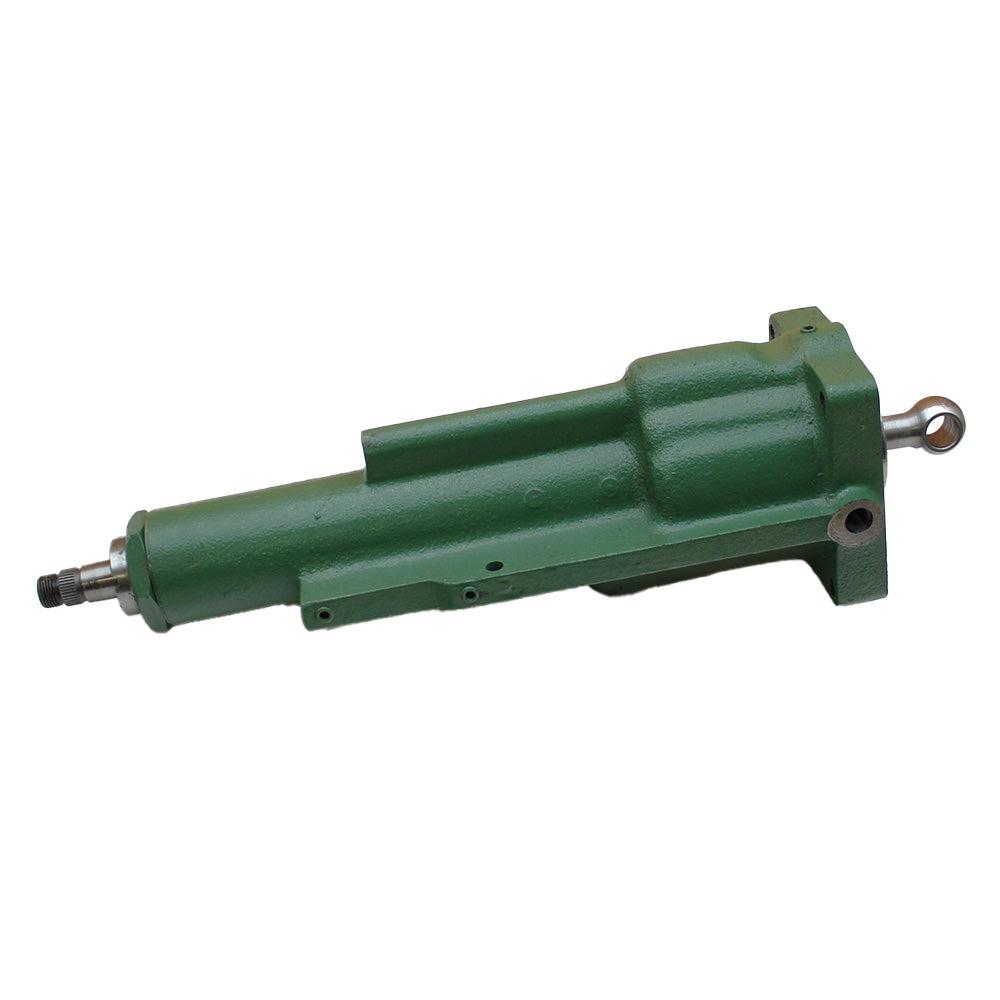

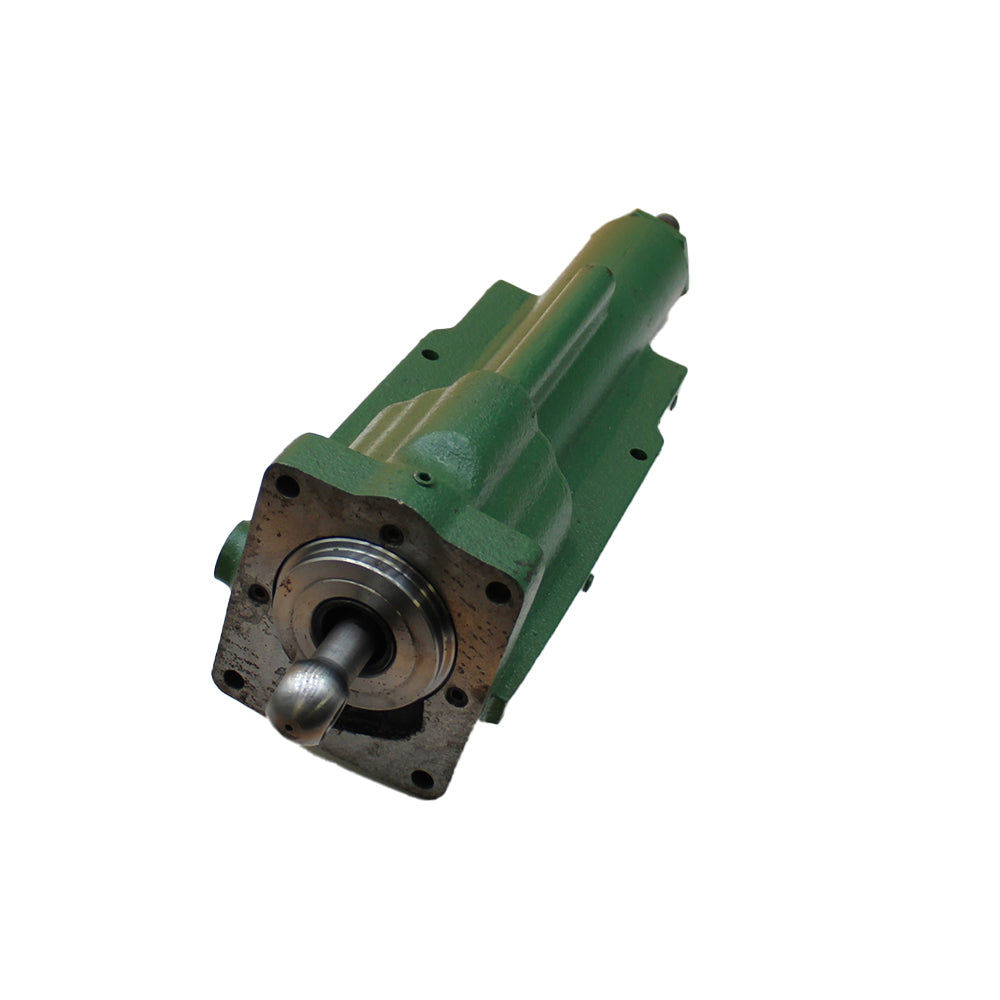

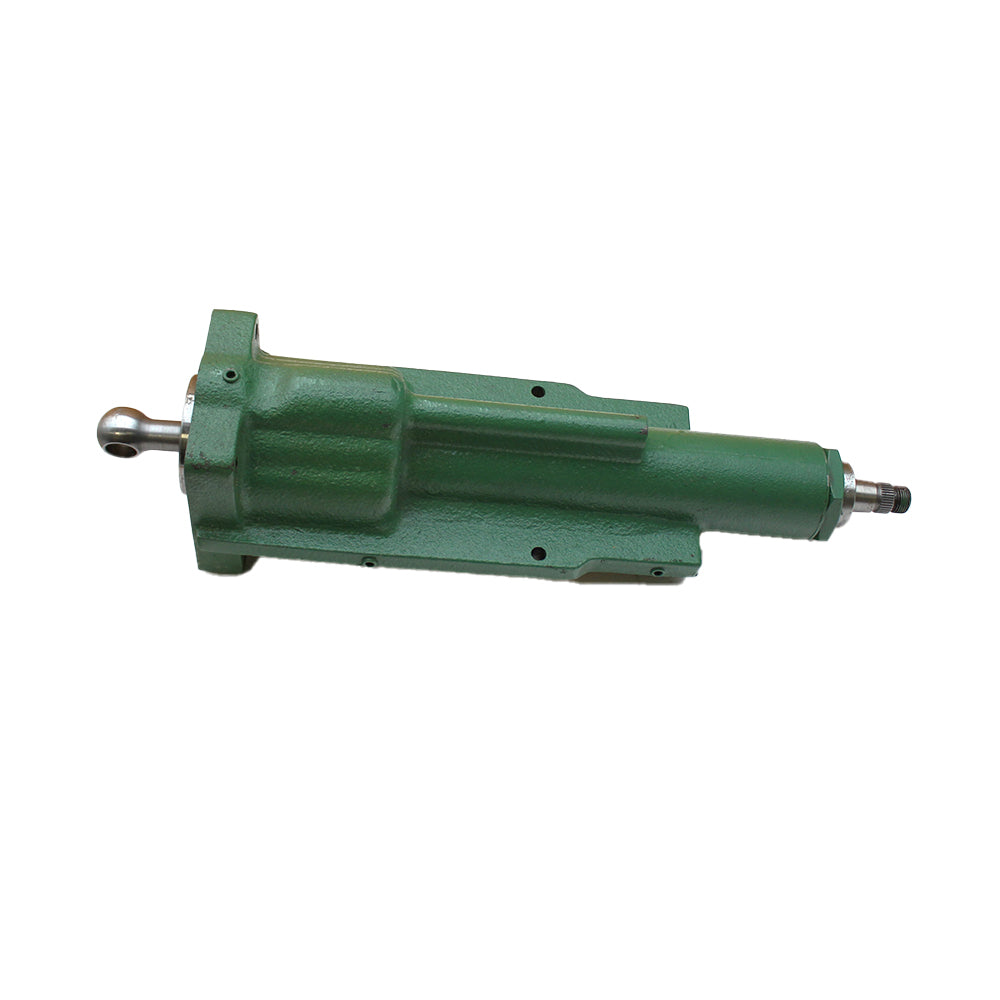

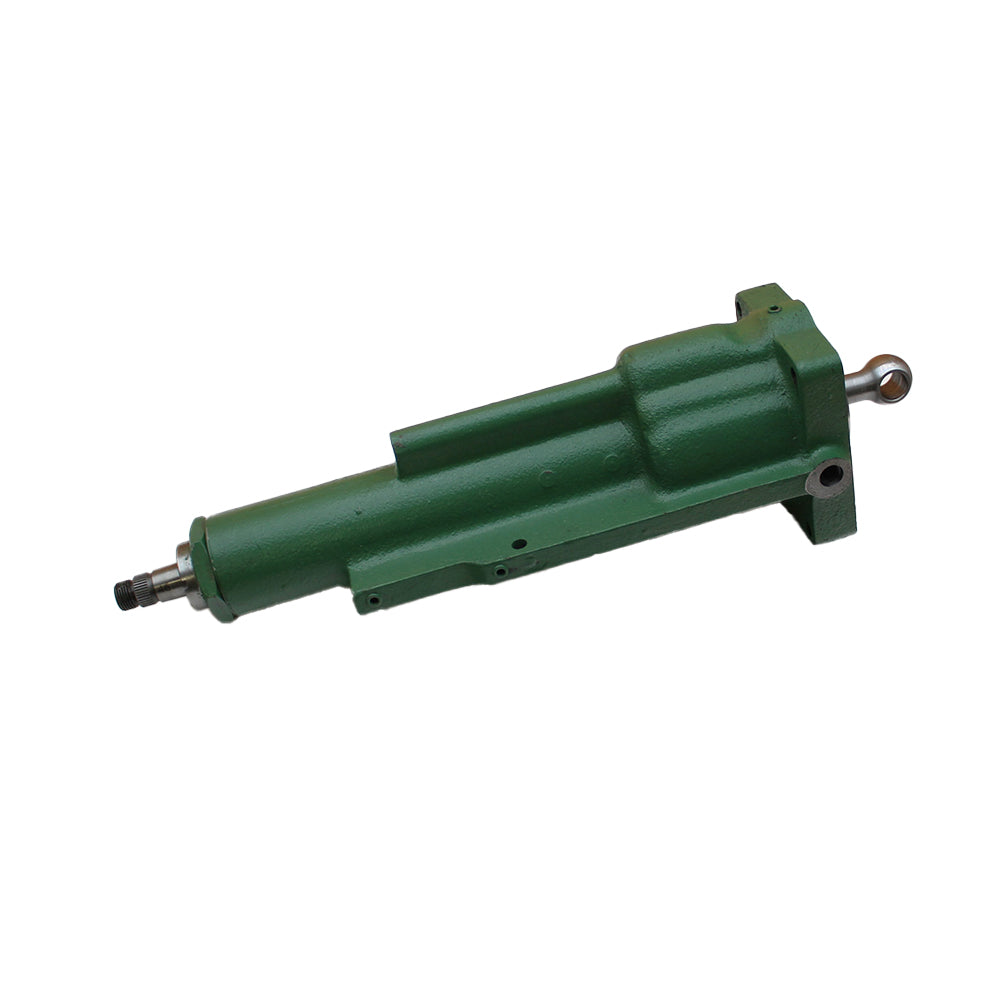

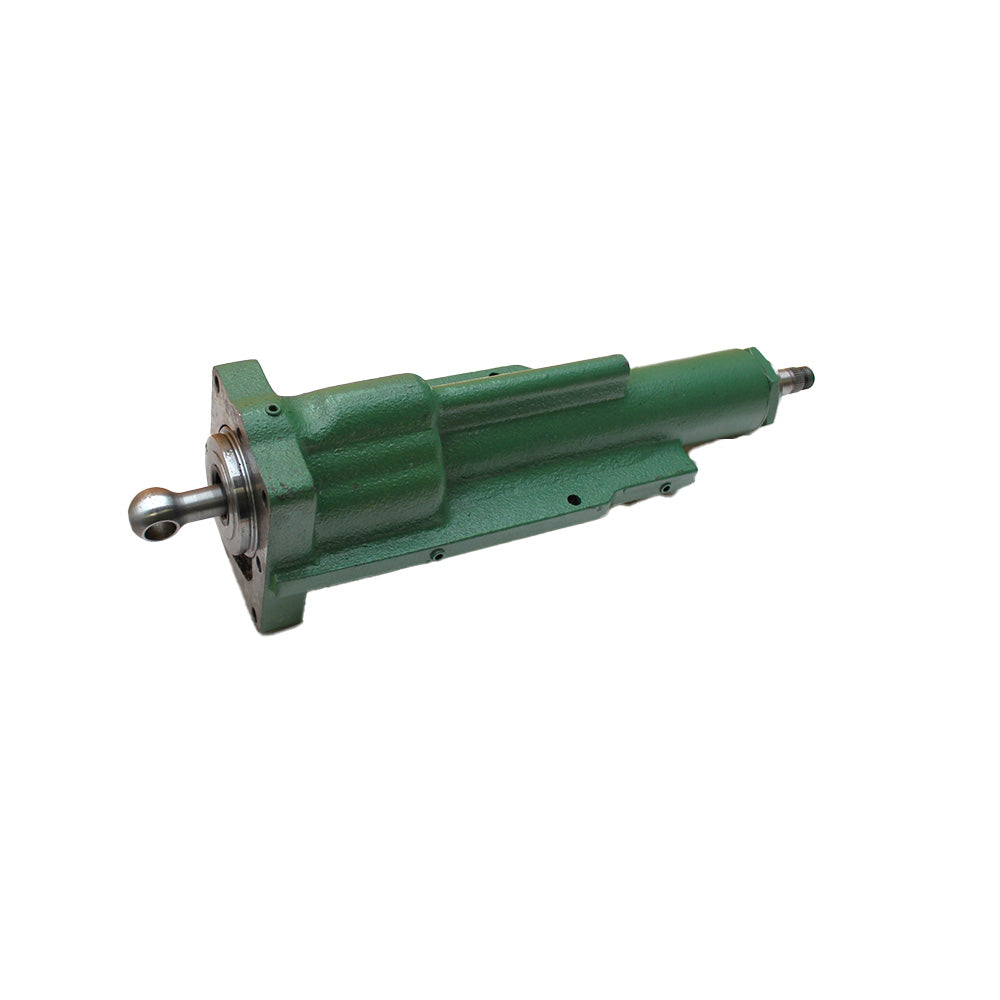

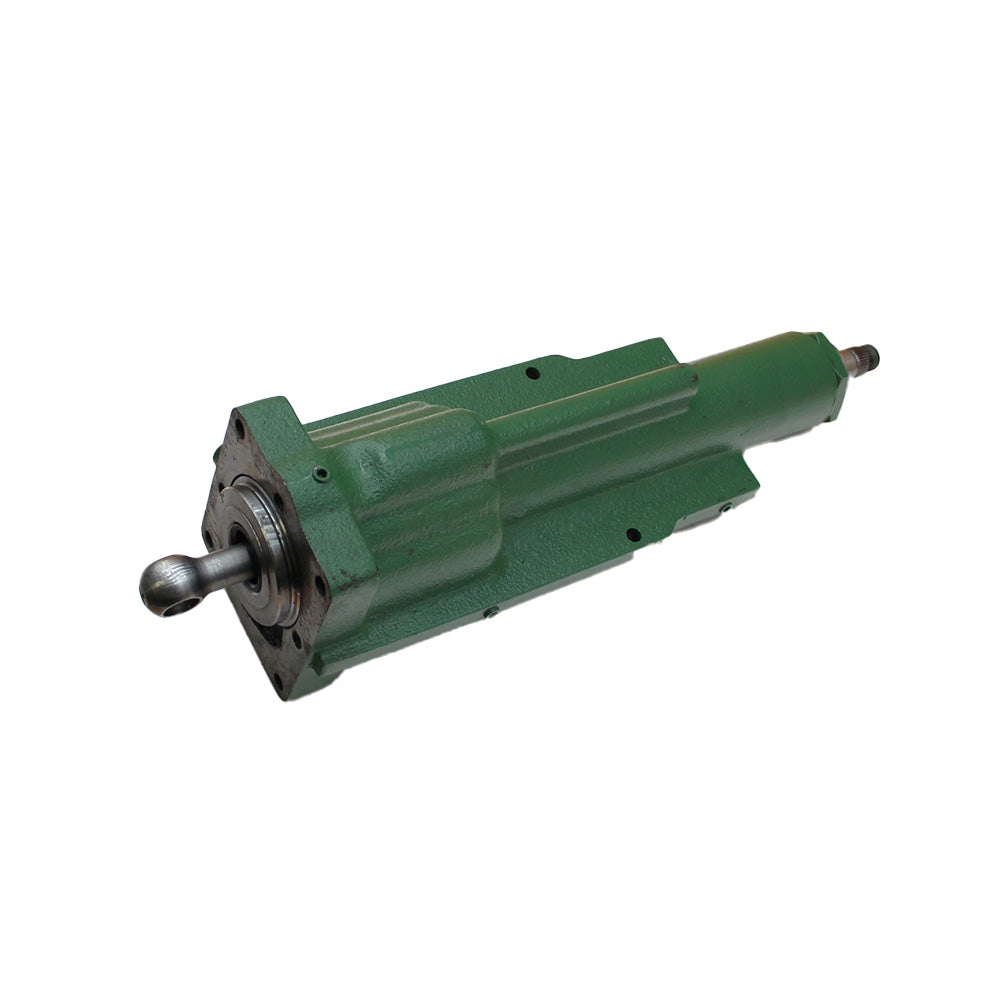

One New Aftermarket Replacement Power Steering Gear Assembly for John Deere Utility Tractors

This aftermarket replacement power steering gear assembly (also known as a steering control unit or metering valve) fits a wide range of John Deere (JD) utility tractors and construction/industrial equipment using a closed center hydraulic system. The unit mounts via four 7/16" base mounting holes and features a 36-spline steering shaft. Important: This part is designed for closed center hydraulic systems only. Verify your tractor's hydraulic system type before ordering.

Specifications

• Housing Length: 15-1/2" (15.5")
• Mounting: (4) 7/16" base mounting holes
• Steering Shaft: 36-spline
• System Compatibility: Closed center hydraulic systems only

Compatible Models

John Deere Tractors: 820 (s/n 258366 and later), 830 (s/n 258366 and later), 920, 930 (s/n 258366 and later), 940, 1020, 1030, 1040, 1140, 1520, 1530, 1550, 1640 (s/n 430000 and later), 1750, 1750V, 1850, 1850F, 1850V, 1950, 1950F, 1950N, 2020, 2030, 2040 (s/n 266750 and later), 2040S (s/n 430000 and later), 2130, 2150, 2155, 2240 (s/n 350000 and later), 2255, 2350, 2355, 2355N, 2440, 2450F, 2550, 2630, 2640, 2650F

John Deere Construction and Industrial: 300, 301, 302, 310 (s/n 163706 and earlier), 400, 401 (all using closed center hydraulic system)

John Deere Backhoe Loaders: 300, 301, 302, 400, 401 (all using closed center hydraulic system)

Replaces Part Number(s):

AL31262, AL31515, AL70699, AT23175, RE10800, L34450, R58041, R77312, R77314, T25295, 1401-1103

Aftermarket Interchange Numbers

A-AL31262

New aftermarket replacement part - not remanufactured, not used.
