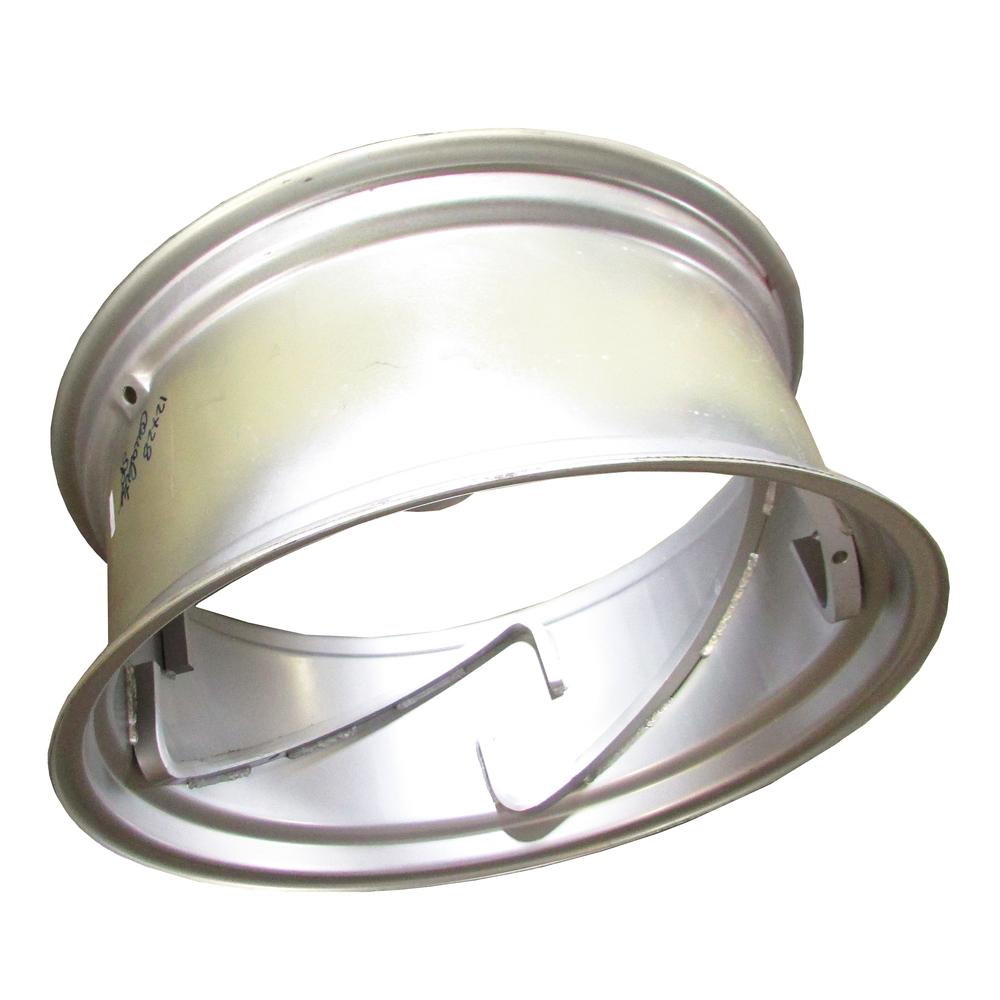

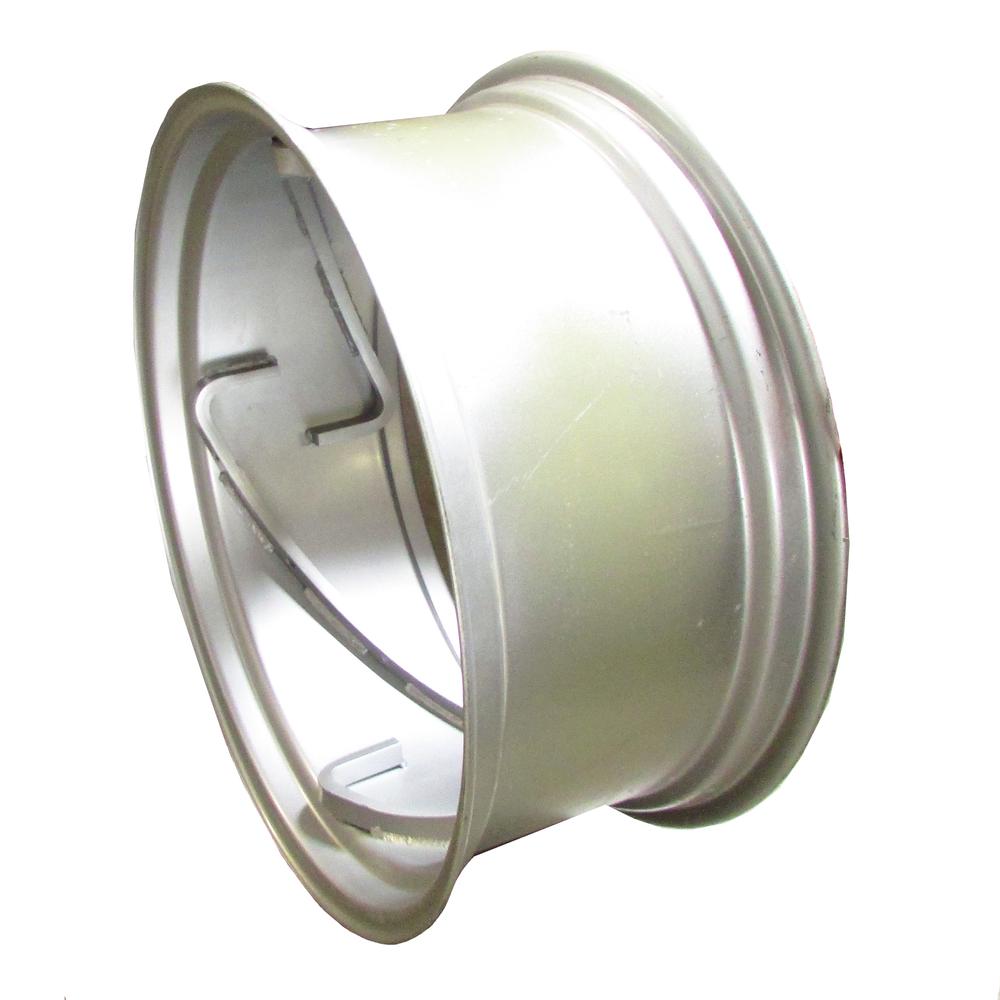

Rear Rim 12" x 28" Fits John Deere Replaces AL60764
Rear Rim 12" x 28" Fits John Deere Replaces AL60764
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Rear Rim 12" x 28"Tech Info:
-4 Rails
-.625" Rail Width
-Length: 21"
-Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
-Stop holes are angled
-To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
-Not designed for tubeless applications
-Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time
-1" Rail HeightMade to Fit John Deere:
Tractor Models: 1010, 1020, 1450, 1520, 1530, 1650, 2010, 2020, 2030, 2040, 2240, 2440, 420, 430, 435, 440
Replaces Part Number(s): AL60764, AM3202T
Tractor Models: 430, 1530, 420, 2020, 1020, 2030, 1010, 1520, 2440, 2010, 1450, 2240, 2040, 435, 1650
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): AM3202T, AL60764
Industrial Tractor Models: 440
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): AM3202T, AL60764
-4 Rails
-.625" Rail Width
-Length: 21"
-Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
-Stop holes are angled
-To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
-Not designed for tubeless applications
-Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time
-1" Rail HeightMade to Fit John Deere:
Tractor Models: 1010, 1020, 1450, 1520, 1530, 1650, 2010, 2020, 2030, 2040, 2240, 2440, 420, 430, 435, 440
Replaces Part Number(s): AL60764, AM3202T
Tractor Models: 430, 1530, 420, 2020, 1020, 2030, 1010, 1520, 2440, 2010, 1450, 2240, 2040, 435, 1650
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): AM3202T, AL60764
Industrial Tractor Models: 440
Model Breaks: using 12" x 28" 4 rail spin out
Replaces Part Number(s): AM3202T, AL60764
Models This Part Fits:
430, 2040, 1530, 1010, 1650, 2020, 420, 2440, 1450, 435, 2240, 2010, 1020, 1520, 440, 2030Additional Information:
4 Rails 0.625" Rail Width 21" Long 1" Rail Height Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail Stop holes are angled To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside Not designed for tubeless applications Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time Rear Rim 12" x 28"Reference Numbers:
AL60764, AM3202T, AM3202T, AL60764Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Rims/Wheels/Tires Replacement PartsProduct Sub Group:
