Alternator Fits Lester Replaces 13126

Alternator Fits Lester Replaces 13126



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

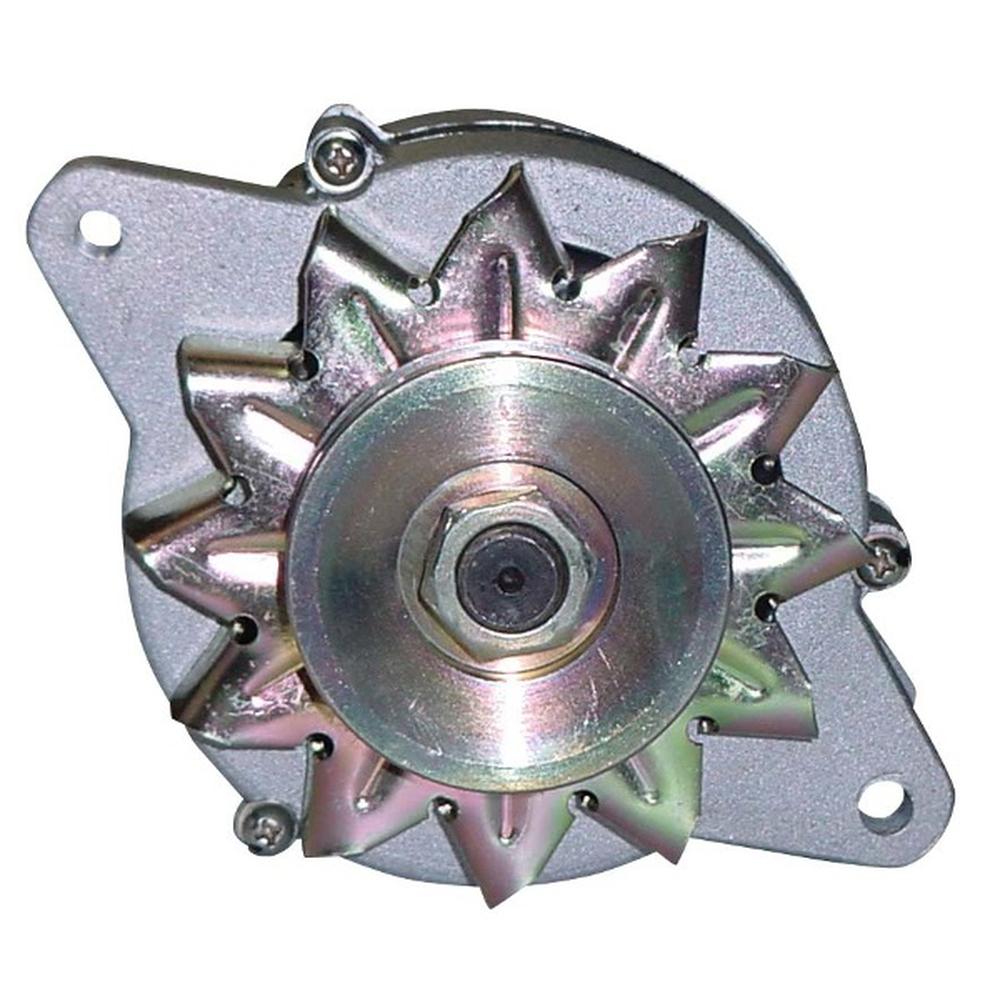

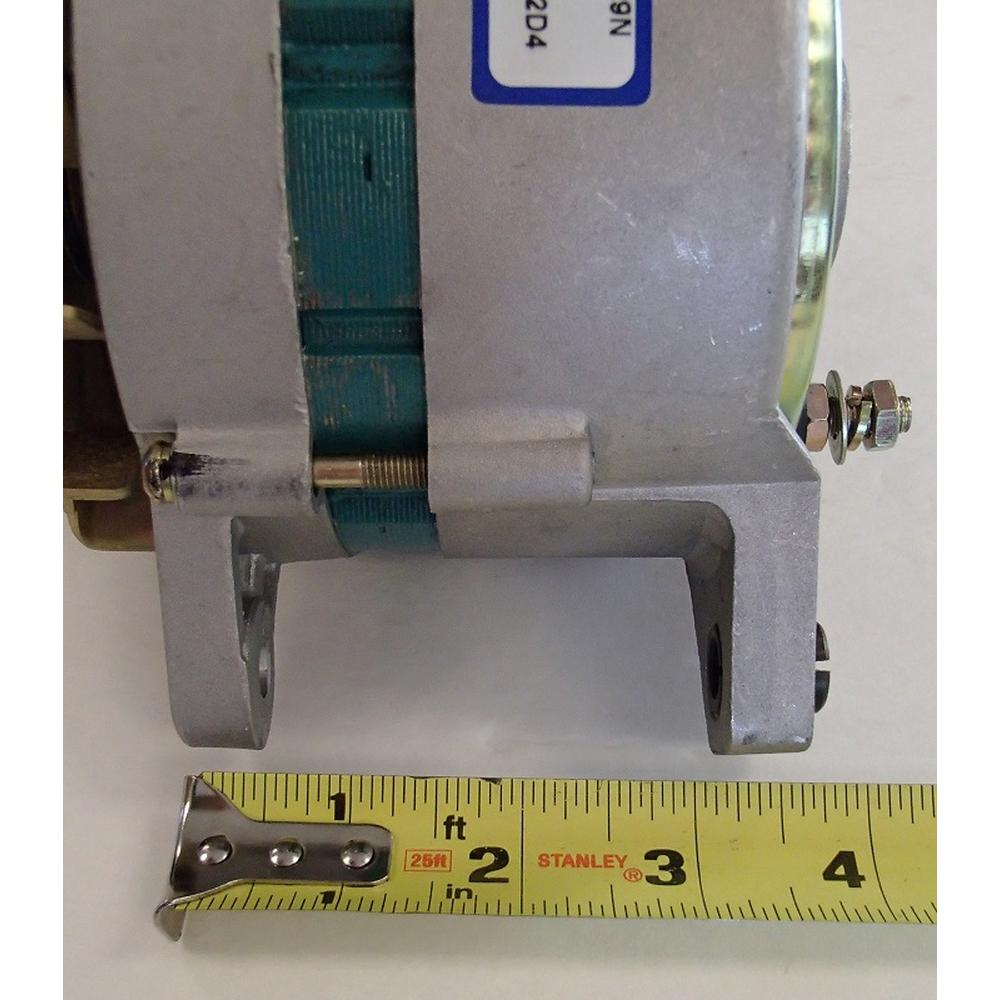

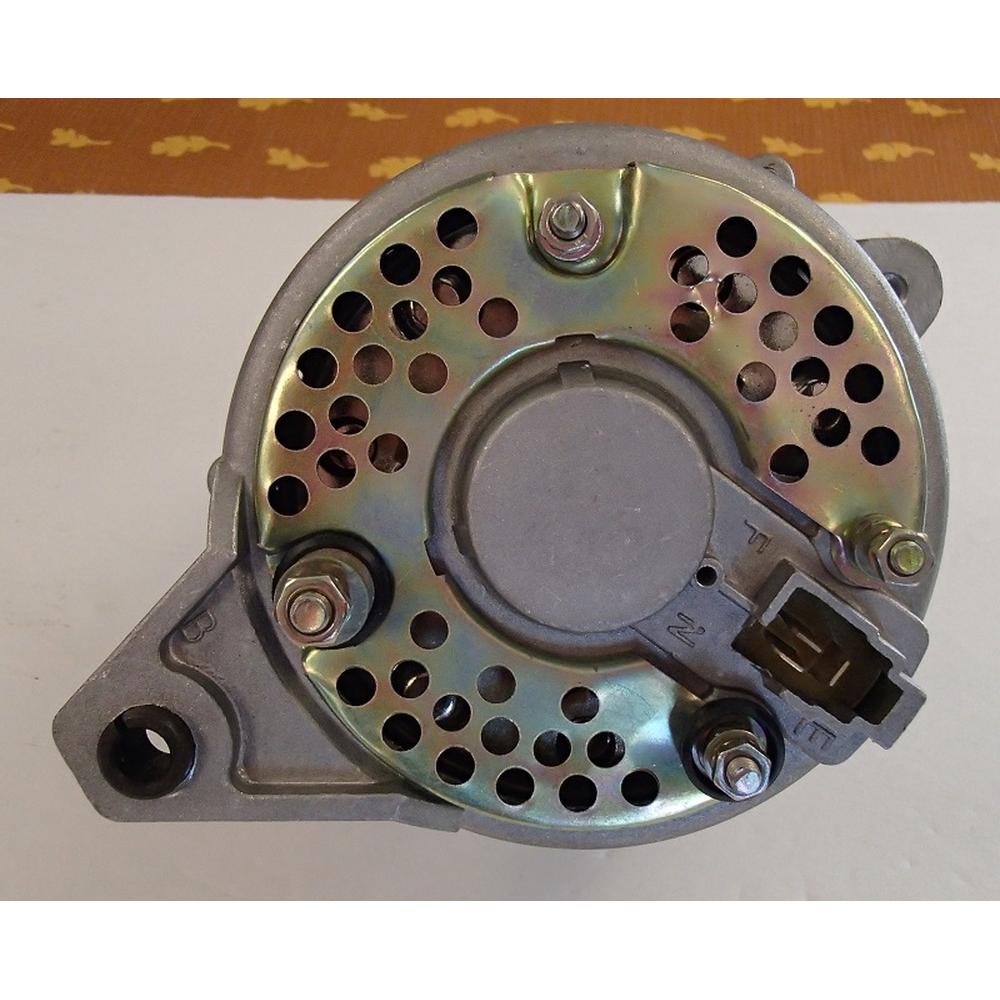

One New Aftermarket Alternator

Tech Info:
 -Volt 12
 -Amps 35
 -Regulator Clock 10:00
 -Mount Hole ID 1 8.200mm
 -Mount Hole 1 Type Unthreaded
 -Mount Hole 2 Type Unthreaded
 -Mount Hole ID 3 8.500mm
 -Mount Hole 3 Type Unthreaded
 -Fan Location External
 -Regulator Location External
 -Terminal ID 2 B+
 -Terminal 2 Size M6x1.00
 -Terminal ID 3 F
 -Terminal 3 Size Spade
 -Terminal ID 4 E
 -Terminal 4 Size Spade
 -Terminal ID 5 N Type
 -Terminal 5 Size Spade
 -Polarity Negative
 -Number of Grooves 1
 -Pulley Type Solid
 -Pulley Outer Diameter 2.953"
 -Pulley Outer Diameter 75mm

Made to Fit Lester:
 Replaces Part Number(s): 13126, 14129, 14146, 14184

Models This Part Fits:

M5950S, M7030, M6970DT, M6950, 1210, M5030DT, FGL-18, L3300DT, FGC-23, 3FDL-18, 3FD-10, M8970DT, L4150DT, M4030, 4FGL-10, 3FGL-25, 1310, 3FD-18, 3FGC-15, 1710, M6030, M7500ACL, M4950S, 4FGC-20, 3FG-20, 3FG-23, FG-23, M6030DTNB, 2FGL-7, 4FDL-20, M8030DT, 4FDL-25, M7030DTNB, 3FG-25, FDL-23, M7030N, M7970DT, FG-18, 4FGL-20, KH191L2850DT, FD-18, M4950, M5950DT, 3FDL-10, FDL-18, 4FGL-14, M7950H, M4950DTS, M8950DTS, M6950S, L4150DTN, M7500DTACL, FGL-20, M4030DT, M5030SUMDT, 3FD-15, 3FDL-15, 3FGL-23, 3FDL-20, 3FD-14, 3FDL-25, KH191, 2FG-7, 2FGL-9, L2850DTGST, M7500DT, 1510, M4950DT, L3750DT, M5950, 4FG-10, 4FG-23, 4FGC-25, FGL-25, M8950DT, 4FGL-18, 4FGL-15, 4FG-25, M7950DT, 4FG-14, M6950DT, L5450DT, M5030, M6030DT, M5500DT, L4150, FGL-23, M7950S, M7030DT, 4FG-20, M5030SU, 3FDL-14, M8950S, 4FGL-23, 4FDL-23, M7950DTS, M7030SUDT, L4850DT, M5950DTS, FGC-18, M8030, M6950DTS, 3FGC-13, M6030DTN, M7500, 3FGC-10, 3FGL-20, L2850F, L3250F, 2FG-9, 4FG-18, M7950, M7030SU, 4FG-15, L4350DT, L3750, L3250DT

Additional Information:

Volt 12 Amps 35 Regulator Clock 10:00 Mount Hole ID 1 8.200mm Mount Hole 1 Type Unthreaded Mount Hole 2 Type Unthreaded Mount Hole ID 3 8.500mm Mount Hole 3 Type Unthreaded Fan Location External Regulator Location External Terminal ID 2 B+ Terminal 2 Size M6x1.00 Terminal ID 3 F Terminal 3 Size Spade Terminal ID 4 E Terminal 4 Size Spade Terminal ID 5 N Type Terminal 5 Size Spade Polarity Negative Number of Grooves 1 Pulley Type Solid Pulley Outer Diameter 2.953" Pulley Outer Diameter 75mm Alternator

Reference Numbers:

13126, 14129, 14146, 14184

Makes This Part Fits:

Product Category:

Agriculture Replacement Parts

Product Group:

Product Sub Group:

View full details
