AM136733 AM143469 AM134292 AM137483 Spindle Assembly Fits John Deere
AM136733 AM143469 AM134292 AM137483 Spindle Assembly Fits John Deere
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
New Aftermarket Replacement Mower Deck Spindle Assemblies for John Deere Select Series and EZTrak Zero-Turn Mowers

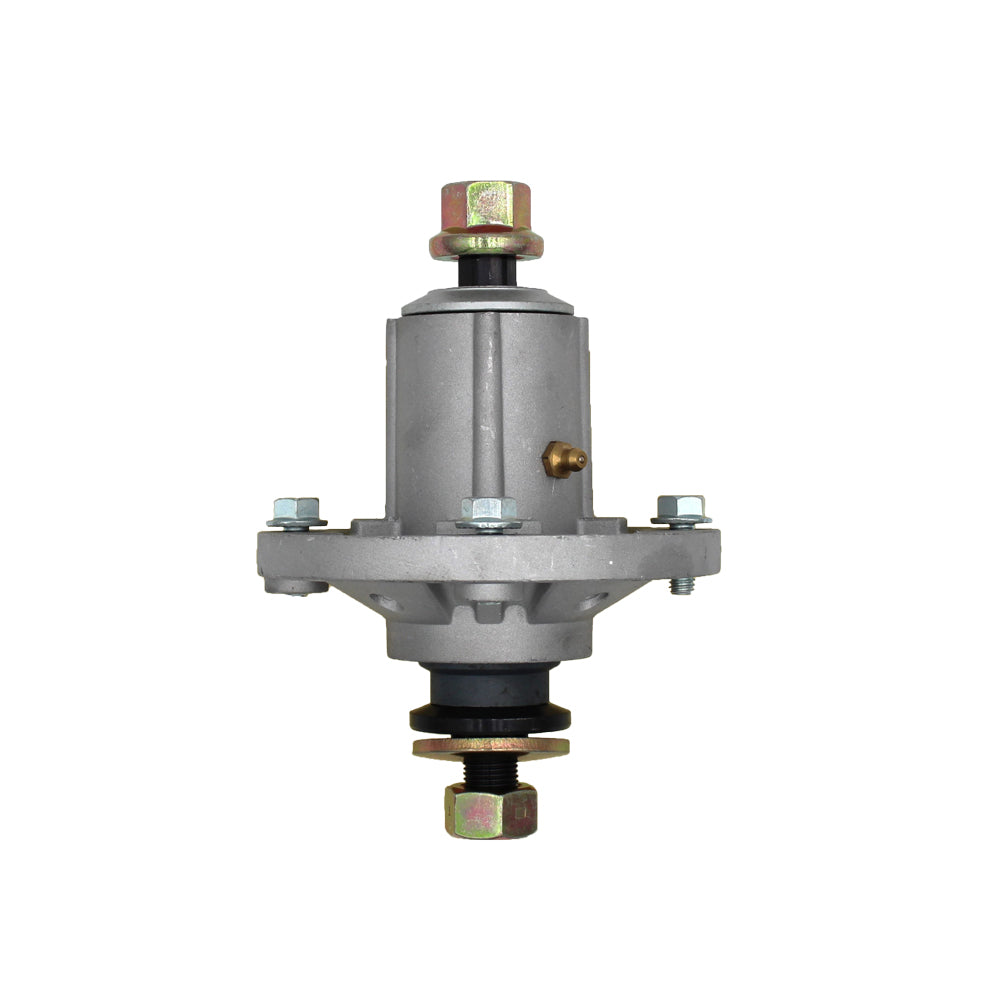

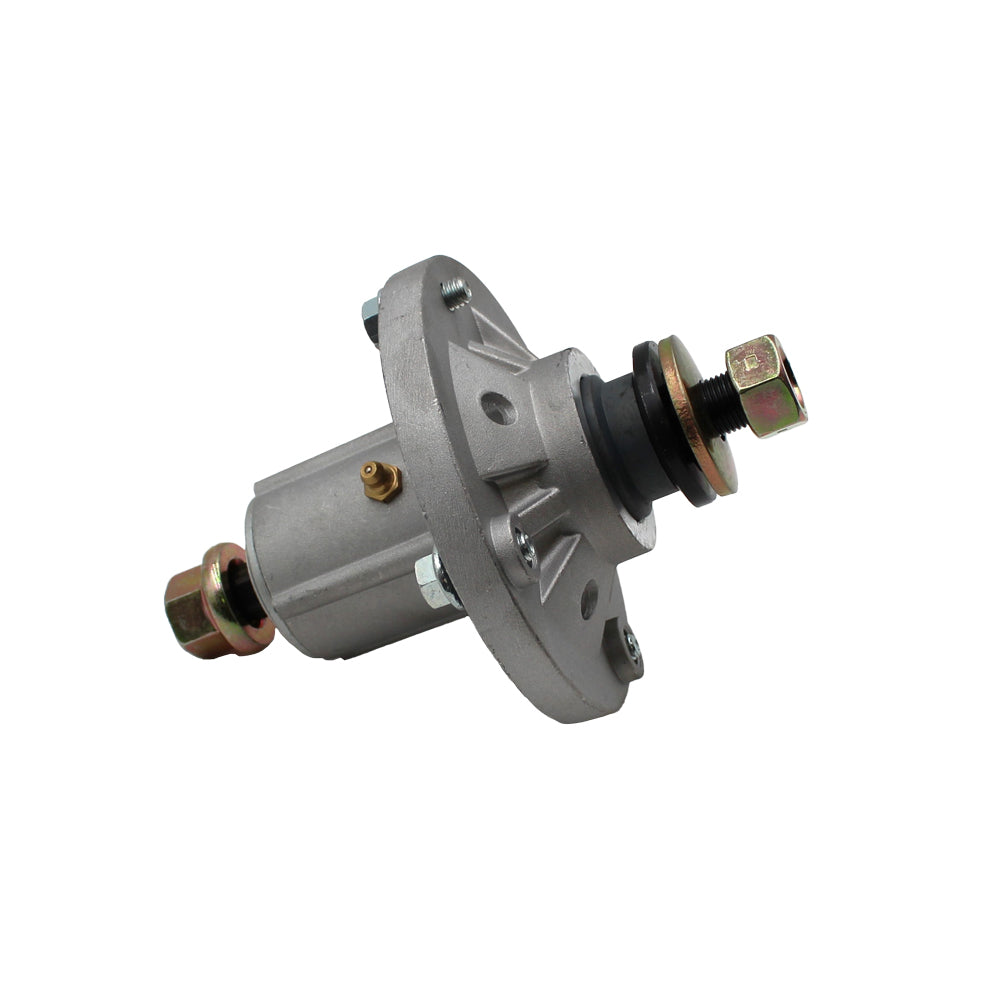

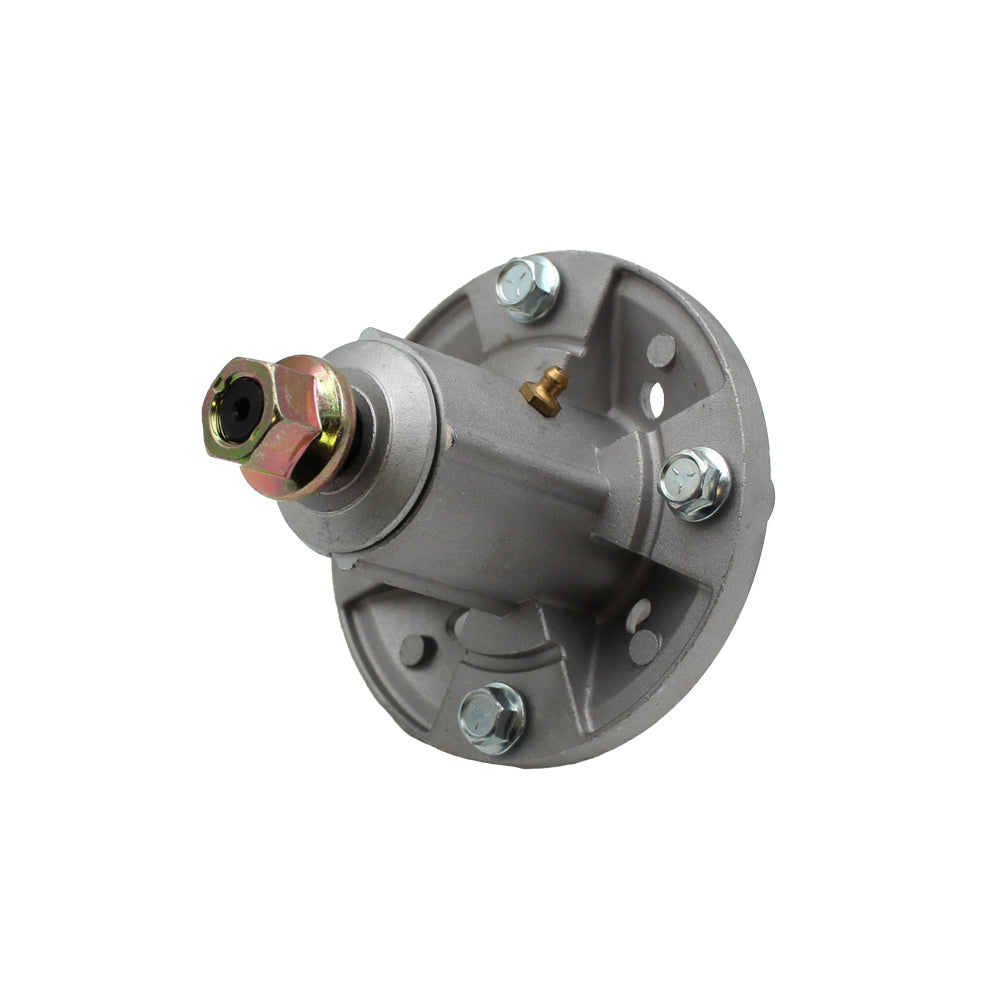

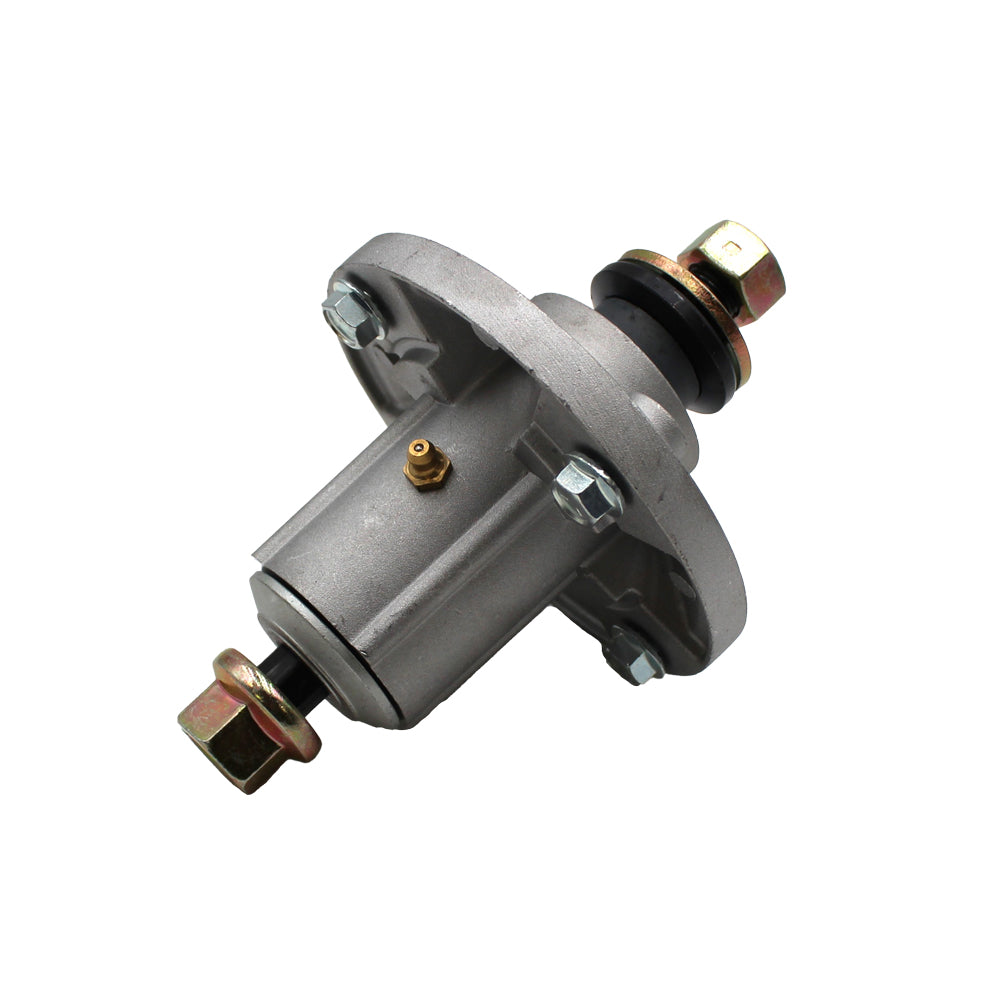

This listing includes two (2) aftermarket replacement mower deck spindle assemblies for John Deere lawn tractors and zero-turn mowers. The spindle assembly mounts to the mower deck and transfers belt-driven power to the cutting blade. Each assembly includes a grease zerk fitting for field lubrication and blade mounting hardware. Replaces OEM part numbers AM136733, AM143469, AM134292, and AM137483, covering John Deere 100 Series, Select Series X300, and EZTrak Z-Series decks.
Specifications
- Height: 6-3/4"
- Outer Diameter: 5-1/8"
- Blade Mounting Pattern: 7-Point Star
- Grease Zerk: Included
- Pulley: Not Included
- Blade Mounting Hardware: Included
- Uses 12mm Blade Nut
Compatible Models
John Deere 100 Series: S130, S240
John Deere Select Series X300: X300, X300R, X304, X305R, X310, X320, X324, X330, X340, X350, X350R, X354, X360, X370
John Deere EZTrak / ZTrak Zero-Turn: Z225, Z235, Z245, Z255, Z355E
Replaces Part Number(s):
AM136733, AM136733-A, AM143469, AM134292, AM137483, LAS20-0018
Aftermarket Interchange Numbers
Oregon: 82-358, 82-358-A, 82-358x3, 82-358x3-A; Rotary: 13234, 13234-A; 8TEN: 810-CSP2356N; XT1211SD109TX, XT1215SD109TX, XT1215SD109TX-A
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
X300R, S130, X350R, X300, X310, Z235, Z245, Z225, X305R, X330, Z355E, Z255, S240, X320, X354, X350, X324, X340, X304, X360, X370Additional Information:
Height: 6-3/4" Outer Diameter: 5-1/8" Includes Grease Zerk Mower Deck SpindleReference Numbers:
AM137483, AM136733, AM143469, AM134292Makes This Part Fits:
