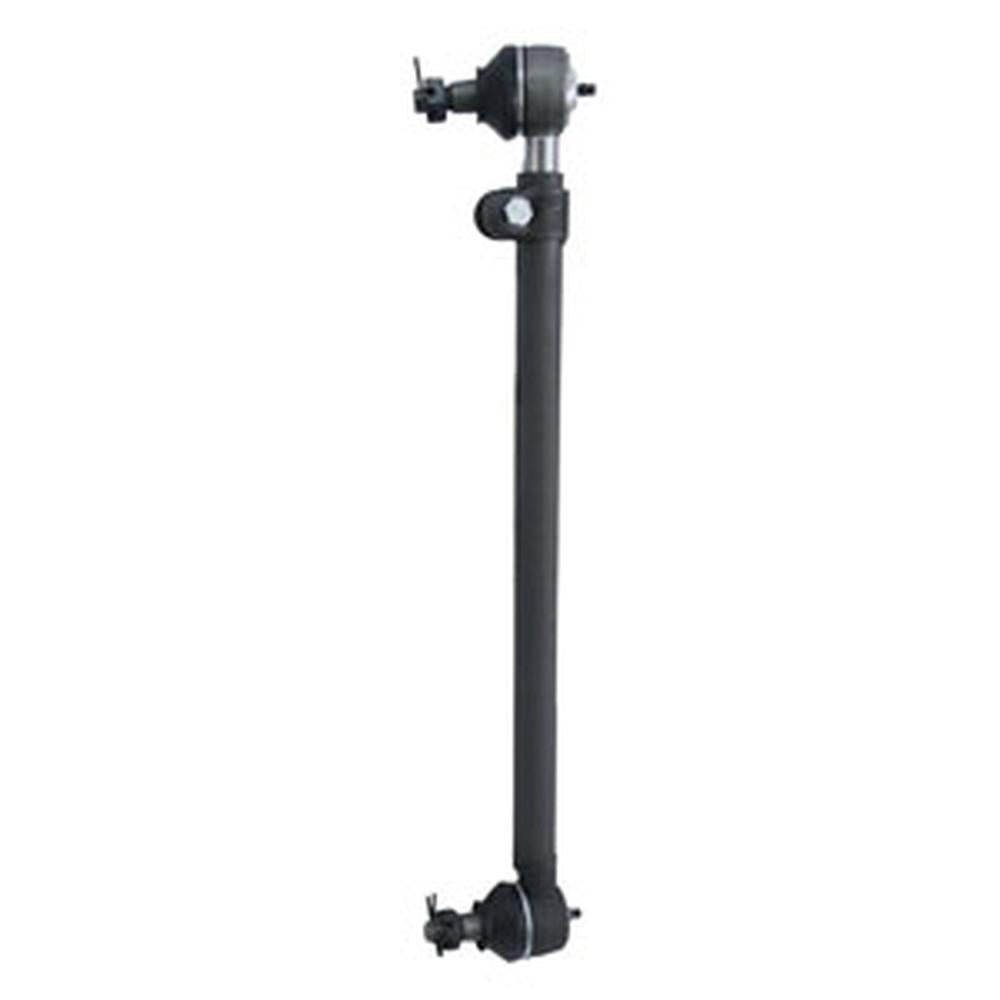

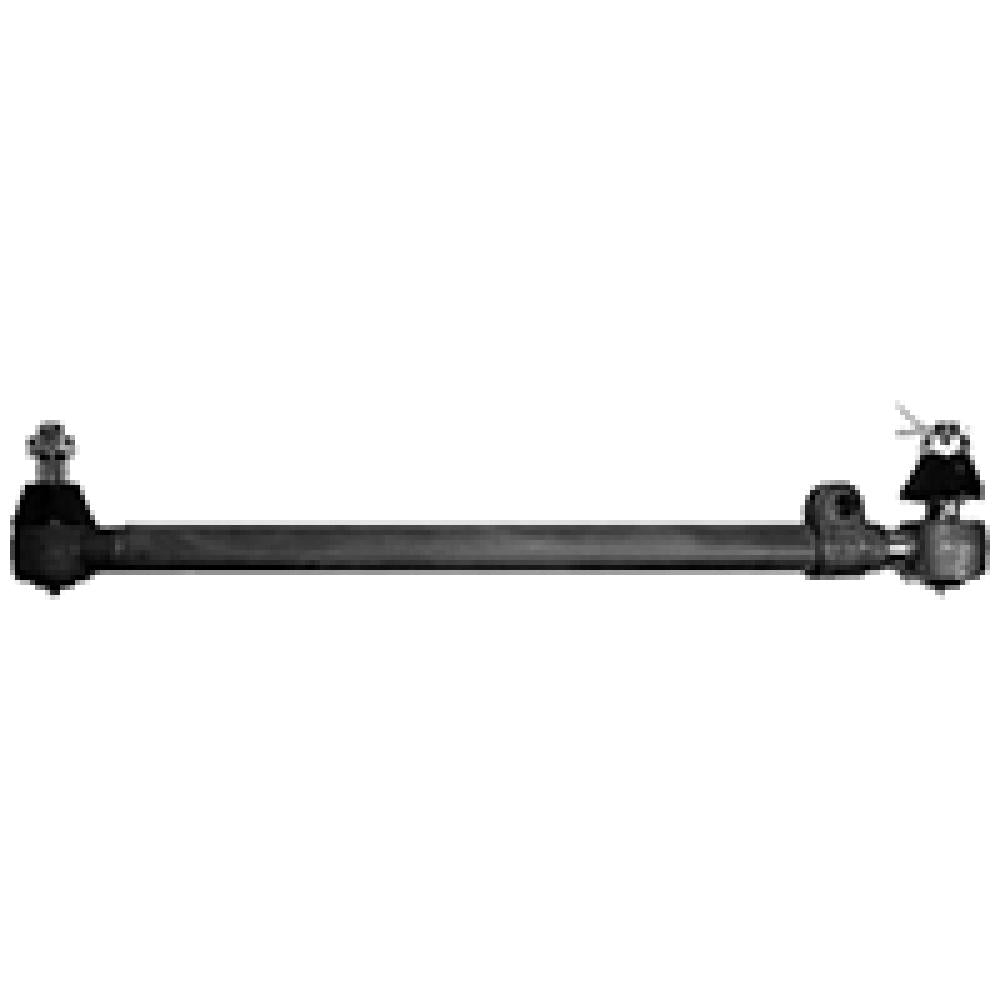

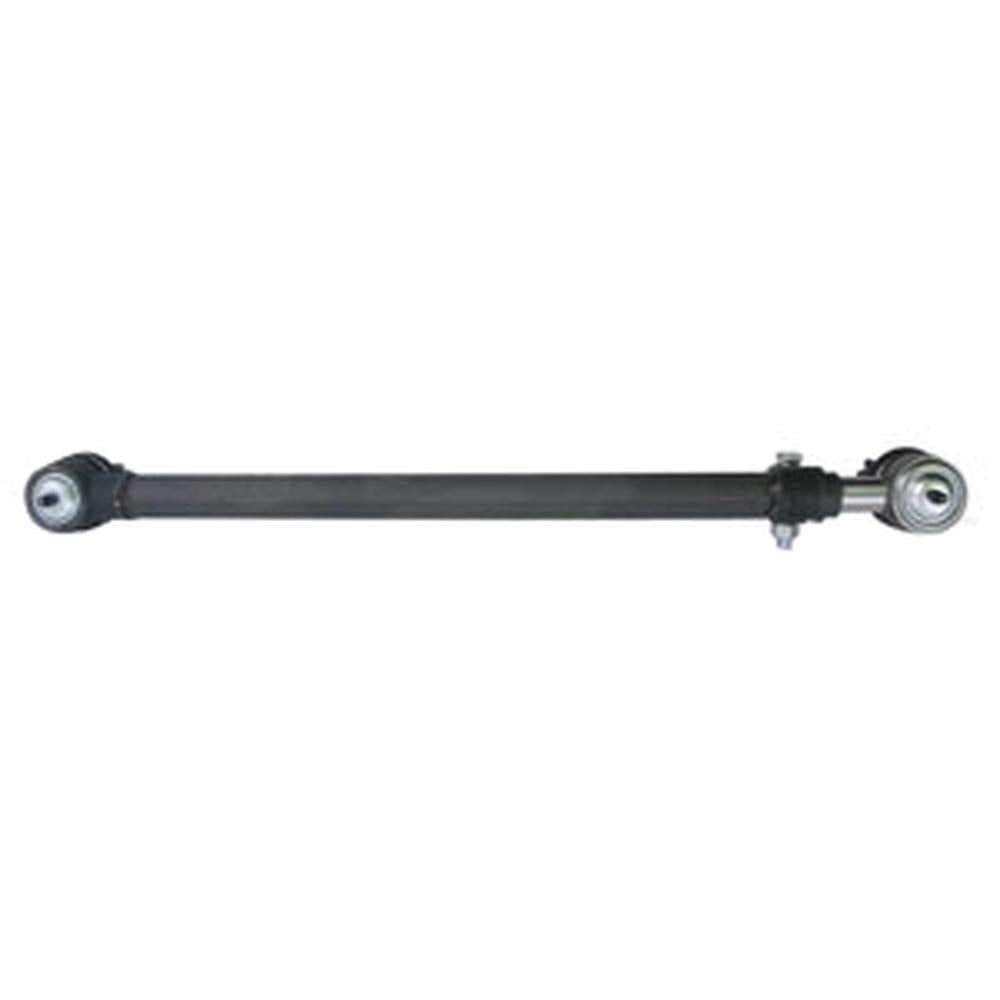

AM70254660 Tie Rod Assembly
AM70254660 Tie Rod Assembly
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement Tie Rod Assembly
Fits Allis Chalmers Tractors - 170*, 175, 180, 185, 190XT, 200, D14*, D15*, D17*, D19*, WD*, WD45*
Fits *Note: Male Tie Rod End must be cut to proper length prior to installation on these models
Tech Info:
-1 - Lock Washer
-Includes:
-1 - AM70250141 Tie Rod End, Male
-1 - AM70250140 Tie Rod End, Female
-1 - Cap Screw
-1 - Nut
Replaces Part Number(s): 70254660
Fits Allis Chalmers Tractors - 170*, 175, 180, 185, 190XT, 200, D14*, D15*, D17*, D19*, WD*, WD45*
Fits *Note: Male Tie Rod End must be cut to proper length prior to installation on these models
Tech Info:
-1 - Lock Washer
-Includes:
-1 - AM70250141 Tie Rod End, Male
-1 - AM70250140 Tie Rod End, Female
-1 - Cap Screw
-1 - Nut
Replaces Part Number(s): 70254660
Models This Part Fits:
190XT, WD, 170, 190XT III, D15, CA, 185, 180, D17, WD45, D19, 200, 190, 175, 190XTIII, D14Additional Information:

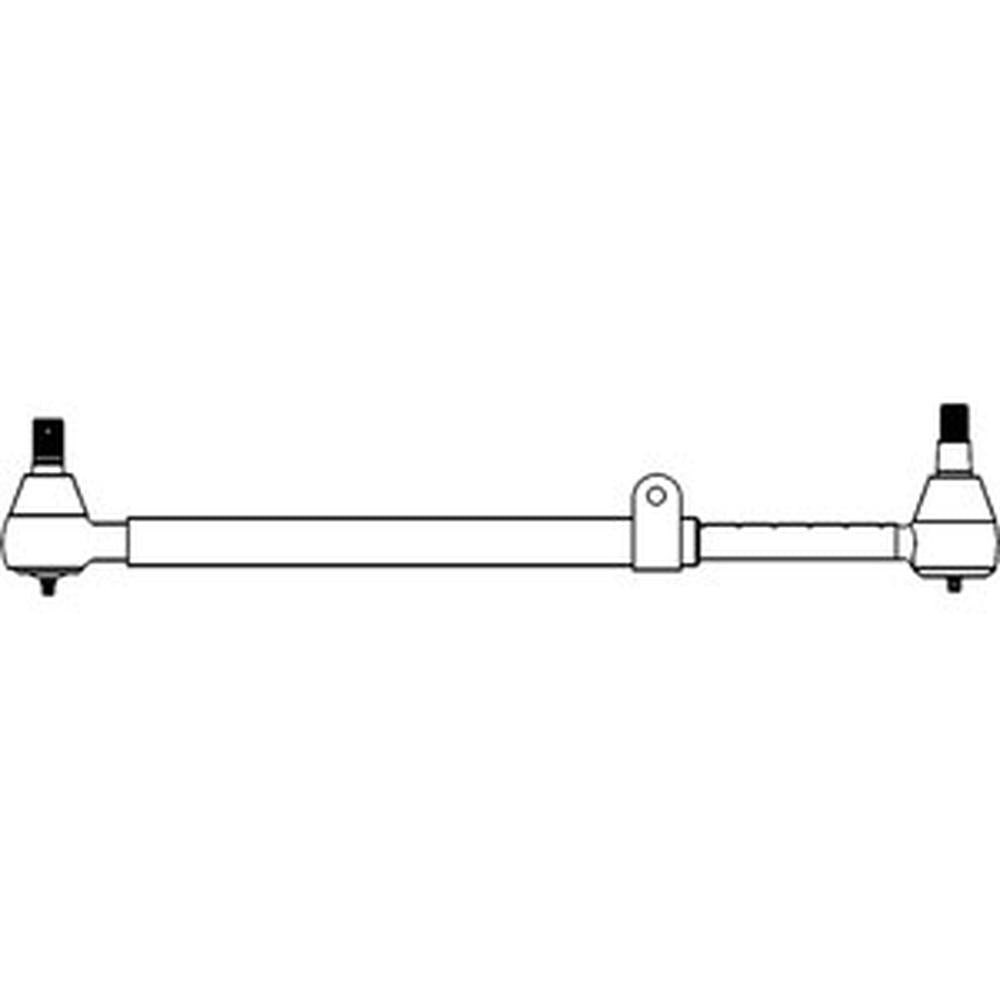

The inside tie rod measures 16-3/8" long from the grease fitting to the end 0.782" diameter rod Outer tube is 17-3/8" long from the grease fitting to the end 1.56" tube outside diameter The tie rod end tapers from 0.660" to 0.735" Extended length with tie rod inserted 3 1/4 inches is 30 1/2 inches.(measurement from tie rod center to tie rod center) Collapsed it is 18 3/4 inches. (measurement from tie rod center to tie rod center) Complete Tie RodReference Numbers:
70254660, 70250141, 70254661, 70227830, 70254662, 70253249, 70247836, 70235789, 70249418, 254661, 70249418, 70250141, 70250142, 250141, 250142, 225279, 249418, 70225279, 70227481, 70254661, 70254662, 227481, 225280, 254662, 70222084, 222084, 70225280, 70254660, 70254661, 70254662, 70254662VMakes This Part Fits:
Shop Allis Chalmers Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
