Amber LED Turn Signal Marker/ Warning Lamp Fits JD Graders AT362406
Amber LED Turn Signal Marker/ Warning Lamp Fits JD Graders AT362406
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

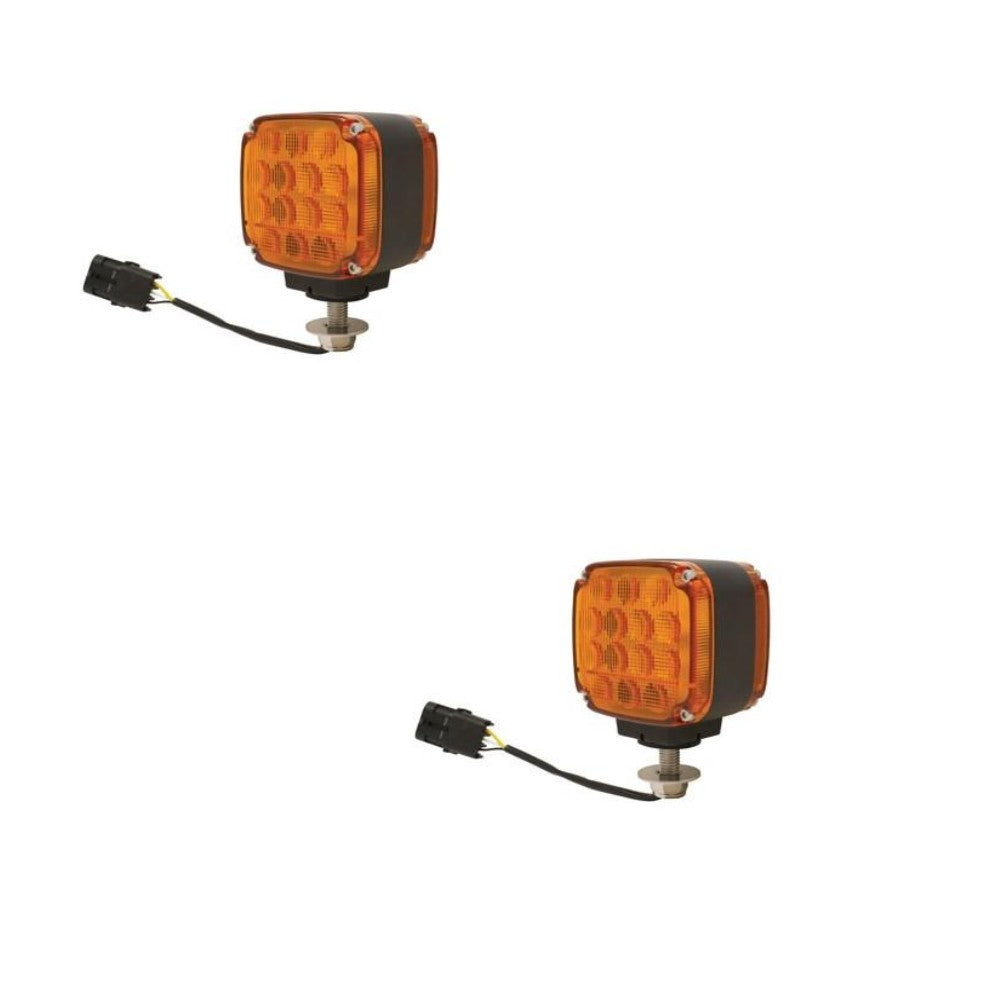

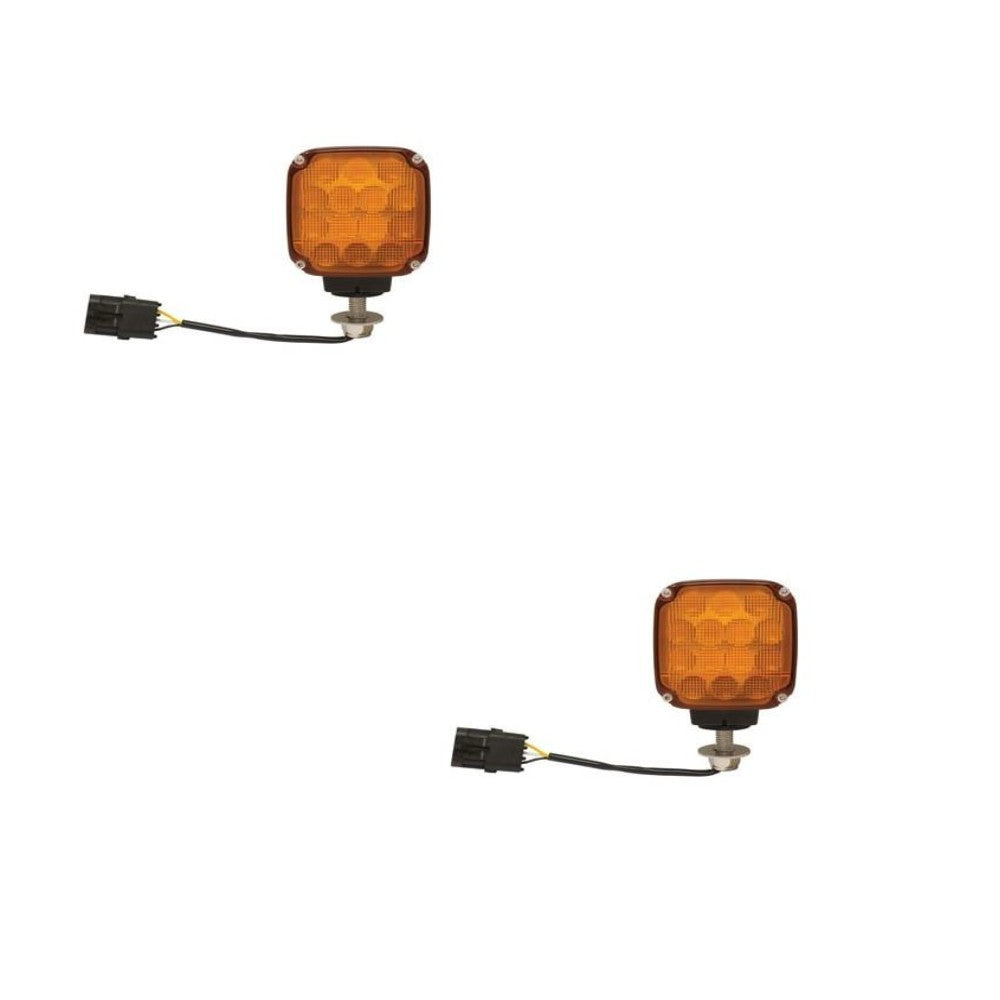

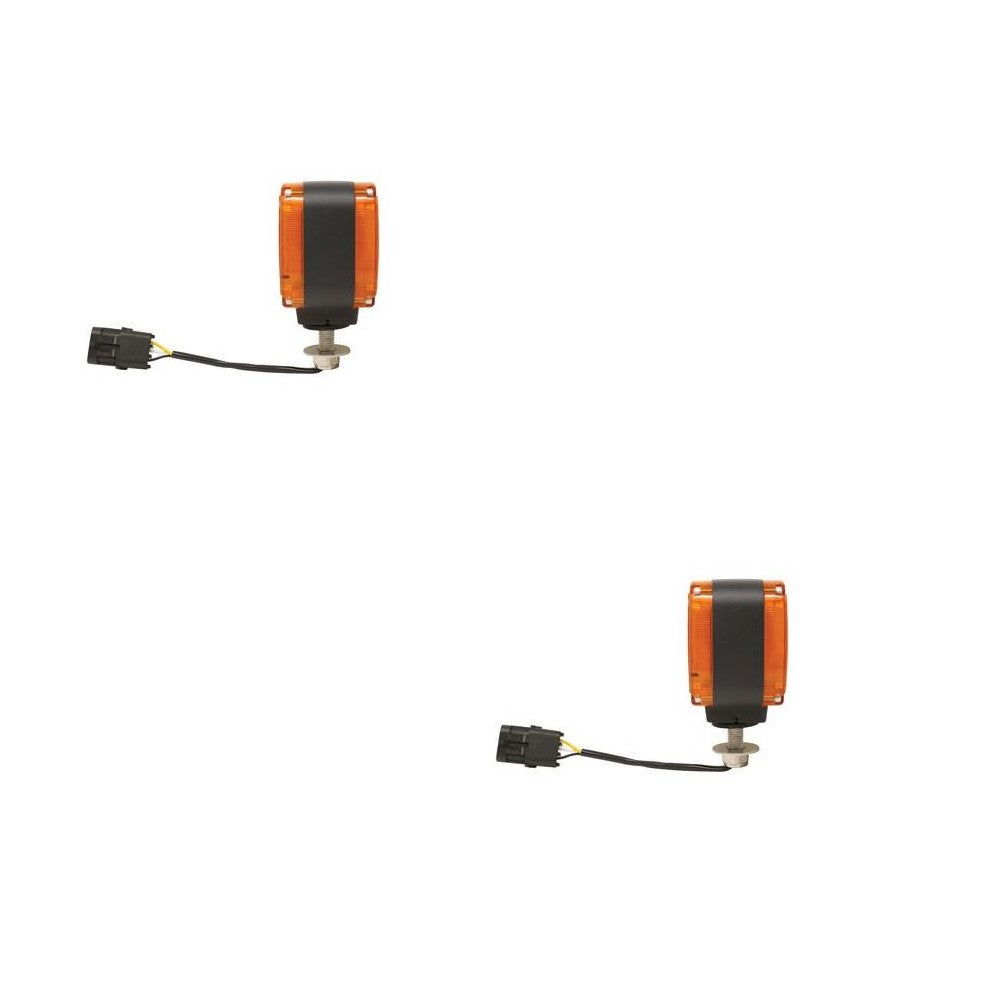

Two (2) New Aftermarket LED Warning Lamp, Turn Signal Markers Fits the Following Fits John Deere Models:
Fits John Deere Models:
Dozer: 764
Grader: 620G, 622G, 622GP, 670D, 670G, 672D, 672G, 870D, 870G, 872D, 872G
Wheel Loader: 444J, 444K, 524K, 524K-II, 544J, 544K, 544K-II, 624J, 624K, 624K-II, 624KR, 644J, 644K, 724J, 724K, 744J, 744K, 824J, 824K, 844J, 844K, 944K
Item Specs:
Color: Amber
Width: 3.54" (90 mm)
Height: 3.98" (101 mm)
Depth: 2.68" (68 mm)
Draw: HI - 1.92 Amps @ 12 Volts & 1.16 Amps @ 24 Volts (Watts / Volts = Amps) LO - 0.25 Amps @ 12 Volts & 0.13 Amps @ 24 Volts (Watts / Volts = Amps)
Body Material: Die Cast Aluminum
Lens: Polycarbonate
Volt: 10-30 Volt DC
Notes
Light has (2) settings (1) setting is for marker lights at the bottom of one side (1) setting is for both sides lit up except bottom marker lights.
Kit Includes: 2 Lights
Replaces Part Number: AT362406
Models This Part Fits:
672D, 524K-II, 444J, 870G, 622G, 724J, 870D, 670D, 444K, 622GP, 644K, 844J, 764, 544J, 824K, 620G, 624K, 844K, 824J, 670G, 744K, 944K, 872D, 544K-II, 672G, 624KR, 644J, 872G, 624J, 544K, 624K-II, 724K, 524K, 744JAdditional Information:
Kit Includes: 2 LED Warning Lamps AT362406 Item Specs: Color: Amber Width: 3.54" (90 mm) Height: 3.98" (101 mm) Depth: 2.68" (68 mm) Draw: HI - 1.92 Amps @ 12 Volts & 1.16 Amps @ 24 Volts (Watts / Volts = Amps) LO - 0.25 Amps @ 12 Volts & 0.13 Amps @ 24 Volts (Watts / Volts = Amps) Body Material: Die Cast Aluminum Lens: Polycarbonate Volt: 10-30 Volt DC Notes Light has (2) settings (1) setting is for marker lights at the bottom of one side (1) setting is for both sides lit up except bottom marker lightsReference Numbers:
AT362406Makes This Part Fits:
