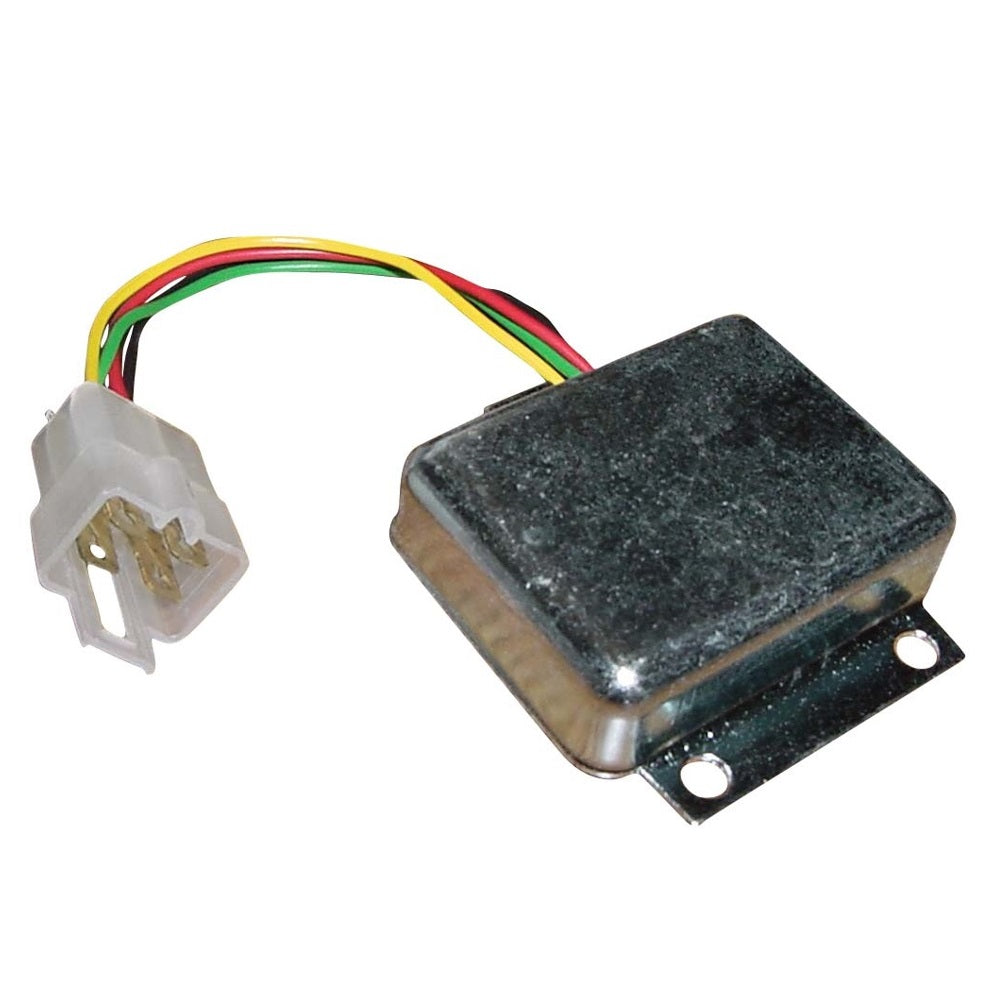

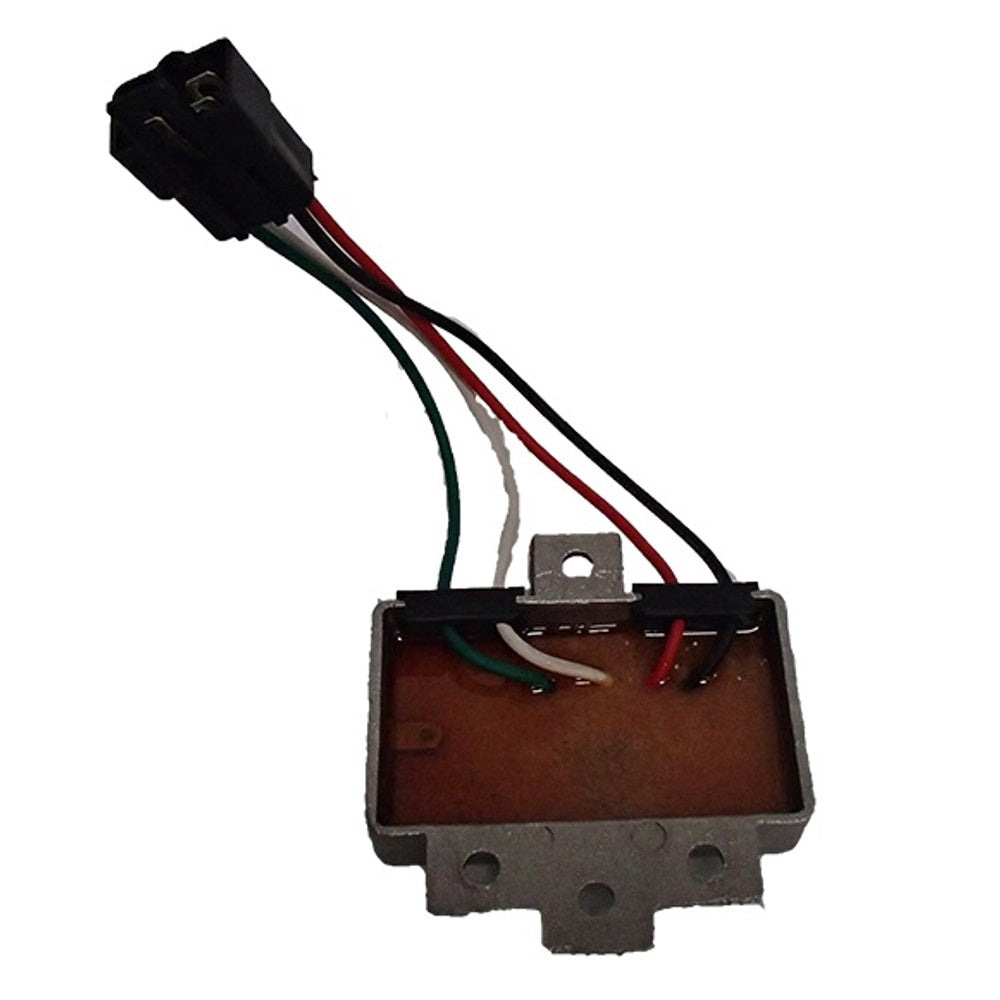

AR77485 Voltage Regulator 12 Volt 4 Spade Plug Fits John Deere 2020 2030 4000
AR77485 Voltage Regulator 12 Volt 4 Spade Plug Fits John Deere 2020 2030 4000
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement 12 Volt Regulator
Fits John Deere Models:
Fits JD Tractors: 1020, 1520, 1530, 2020, 2030, 2440, 2630, 2640, 4020, 4455, 4520
Fits JD Riding Mower: 450
Fits JD Industrial / Construction: 300B, 301A, 302, 302A, 401B, 401C
Tech Info:
12 Volt
B-Circuit
Neg Ground
15.2v Set
Plug Type: N
Wiring Code 3 Terminal ID: Red Isolation Diode (+), Black Ground, Green Field, Yellow Ignition.
Replaces Part Number: AR77485, AT21815
Fits John Deere Models:
Fits JD Tractors: 1020, 1520, 1530, 2020, 2030, 2440, 2630, 2640, 4020, 4455, 4520
Fits JD Riding Mower: 450
Fits JD Industrial / Construction: 300B, 301A, 302, 302A, 401B, 401C
Tech Info:
12 Volt
B-Circuit
Neg Ground
15.2v Set
Plug Type: N
Wiring Code 3 Terminal ID: Red Isolation Diode (+), Black Ground, Green Field, Yellow Ignition.
Replaces Part Number: AR77485, AT21815
Models This Part Fits:
301A, 4455, 480A, 2030, 5020, 302, 401C, 450, 401D, 4000, 401, 400, 301, 2640, 480B, 4020, 1530, 1020, 302A, 2630, 480C, 1520, 401B, 4520, 300, 2440, 480, 300B, 2020Additional Information:
12 Volt, B-Circuit, 15.2 Volt Set Red: Isolation Diode (+) Plug Type: N Black: Ground Wiring Code: 3 Green: Field Yellow: Ignition RegulatorReference Numbers:
AR77485, AT21815, AR48266Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
