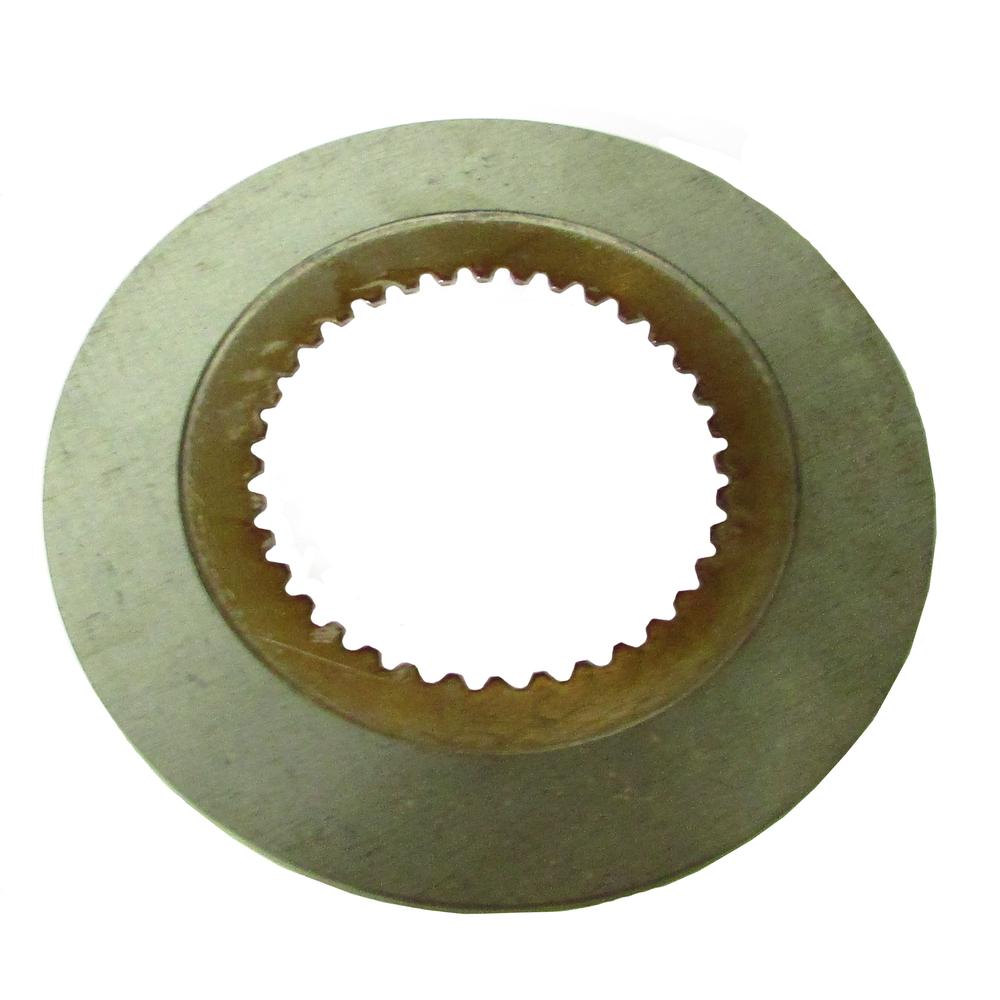

One New Aftermarket Replacement Winch Fiber Clutch Disk for John Deere Dozers, Log Skidders, and Winches

This fiber clutch disk is a key component of the auxiliary winch brake and clutch assembly on John Deere (JD) construction equipment. The disk engages and releases the winch drum, providing the friction interface needed for smooth clutch operation and controlled braking during cable payout and retrieval.

Specifications

• Outside Diameter: 8-1/2 in.
• Internal Teeth: 36
• Material: Fiber (friction disc)
• Weight: Approx. 2 lbs.

Compatible Models

John Deere Winch Models: 3305, 3315, 3320, 3325

John Deere Dozer Models: 350, 350B, 350C, 350D, 400G, 450B, 450C, 450D, 450E, 455D, 455E, 550, 550A, 550B, 555, 555A, 555B

John Deere Log Skidder Models: 340D, 440, 440A, 440B, 440C, 440D, 448D, 540A, 540B, 540D, 640, 640D, 648D, 740

Replaces Part Number(s):

AT16844, AT142063

Aftermarket Interchange Numbers

AT114483, AT114483-A, AT142063-A, AT16844-A, AT-142063

New aftermarket replacement part - not remanufactured, not used.
