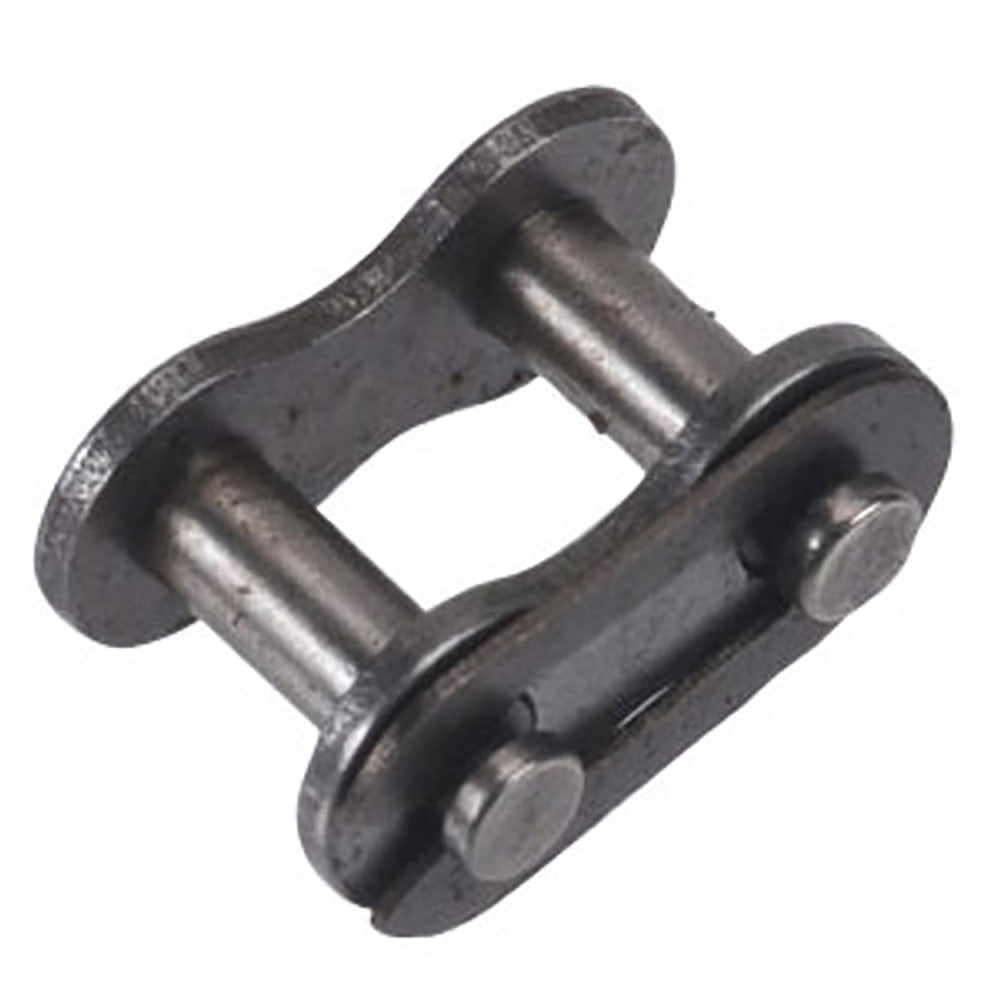

Aftermarket Chain Connecting Link #35

Tech Info:
 -One Chain Connecting Link #35
 -
 -Item Specs:
 -#35
 -Pitch (P): 0.375 inch (9.525 mm)
 -Roller Diameter (d1 max): 0.2 inch (5.08 mm)
 -Width Between Inner Plates (b1 min): 0.188 inch (4.77 mm)
 -Pin Diameter (d2 max): 0.141 inch (3.58 mm)
 -Pin Length (L max): 0.488 inch (12.40 mm)
 -Pin Length (Lc max): 0.518 inch (13.17 mm)
 -Inner Plate Depth (h2 max): 0.354 inch (9.0 mm)
 -Plate Thickness (T max): 0.051 inch (1.30 mm)
 -Ultimate Tensile Strength (Q min): 7.90/1795 kN/LB
 -Average Tensile Strength Qo): 10.8 kN
 -Weight (q): 0.221749 lb/ft (0.33 kg/m)

Fits Universal:
 Models: 35
 Replaces Part Number(s): B1SB400
