One New Aftermarket Replacement Shoulder Bolt for Agricultural Equipment and Implements

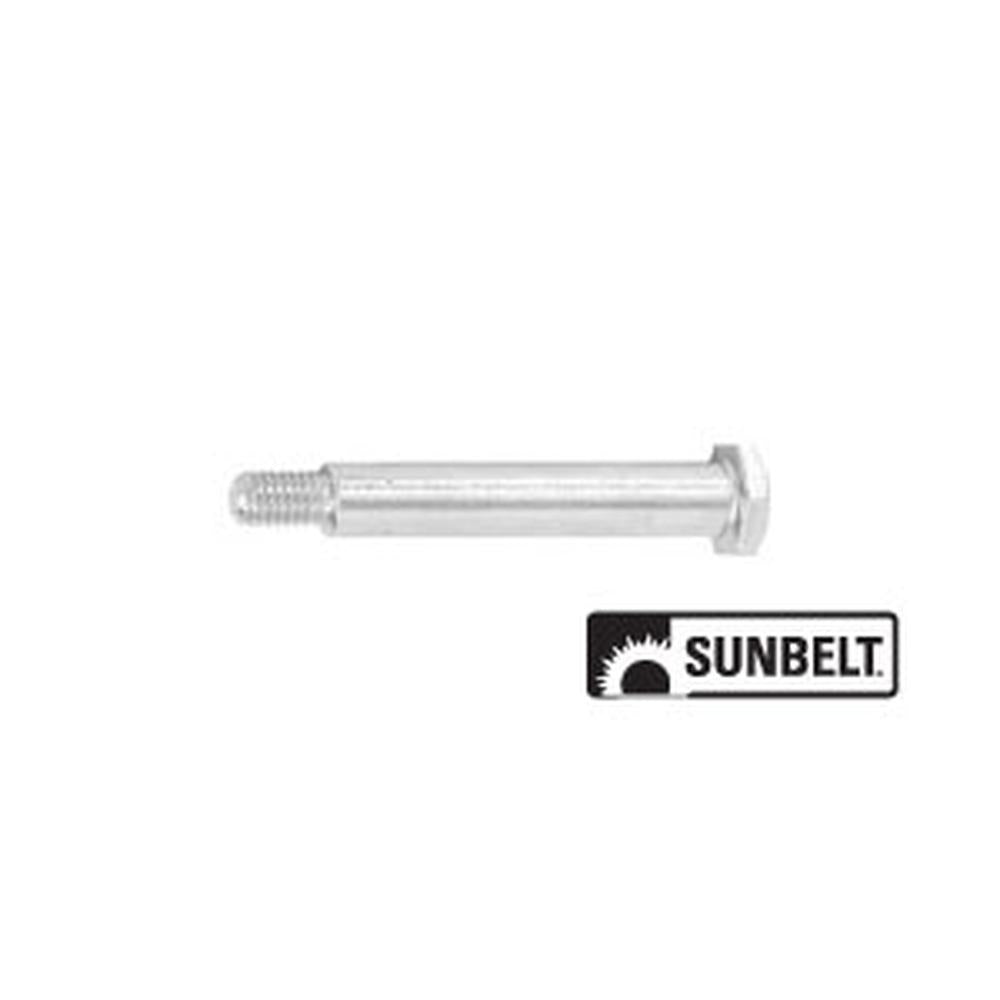

This shoulder bolt (also known as a shoulder screw or stripper bolt) features a precision unthreaded cylindrical shoulder between the head and the threaded end. The smooth shoulder acts as a bearing surface, pivot point, or axle for rotating and sliding components -- commonly used on wheel assemblies, implement frames, and other pivot applications on agricultural machinery. The 1/2" diameter shoulder provides a secure, concentric bearing surface while the 3/8"-16 coarse thread anchors the fastener firmly in place.

Specifications

• Shoulder Diameter: 1/2"
• Shoulder Length: 2-3/4"
• Thread Size: 3/8"-16 (coarse thread)
• Thread Length: 5/8"

Compatible Applications

Universal Fit: This is a universal-fit shoulder bolt suited for a wide range of agricultural tractors, implements, lawn and garden equipment, and machinery requiring a 1/2" shoulder diameter with 3/8"-16 threading. Verify shoulder length and thread specifications against your equipment's requirements before ordering.

Replaces Part Number(s):

A-B1SB7116-AI, B1SB7116

New aftermarket replacement part - not remanufactured, not used.
