Bearing RA100RR-I

Bearing RA100RR-I

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Ball Bearing (Cylindrical Bore with Eccentric Locking Collar) Fits John Deere, Vermeer, Fits Bobcat, Walker, Fits Exmark and More

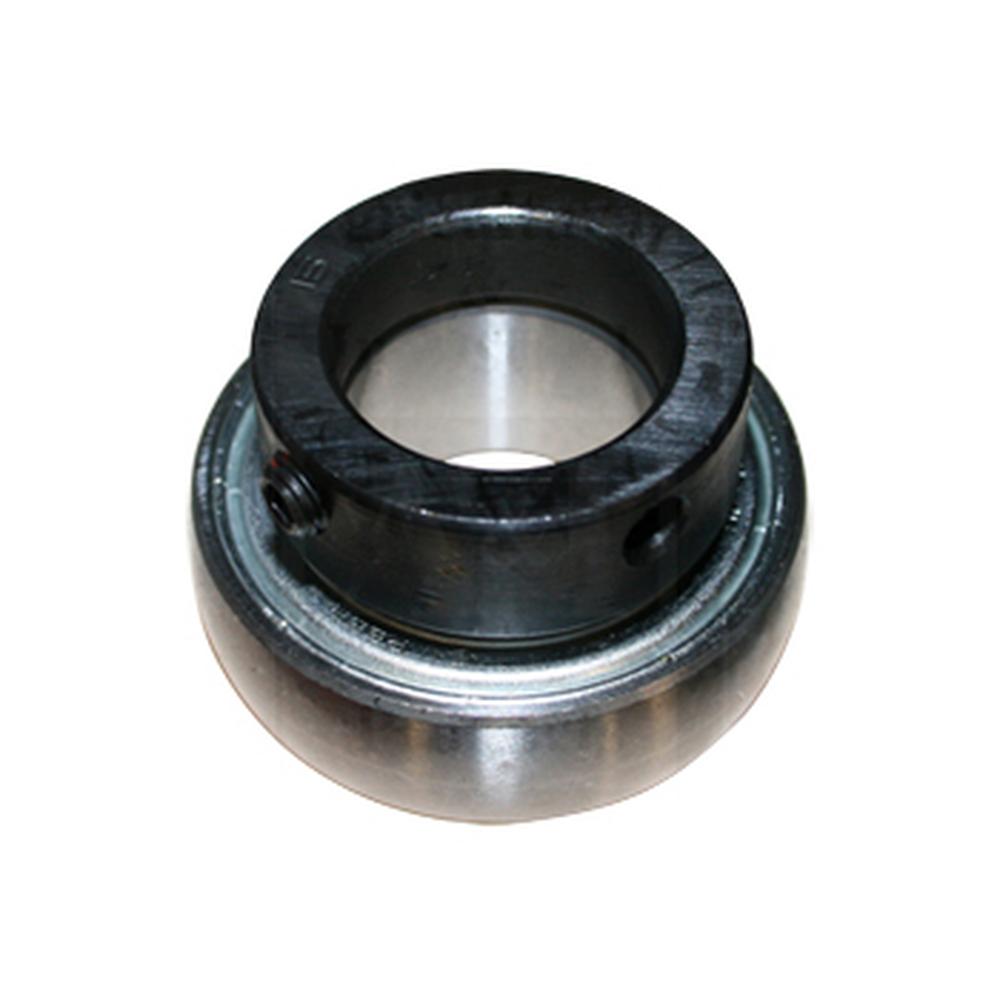

This insert ball bearing features a 1-inch cylindrical bore with an extended inner ring and eccentric locking collar for secure mounting on straight shafts. The double-sealed, factory pre-lubricated design (non-relubricatable) protects against contaminants in demanding agricultural and lawn & garden applications including combines, balers, lawn mowers, cornheads, cutting platforms, and rakes. Fits John Deere OEM part number JD8597 (also cataloged as 8597) and the Timken/Fafnir RA100RR series.

Specifications

  • Bore: 1 in (25.4 mm), Cylindrical (Round)
  • Outside Diameter: 2.0472 in (52 mm)
  • Overall Width: 1.219 in
  • Outer Ring Width: 0.591 in
  • Inner Ring Width: 0.844 in
  • Locking Device: Eccentric Collar
  • Seal Type: Double Sealed, Contact (R-Seal)
  • Lubrication: Factory Pre-Lubricated, Non-Relubricatable
  • Cage Material: Nylon

Compatible Models

Fits John Deere: 300, 317 (Hydrostatic Tractors), M653, M655 (Z-Trak), 5088, 6088, 7088, R-21, R-23

Fits John Deere Combines/Heads: 2206, 2208, 2212, 504C, 504I, 504I Silage, 504L, 505I, 505L, 554XL, 604K, 604L, 604XL, 605A, 605K, 605L, 605XL

Vermeer: 504I, 504L, 505I, 505L, 554XL, 604K, 604L, 604XL, 605A, 605K, 605L, 605XL

Fits Bobcat, Walker, Fits Exmark, Dixie Chopper, Fits Woods, Dixon, Bunton, Fits Cub Cadet, Hustler, Fits Grasshopper: Various models -- see 30 in, 42 in & 50 in cut decks and series listed below

Fits Case / Fits Case IH: Various models

Yazoo/Kees: 240630, 240636, 240638, 240670, 240822, 240830, 240836, 240838, 240870, 241220, 241222, 241230, 320630, 320636, 320638, 320670, 320822, 320830, 320836, 320838, 320870, 321220, 321222, 321230, 340630, 340636, 340638, 340670, 340822, 340830, 340836, 340838, 340870, 341220, 341222, 341230, 810, 914

Replaces Part Number(s):

JD8597, 8597, RA100RR-I, RA100RR, RA100RR-IMP, RA100RRIMP, RA100RR-E9695, RA100NPP-IMP, RA100NPPIMP, ARA100NPP, NPC100RPC, A134130, 134130, F40948, T16069, J00302, CSA20516, 40-134, 60006, 70006, 077123, 784223, 120081, 102677, 38348-01, 30218, 1-513016, 5270, 1701, 539102677, 1718001, PL7323, 455102-R21, 586609-R92, 60069-C91, 60071-C91, IH-60071-C91, IH60071C92

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

7088, 320822, 240830, 341230, 504I, 340836, 321230, 340830, 241220, 605K, 504L, 320670, 241222, 2208, 321220, 241230, 320630, 321222, 340636, 504I SILAGE, 340870, 340630, R-21, 341220, 914, 320838, 340822, 605A, 320836, 240870, 240630, 320638, 30", 2212, 554XL, 341222, 240822, 320636, 320870, 340670, 240670, 320830, 810, 505L, 555XL, 2206, 505I, 6088, 340638, 42" & 50" Cut, 604XL, 240836, 5088, 240638, 340838, 604K, 240838, 605L, 240636, 604L, R-23, 504C, 605XL

Additional Information:

Bearing Width: 0.591" Bore: 1" Bore Type: Round Inner Width: .844" Lube Type: Non-relubable Outside Diameter: 2.0472" Overall Width: 1.219" Ball Bearing Cylindrical with Collar

Reference Numbers:

RA100RR-I, F40948, T16069, RA100NPP-IMP, 40-134, CSA20516, JD8597, J00302, RA100RR-IMP, A134130, RA100RR-E9695, RA100NPPIMP, 134130, NPC100RPC, RA100RR, ARA100NPP, RA100RRIMP, 30218, 1718001, 455102-R21, 586609-R92, 60069-C91, 60071-C91, IH-60071-C91, IH60071C92, 120081, 5270, RA100RR-I, F40948, T16069, RA100NPP-IMP, 40-134, CSA20516, JD8597, J00302, RA100RR-IMP, A134130, RA100RR-E9695, RA100NPPIMP, 134130, NPC100RPC, RA100RR, ARA100NPP, RA100RRIMP, 1-513016, 60006, 70006, 102677, 1701, 539102677, 077123, 784223, 8597, JD8597, PL7323, 38348-01
