Belt 3L240 Fits Case IH Several
Belt 3L240 Fits Case IH Several
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

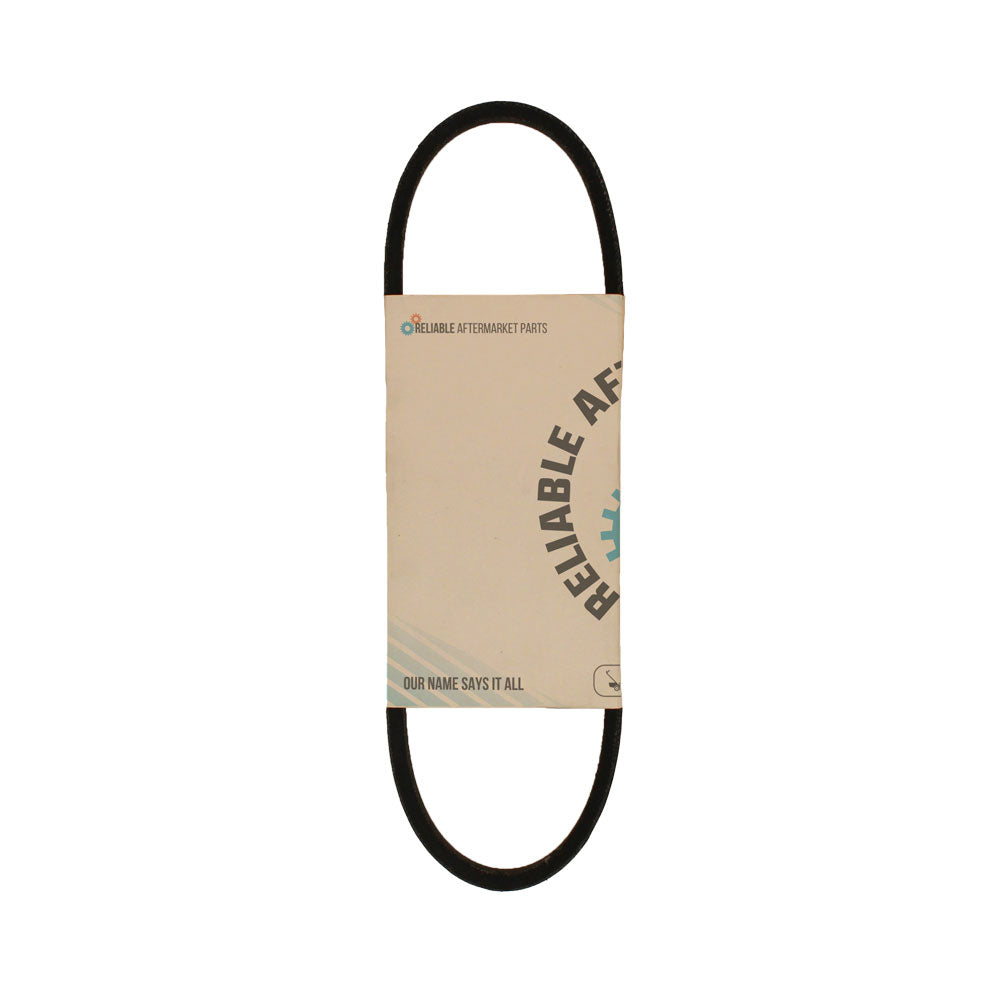

One New Aftermarket Replacement 3L240 FHP Drive Belt for Troy-Bilt, MTD, Fits Cub Cadet, Ariens, Fits Toro, Fits Case IH and More
This 3L-section fractional horsepower (FHP) V-belt is a forward drive belt used on rear-tine garden tillers, walk-behind mowers, lawn and garden tractors, and other light-duty outdoor power equipment. The wrapped polyester cord construction delivers reliable power transfer between the engine drive pulley and the transmission pulley across a wide range of equipment brands and applications.
Specifications
- Belt Section: 3L (FHP)
- Top Width: 3/8 in (0.375 in / 9.5 mm)
- Outside Circumference: 24 in (609.6 mm)
- Effective Length: 23.1 in (586.7 mm)
- Thickness / Height: 0.22 in (5.6 mm)
- Cord Type: Wrapped Polyester
- Belt Application: Forward Drive
Compatible Models
Troy-Bilt: Tuffy Rear-Tine Tillers (2005)
MTD / Yard Machines / Bolens / Remington / Yard-Man / White Outdoor / MTD Gold: 21A-630B063, 21A-630C063, 21A-630C766, 21A-634A766, 21A-634B063, 21A-634F063
Fits Cub Cadet: 12060, 12061, 12077, 12155, 12163, 12209, 12210, 12217, 12227
Ariens: 935015, 935019, 935020, 935024, 935025, 935026, 935029, 935030, 935031
Fits Toro: 5225, 5225 S
Fits Case IH (Fits Case/International Harvester): 1816, 1816B Uni-Loader Skid Steer Loader; also fits select lawn/garden models (Fits Case IH part 61384C1)
Other Compatible Brands: Troy Bilt, Ariens, Fits Toro, MTD, Fits Cub Cadet, and other equipment using a standard 3L240 FHP belt
Replaces Part Number(s):
3L240, 954-04089, 754-04089, 55037, GW-55037, 1240, 160119, 16784, 238-5024, 3L240DC, 61924, 61927, 741884, 823-5624, 8235624, B13L240, B1SB5007, GAT1240, 07215900, 072159, 61384C1, 251028
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
Cultivators, Lawn/Garden Tractors, 935029, 12163, 935015, 12209, String Trimmers, Compact Tractors, Walk-Behind Lawn Mowers, Small Motors, 12155, Edgers, Bench Grinders, 935026, Tractors, Agricultural and Grounds Maintenance Equipment, Industrial Fans, 12217, 935020, 21A-634F063, Snowblowers, 21A-634B063, Combines, 21A-630C766, 21A-630C063, 61-20RG01, Rear-Tine Garden Tillers, 935019, 935031, Brush Cutters, 12210, 5225 S, Conveyors, 5225, 935025, Shop Equipment, 12061, Lawn Sweepers, 21A-630B063, Garden Tillers, 12227, 12077, 935030, Dethatchers, 935024, Pumps, 12060, 21A-634A766Additional Information:
Width: 3/8" Length: 24" Thickness: .22" Wrapped Polyester Cord Drive BeltReference Numbers:
251028, 07215900, 072159, 954-04089, 754-04089, 61384C1, 954-04089, 55037, GW-55037, 3L240, 1240, 160119, 16784, 238-5024, 3L240DC, 61924, 61927, 741884, 823-5624, 8235624, B13L240, B1SB5007, GAT1240Makes This Part Fits:
