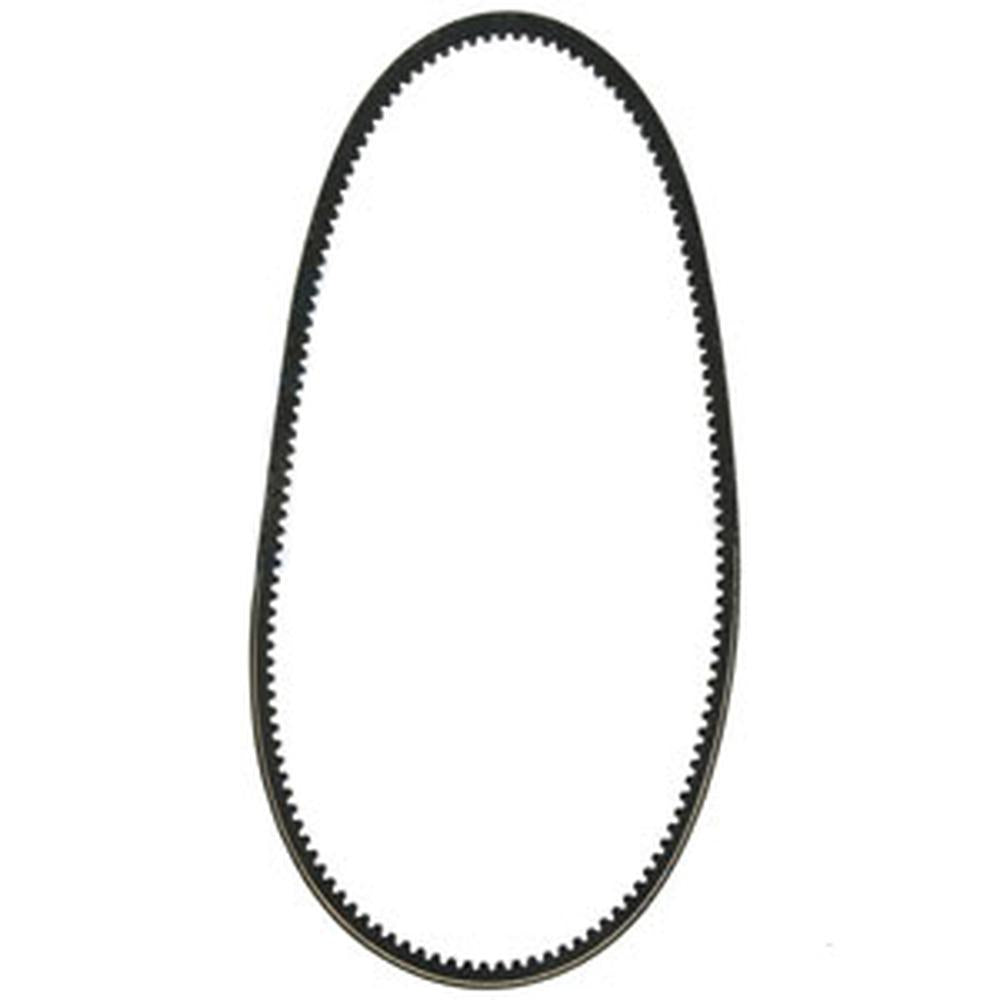

One New Aftermarket Replacement Drive Belt for Ariens Sno-Thro Snow Blowers

This aftermarket replacement V-belt is the main drive belt for older Ariens two-stage snow blowers and snow throwers. It is a covered, raw-edge V-belt (SAE 380) used in the single-belt drive system on classic 5 hp, 6 hp, and 7 hp Ariens models. Replace this belt when the unit slips, squeals, or loses drive engagement to restore full snow-clearing performance.

Specifications

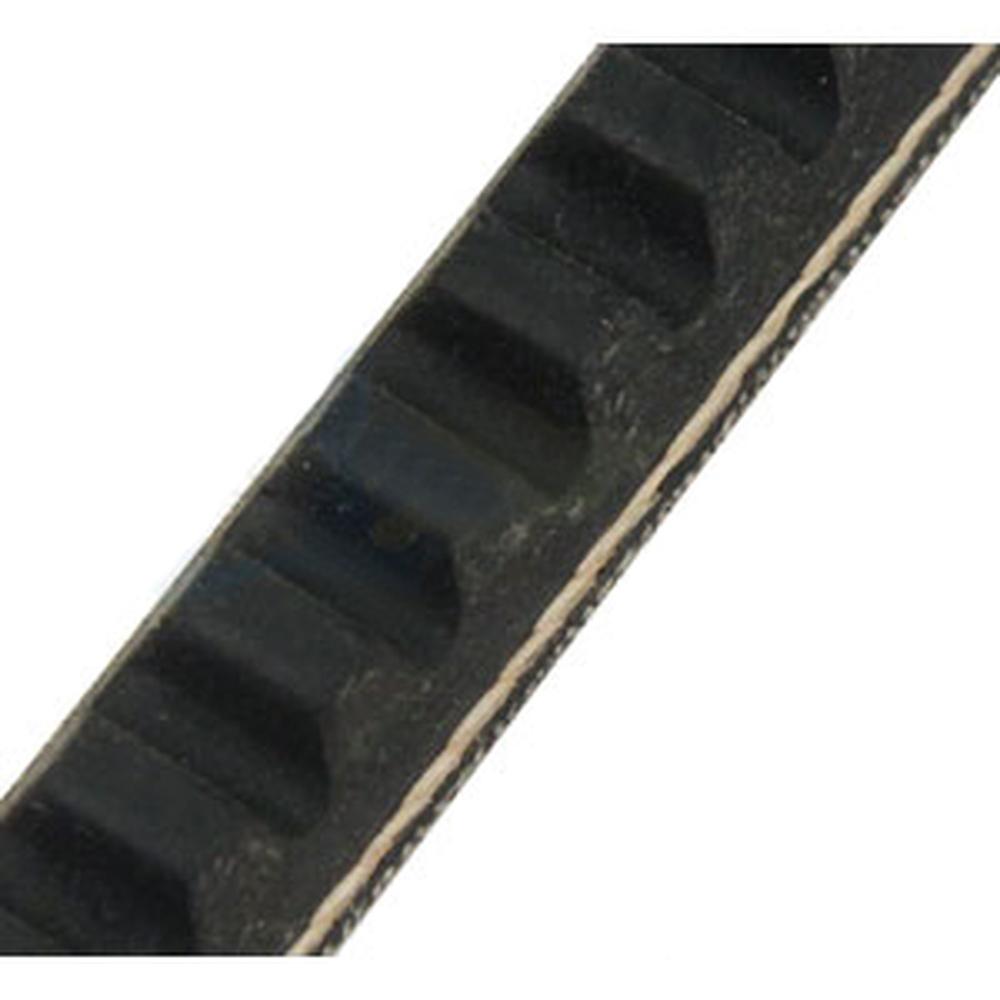

• Belt Type: V-Belt, SAE 380 Raw Edge
• Top Width: 3/8 in. (0.375 in.)
• Outside Length: 35-1/2 in.
• Belt Section: 3LK

Compatible Models

Ariens Sno-Thro Snow Blowers and Attachments: ST3524, ST524 (5 hp 24 in.), ST624 (6 hp 24 in.), ST724 (7 hp 24 in.), ST732 (7 hp 32 in.), ST824 (8 hp 24 in.), ST832; 29 in. and 32 in. snowblowers; 24 in. and 32 in. snowblower attachments; ST624 and ST824 tractors. Fits older single-belt Ariens models.

Replaces Part Number(s):

07204700, 72047

Aftermarket Interchange Numbers

Oregon 75-098, Oregon 75-365, MTD 754-0131, MTD 954-0131, Murray 325890, Murray 325890MA, Troy-Bilt T239661, Prime Line 7-078049, Prime Line 7-07822, Prime Line 7-3H350, Fits Toro/Wheel Horse 51-7432, Fits Toro/Wheel Horse 51-7434, AYP/Roper/Sears 314175, SureFit 504-01043, Rotary 230-3504

New aftermarket replacement part - not remanufactured, not used.
