BIG BOY SEAT; YELLOW A-BBS108YL 5500 Fits John Deere Parts
BIG BOY SEAT; YELLOW A-BBS108YL 5500 Fits John Deere Parts
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

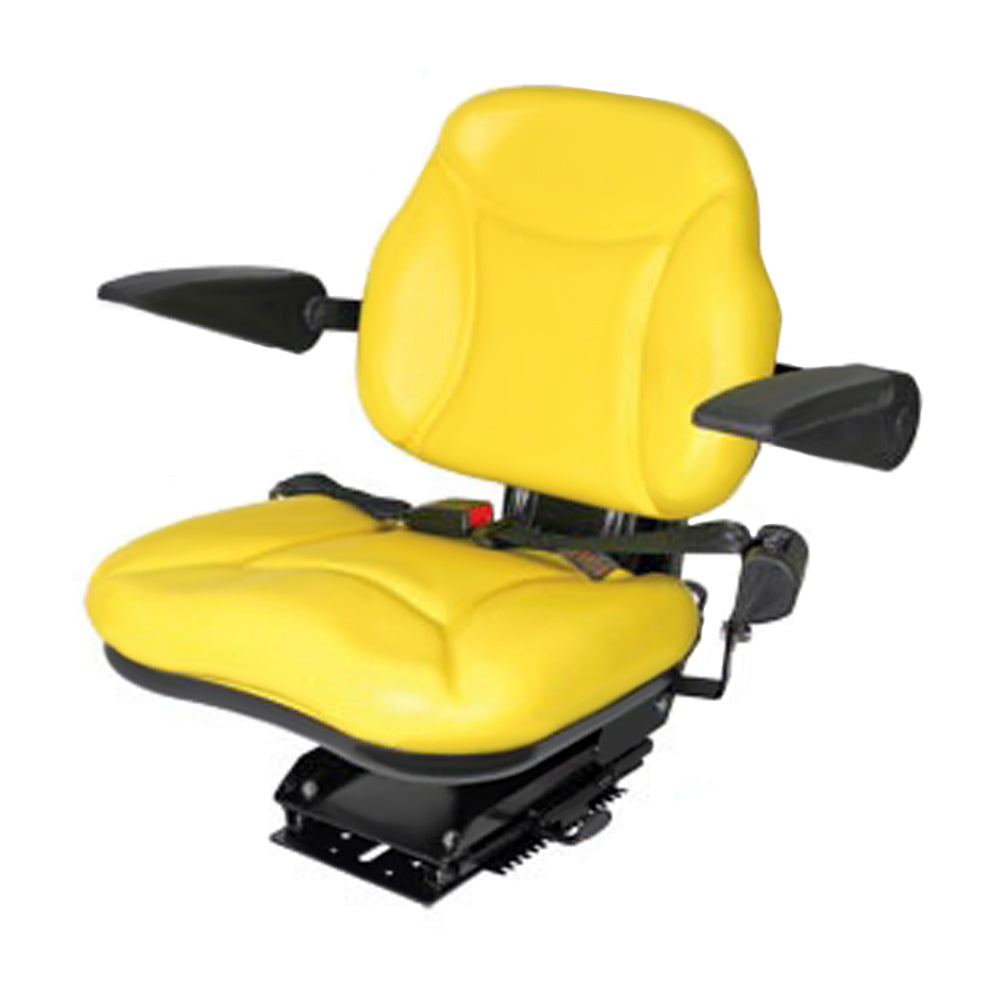

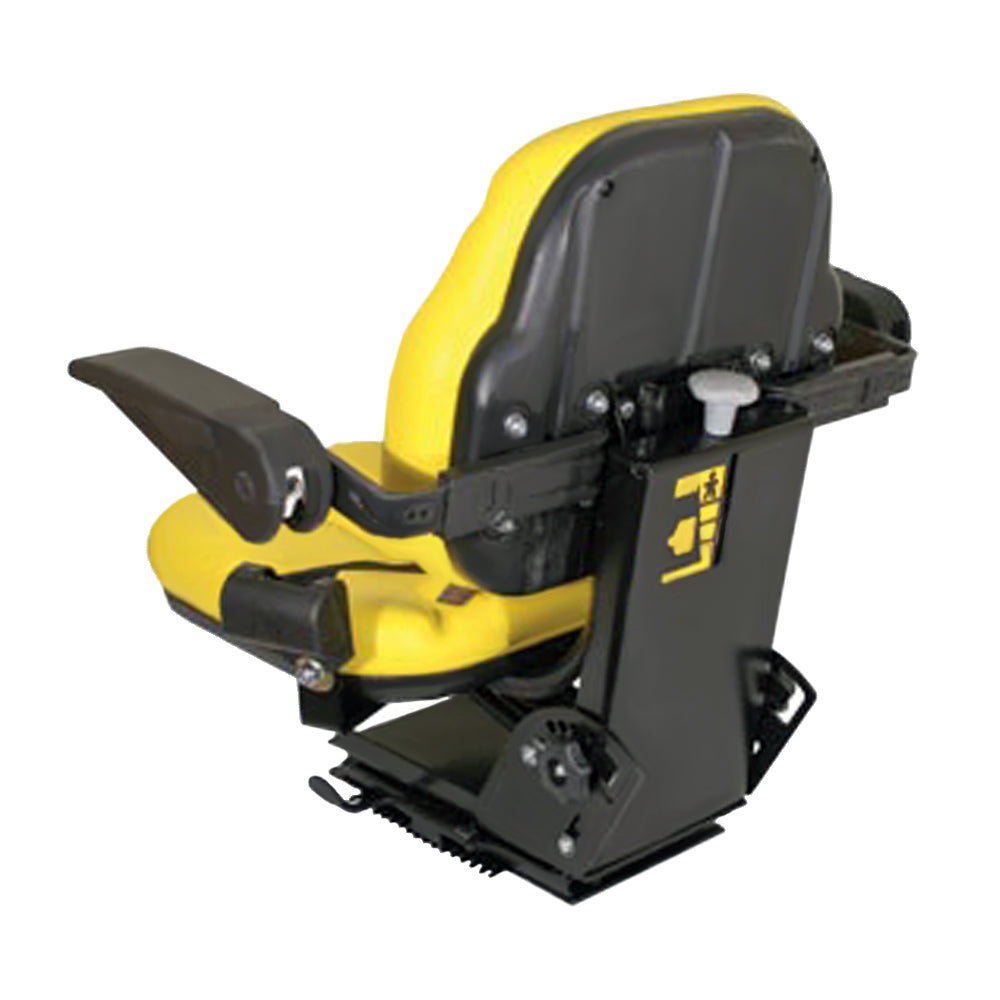

One New Aftermarket Replacement BIG BOY SEAT; YELLOW A-BBS108YL 5500 Fits John Deere Parts

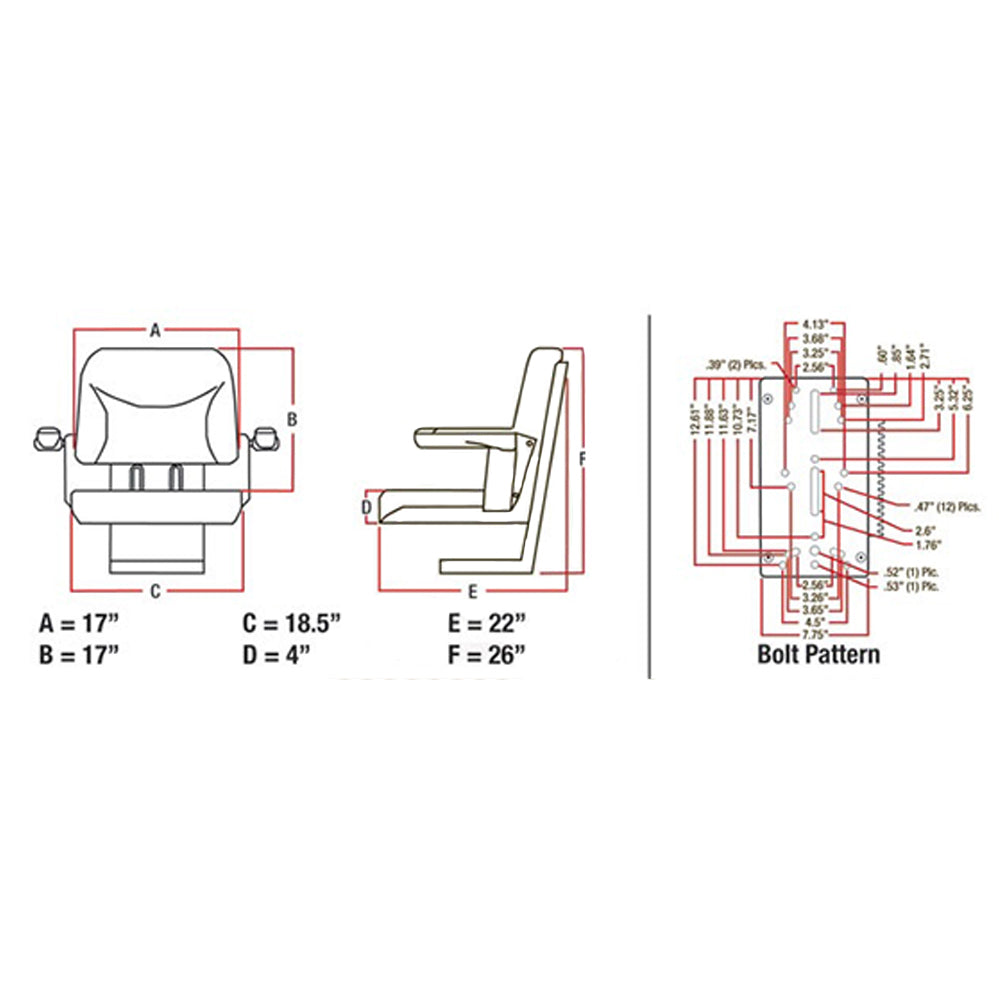

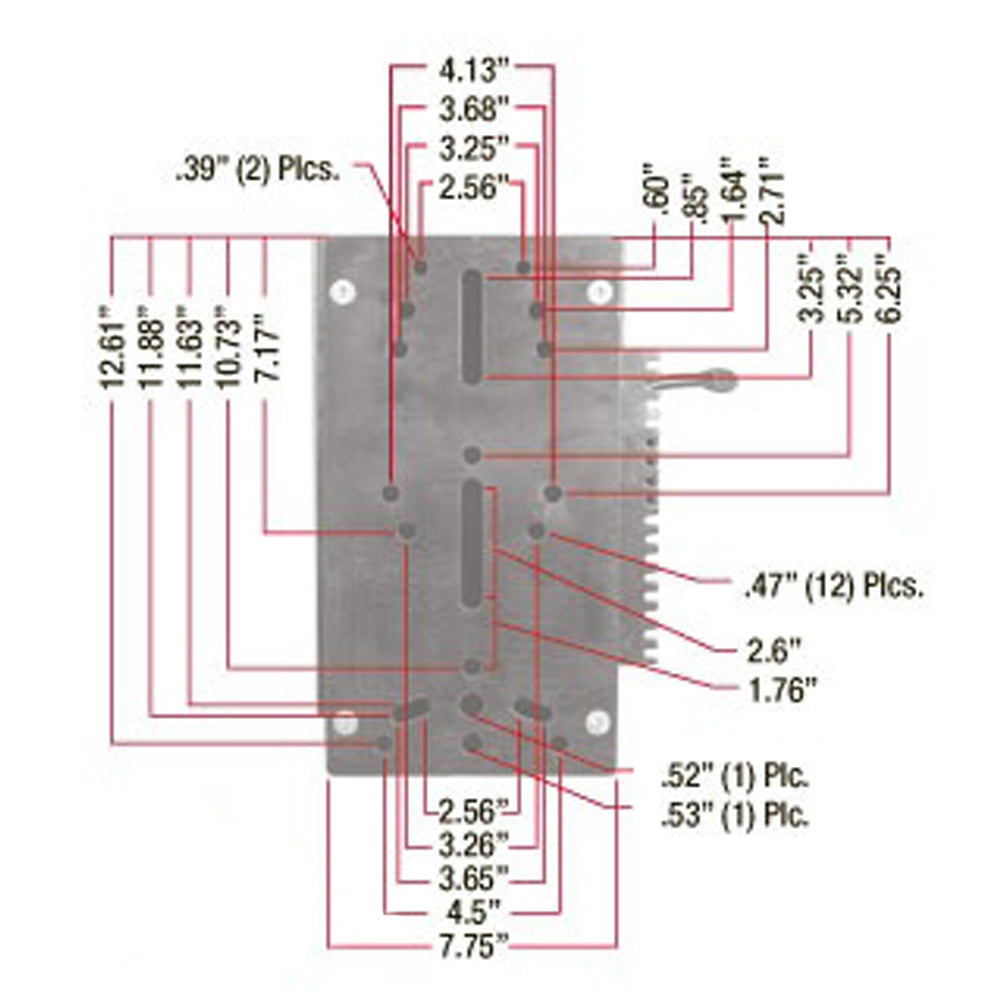

Springs and 1 shock. 29" wide outside to outside of arm rests. From floor to top of back rest is 25.50". From floor to top of seat cushion is 12.250". Cushion is 18.00" wide by 15.00" from front to back. Does not have provision for operators presence switch.
• Does not have provision for operators presence switch.
• 330 lb / 150 kg weight limit
Dim A (1) 3 Position Angle Mounting
Dim B (2) Slide Track
Dim C (3) Weight Adjustment
Dim D (4) Belt Included
Dim E (5) Backrest Mounting Angles: 12, 22, 28, 32
Springs and 1 shock. 29" wide outside to outside of arm rests. From floor to top of back rest is 25.50". From floor to top of seat cushion is 12.250". Cushion is 18.00" wide by 15.00" from front to back. Does not have provision for operators presence switch.
• Does not have provision for operators presence switch.
• 330 lb / 150 kg weight limit
Dim A (1) 3 Position Angle Mounting
Dim B (2) Slide Track
Dim C (3) Weight Adjustment
Dim D (4) Belt Included
Dim E (5) Backrest Mounting Angles: 12, 22, 28, 32
Models This Part Fits:
5200, 5203, 5410, 5310, 5420, 5300, 5065E, 5075E, 5320, 5503, 5403, 5303, 5210, 5045E, 5510, 5500, 5400, 5103, 5055D, 5045D, 5220, 5520, 5055EAdditional Information:
3 Position Angle Mounting Slide Track Weight Adjustment Seat Belt Included Universal Replacement Vinyl Seat. 3 Position Angle Mounting, Slide Track, and Weight Adjustment. Seat Utilizes 2 Springs and 1 Shock. 29" Wide Outside to Outside of Arm Rests. from Floor to Top of Back Rest Is 25.50". from Floor to Top of Seat Cushion Is 12.250". Cushion Is 18.00" Wide by 15.00" from Front to Back. Does Not Have Provision for Operators Presence Switch. Does Not Have Provision for Operators Presence Switch. 330 Lb / 150 Kg Weight Limit Arm Rests Flip Up and Down. When Down, Tilt Can Be Changed Slightly with Adjustment Bolt. They Are Fixed and Do Not Have in and Out Adjustment. Yellow Seat w/ ArmrestsReference Numbers:
RE188293, 716927, BBS108YL, RE61377, 1044926Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
