Black Seat with Slide Tracks Fits Kubota Replaces 3106006M91-1
Black Seat with Slide Tracks Fits Kubota Replaces 3106006M91-1
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Black Seat with Slide TracksTech Info:

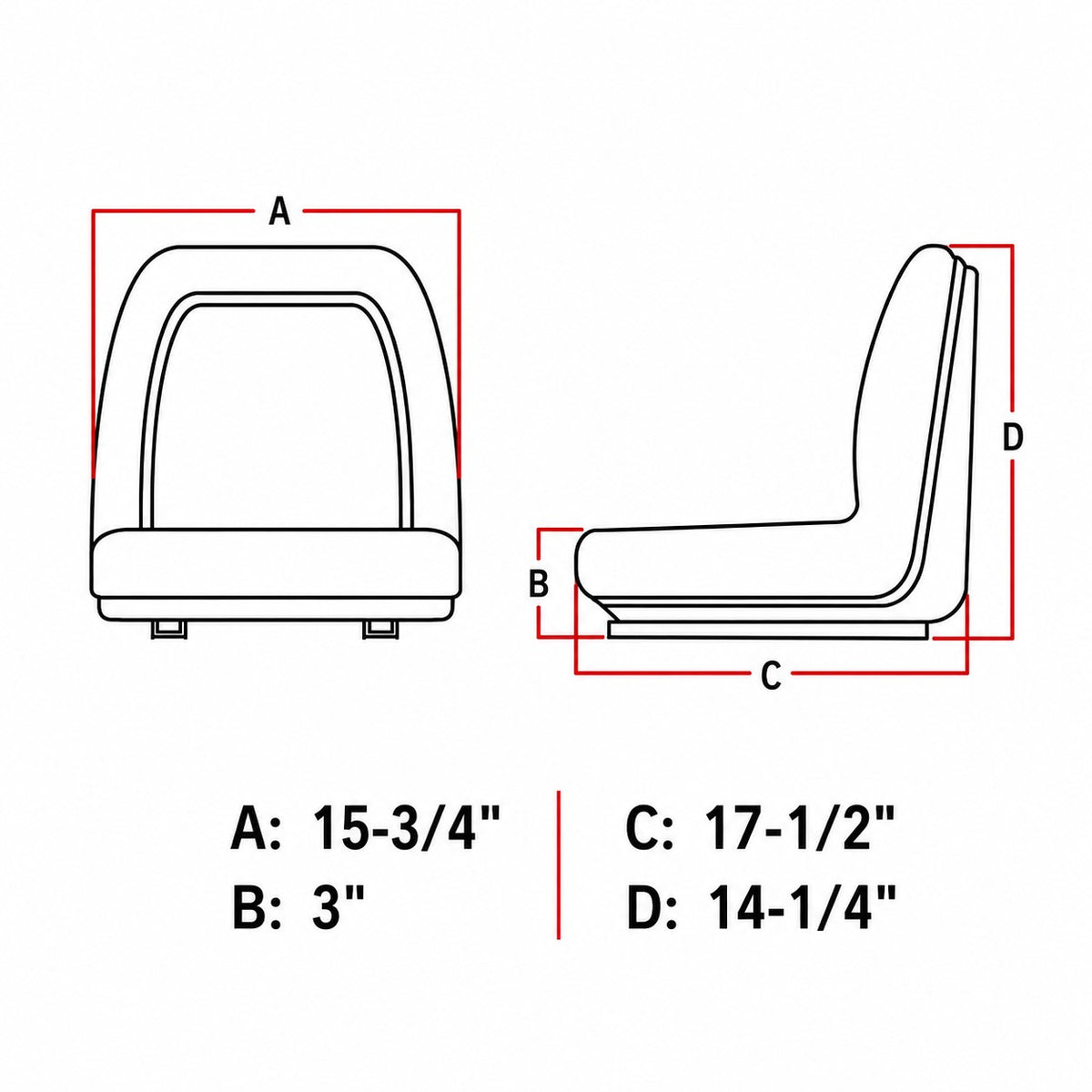

-Overall Width: 15-3/4"
-Cushion Thickness: 3"
-Overall Depth: 17-1/2"
-Overall Height: 14-1/4"

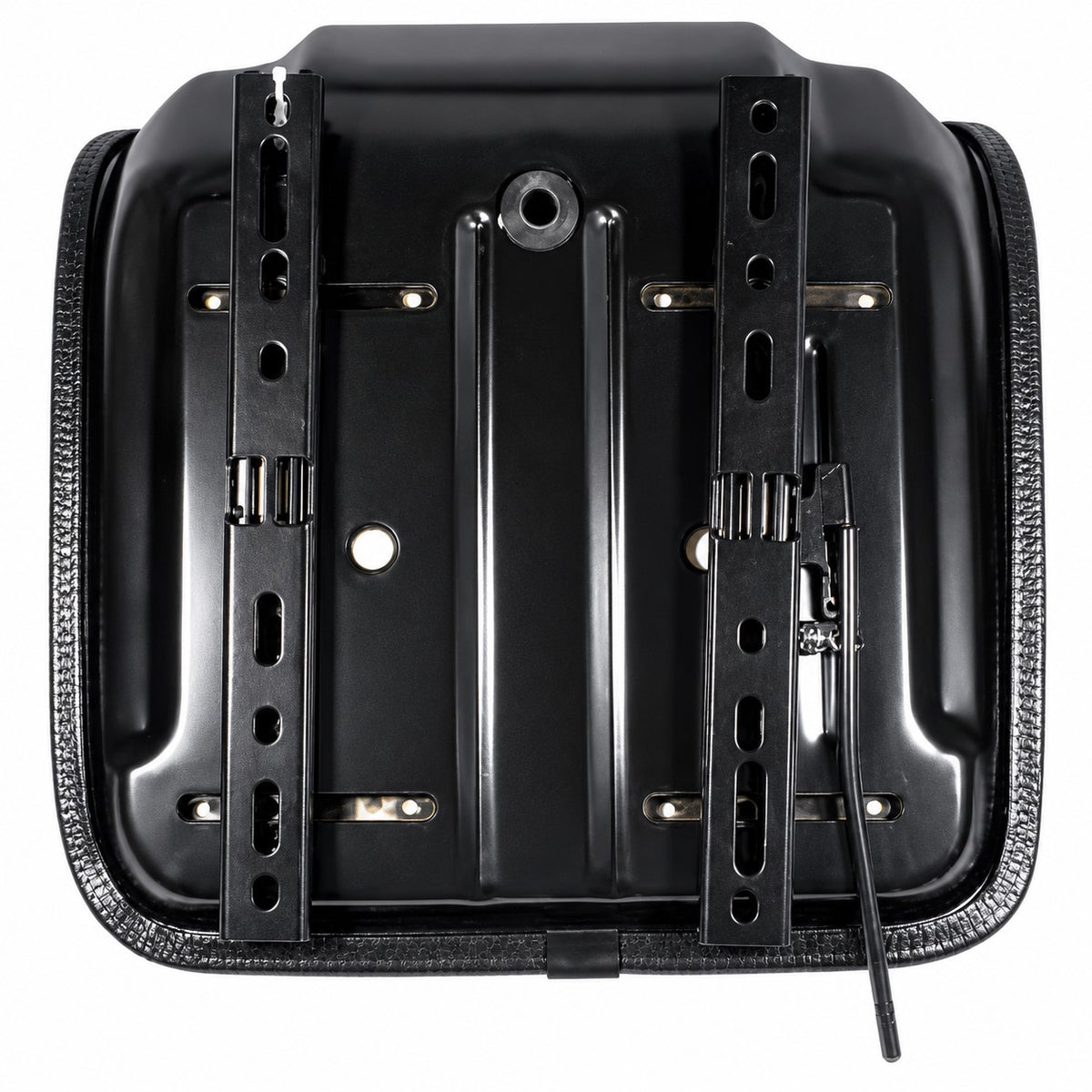

-Includes Slide Adjustment Track
-Bolt Pattern: Multiple Mounting Positions

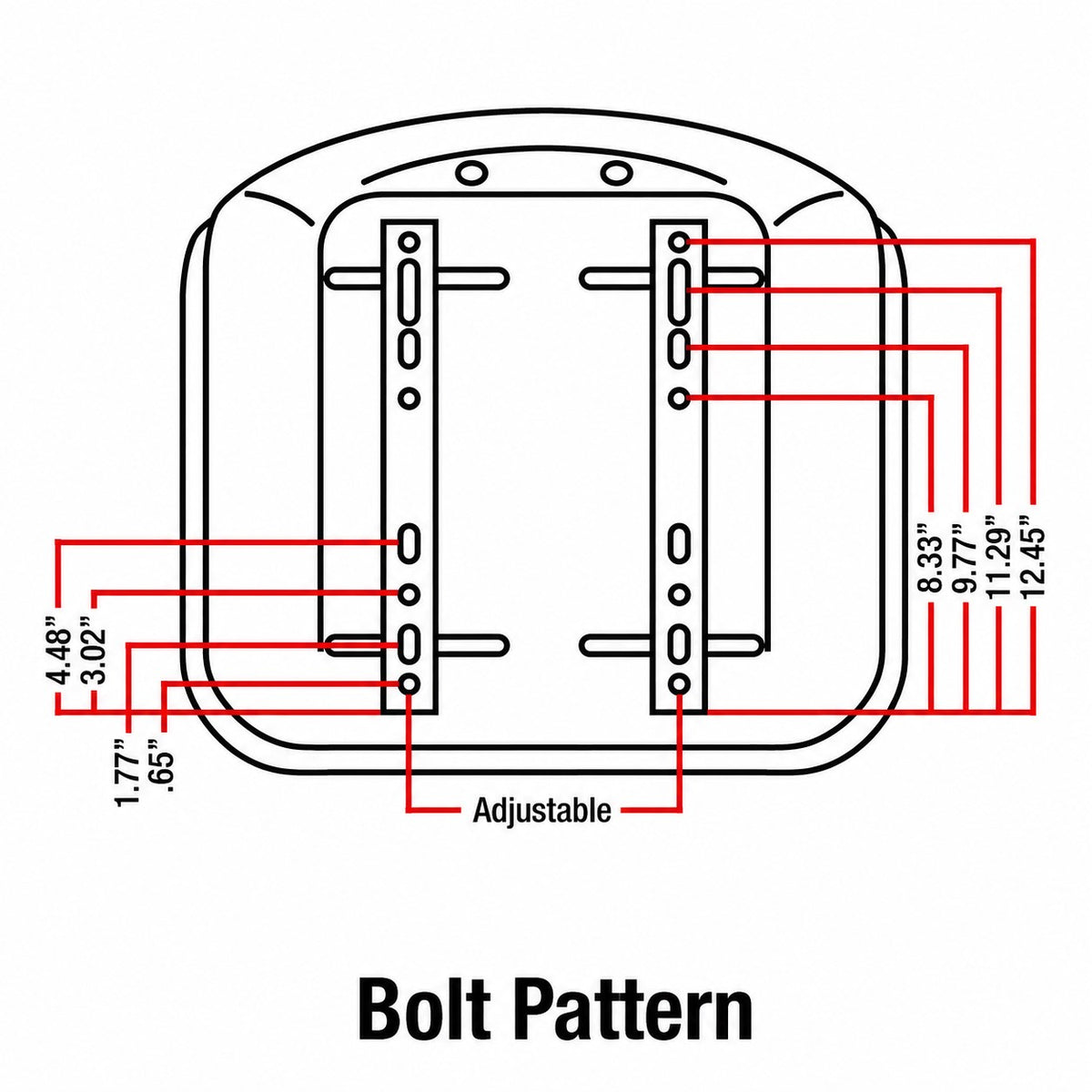

-Mounting Hole Spacing: .65", 1.77", 3.02", 4.48", 8.33", 9.77", 11.29", 12.45"
-Slide Track Adjustable Width: 3.897" to 10.275"
-Slide Track Horizontal Adjustment: 6.700" Max.Made to Fit Kubota:
Tractor Models: Compact Tractors, Utility Tractors, Agricultural Tractors
Replaces Part Number(s): LGS100BL, 3106006M91-1
-Overall Width: 15-3/4"
-Cushion Thickness: 3"
-Overall Depth: 17-1/2"
-Overall Height: 14-1/4"
-Includes Slide Adjustment Track
-Bolt Pattern: Multiple Mounting Positions
-Mounting Hole Spacing: .65", 1.77", 3.02", 4.48", 8.33", 9.77", 11.29", 12.45"
-Slide Track Adjustable Width: 3.897" to 10.275"
-Slide Track Horizontal Adjustment: 6.700" Max.Made to Fit Kubota:
Tractor Models: Compact Tractors, Utility Tractors, Agricultural Tractors
Replaces Part Number(s): LGS100BL, 3106006M91-1
Models This Part Fits:
Agricultural Tractors, Compact Tractors, Utility TractorsAdditional Information:
Overall Width: 15-3/4" Cushion Thickness: 3" Overall Depth: 17-1/2" Overall Height: 14-1/4" Includes Slide Adjustment Track Bolt Pattern: Multiple Mounting Positions Mounting Hole Spacing: .65", 1.77", 3.02", 4.48", 8.33", 9.77", 11.29", 12.45" Slide Track Adjustable Width: 3.897" to 10.275" Slide Track Horizontal Adjustment: 6.700" Max. Black Seat with Slide TracksReference Numbers:
LGS100BL, 3106006M91-1Makes This Part Fits:
