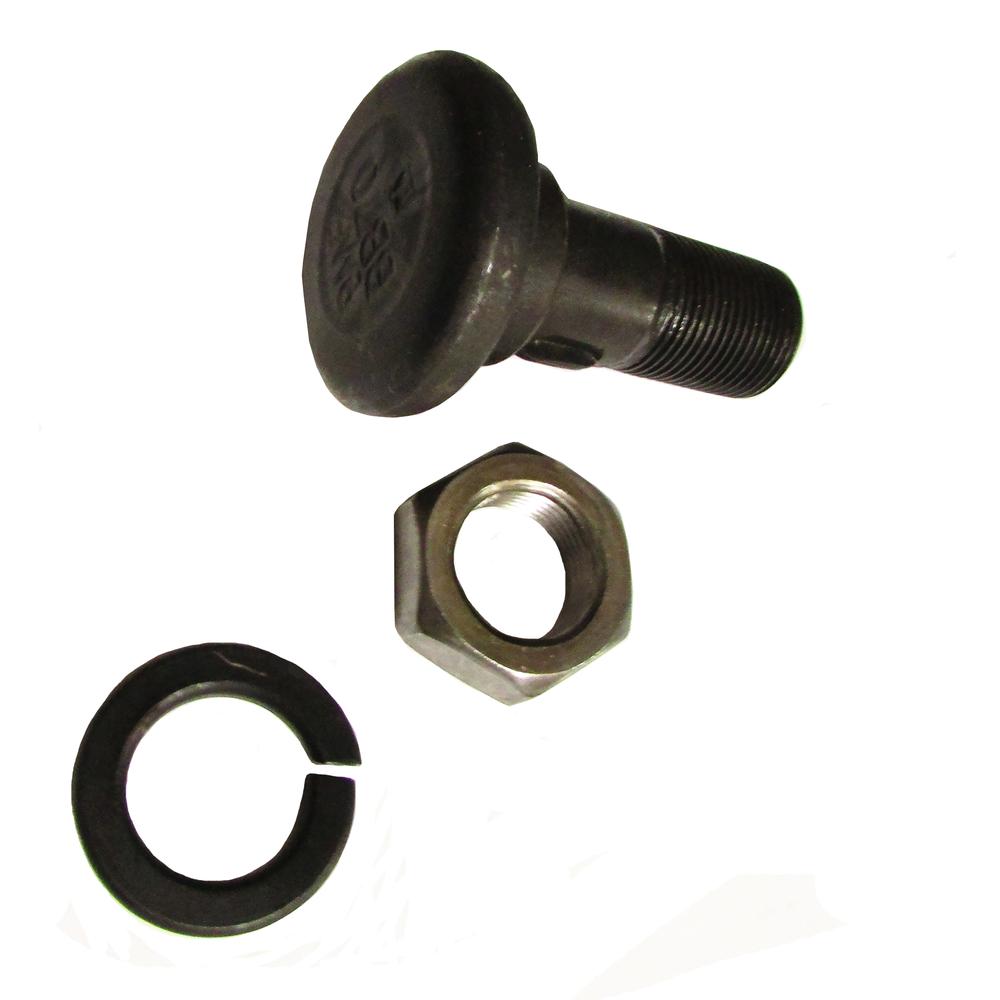

Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder 63607 Farmer
Blade Bolt Kit 3" Long Under Head x 1.125" Thread x 1.5" Shoulder 63607 Farmer
AIC Replacement Parts - FEDEX2DAY
**TO VIEW PRICE**
LOGIN or REGISTER

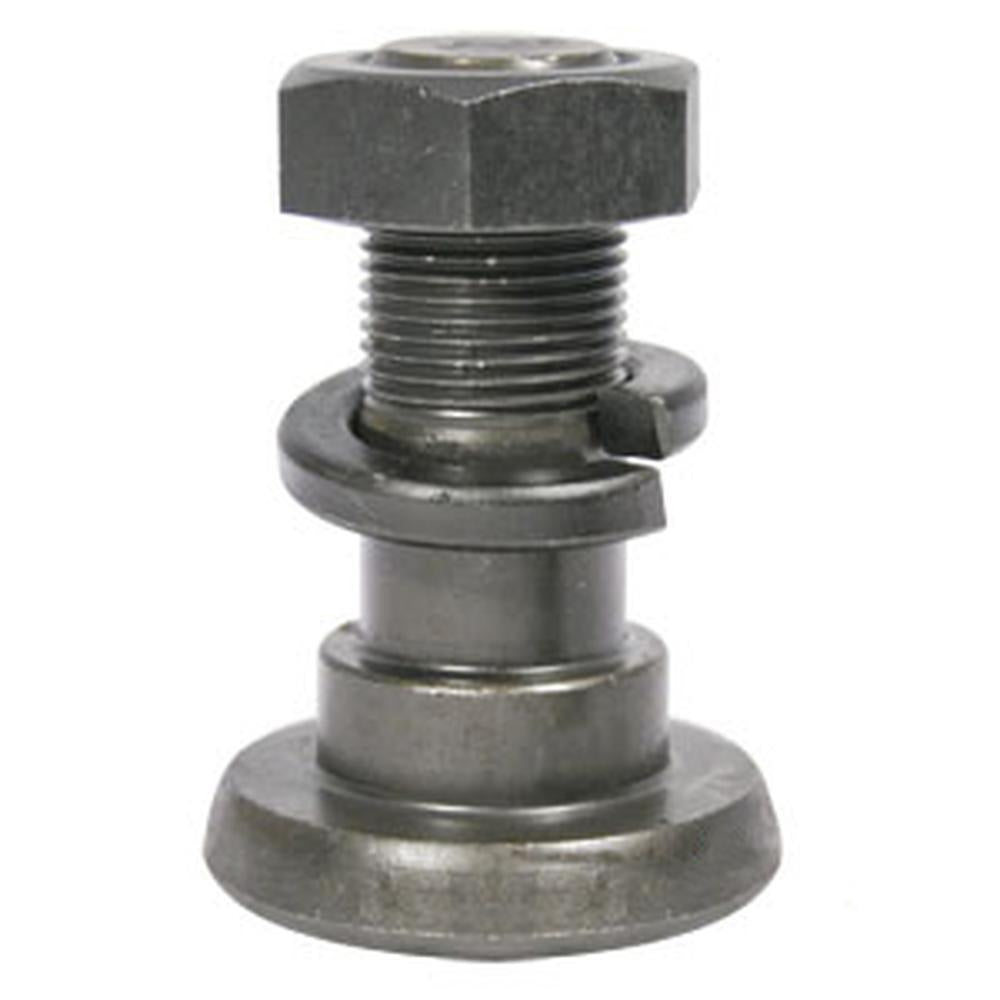

Rotary Cutter Blade Bolt Kit
Fits: BUSH HOG, Land Pride, Shulte, Universal
Models: 104, 105, 1050, 109, 1109, 1126, 1206, 1207, 1209, 204 H, RZ60, SQ36, SQ42, SQ420, SQ48, SQ480

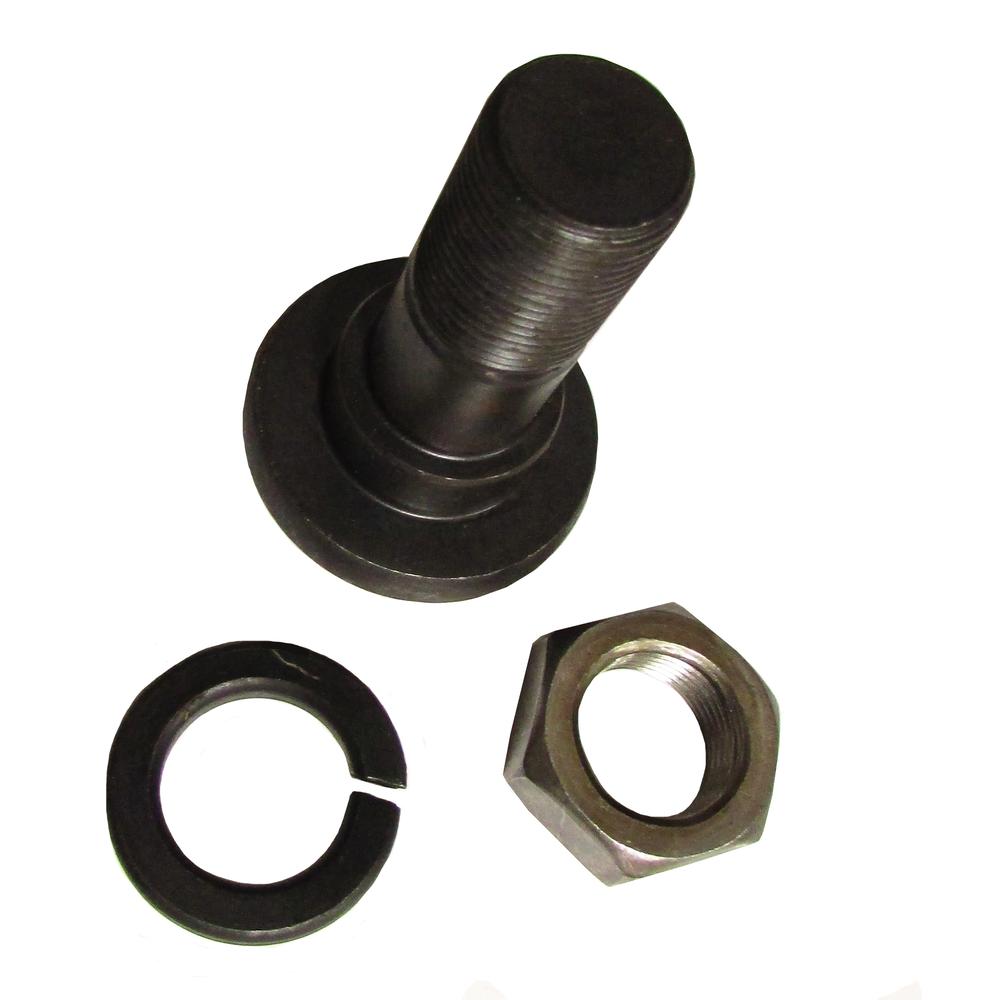

Contains 2 Each 7A4997 Bolts, Nuts & Lock Washers
Blade Mount Depth ( E ) 1/2 Inch
Blade Mount Diameter ( H ) 1-1/2 Inches
Bolt Shank Diameter ( I ) 1-1/8 Inches
Head Diameter ( G ) 2-1/2 Inches
Head Thickness ( F ) 1/2 Inch
Overall Length ( B ) 4-1/8 Inches
Shank Length thru Carrier ( D ) 7/8 Inch
Thread Length ( C ) 2 Inches
Thread Size ( A ) 1 Inch - 14 Thread
Replaces Part Number(s)3013-8109, 3013-8109-A, 404-165300P, 404-165300P-A, 63607, 63607GV, BH2500, BH2500-A, BH2500GV, RE7919
Models This Part Fits:
2620, 502, 166, 3126, 1209, 1126, 160, 12, 307R, 2715, 105, 315, 126, 3008, 1226, 1206R, 109 OFFSET, 1115S, 1050R, 306, 305, 3210, 310, 286, 3610, 1600, 600, 1310, 3615, 109, 3368, 3209, 226, 2415, 307, 1109, 1207R, 6, 3168, 206, 1315, 2615, 2010, 205, 2512, 268, 2315, 2610Additional Information:
Includes: (1) Bolt (7919BH) (1) Nut (252BH) (1) Lock Washer (253BH) Blade Mount Depth: 1/2" Blade Mount Diameter: 1-1/2" Bolt Shank Diameter: 1-1/8" Head Diameter: 2-1/2" Head Thickness: 1/2" Overall Length: 4-1/8 " Shank Length thru Carrier: 7/8" Thread Length: 2 " Thread Size: 1" - 14 Thread Rotary Cutter Blade Bolt KitReference Numbers:
RE7919, 63607BH, B550336Makes This Part Fits:
