BP13931 Bolt Kit Fits John Deere 224T 224WS 327 328 336 337 338
BP13931 Bolt Kit Fits John Deere 224T 224WS 327 328 336 337 338
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

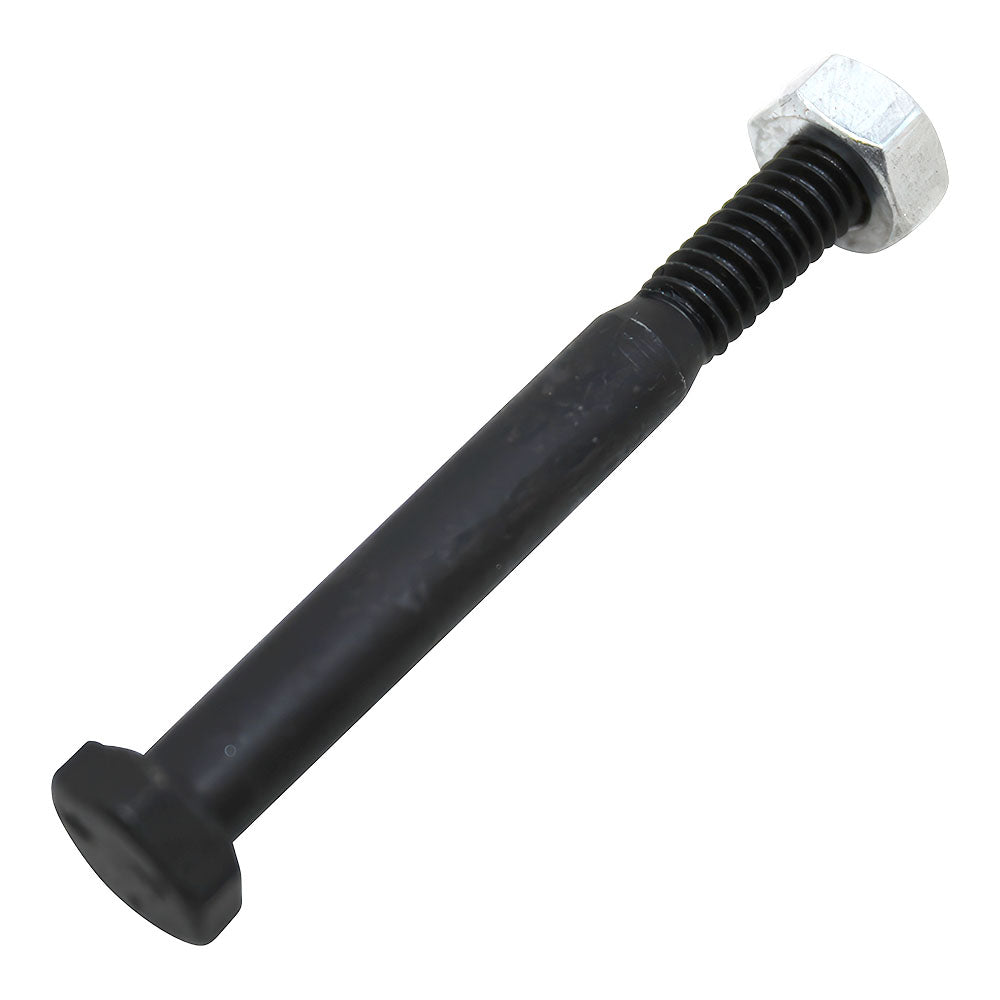

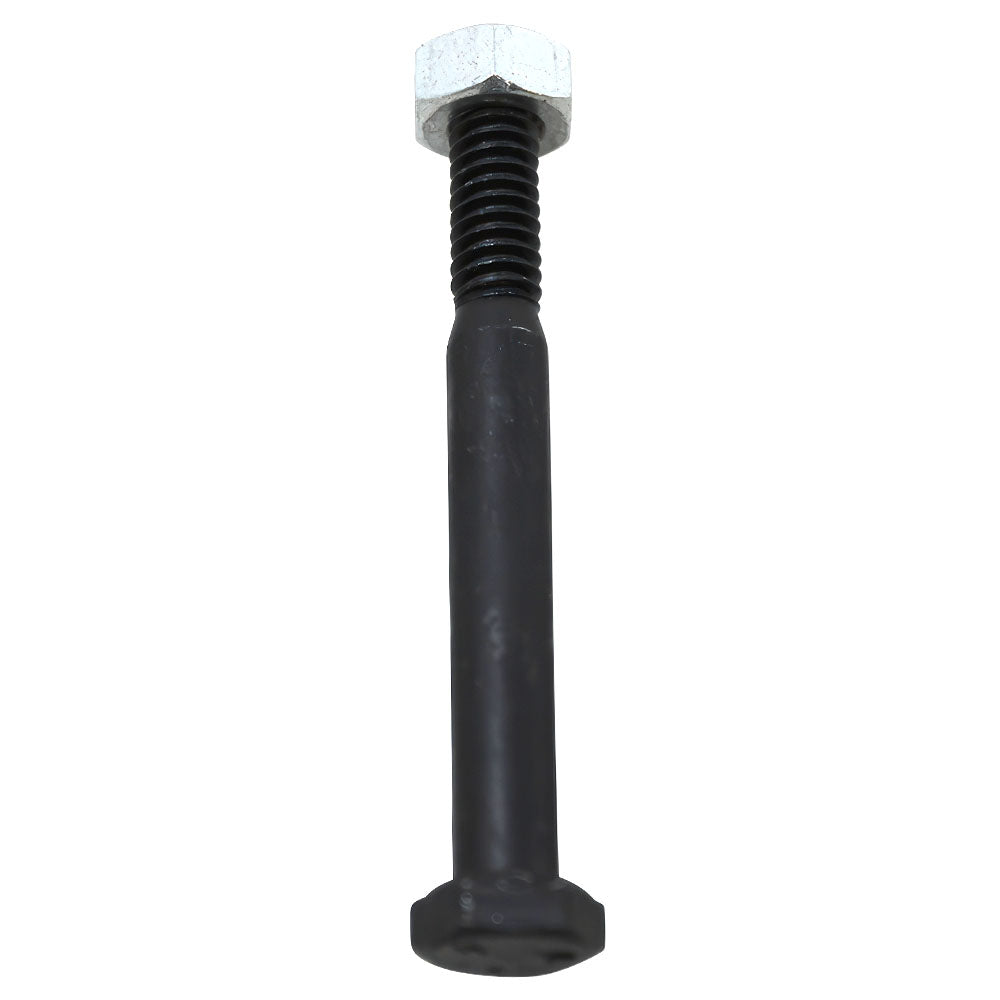

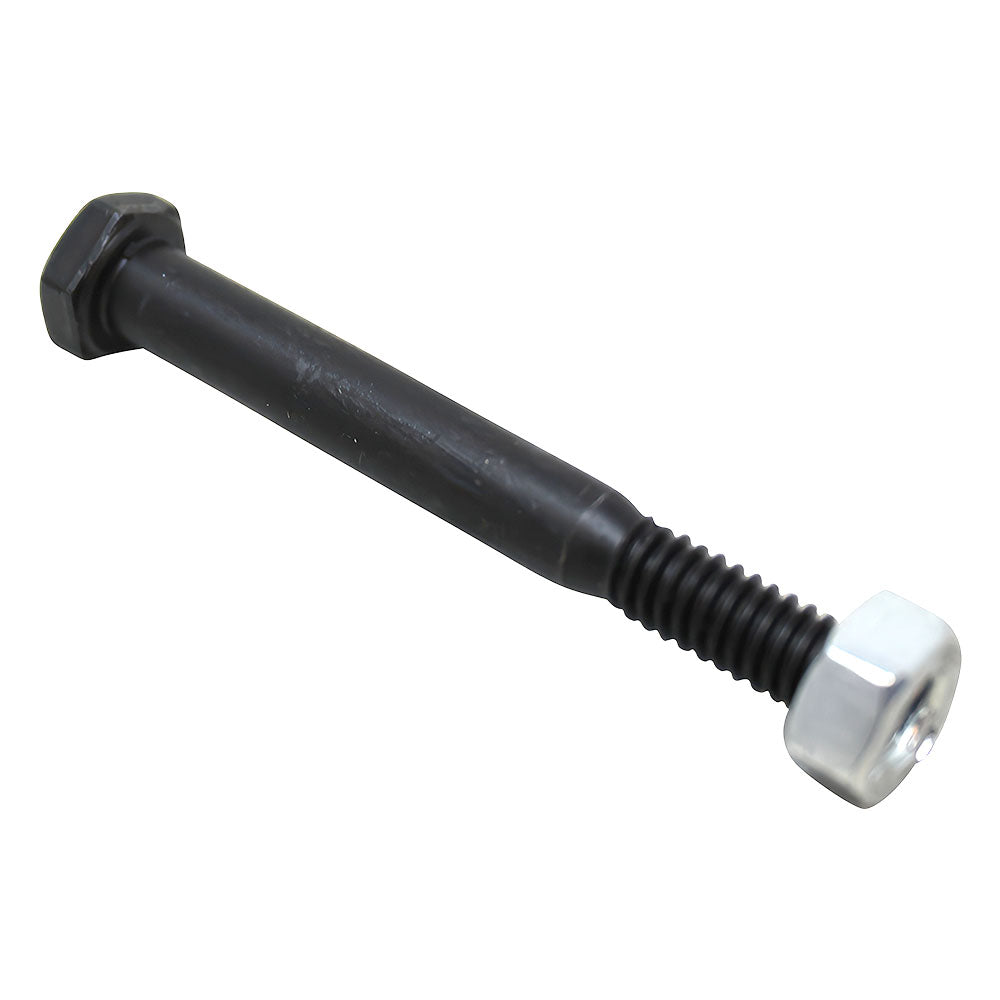

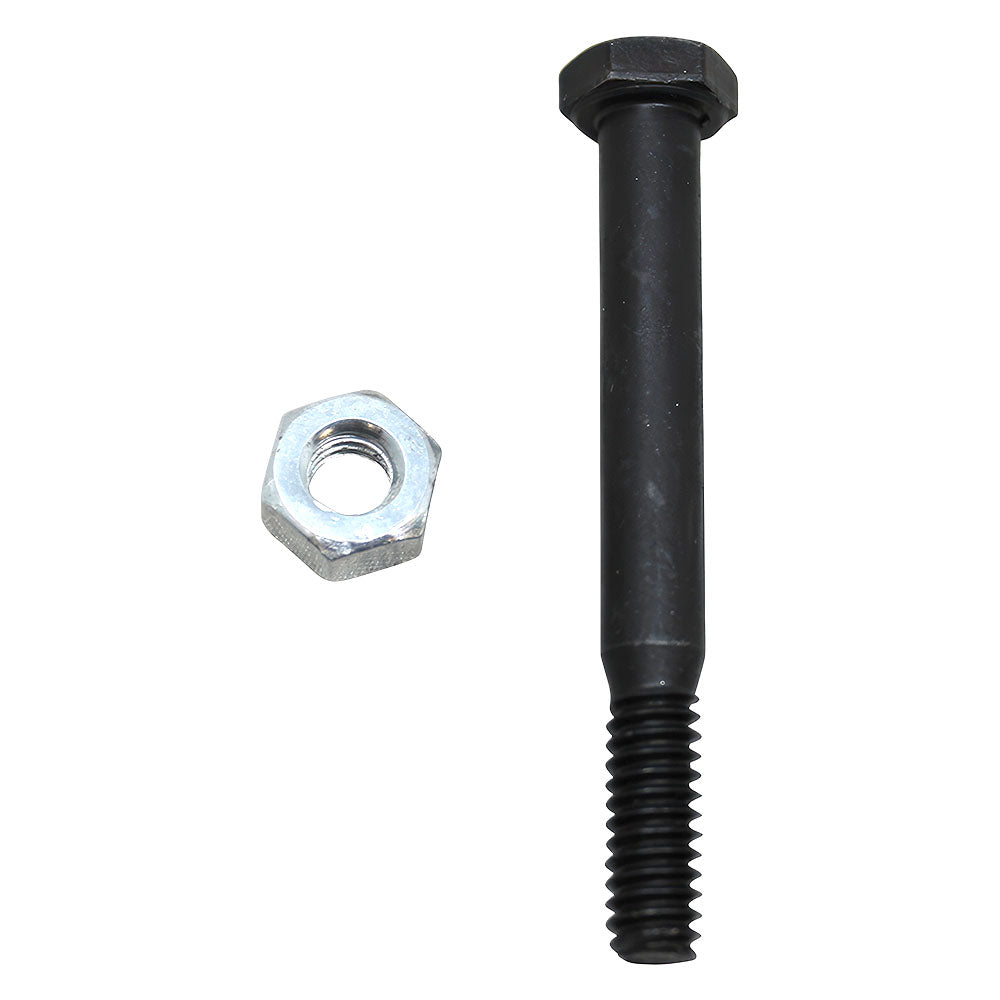

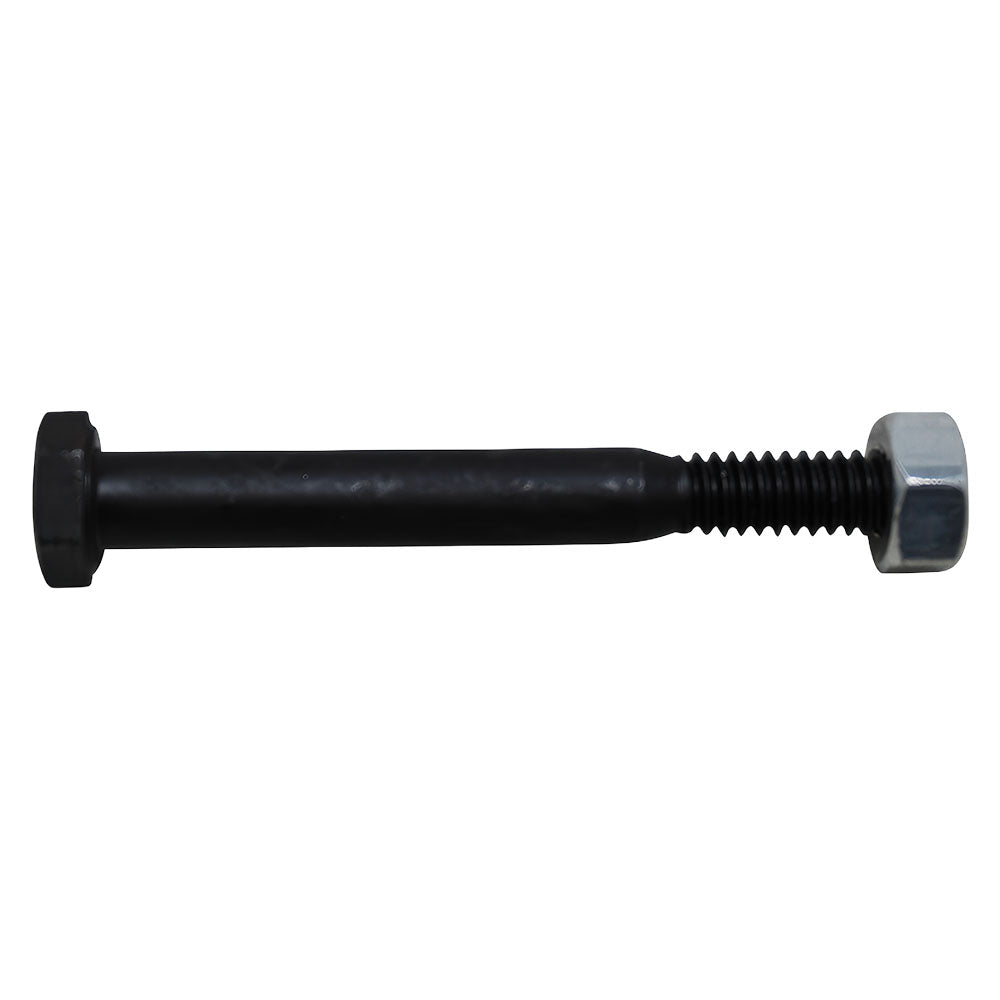

New Aftermarket Replacement Shear Bolt and Nut for John Deere Hay Balers
This includes flywheel shear bolt with lock nut designed for use on John Deere hay balers. These Grade 5, 1/4"-20 x 2-1/4" shear bolts are engineered to protect the baler drivetrain by shearing before damage occurs to the flywheel and gearbox. Note: Models 14T and 214 fitment is for power take-off (PTO) driven units only; engine-driven models use a different part number.
Specifications
- Diameter: 0.280"
- Grade: 5
- Overall Length: 2.500"
- Thread Length: 0.560"
- Thread Size: 1/4"-20 RH UNC
- Usable Length: 1.580"
Compatible Models
John Deere Hay Balers: 10, 14T (s/n 32868 and up, PTO-driven only), 24, 214 (PTO-driven only), 216, 224, 224T, 224WS, 323W, 327, 328, 336 (also PTO), 337, 338, 348
Replaces Part Number(s):
BP13931, AE14495, ABP13931, JD10, SBKJD10, SBK-JD10, BSBJD10, 144-JD10, 714410
Aftermarket Interchange Numbers
TP-BP13931, BHL20-0041
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
10, 327, 216, 214, 337, 336, 24, 224, 323W, 338, 328, 14T, 348Additional Information:
Diameter: 0.280" Grade: 5 Overall Length: 2.500" Thread Length: 0.560" Thread Size: 1/4"-20 RH UNC Useable Length: 1.580" Replaces OEM Numbers: BSBJD10, SBK-JD10, SBKJD10 Shearbolt With NutReference Numbers:
144-JD10, 714410, ABP13931, AE14495, BP13931, BSBJD10, SBK-JD10, SBKJD10, SBKJD10, AE14495, BSBJD10, SBK-JD10, ABP13931, 714410, JD10, 144-JD10Makes This Part Fits:
