Ten New Aftermarket Replacement Baler Flywheel Shear Bolt and Nut Kit for John Deere Square Balers

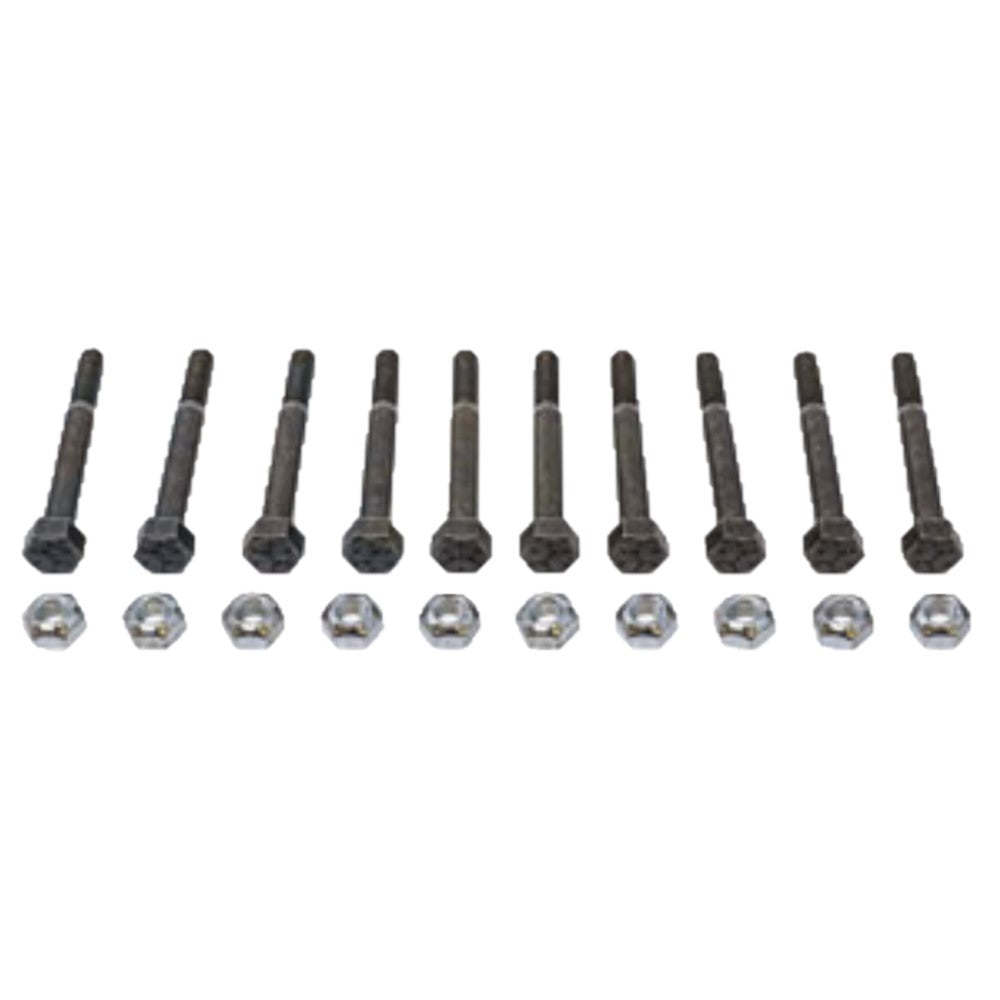

This pack of ten (10) Grade 5 shear bolts with lock nuts fits John Deere flywheel-driven square balers. Shear bolts are a critical consumable component engineered to break at a precise load, protecting the baler flywheel and drivetrain from damage caused by plugging or obstructions. Note: On John Deere 14T (s/n 32868 and up) and 214 balers, this bolt is for power take-off (PTO) driven models only -- engine-driven models require a different part number. Do not substitute a higher-strength bolt, as machine damage can result.

Specifications

• Quantity: 10 bolts with lock nuts per pack
• Diameter: 0.280"
• Overall Length: 2.500" (1/4"-20 x 2-1/4")
• Thread Size: 1/4"-20 RH UNC
• Thread Length: 0.560"
• Useable Length: 1.580"
• Grade: 5
• Head Type: Hex head
• Nut: 1/4"-20 steel hex locknut, zinc plated

Compatible Models

John Deere Flywheel Square Balers: 10, 14T (s/n 32868 and up -- PTO driven only), 24, 214 (PTO driven only), 216, 224, 224T, 224WS, 323W, 327, 328, 336 (also PTO), 337, 338, 348, 349

Replaces Part Number(s):

BP13931, AE14495, ABP13931, JD10, SBKJD10, SBK-JD10, BSBJD10, 144-JD10, 714410

New aftermarket replacement part - not remanufactured, not used.
