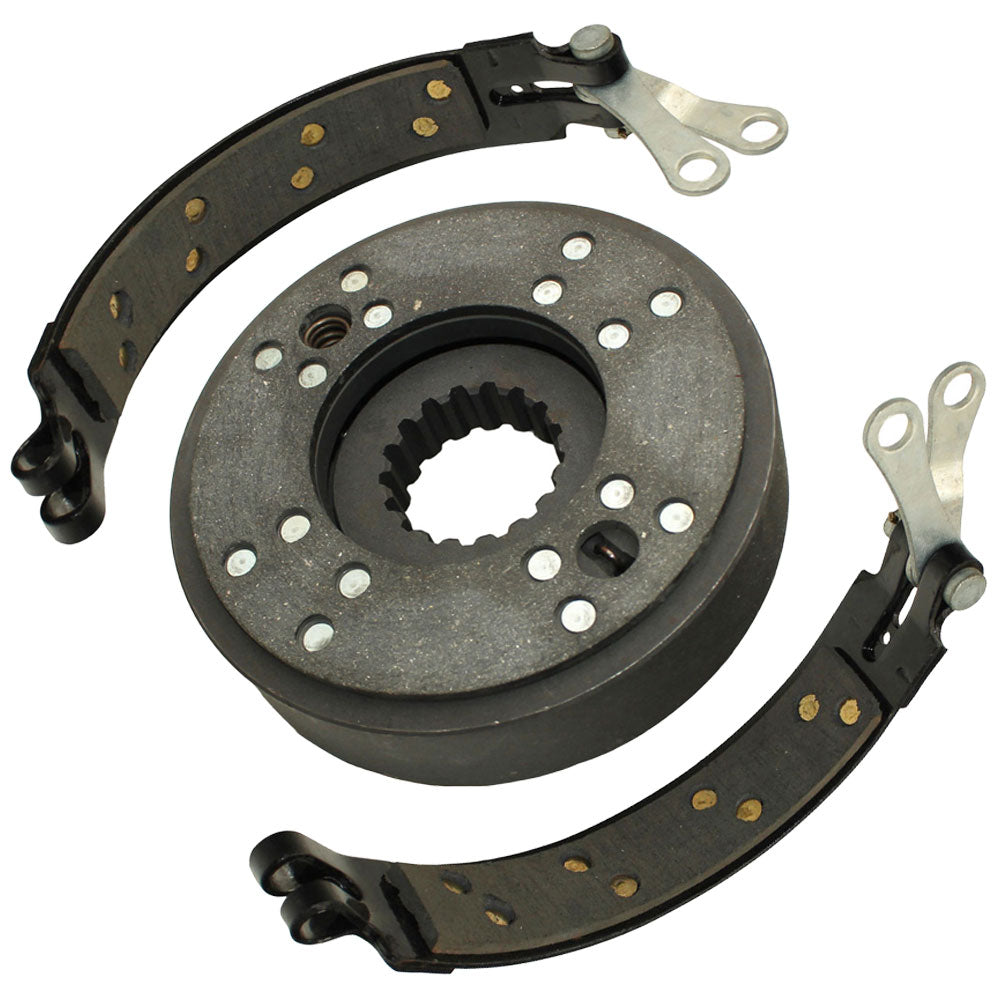

Brake Assembly Fits Case 570 480 580 480C 470 530 430 249022A3
Brake Assembly Fits Case 570 480 580 480C 470 530 430 249022A3
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement Pre-Assembled Brake Pack Assembly
Fits Case/International Harvester Tractor:
430, 470, 480, 480C, 530, 570, 580
Tech Info:
10.5" diameter
2.5" height

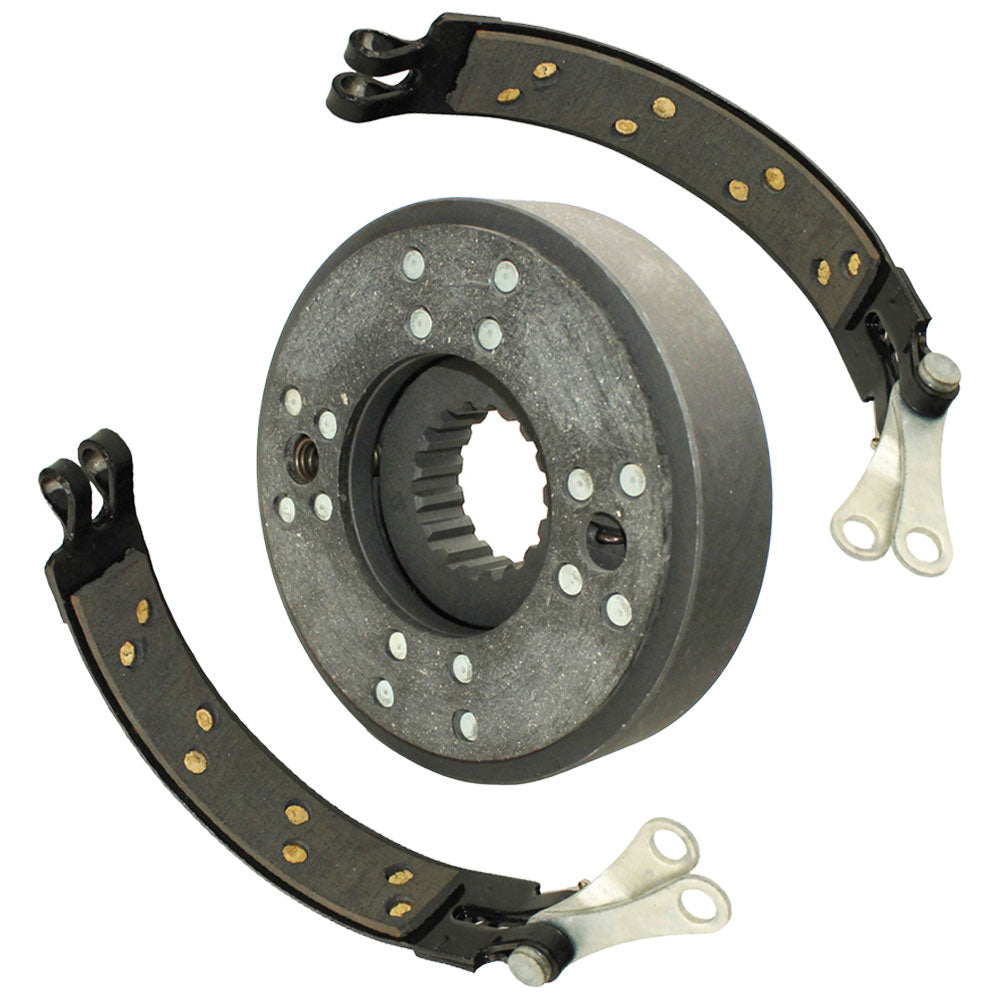

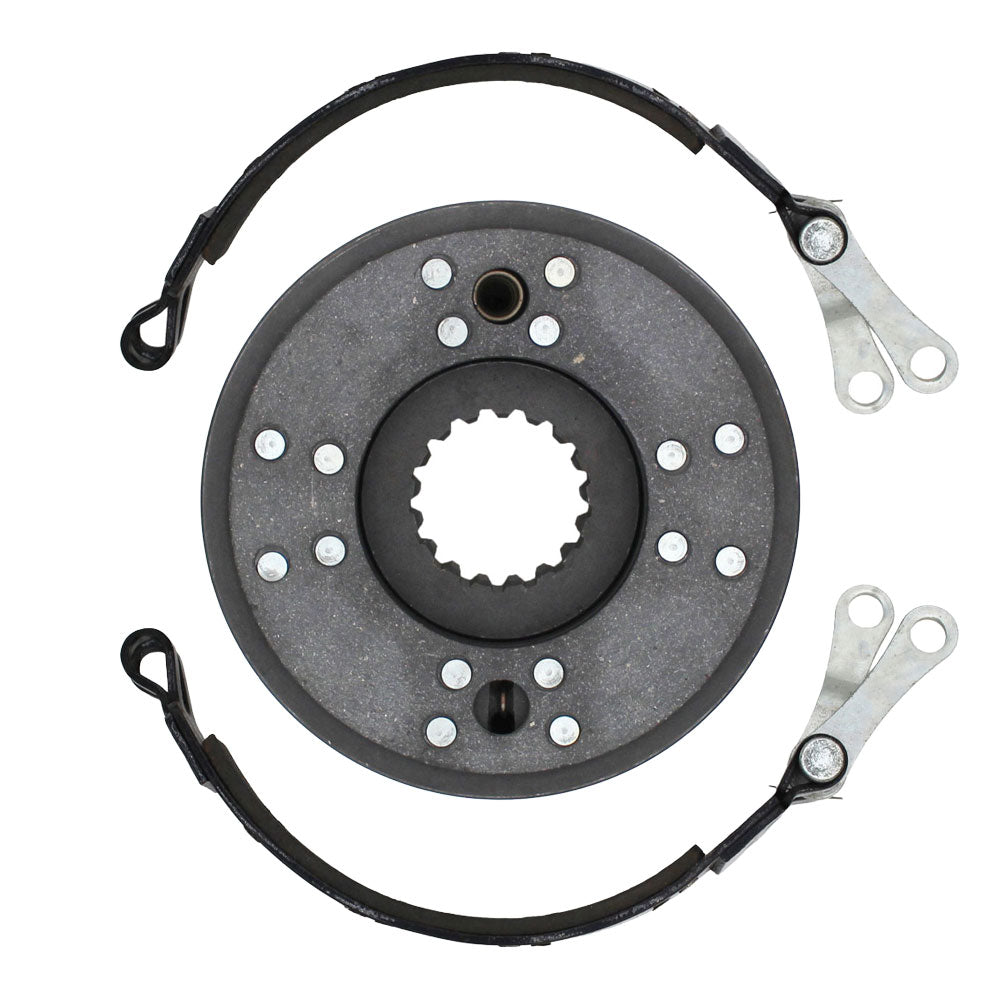

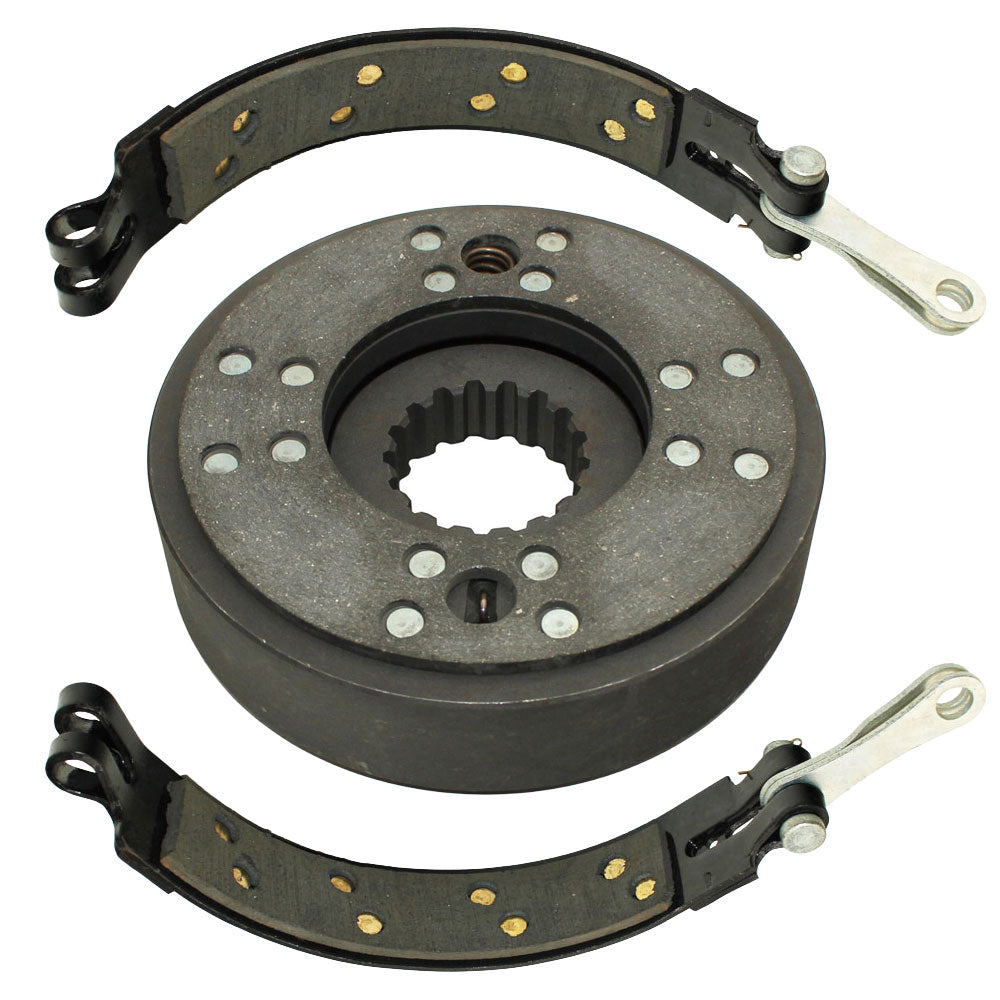

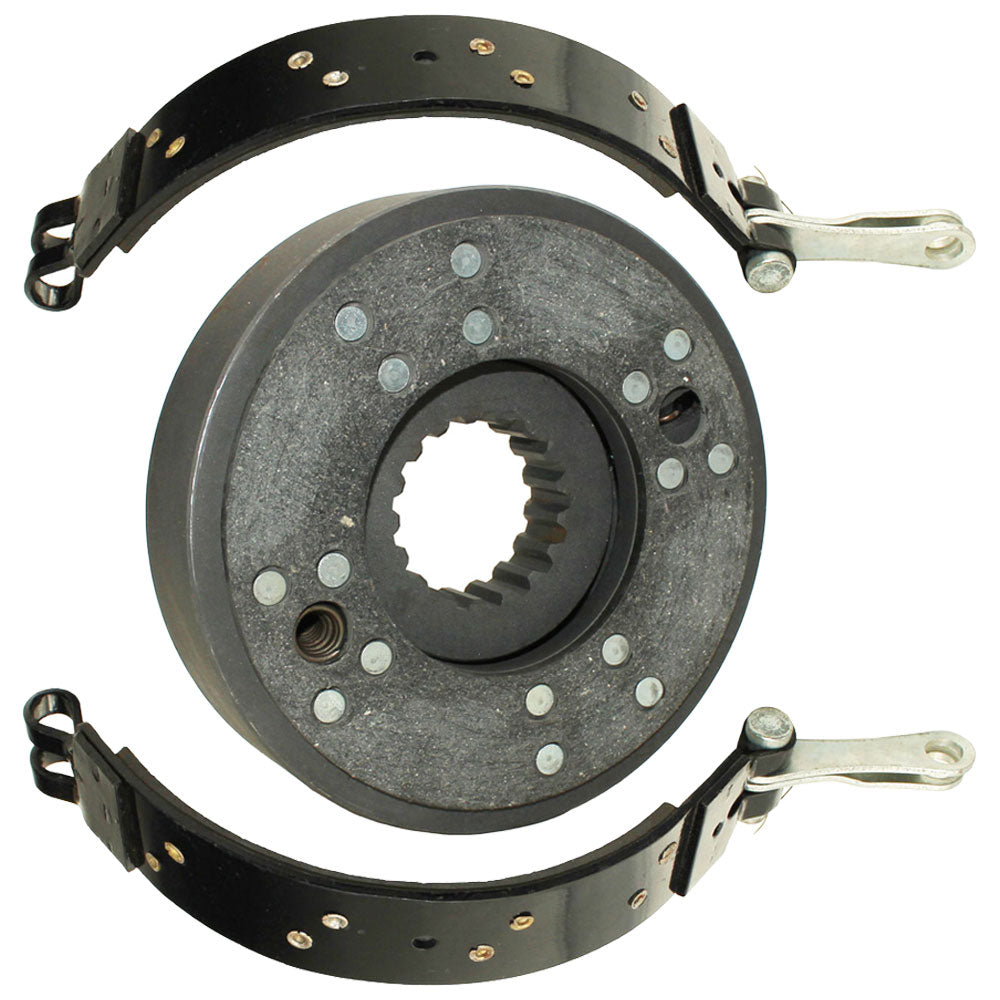

Brake Pack comes complete with both Half Housings, Outer Bands, Balls and Springs ready to install.
We also sell the lining kits to rebuild your drums #22 or brake bands #23 Please See our other Listings!
Instillation: When installing brake pack be sure housing is in a vertical (stand up) position. Install brake bands first. This allows brake bands to center themselves upright and brake pack to slide into position.
Replaces Part Number(s): 249022A3
Models This Part Fits:
441, 580CK, 530CK, 580C, 531, 431, 540, 630, 641, 480C, 634, 580B, W5, 580D 2WD, 586, 541, 535, 445, 580D, 580D NON TURBO 4WD, 480CK, 631, 632, 430, 640, 585D, 480, 642, W3, 586C, 586D, 480B, 530, 580 Loader, 584, 545, 480 Loader, 580, 470, 480D 2WD, 480D, 430CK, 644, 570, 435, 584DAdditional Information:
Brake Drum 1.560" wide 7.250" OD Brake Plate 6.500" OD 17 Splines Comes with 2 brake bands halves. WILL NOT WORK ON TURBO MACHINES!. Brake Pack AssemblyReference Numbers:
249022A1 249022A2 249022A3 249022A3CCT A142979 A154350 A157157 A55474, A41728, A47885, A55474, G46345, G45468, A142979, 249022A3, A44719, G45362, G48508, A44713, A44756, G46344, A47683, A47716, A156383, 249018A3, 135578A1, 1995400C1, G49082, A44721, A42043, A47886, A51814, 249020A1, A142980, 1995399C1, 135576A1, A154350, 135577A1, 249022A1, 249022A2, A44714, 1995396C1, A47524, G45361, 1995397C1, 249021A1, A157157, 249018A2Makes This Part Fits:
