One New Aftermarket Replacement Bulldog Cast Head Adjustable Trailer Coupler - 2-5/16" Ball, 14,000 lb Capacity, 5-Position Wedge Latch

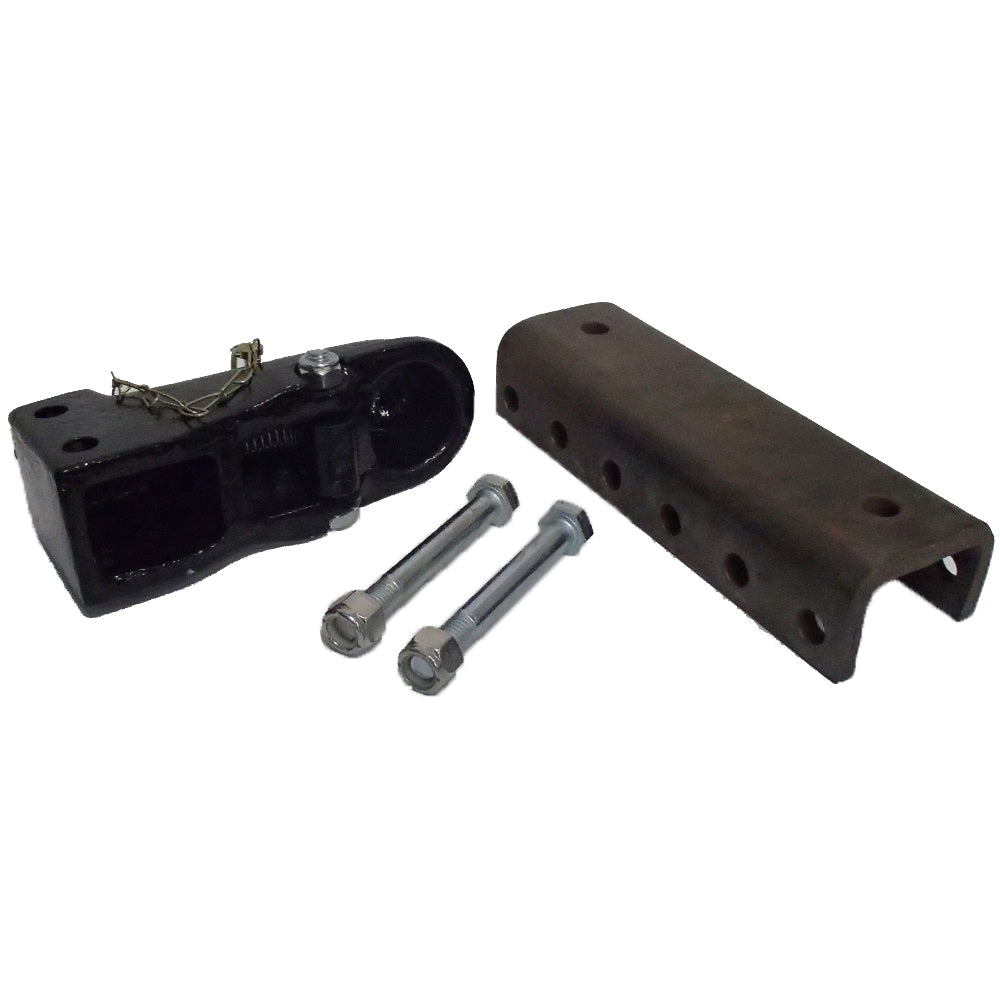

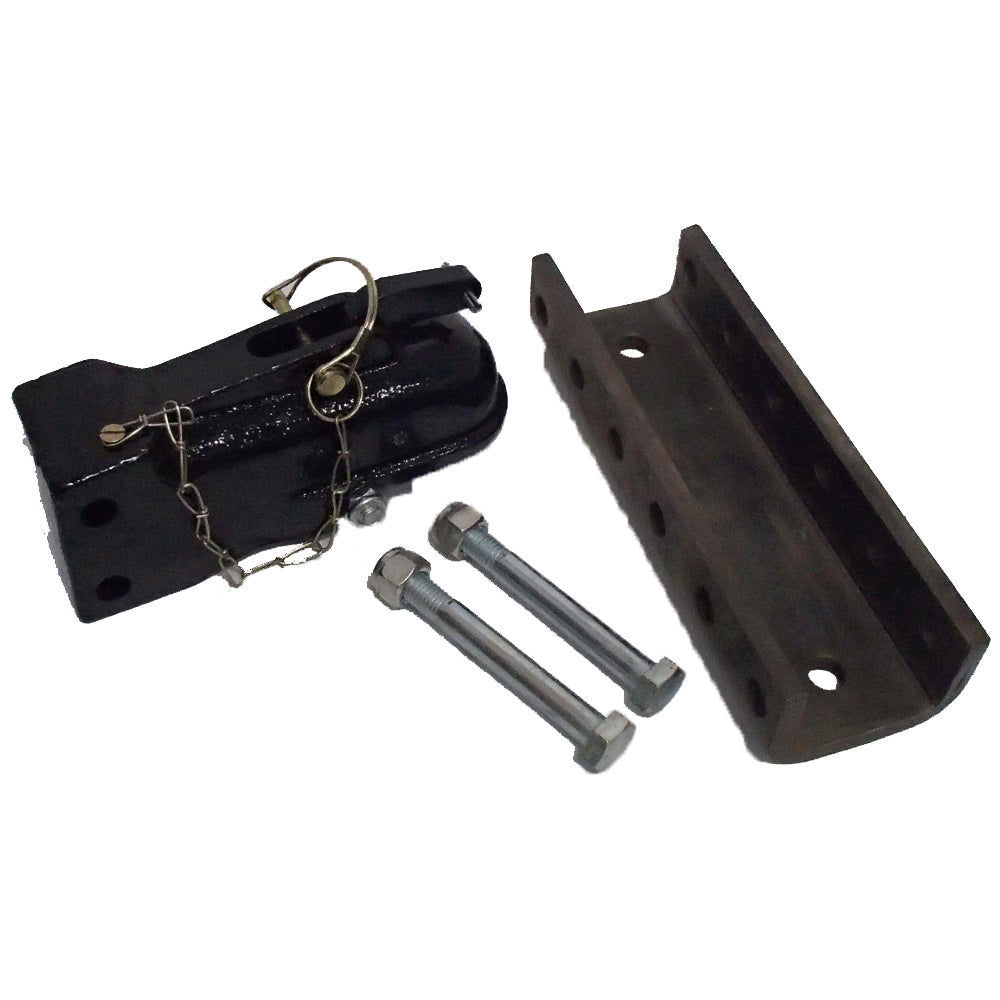

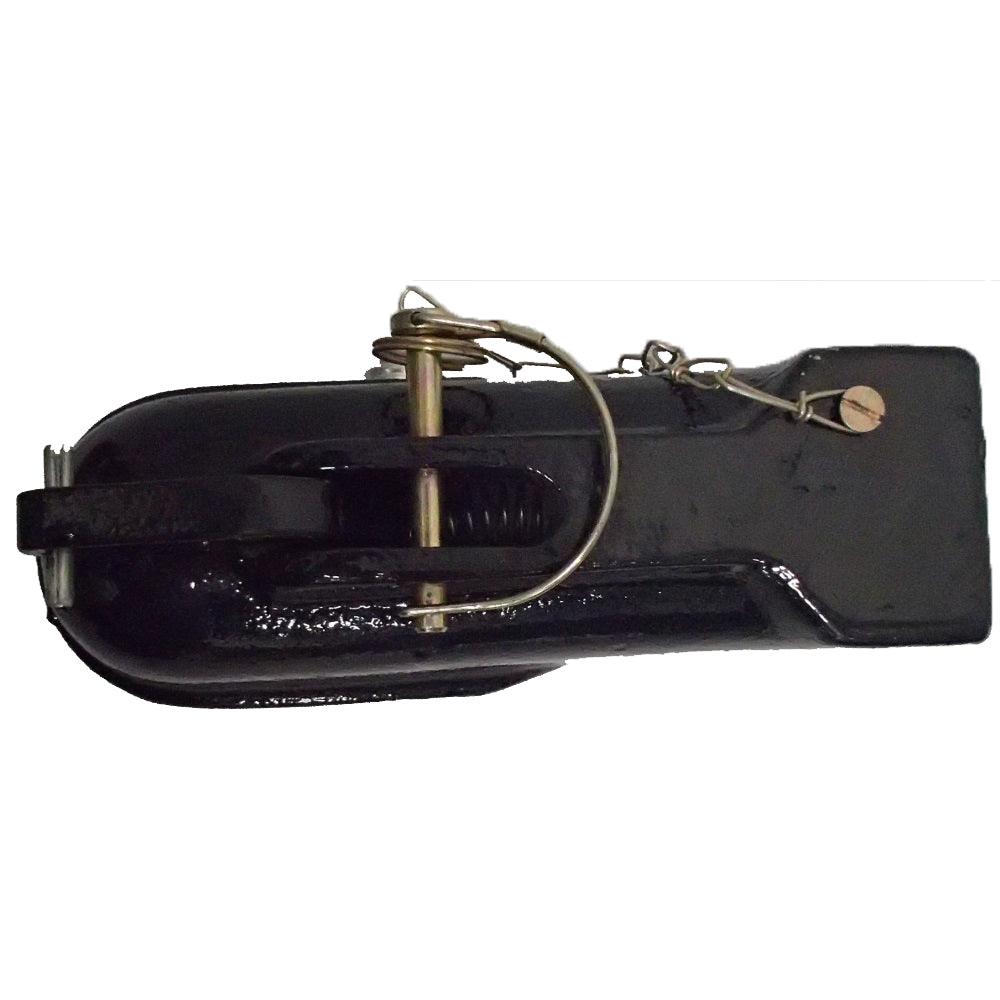

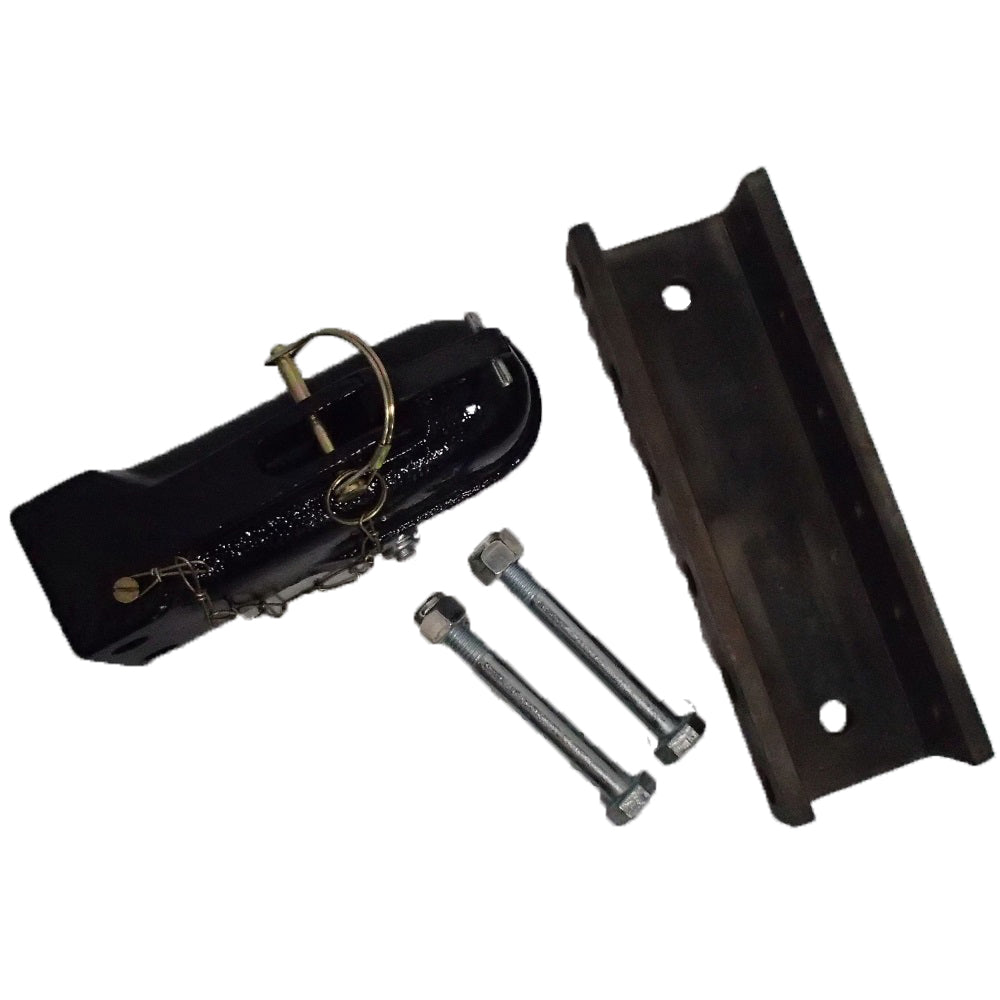

This heavy-duty Bulldog cast head trailer coupler features the patented Wedge-Latch design for quick, secure hookup to a 2-5/16" hitch ball. The adjustable 5-position channel bracket allows hitch height to be set for level operation when pulled by a variety of tow vehicles. Designed for utility, horse/livestock, cargo, and construction trailer applications. Includes bolts and nylon lock nuts. Replaces OEM part numbers HIM30-0058 and THK280.

Specifications

• Ball Diameter: 2-5/16"
• Gross Trailer Weight (GTW) Rating: 14,000 lbs
• Latch Style: Wedge-Latch (spring latch with pin)
• Positions: 5-position adjustable channel
• Channel Bracket Width: 2-7/8" wide (inside dimension)
• Mounting Hole Spacing: 2" O.C.
• Bracket Style: 3" standard channel (included)
• Hardware: Includes mounting bolts and nylon lock nuts
• Finish: Black powder coat
• Bulldog OEM Part Number: A2565C0317

Compatible Applications

Universal Fitment: Fits all trailers with a standard 3" wide adjustable channel tongue. Suitable for utility trailers, horse and livestock trailers, cargo trailers, construction trailers, agricultural trailers, and recreational trailers requiring a 2-5/16" ball coupler rated at 14,000 lbs GTW.

Replaces Part Number(s):

HIM30-0058, THK280

Aftermarket Interchange Numbers

TLU29-0001, A2565C0317, BDA2565C0317

New aftermarket replacement part - not remanufactured, not used.
