Carburetor Fits FARMALL Fits Cub Fits Case IH Tractor 185 154 184 Replace carb
Carburetor Fits FARMALL Fits Cub Fits Case IH Tractor 185 154 184 Replace carb
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

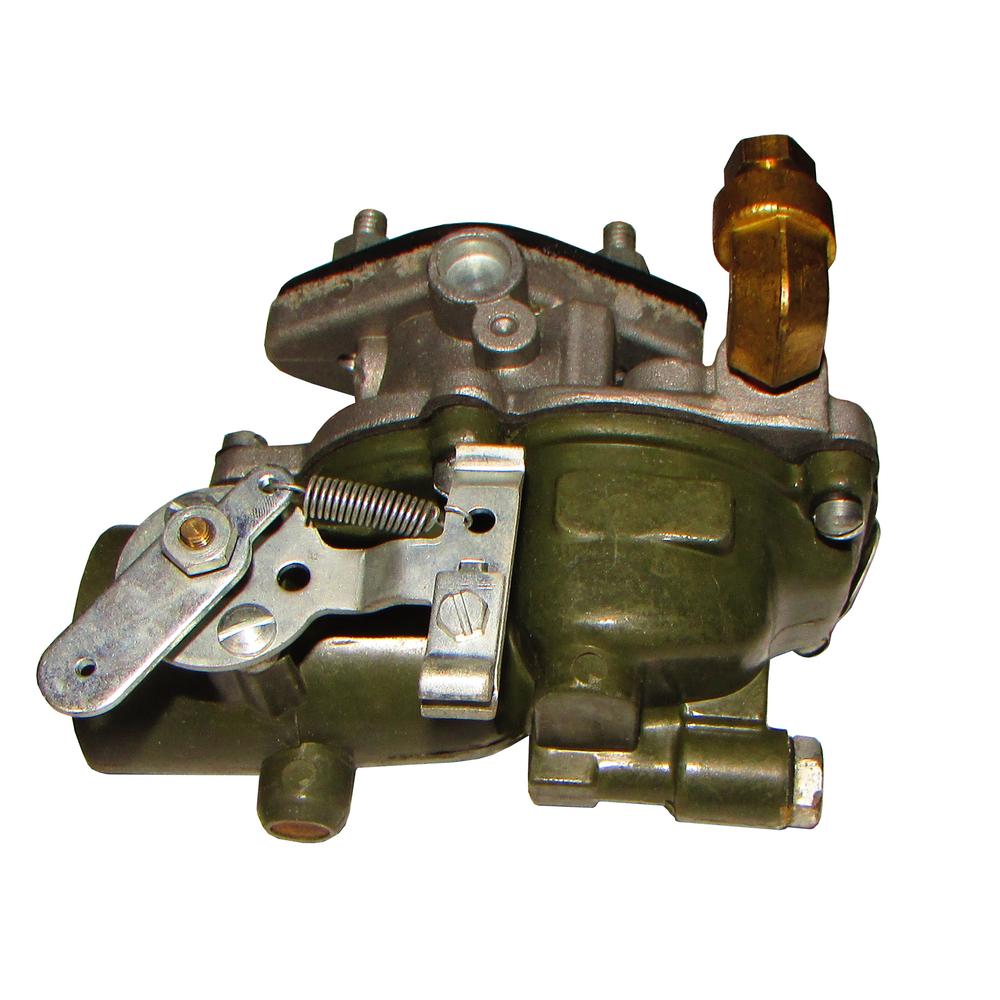

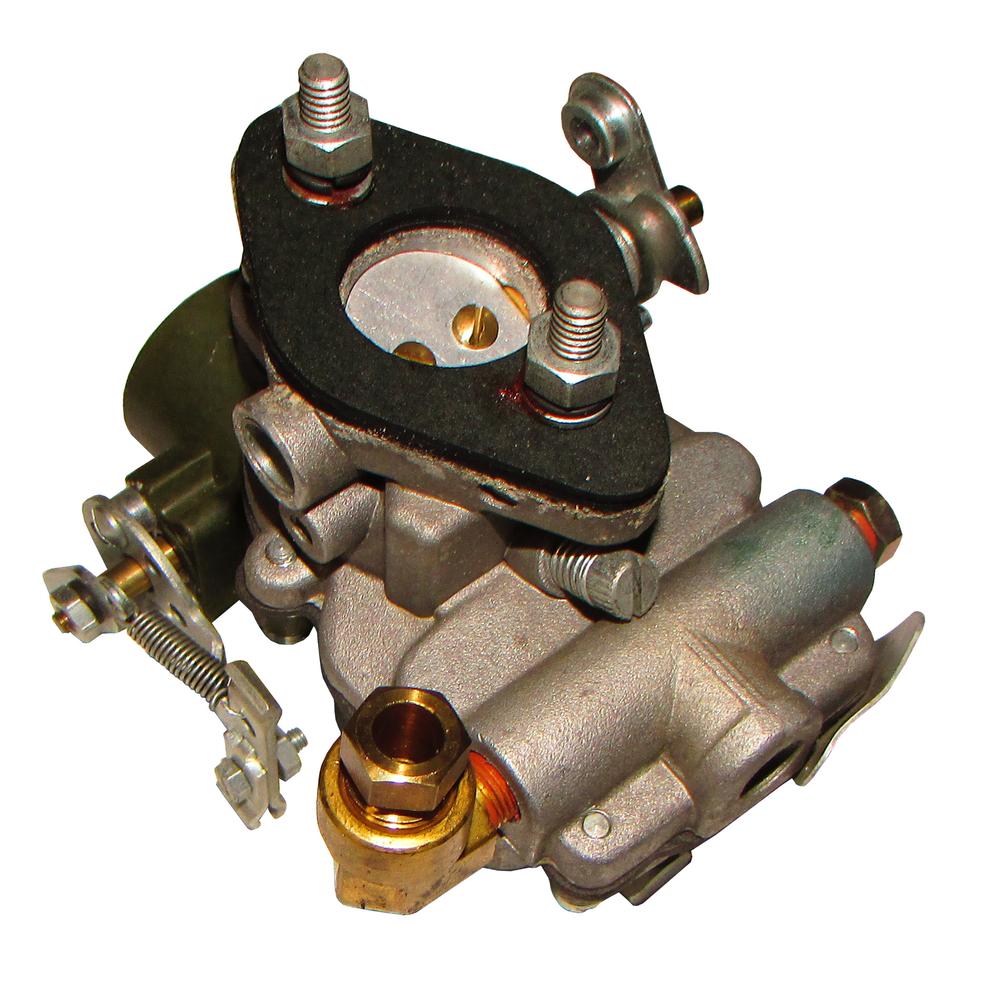

One New Aftermarket Replacement Zenith-Style Carburetor Fits IH Fits FARMALL Tractor models: Fits Cub, 154 (with Engine S/N 312390 & Up), 184, 185.
Replacement for Zenith style Carburetor 70949C92 71523C93 70949C91
Replace Fits IH Fits FARMALL Fits Cub Tractor 154 184 185 WITH ENGINE SERIAL NUMBER 312390 and up
Replace for Mfg #`s 13781, 13794 On older Fits Cub tractors
Choke air horn (air inlet): 1-5/8" OD
Fuel inlet: 1/8" NPT
NOTE: On older Fits Cub Tractors, you may need to use 2 carb gaskets to clear the butterfly. This is a New Zenith replacement carburetor. The throttle bore measures 1-1/64". The carb mounting studs measure 1-13/16" center to center. The choke air horn (air inlet) measures 1-5/8" OD. The fuel inlet measures 1/8" NPT. The carb mounting flange gasket is included.
FITS THE LISTED ZENITH STYLE CARB ONLY.
Replaces Part Number(s): 70949C92, 71523C93,
Replacement for Zenith style Carburetor 70949C92 71523C93 70949C91
Replace Fits IH Fits FARMALL Fits Cub Tractor 154 184 185 WITH ENGINE SERIAL NUMBER 312390 and up
Replace for Mfg #`s 13781, 13794 On older Fits Cub tractors
Choke air horn (air inlet): 1-5/8" OD
Fuel inlet: 1/8" NPT
NOTE: On older Fits Cub Tractors, you may need to use 2 carb gaskets to clear the butterfly. This is a New Zenith replacement carburetor. The throttle bore measures 1-1/64". The carb mounting studs measure 1-13/16" center to center. The choke air horn (air inlet) measures 1-5/8" OD. The fuel inlet measures 1/8" NPT. The carb mounting flange gasket is included.
FITS THE LISTED ZENITH STYLE CARB ONLY.
Replaces Part Number(s): 70949C92, 71523C93,
Models This Part Fits:
Cub, 185, 154, 184Additional Information:
Type: Zenith The Throttle Bore Measures 1-1/64" The Carb Mounting Studs Measure 1-13/16" Center to Center The Choke Air Horn (Air Inlet) Measures 1-5/8" O.D. The Fuel Inlet Measures 1/8" NPT CarburetorReference Numbers:
13781, 13794, 251234R94, 405004R91, 63349C91, 364579R91, 70949C91, 70949C92, 71523C92, 71523C93, 71523C91, 364579R91, 70949C92, 71523C93, 70949C91Makes This Part Fits:
