Clutch Slider Disc & Clutch Kit Fits John Deere A AO AR D G 60 620 630 70 720
Clutch Slider Disc & Clutch Kit Fits John Deere A AO AR D G 60 620 630 70 720
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement Clutch Slider Disc and Clutch Kit
Fits John Deere Tractor Models:
A (SN: 648000 & up. 1 used per tractor), [ AO, AR (SN: 273080 & up. 1 used per tractor) ], D (SN: 109944 & up. 1 used per tractor), [ G, 60, 620, 630 (1 used per tractor) ], [ 70, 720, 730 (2 used per tractor) ]

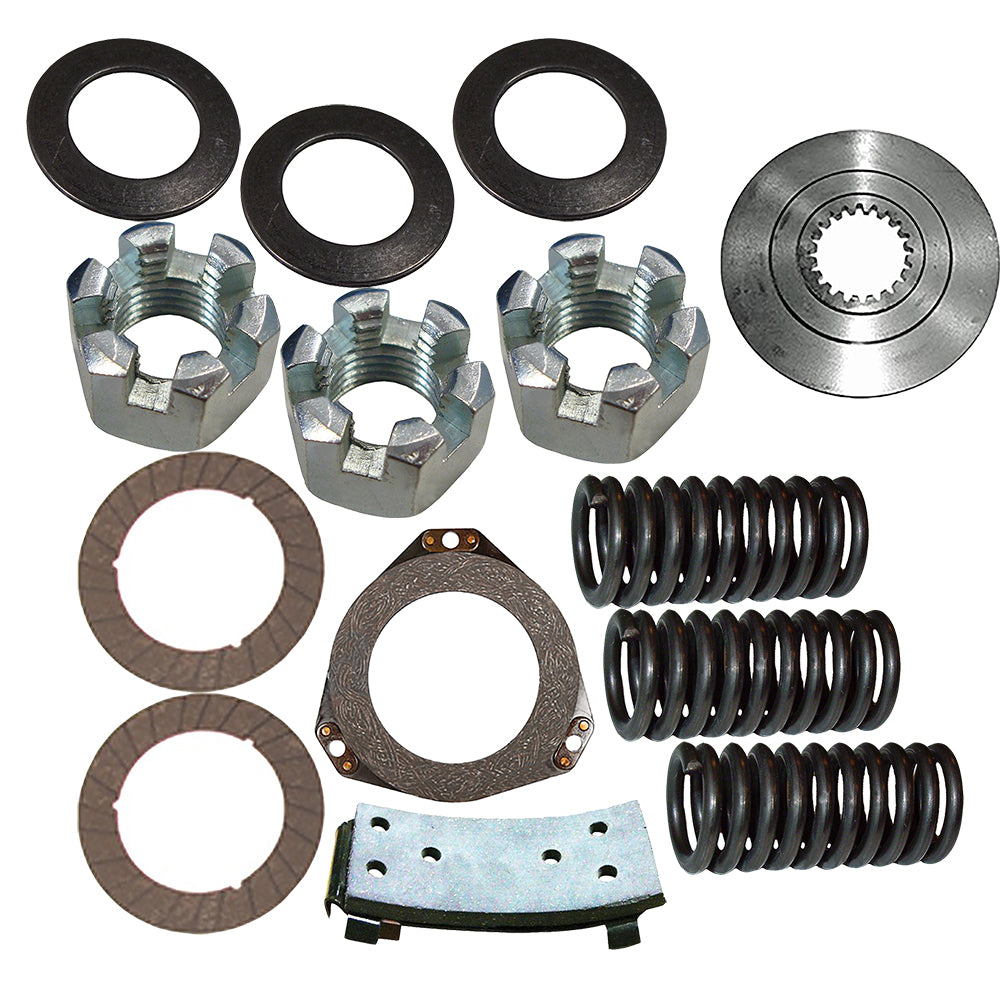

Kit Includes:

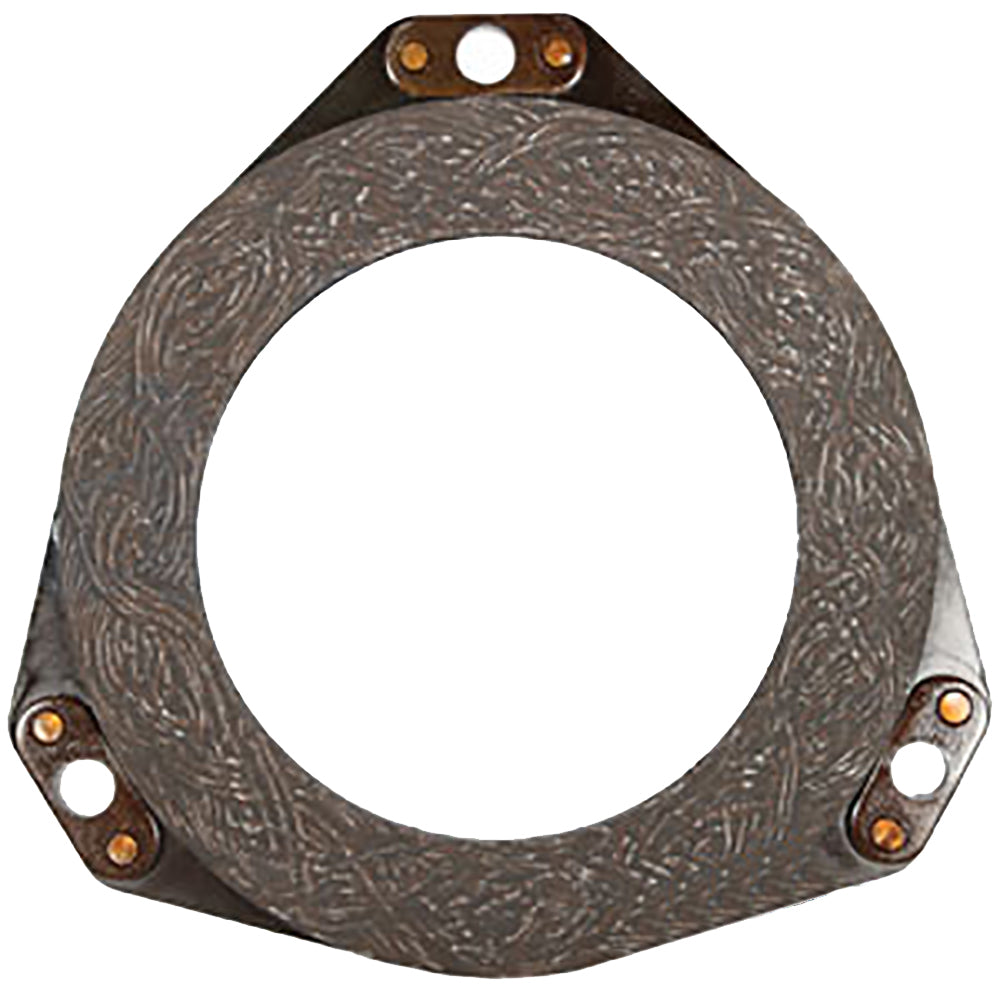

(1) Pulley Clutch Discs w/Bonded Lining (AA6129R)

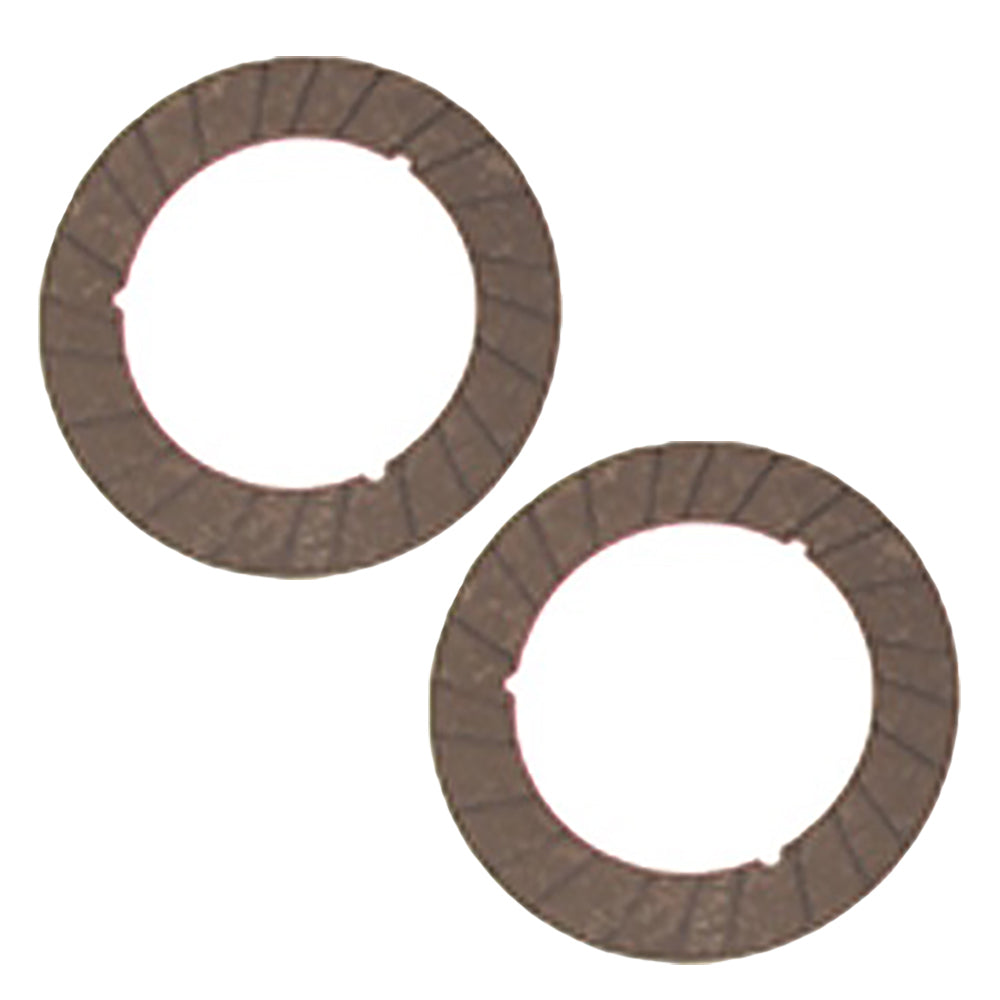

(2) Floating Clutch Facing Discs (C614R)

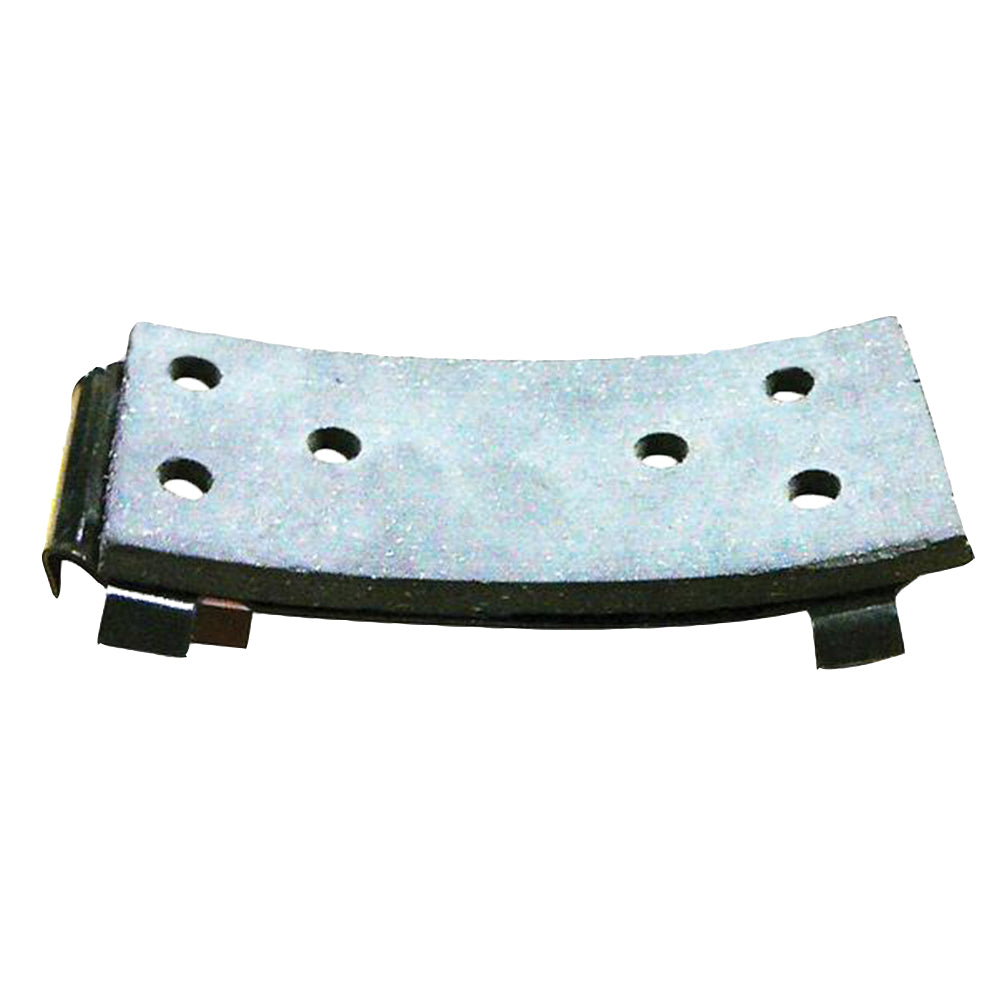

(1) Belt Pulley Brake Pad Lining (RE29790)

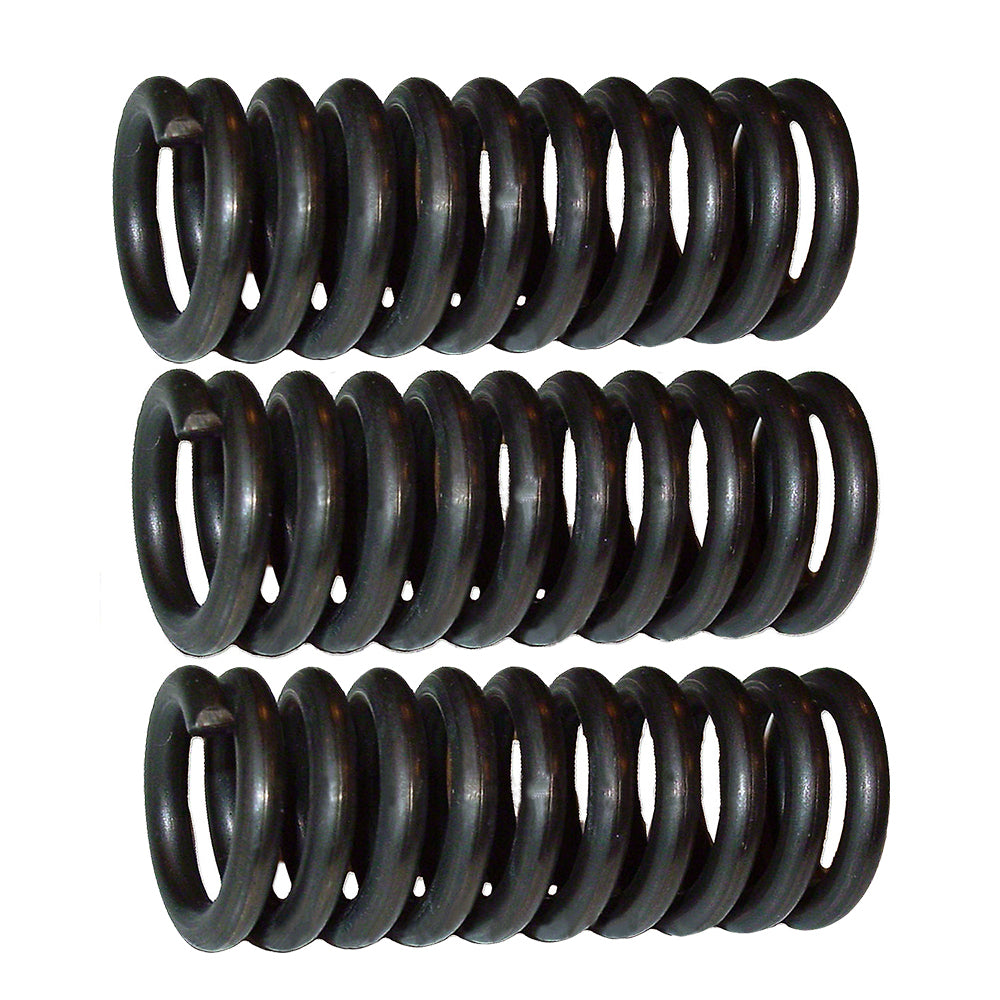

(3) Clutch Disc Adjusting Springs (A352R)

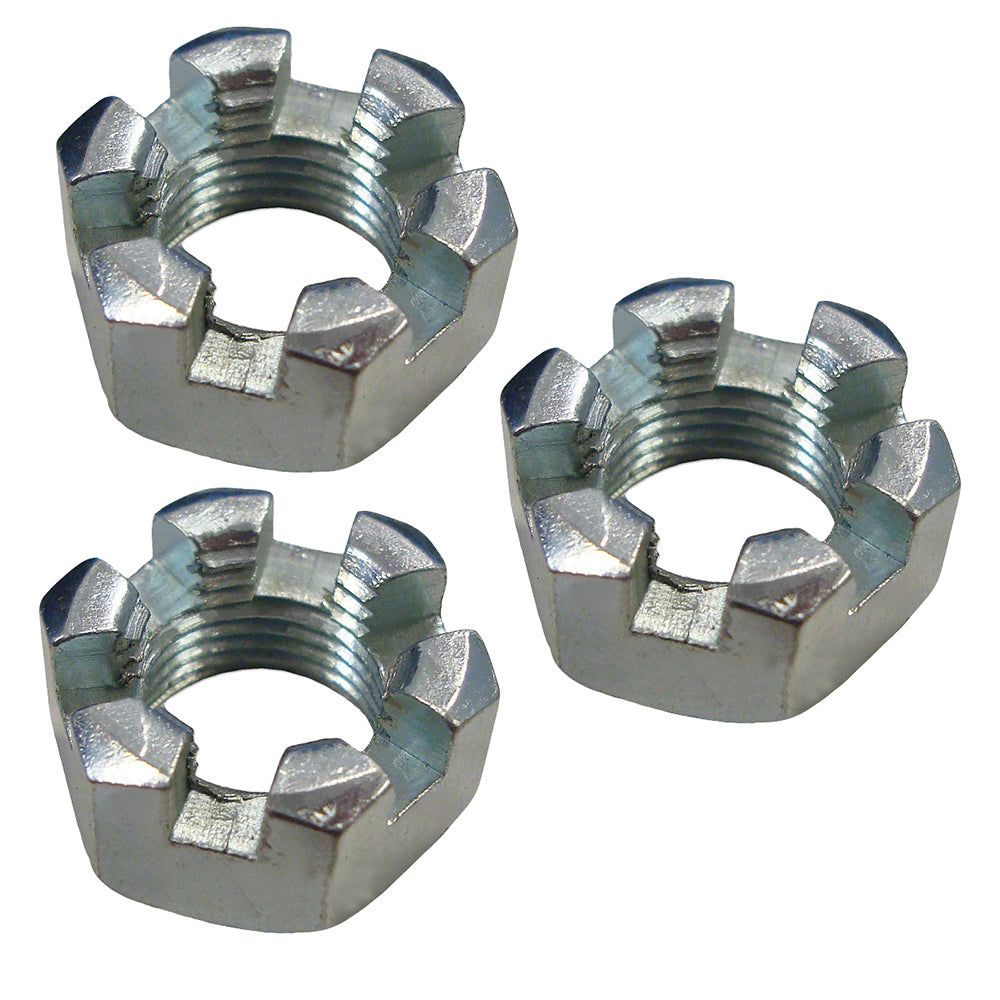

(3) Clutch Adjusting Nuts (14H862)

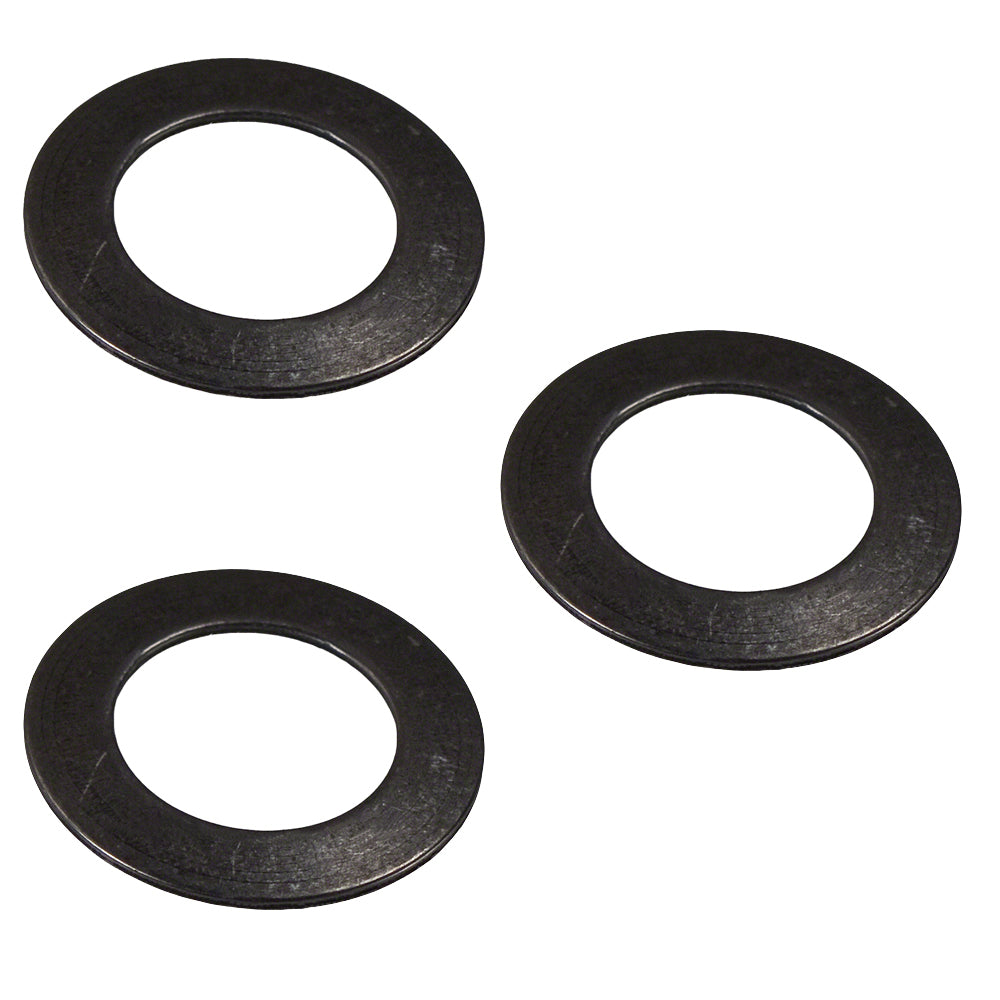

(3) Clutch Pressure Plate Spring (Fits Belleville) Washers (Fits JDS1626)

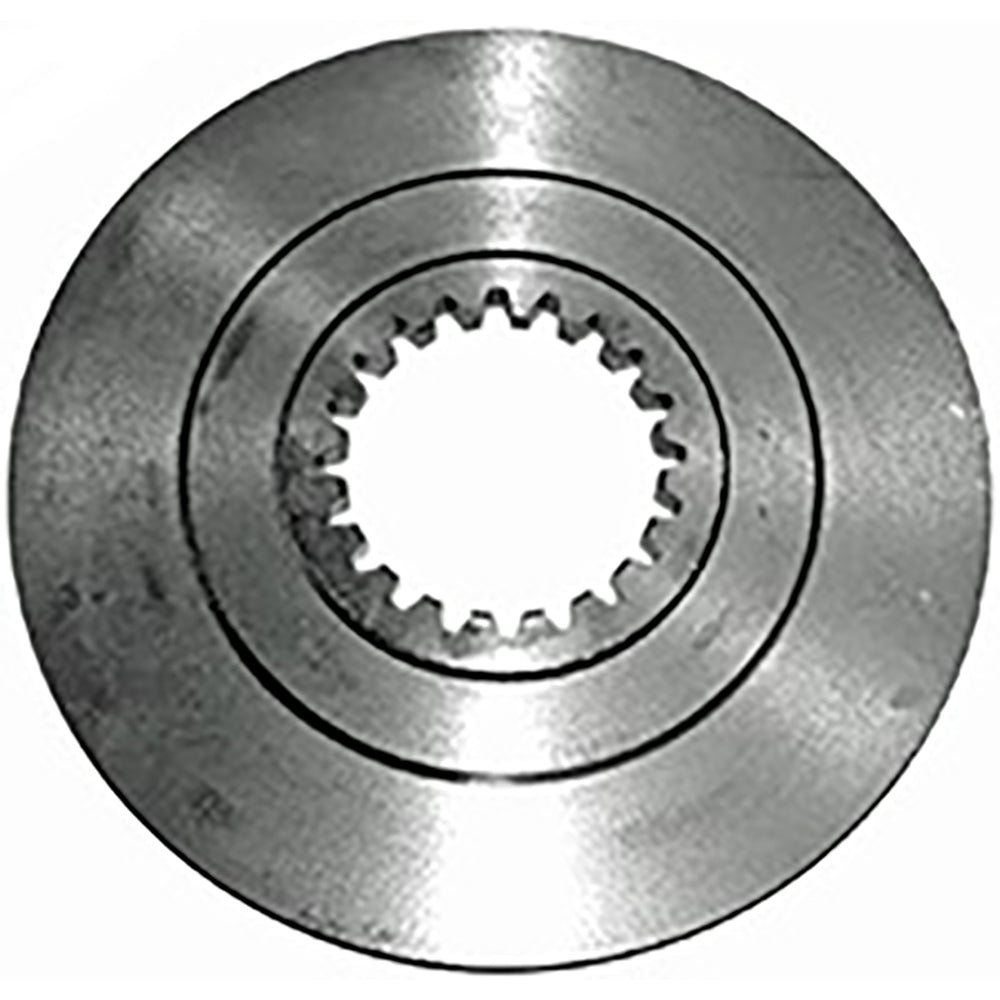

(1) Clutch Slider Disc (A4355R)
Interchangeable with MPNs:
AA6129R, C614R, RE29790, A352R, 14H862, Fits JDS1626
Fits John Deere Tractor Models:
A (SN: 648000 & up. 1 used per tractor), [ AO, AR (SN: 273080 & up. 1 used per tractor) ], D (SN: 109944 & up. 1 used per tractor), [ G, 60, 620, 630 (1 used per tractor) ], [ 70, 720, 730 (2 used per tractor) ]
Kit Includes:
(1) Pulley Clutch Discs w/Bonded Lining (AA6129R)
(2) Floating Clutch Facing Discs (C614R)
(1) Belt Pulley Brake Pad Lining (RE29790)
(3) Clutch Disc Adjusting Springs (A352R)
(3) Clutch Adjusting Nuts (14H862)
(3) Clutch Pressure Plate Spring (Fits Belleville) Washers (Fits JDS1626)
(1) Clutch Slider Disc (A4355R)
Interchangeable with MPNs:
AA6129R, C614R, RE29790, A352R, 14H862, Fits JDS1626
Models This Part Fits:
60, 620, 630Additional Information:
(1) Facing Clutch Pulley 10" disc outside diameter 0.393" thick Replaces Part Numbers: AA5082R, AA6129 (2) Facing Clutch Disc 10" outside diameter 6-3/4" inside diameter 0.150" thick The side with the grooves faces the driving disc 1-5/8" lining width Replaces Part Numbers: R90215, C614R (1) Brake Pad Pulley Non-asbestos lining with countersunk brass rivets Replaces Part Numbers: AB4748R, AF4748R, RE29790 (3) Clutch Disc Adjusting Spring 1.915" long 0.740" outside diameter 0.500" inside diameter 0.120" wire thickness The clutch disc adjusting spring mounts to the outer cast iron adjusting disc 3 springs used per tractor Replaces Part Numbers: A352R (3) Clutch Adjusting Nut 9/16" - 18 NF Grade 5 Slotted hex nut, 9/16" 3 used per tractor Replaces Part Numbers: 14H862, AD2850R, D2789R, R20228 (3) Clutch Pressure Plate Spring (Belleville) Washer 0.572" inside diameter 0.937" outside diameter 0.035" thick Spring steel Torque initially to 15 FT pounds, then adjust as needed Use to smooth out the hand clutch engagement 3 used per tractor Replaces part Numbers: JDS1626 (1) Clutch Slider Disc 9.910" outside diameter 0.247" thick 20 splines 3-5/8" spline inside diameter Replaces Part Numbers: AF1247RReference Numbers:
AA5082R, AA6129, R90215, C614R, AB4748R, AF4748R, RE29790, A352R, 14H862, R20228, D2789R, AD2850R, JDS1626, AF1247RMakes This Part Fits:
