One New Aftermarket Replacement Bearing Cone Fits Case IH, Fits New Holland, Fits Ford, and Fits International Harvester Agricultural Equipment

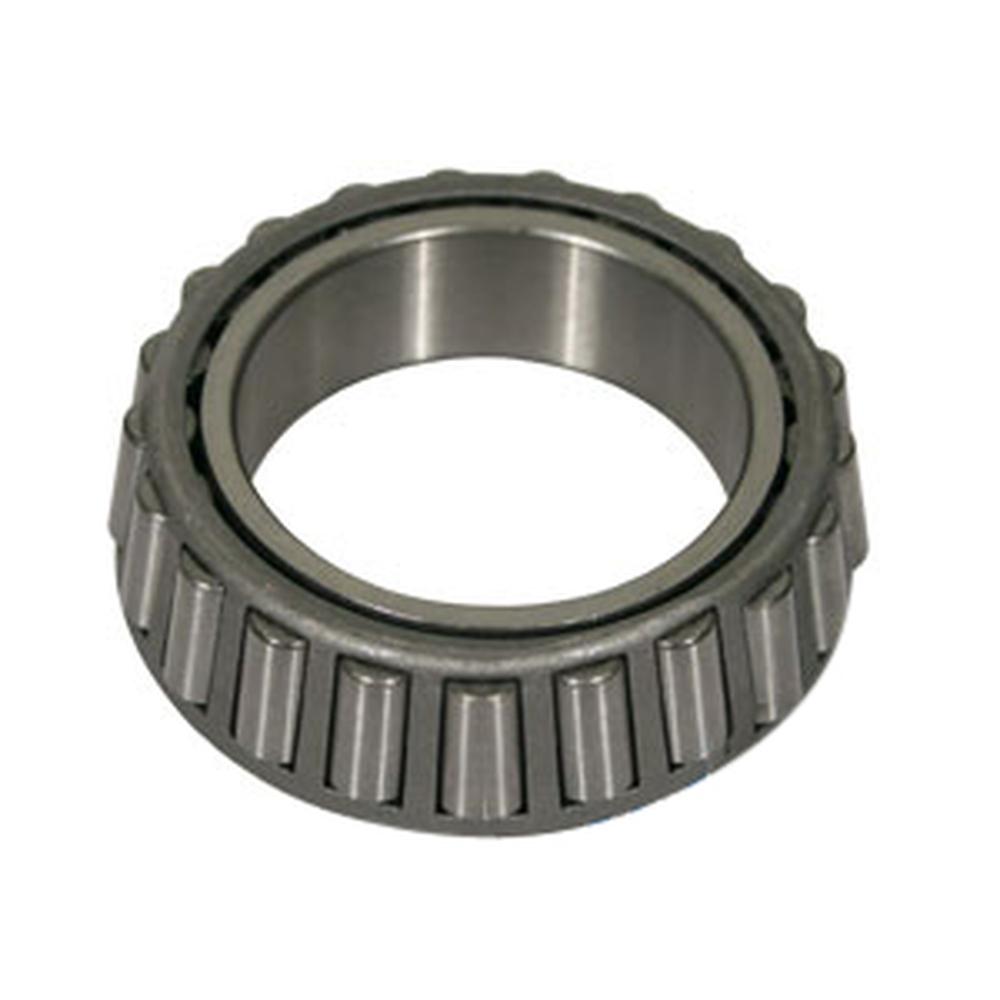

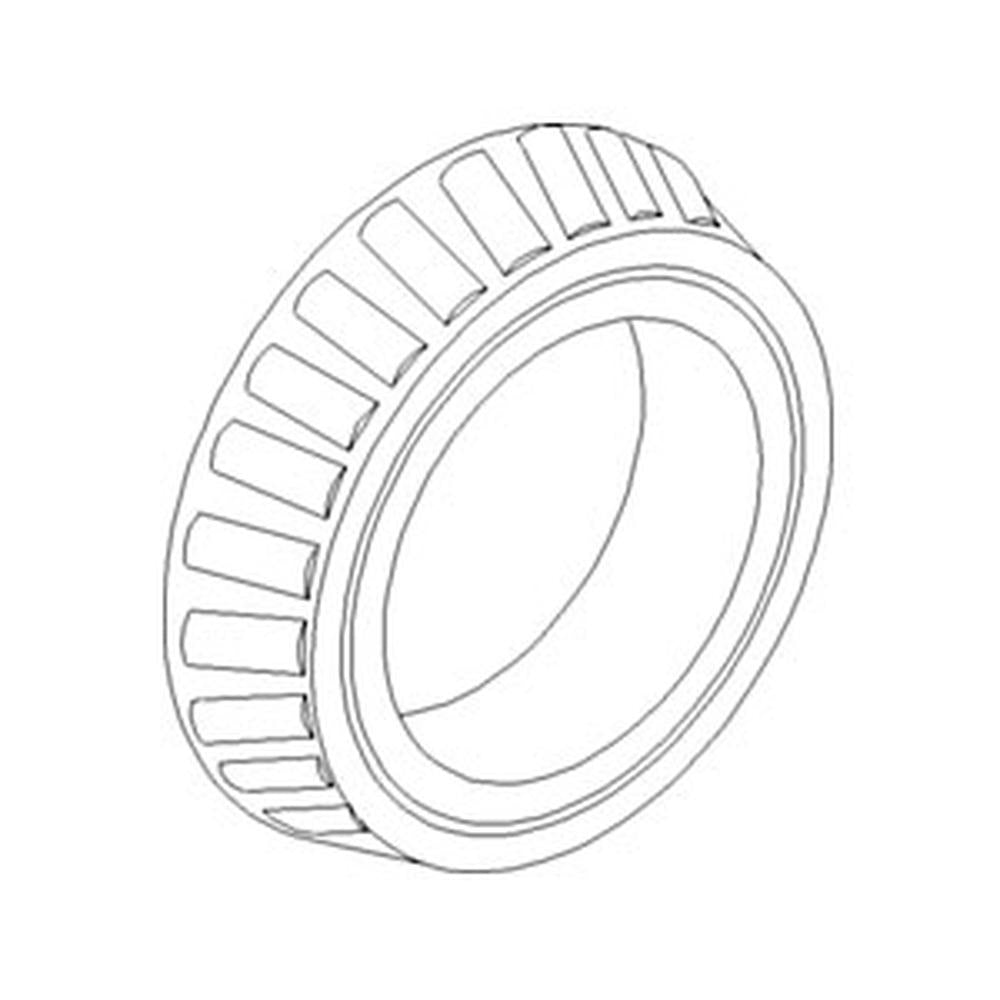

This tapered roller bearing cone (inner ring assembly) is a widely used replacement part for hub and spindle assemblies on Fits Case IH (Fits Case/International Harvester), Fits New Holland, and Fits Ford agricultural equipment including combines, tractors, round balers, mower conditioners, headers, and field cultivators. The cone pairs with a matching cup (outer ring, sold separately) and is typically mounted in opposing pairs on a shaft to support both radial and axial loads.

Specifications

• Type: Tapered Roller Bearing Cone (single cone)
• Inner Diameter (ID): 50 mm (1.9685 in)
• Outer Diameter (OD): 82 mm (3.2283 in)
• Width: 21.5 mm (0.847 in)
• Cage: Stamped steel
• Bearing Number: JLM104948 (cone); mates with cup JLM104910

Compatible Models

Fits Case IH Combines: 1466, 1468, 1640, 1660, 2166, 2366

Fits Case IH Hay and Harvest Equipment: 3152, 3162 (Draper Headers), DC132, DC132F, DC133, DC162, DC162F, DC163, DCX131, DCX131F, DCX161, SC101, SCX100, WD1203, WD1204, WD1504, WD1903, WD1904, WD2104, WD2303, WD2304, WD2504, RB455, RB465, RB565 (Round Balers), TIGERMATE II (Field Cultivator)

Fits Ford/New Holland Tractors and Combines: 1043, 1044, 1054, 1063, 1064, 1066, 1083, 1084, 2206, 2208, 2212, 230A, 2310, 234, 2610, 2610V, 2810, 2910, 2955, 3055, 3255, 334, 335, 3610, 3610No, 3610V, 3910, 3910H, 3910N, 3910V, 4040, 4050, 4055, 4110, 4110N, 4110No, 4110O, 4110V, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4555, 4560, 4610N, 4610No, 4610O, 5110, 5610, 5900, 6610, 6610O, 6710, 6810, 7210, 7405, 7410, 7500, 7600, 7610, 7700, 7710, 7800, 7810, 7810O, 7910, 8000, 8200, 8210, 8400, 8530, 8600, 8630, 8700, 8730, 8830, 9000, 9200, 9600, 9700, 966

Fits New Holland Construction: Refer to CNH parts catalog for applicable construction equipment models.

Replaces Part Number(s):

199954, 70927269, 0927269, 144076C91, 1957731C1, 533729R91, 591797C91, R32217, 9S3582

Aftermarket Interchange Numbers

JLM104948 (Timken/standard bearing number); AGCO X14867; 80199954; mates with cup JLM104910

New aftermarket replacement part - not remanufactured, not used.
