Complete Tune Up Kit Fits Case/International Harvester Replaces 0201-4656B
Complete Tune Up Kit Fits Case/International Harvester Replaces 0201-4656B
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Complete Tune Up KitTech Info:

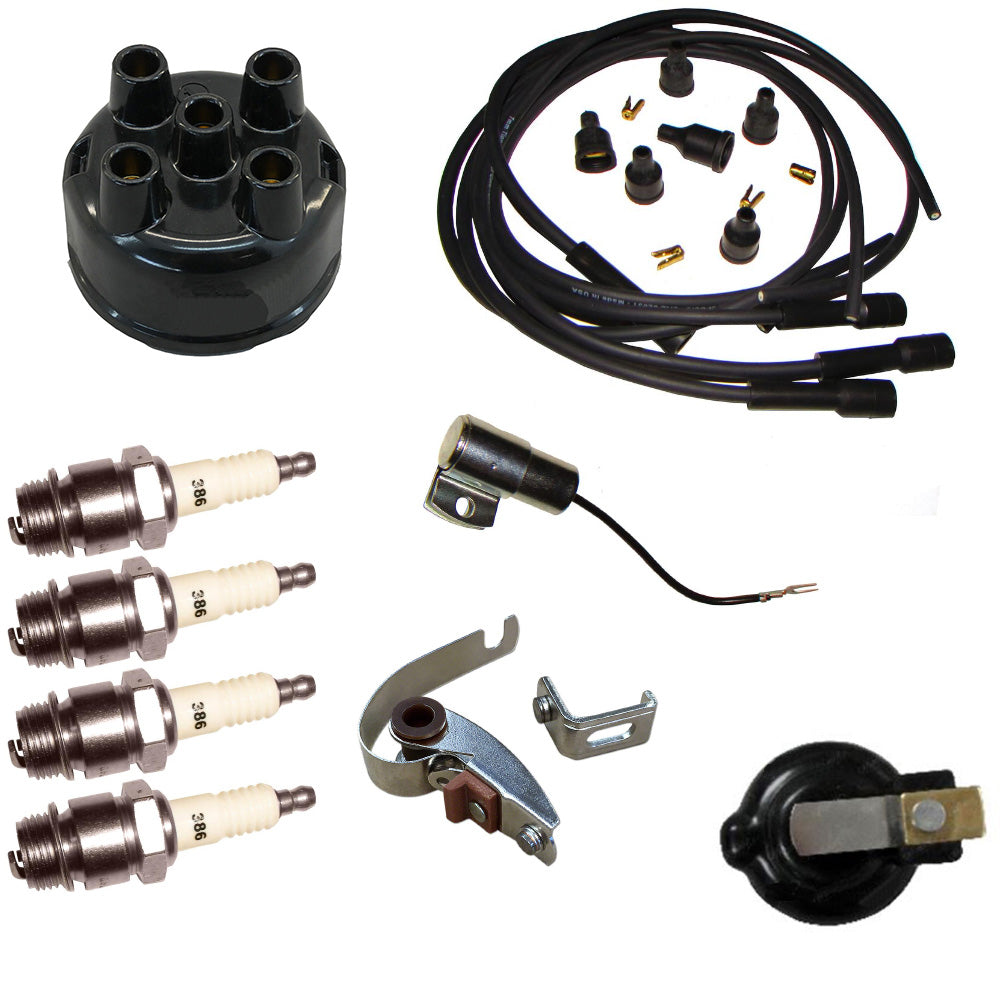

-Kit Contains:
-(1) Distributor Cap
-Clip Style Cap
-
-Replaces Part Number(s):
-0201-4656B, 21A461, 351693R1, 351693R92
-
-(1) Spark Plug Wire Set - (Non-tailored Straight Boot)
-4 Cylinder
-
-(1) Ignition Condenser
-Fits 1951-62 Distributors.
-Also Fits J4 Magneto
-
-Replaces Part Number(s):
-251539R91, 353903R91, 353903R92, 353905R1, 354136R92
-
-(4) Spark Plugs
-Standard Info
-Thread Size: 18mm
-7/8" Hex Shoulder
-Hex Size: 13/16" (20.6mm)
-Reach: 12mm (.472")
-Seat Type: Gasket
-Gap: .028" (0.7mm)
-Heat Range: 2
-Terminal Type: Removable Nut
-Resistor: No
-Thread Pitch: 1.5mm
-Center Electrode
-Type: Standard
-Material: Nickel
-Size: 2.5mm
-Projection: Non-Projected
-Ground Electrode
-Type: Standard
-Material: Nickel
-
-Replaces Part Number(s):
-G44840, 4012405C
-
-(1) Rotor
-
-Replaces Part Number:
-353896R91
-
-(1) Magneto Point Set
-Point Gap = 0.013"
-
-Replaces Part Number(s):
-353172R91, 407018R91Made to Fits Case/International Harvester:
Tractor Models: A, I4, AV, Super A, B, BN, C, Super C, 154, 184, 185, H, HV, Super H, Super HV, I9, ID9, M, MD, Super M, Super MD, MDV, MTA, MV, O4, O6, ODS6, Super W4, W4, Super W6, W6, W6TA, W9, WD6, WD9, WDR9, WR9, 100, 130, 140, 200, 230, 240, 300, 330, 340, 350, 400, 404, 424, 444, 450, 600, 650
Replaces Part Number(s): 353896R91, G44840, 4012405C, 351692R91, 251539R91, 353903R91, 353903R92, 353905R1, 354136R92, 0201-4656B, 21A461, 351693R1, 351693R92, 353172R91, 407018R91
-Kit Contains:
-(1) Distributor Cap
-Clip Style Cap
-
-Replaces Part Number(s):
-0201-4656B, 21A461, 351693R1, 351693R92
-
-(1) Spark Plug Wire Set - (Non-tailored Straight Boot)
-4 Cylinder
-
-(1) Ignition Condenser
-Fits 1951-62 Distributors.
-Also Fits J4 Magneto
-
-Replaces Part Number(s):
-251539R91, 353903R91, 353903R92, 353905R1, 354136R92
-
-(4) Spark Plugs
-Standard Info
-Thread Size: 18mm
-7/8" Hex Shoulder
-Hex Size: 13/16" (20.6mm)
-Reach: 12mm (.472")
-Seat Type: Gasket
-Gap: .028" (0.7mm)
-Heat Range: 2
-Terminal Type: Removable Nut
-Resistor: No
-Thread Pitch: 1.5mm
-Center Electrode
-Type: Standard
-Material: Nickel
-Size: 2.5mm
-Projection: Non-Projected
-Ground Electrode
-Type: Standard
-Material: Nickel
-
-Replaces Part Number(s):
-G44840, 4012405C
-
-(1) Rotor
-
-Replaces Part Number:
-353896R91
-
-(1) Magneto Point Set
-Point Gap = 0.013"
-
-Replaces Part Number(s):
-353172R91, 407018R91Made to Fits Case/International Harvester:
Tractor Models: A, I4, AV, Super A, B, BN, C, Super C, 154, 184, 185, H, HV, Super H, Super HV, I9, ID9, M, MD, Super M, Super MD, MDV, MTA, MV, O4, O6, ODS6, Super W4, W4, Super W6, W6, W6TA, W9, WD6, WD9, WDR9, WR9, 100, 130, 140, 200, 230, 240, 300, 330, 340, 350, 400, 404, 424, 444, 450, 600, 650
Replaces Part Number(s): 353896R91, G44840, 4012405C, 351692R91, 251539R91, 353903R91, 353903R92, 353905R1, 354136R92, 0201-4656B, 21A461, 351693R1, 351693R92, 353172R91, 407018R91
Models This Part Fits:
185, Super A, HV, 330, Super W4, I4, 230, 240, A, O6, AV, ODS6, 450, W4, 600, 130, MTA, 650, I9, 200, WR9, 154, MD, WD9, 424, MDV, W6, B, WD6, 350, BN, WDR9, C, Super C, Super HV, MV, Super W6, W9, O4, Super MD, W6TA, ID9, Super H, 300, M, 404, Super M, 400, 444, 140, 100, 340, H, 184Additional Information:
Kit Contains: (1) Distributor Cap Clip Style Cap Replaces Part Number(s): 0201-4656B, 21A461, 351693R1, 351693R92 (1) Spark Plug Wire Set - (Non-tailored Straight Boot) 4 Cylinder (1) Ignition Condenser Fits 1951-62 Distributors. Also Fits J4 Magneto Replaces Part Number(s): 251539R91, 353903R91, 353903R92, 353905R1, 354136R92 (4) Spark Plugs Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Rotor Replaces Part Number: 353896R91 (1) Magneto Point Set Point Gap = 0.013" Replaces Part Number(s): 353172R91, 407018R91Reference Numbers:
353896R91, G44840, 4012405C, 351692R91, 251539R91, 353903R91, 353903R92, 353905R1, 354136R92, 0201-4656B, 21A461, 351693R1, 351693R92, 353172R91, 407018R91Makes This Part Fits:
