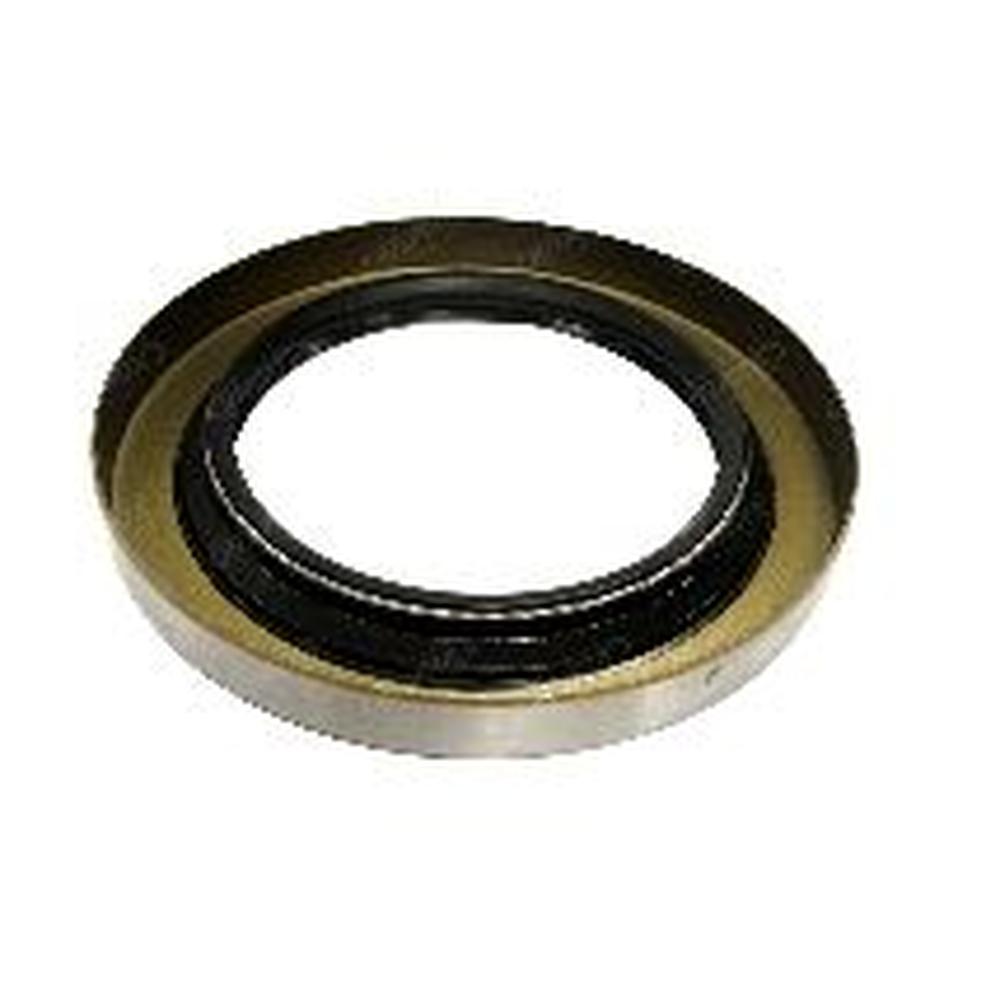

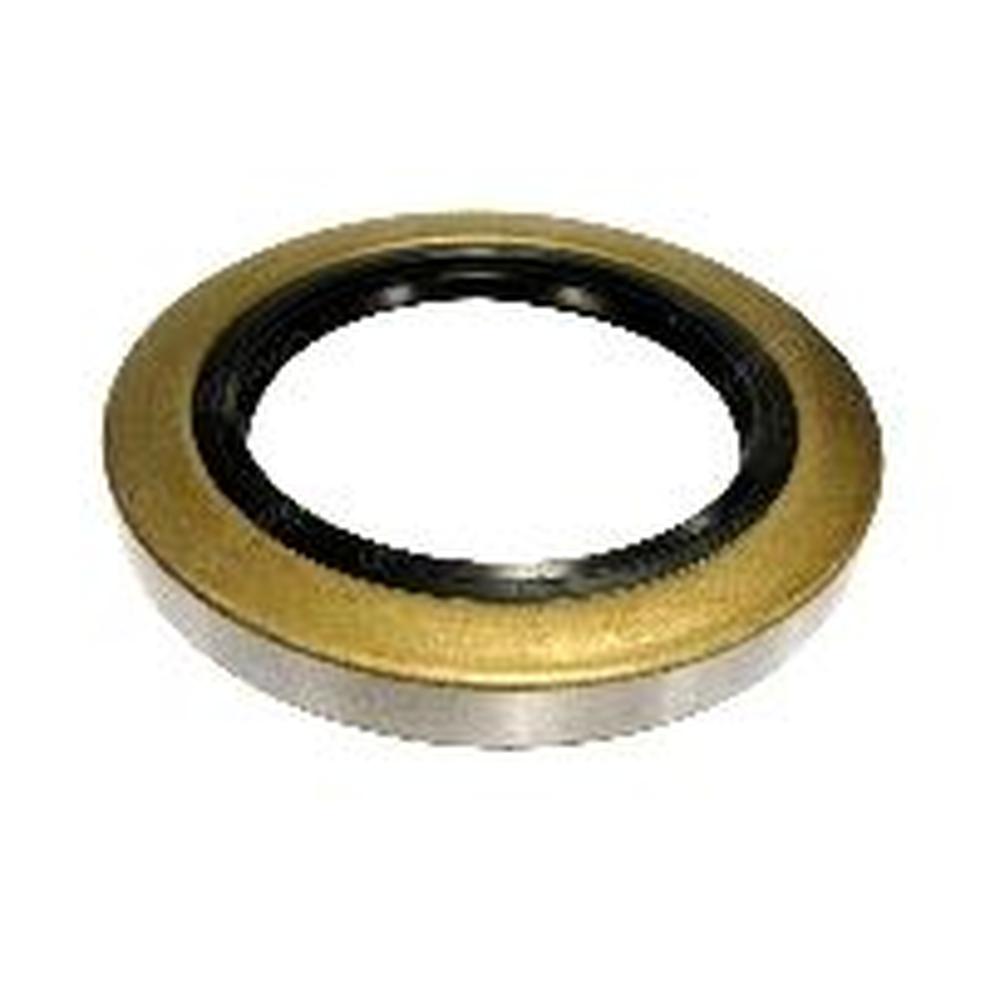

One New Aftermarket Replacement Oil Seal (SKF/CR 22532) for Agricultural and Industrial Applications

This rotary shaft oil seal prevents lubricant leakage and keeps contaminants such as dirt, dust, and moisture away from wheel end, gearbox, and drivetrain components. It is a direct replacement for SKF/CR part number 22532, a widely used seal in agricultural equipment, wheel ends, gearboxes, transmissions, and pumps. The seal features a nitrile rubber (NBR) lip and a metal outer Fits Case for a firm, accurate press fit in the housing bore.

Specifications

• Inside Diameter (Shaft): 2.250 in (57.15 mm)
• Outside Diameter: 3.371-3.376 in (approx. 85.75 mm)
• Width: 0.375-0.438 in (9.53-11.1 mm)
• Lip Material: Nitrile Rubber (NBR)
• Fits Case: Metal
• Seal Type: Rotary shaft / radial shaft seal
• Design: CRWHA1

Compatible Applications

Multi-Brand Agricultural and Industrial: Fits wheel end, gearbox, transmission, pump, and drivetrain applications requiring a 2.250 in shaft / 3.371-3.376 in OD oil seal. Verified interchange includes Fits John Deere (AT36255), Fits Case IH (D53767), and National Seals (412920) applications. Verify fitment by confirming shaft diameter, OD, and width before ordering.

Replaces Part Number(s):

CR22532, 410132-SEAL, 410132

Aftermarket Interchange Numbers

22532, SKF 22532, National 412920, AT36255 (Fits John Deere), D53767 (Fits Case IH), 22333TC (Transcom), WHB10-0059

New aftermarket replacement part - not remanufactured, not used.
